Product video
Certifications CE

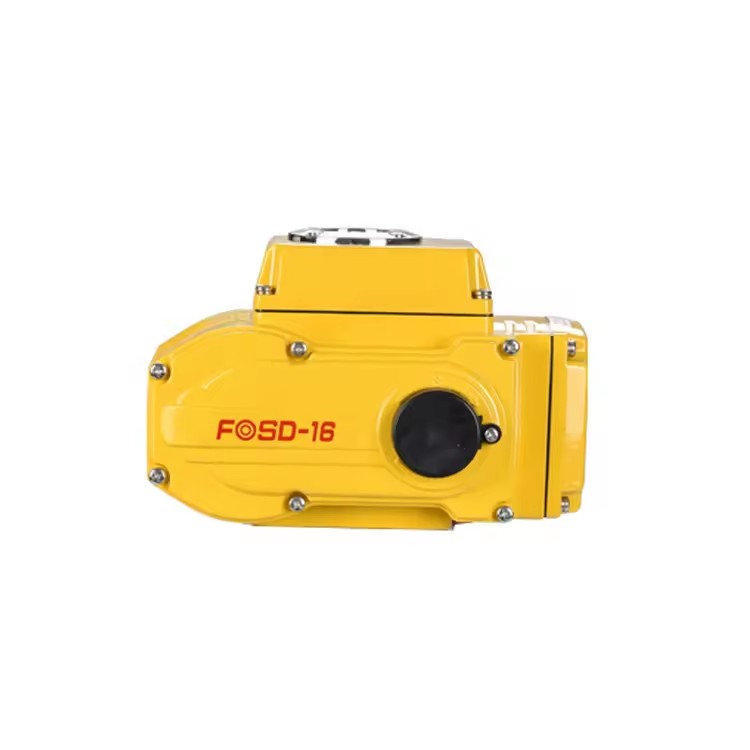

On/Off Modulating Control Valve Multi Turn Rotary Motorized Electric Electrical Actuator of 24VDC/110VAC/220VAC/380VAC

Available for enquiry 0.0 · 0 reviews
USD

$ 100.00 100.0 USD $ 100.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Media
  • Port Size
  • Temperature of media
  • Application
  • Power
  • Structure
  • Customized support
  • Warranty
  • Place of origin
  • Model number (Specification)
  • Valve type
  • Color
  • Voltage
  • Body Material
  • Output Torque
  • Certificate
  • Valve actuator Operating time
  • Valve actuator Weight
  • Packing
  • Selling Units
  • Single package size
  • Single gross weight
  • Material (Product option)
  • Pressure (Product option)
  • Size (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Type
Electric Actuator
Media
Water
Port Size
DN500
Temperature of media
Normal Temperature, Low Temperature
Application
General
Power
electric
Product description
Output Torque2500Nm
Operating PressurePN1.6MPa
Control ModeElectric Actuator
Rated Travel Time100S
Rotation Angle0-90°
Motor Power120W/F
Body MaterialStainless Steel/Cast Iron
StructureButterfly Valve/Ball Valve/Gate Valve
ApplicationSuitable for oxygen-containing corrosive media such as fresh water, live water, seawater, steam, food, medicine, various oils, acids, alkalis, salts, etc

Product Features

Specification of Electric Actuator
ltems ParameterRTKD-05RTKD-10RTKD-16RTKD-30RTKD-60RTKD-125RTKD-250RTKD-400
Output Torque50Nm100Nm160Nm300Nm600Nm1250Nm2500Nm4000Nm
Rated Time5S/10S/20S15S/30S60S100S100S100S
Rotation Angle0-90°
Working Current0.25A0.48A0.68A0.8A1.2A2A2A2.7A
Starting Power0.25A0.48A0.72A0.86A1.38A2.3A2.3A3A
Motor Power10W/F25W/F30W/F40W/F90W/F100W/F120W/F140W/F
Weight3KG5KG5.5KG8KG8.5KG15KG15.5KG16KG
PowerAC220V, AC24V, AC110V,AC220,AC380, DC24V (choose options)
Input Signal4-20mA (Modulating type)
Output Signal4-20mA (Modulating type)
Insulation resistance100M/500VDC
Pressure Standing1500 VAC, one minutes
Inbreaking ProtectionIP65/IP67
Installation Angle360° any angle
Electric Interperationone G1/2 CNCO,one Power cord connection port,one signal wire connection port
Ambient Humidity30°C to +60°C
Pilot Circuit OptionsA:with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C:with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G:Three-phase current 380V control circuits style
H:Three-phase current 380V, both neutral position switch and potentiometer style
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Type
Electric Actuator
Media
Water
Port Size
DN500
Temperature of media
Normal Temperature, Low Temperature
Application
General
Power
electric
Structure
Angle
Customized support
OEM, ODM
Warranty
1 Year
Place of origin
China, Guangdong
Model number (Specification)
FOSD-250
Valve type
Butterfly Valve/Ball Valve/Gate Valve
Color
Customized Color
Voltage
AC380V, DC12V, DC24V, AC220V, AC12, AC24V, AC110V
Body Material
Ductile Iron
Output Torque
2500Nm
Certificate
ISO9001 CE
Valve actuator Operating time
100S
Valve actuator Weight
15.5 KG
Packing
Carton Box/Wooden Box/Customized Packing
Selling Units
Single item
Single package size
17.8X14.5X13.2 cm
Single gross weight
3.0 kg
Material (Product option)
Stainless Steel, Alloy
Pressure (Product option)
Medium Pressure
Size (Product option)
1/2 in, 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, 2 in, 2 1/2 in
Certifications & Compliance
CE
Lead time
7 days
