ISO 4406 NAS 1638 Portable Particle Counter for Oils

Product details

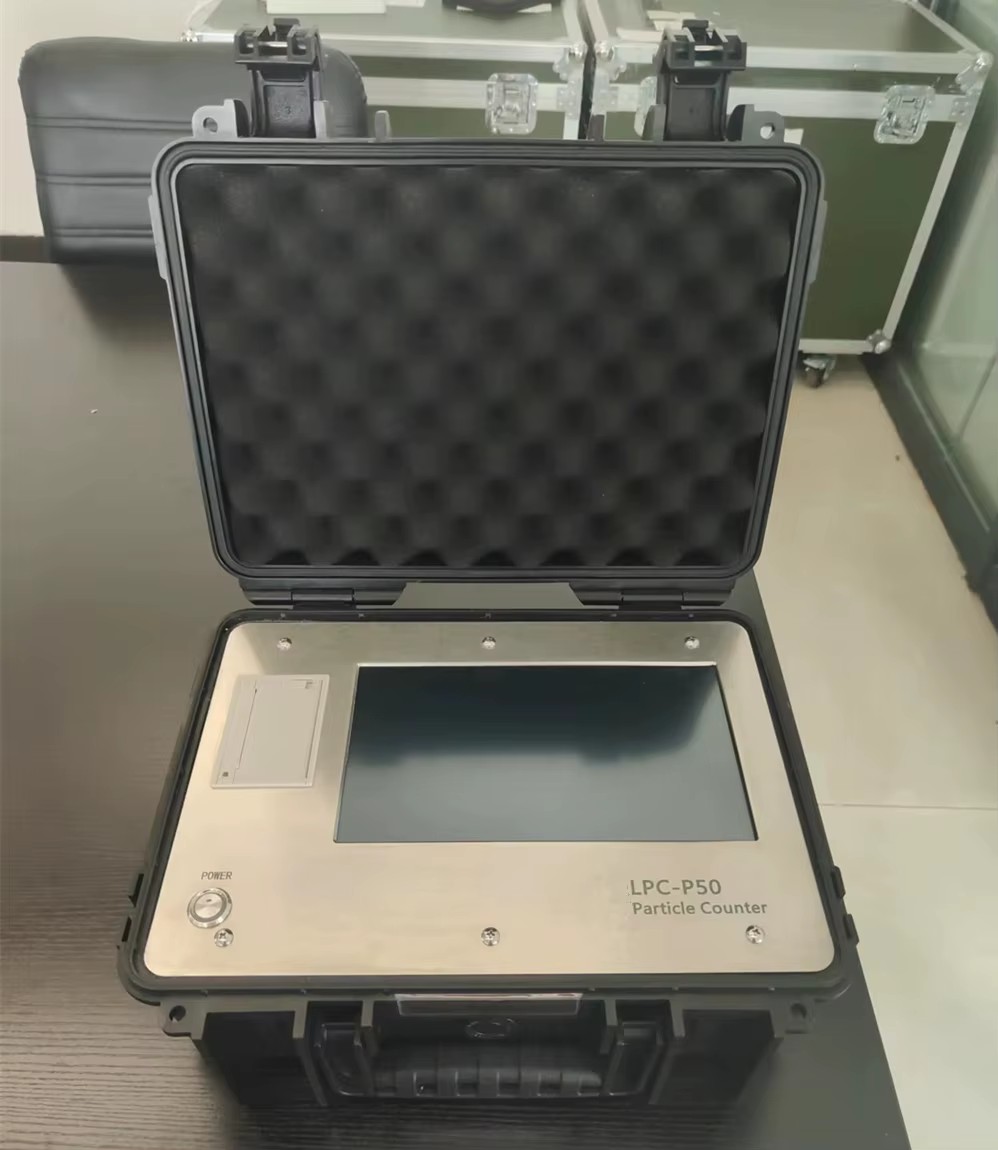

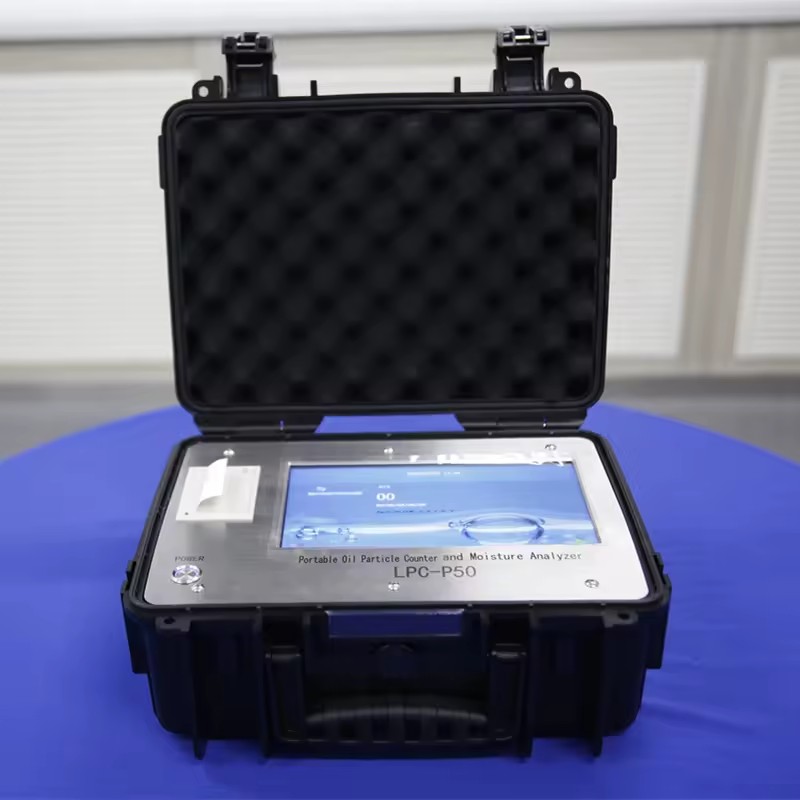

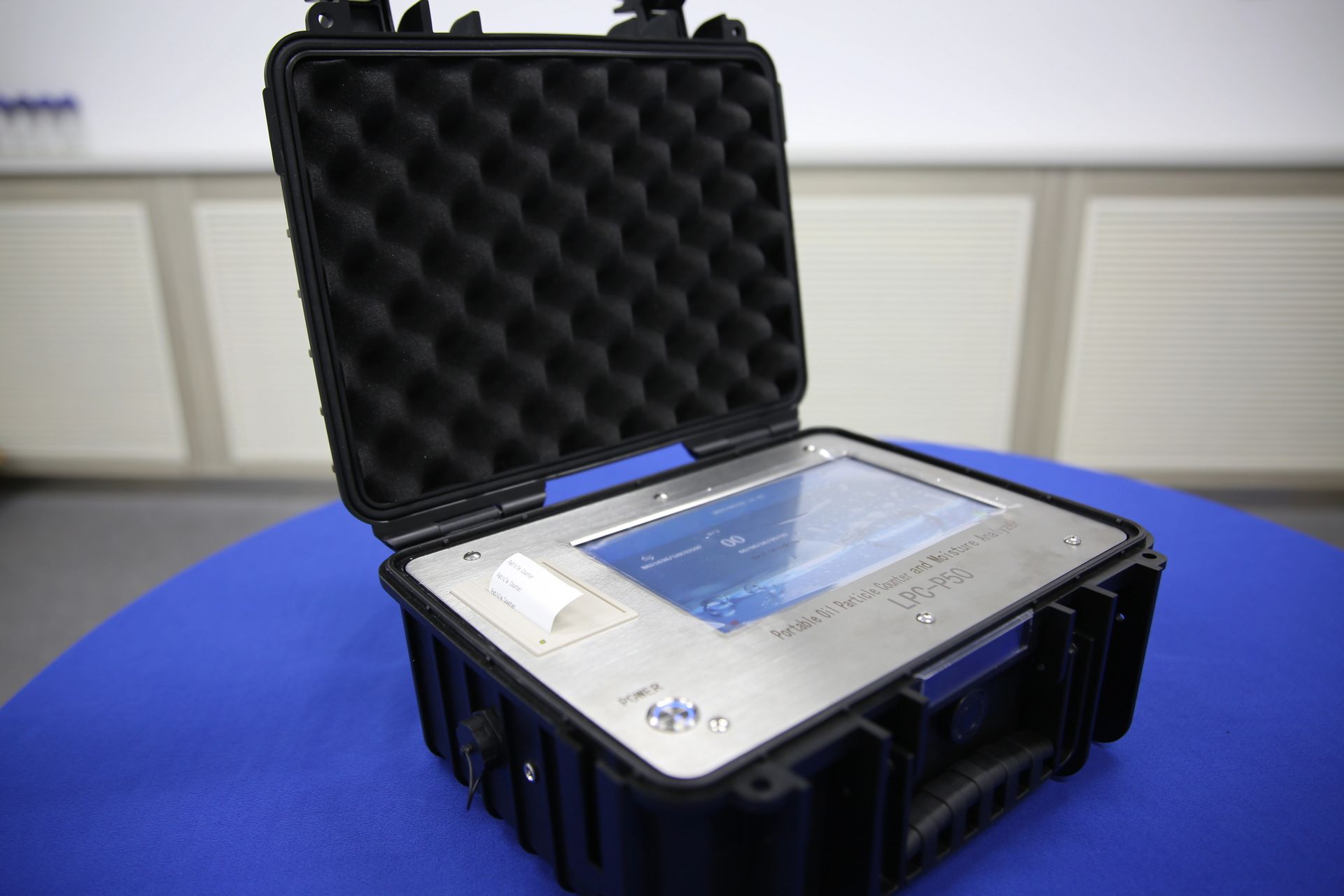

The LPC-P50 Portable Oil Particle Counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards is mainly for laboratory or on-site testing the degree of particle contamination and moisture in the oil. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure environment. It is applicable for the measurement of engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.

Technical Parameters

1. Light source:Semiconductor laser

2.Flow rate range:20-60mL/min

3.Offline testing sample viscosity:≤100cSt,(Optional pressure chamber for high viscosity)

4.on-site testing pressure:0.1-0.6Mpa (Optional pressure reducing device≤40Mpa)

5.Particle size range: 1-500μm (depending on different sensors)

terface:USB interface, power interface

7.Data storage:1000 groups and support U disk

8.Sensitivity:1μm or 4μm(c)

9.Limit coincidence error:40000 particles/mL

unting volume:1-999ml

unting accuracy: error less than ±10%

12.Protection grade: IP67

13.Test interval: 1 second-24 hours

14.Sample testing temperature: 0-80℃

15.Reference value of water activity: 0-1aw (±0.05aw)

16.Water content:0-300ppm (±10%)

17.Working temperature: -20-60℃

18.Power supply:AC 220V±10%,50/60Hz or DC12-40V

19.Weight: 18kg

20.Dimension: 300x250x137mm
