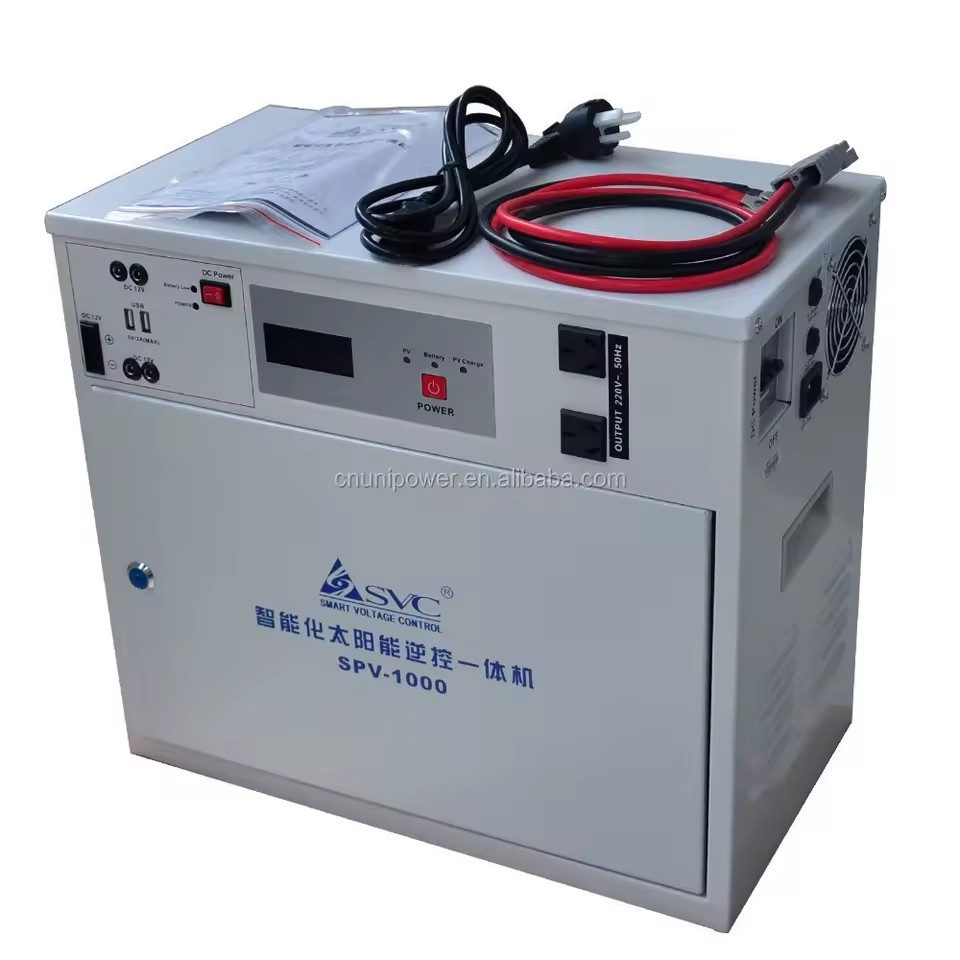

Wholesale Whole House Self Generating Power System
High quality low frequency pure sine wave inverterPWM solar controllerDC power systemField of application
off-grid solar photovoltaic system: applicable to areas without mains or with abundant solar energy
Solar hybrid photo voltaic system, which possess automatic recognition, intelligent switch over function:applicable to areas where electricity bills are expensive or environmental protection area since this system can transfer solar energy into power efficiently and save mains, like, household solar/wind power system, street lamp soar/wind power system etc.
Detail Description

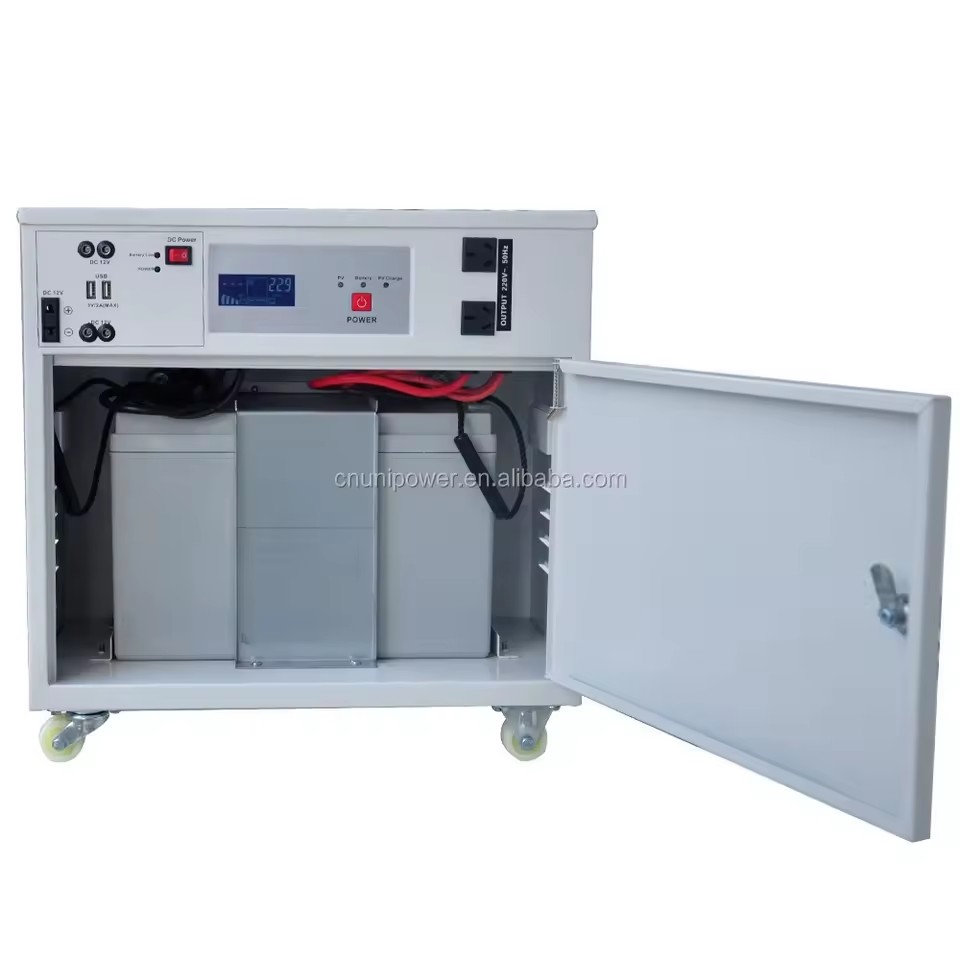

easy to install, users just need to connect solar panels and batteries to fish installationIntelligent CPU controlled, modular compositionLED or LCD display, specifications and status of charging and operation are displayed in a direct way, which is convenient to operateMultifunctional integrated machine, customers don ’ t need to buy extra controller, charger, AVR, etc.Room had been reserved for standard configuration of battery(100AH) inside the machine, ans it can also connect to external battery pack to prolong back time. (according to residential sunshine and wind energy source, customers can require a matching number of battery packs)Applicable to all kinds of loads, like, motors, air conditioners, electronic drills, fluorescent lamps, gas lamps etc.Apply low frequency pure sine wave circuit design, high stability, low failure rate with a long operational life span(more than 5 years), and easy to maintain.Protections of low voltage, over voltage, over-temperature, short circuit, overload etcProcess DC power system, which can provide environment power to LEDs, DC fans, radios| Model | SPV-600 | SPV-800 | SPV-1000 | SPV-1500 |
| Rated power | 360W | 480W | 600W | 1000W |
| storage battery | 12V(optional:24V) |
| specifications of charging |
| charging mode | PV charging and mains charging |
| PWM solar controller | voltage | 12V(optional:24V) |
| current | 30a(Max)(depends on the power of solar panels) |
| PV maximm voltage | 12V system(potional:24V system) |
| 25V |
| hybrid charging | PV charging current:when I>15A,AC charging current is off |
| PV charging current:when I>15A,AC charging current is 5A |
| PV charging current:when I ≤ 15A,AC charging current is 10A |
| DC output system |
| Charging port /USB | 5V/2A(Total)/ 2 units |
| output port of DC | 12V/1.5A/ 3 units |
| AC Mode |
| Input voltage | 145-275VAC |
| Input frequency | 48-54Hz(50HZ),Same s AC |
| Output voltage | 200-240VAC |
| Short Circuit | Breaker |
| Inverter Mode |
| Output voltage | 220VAC±5% |
| Output frequency | 50±1% Hz(Auto detection) |
| Output P.F | ≥ 0.6 |
| Output wave form | Pure Sine Wave |
| Transfer time | Typical 2-6ms,10ms max |
| Overload capability | 110% Shut down within 60sec. |
| 120% Shut down within 5sec. |
| Short Circuit | ≥ 20ms System shut down automatically |
| priority principle of mains and inversion | intelligent and automatic recongnition |
| protection | protectings of output overload,output short circuit,inpot over voltage,input under voltage and over-temperature |
| specifications of the overall unit |
| dimension(mm) | 455*250*400 |
| Net weight(KG) | 11 | 12 | 14 | 16 |
| Gross weight(KG) | 12.5 | 13.5 | 16 | 18.5 |
| display | display mode | LCD+LED |
| display information | LCD:working and protection status of inerter,charging status of storage battery |
| LED:indications of working status and PV charging |
| ENVIRONMENT |
| ENVIRONMENT | indoor,or outdoor with waterproof measures |
| Environment of performance | Temperature 0 ℃ ~40 ℃,Humidity 20%~90%,non condensing |
| Noise Level | Less than 40dB(lm) |
