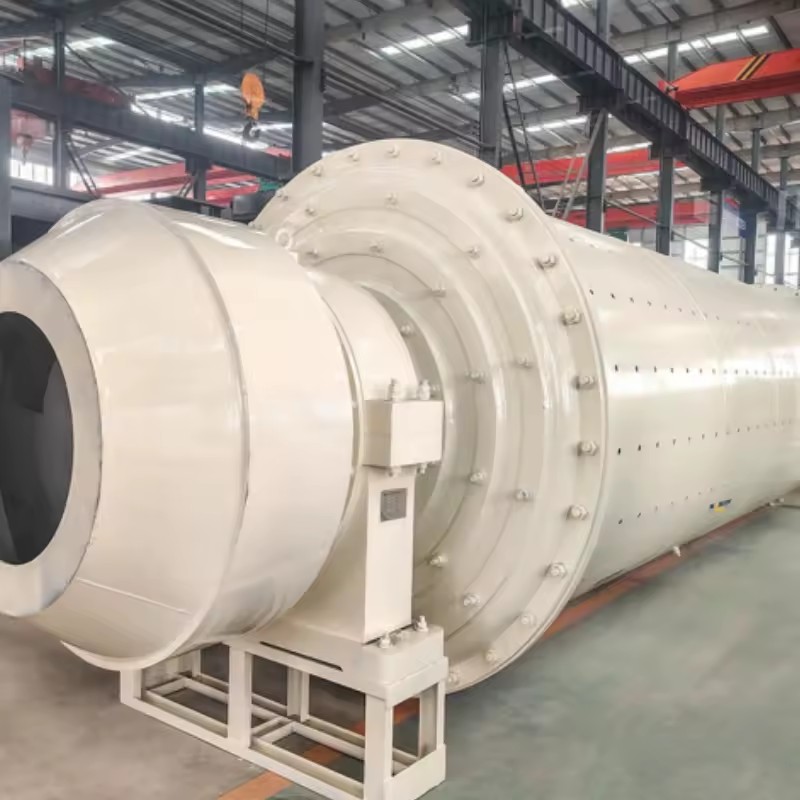

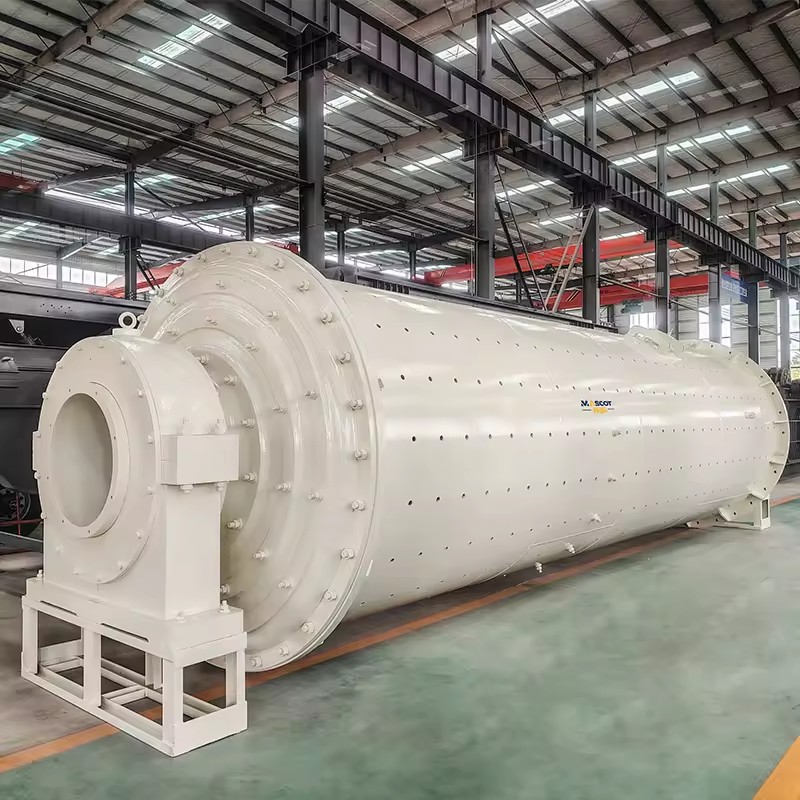

Name: New Cement Ball Mill Fine Powder Making Gear Bearing Clinker Limestone Gypsum Grinder Mining Industrial Mill Cement
SKU: B2B-58898
Price: 78090.0 USD
Availability: PreOrder

Product description

Cement Ball Mill Fine Powder Making Clinker Limestone Gypsum Grinder Mining Industrial Mill of Cement Manufacturing Industry

Features of Cem ent Ball Mill

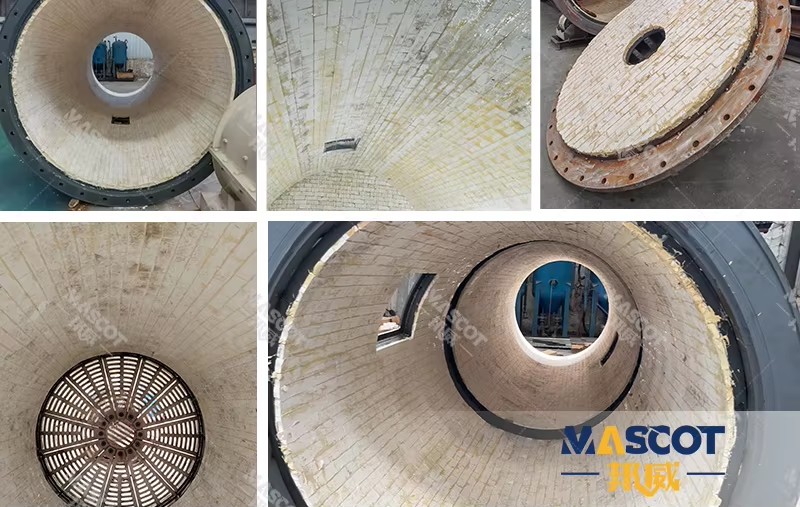

1. Robust Construction: Features a double-welded shell, high-chrome liners, and heavy-duty bearings for maximum durability and long service life.

2. Advanced Design: Incorporates an optimized chamber design and adaptive diaphragm for efficient, controlled, and multi-stage grinding.

3. Energy Efficient: Equipped with a high-efficiency drive and closed-circuit compatibility to significantly reduce power consumption.

4. Smart Operation: Includes automated lubrication, easy maintenance access, and full compatibility with modern PLC control systems.

5. Safe & Reliable: Built with comprehensive safety protocols, overload protection, and explosion-resistant options for secure operation.

Application Materials

1.Primary Use: This ball mill is expertly engineered for grinding cement clinker (including OPC, PPC, slag, and composite types), preparing raw materials for cement production, and processing a wide range of industrial minerals.

2.Key Materials It Grinds

Cement Components: Clinker, granulated slag, fly ash, gypsum, limestone, and pozzolanic materials.

Industrial Minerals: Calcium carbonate, quartz, silica sand, barite, bentonite, kaolin, and various metal ores.

Specialized Processing: Fly ash from power plants, ceramic raw materials, mining ores, and fertilizer

minerals.

Technical Parameters

Model(mm)	Capacity(t/h)	Rotate speed(r/min)	Grinding Balls(t)	Motor Power(kw)	Gear box
Model	Speed Ratio
1200x4500	1.6-5.8	30.3	5	55	ZD30	4.5
1500x5700	3.5-6	26.34	11	130	ZD40	4
1830x6400	6.5-15	23.9	21	210	ZD60	4.5
1830x7000	7.5-17	24.5	23	245	ZD60	4.5
2200x6500	14-20	21.4	31	280	ZD70	5
2400x7000	17-28	20.4	39	380	ZD80	5
2400x8000	20-35	20.3	42	570	ZD80	5
2400x12000	35-45	20	63	800	MBY710	6.3
2400x13000	35-38	19.4	68	800	MBY710	6.3
2600x13000	40-55	19.5	82	1000	JDX800	6.3
3000x9000	50-55	18.34	78	1000	JDX800	6.3
3200x9000	60-70	17.6	95	1250	MBY900	7.1
3500x11000	75-85	16.8	150	1250	JDX900	5.84
3800x12000	85-110	17	175	1600	MBY800	5.6
4600x10000+3500	180-210	15	278	3550	JQS3500	15.1

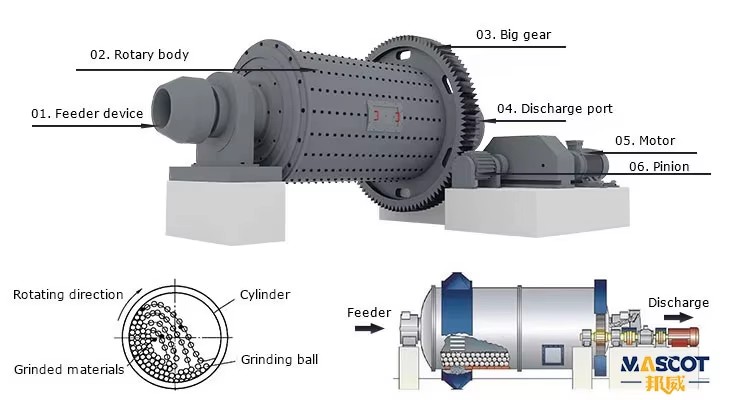

Working Process of Cem ent Ball Mill

1.Feeding: Material is precisely fed through a sealed system into the first grinding chamber via the hollow shaft.

2.Grinding Action:The rotating mill lifts grinding media (steel balls), which then cascade and drop, crushing material through impact and abrasion.

3.Size Reduction: Material progresses through multi-chamber design— coarse grinding with large balls, classification via a central diaphragm, and fine grinding with small balls.

4.Discharge & Separation: Ground material exits through grates and is sent to an air separator, which recycles oversize particles and collects the finished product.

5.Closed-Circuit Efficiency: The mill operates in a continuous loop with a separator to ensure precise particle size, consistent quality, and maximum energy efficiency.

6.Smart Control: The process is optimized through automated monitoring of sound, power, and fineness, with adjustments to feed and separator speed.

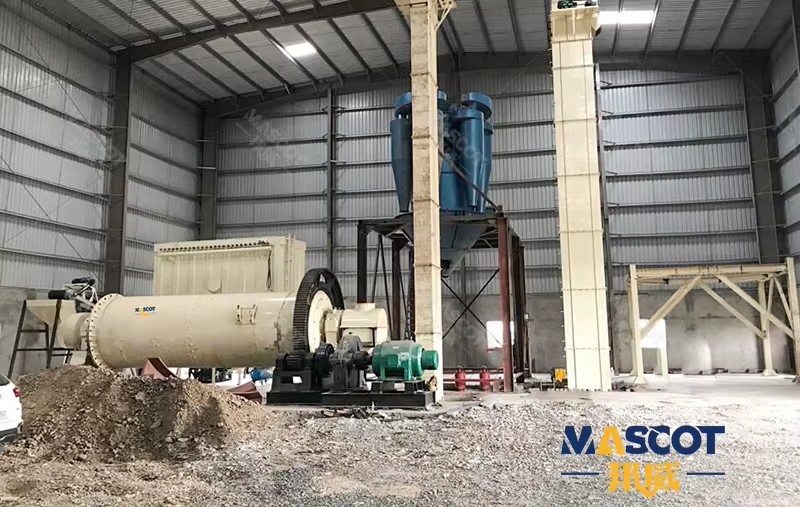

The Customer Site

1.Proven Reliability & Durability: Our machines are built for 24/7 operation in the toughest environments.

2.Professional Technical Support: From plant design to installation and maintenance, we are with you every step of the way.

3.Quality You Can Trust: We use premium materials and strict QC to ensure every machine performs as promised.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as rollers, rings, and classifiers, along with 24/7 online consultation via

Description images

New Cement Ball Mill Fine Powder Making Gear Bearing Clinker Limestone Gypsum Grinder Mining Industrial Mill Cement

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Cement Ball Mill

Motor Type

AC Motor

Core components

Bearing, Motor, Gear, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Capacity(t/h)

1-30

Place of origin

China, Henan

Weight

8000 KG(17636.98lb)

Dimension (L*W*H)

1830x7000x2000mm(72.05x275.59x78.74in)

Condition

New

Application

cement mill plant

The Machines classification

Fine Powder Mill

Grinding media

Steel Grinding Balls

Installation

Engineer On-site Guidance

Discharge size

80-425 mesh

Spare Parts

lining plate

After sale service

Techniacal Support

Feeding size

0-35mm

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

18.5-800 kw

Model number

1500x5700, 1830x7000, 2100x4500, 2200x7000, 2700x13000, 3600x4500

Lead time

15 days

Minimum order

1 Units
