Factory Iron Ball Mill WIth Best Price
Ball mill is an efficient tool for grinding many materials into fine powder. The Ball Mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc.There are two waysof grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different expelling mine. our ball mill prices is reasonable base on the good quality, we support the

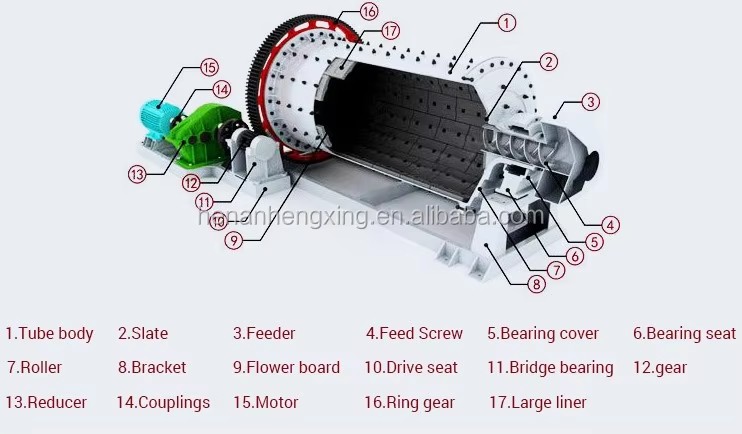

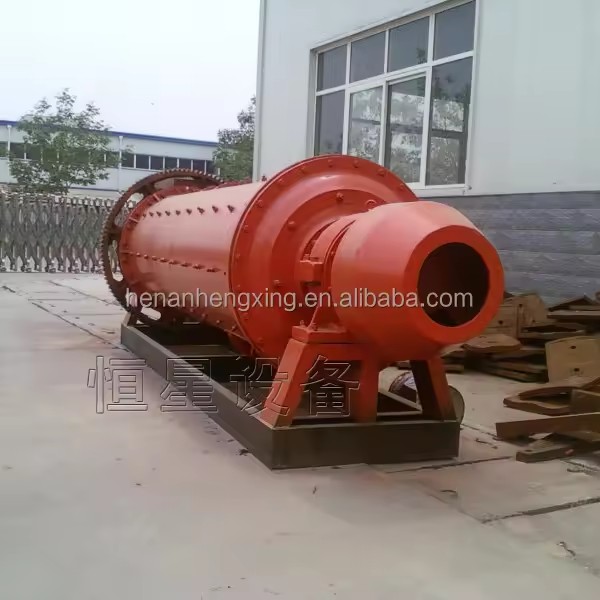

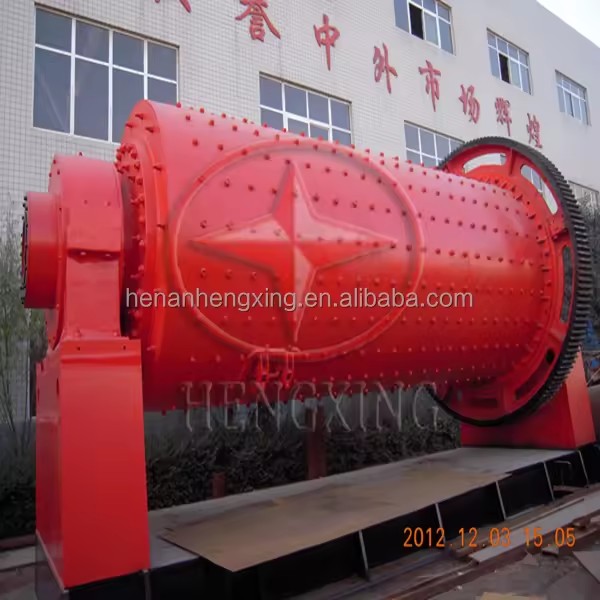

Ball mill strucuture
Ball mill is made up of feedisng part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, motor, electrical control) and so on.
The hollow axis adopts the cast steel and the lining can replace, the rotating big gear processes in the way of casting rolling gear. The barrel body is wearable well and bears wearable scaleboard. This machine run steadily and works reliably.

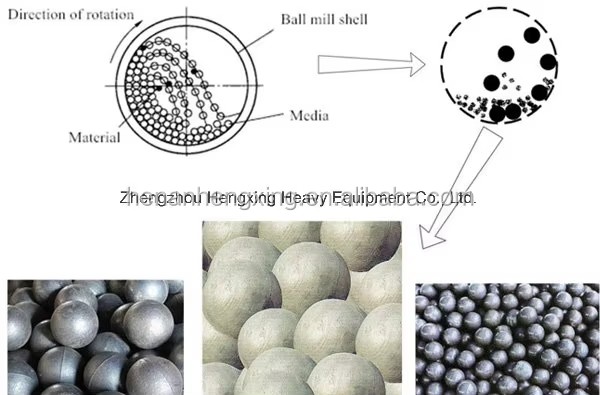

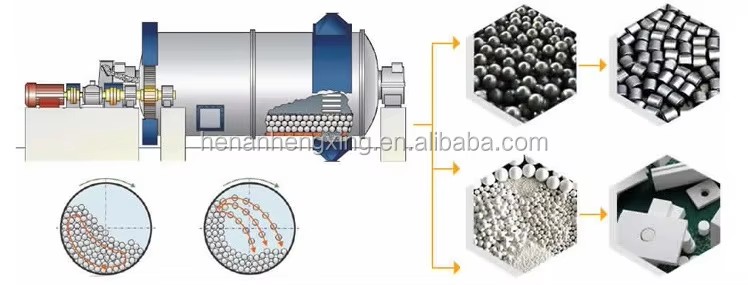

Ball mill Working Principle: The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Ball Mill Featurers
1.Large application range, simple structure and convenient maintenance
2.Large capacity and continuous work are very obvious
3.Barrel lining and grinding media can apply various abrasive materials
stallation and adjustment are very convenient and easy to be operated.
Please feel free to
Ball mill technical parameters
| Model | shell rotation speed (r/min) | Ball load (t) | Feeding size(mm) | Discharging size(mm) | Capacity (t/h) | Power (KW) | Weight (T) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075 -0.89 | 0.65 -2 | 18.5 | 3.6 |
| 900×2100 | 38 | 1.3-1.4 | ≤15 | 0.075 -0.83 | 0.7-3.5 | 18.5 | 3.9 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075 -0.89 | 1.1-3.5 | 22 | 4.5 |
| 1200×2400 | 32 | 3.8 | ≤25 | 0.0745-0.6 | 1.5-4.8 | 30 | 11.5 |
| 1200×2800 | 32 | 3.3-3.5 | ≤25 | 0.0745-0.6 | 2-6 | 30 | 12.8 |
| 1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 13 |
| 1200×4500 | 32 | 7 | ≤25 | 0.074 -0.4 | 1.6-5.8 | 45 | 13.8 |
| 1500×3000 | 27 | 8 | ≤25 | 0.074 -0.4 | 2-5 | 75 | 17 |
| 1500 ×3500 | 27 | 6.75-6.4 | ≤25 | 0.075 -0.4 | 3-7 | 75 | 17.5 |
| 1500×4500 | 27 | 14 | ≤25 | 0.074 -0.4 | 3.5-12 | 110 | 21 |
| 1500×5700 | 27 | 15 | ≤25 | 0.074 -0.4 | 3.5-8 | 115 | 24.7 |
| 1830×3000 | 24 | 18 | ≤25 | 0.074 -0.4 | 4-10 | 130 | 28 |
| 1800×3600 | 24 | 10.6-11.35 | ≤25 | 0.075 -0.4 | 5-22 | 130 | 30 |
| 1830*4500 | 25.4 | 15 | <=25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074~0.4 | 6.5-15 | 210 | 34 |
| 1830×7000 | 24 | 25 | ≤25 | 0.074 -0.4 | 7.5-17 | 210 | 36 |
| 2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 39 |
| 2100×3600 | 22 | 14-15.2 | ≤25 | 0.075 -0.4 | 15-36 | 370 | 42 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 43.8 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 56.6 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 45.5 |
| 2200×5500 | 21 | 30 | ≤25 | 0.074 -0.4 | 10-20 | 210 | 48.5 |
| 2200×6500 | 21 | 31 | ≤25 | 0.074 -0.4 | 14-26 | 380 | 52.8 |
| 2200*7000 | 21.7 | 35 | <=25 | 0.074-0.4 | 15-28 | 380 | 54 |
| 2200×7500 | 21 | 33 | ≤25 | 0.074 -0.4 | 16-29 | 380 | 56 |
| 2400×3000 | 20.6 | 15.5-16.6 | ≤25 | 0.075 -0.4 | 22-24 | 245 | 59 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074 -0.4 | 8.5-60 | 380 | 65 |
| 2700×3600 | 20.6 | 39 | ≤25 | 0.074 -0.4 | 12-70 | 400 | 91.3 |
| 2700×4000 | 20.7 | 40 | ≤25 | 0.074 -0.4 | 12-80 | 400 | 94 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074 -0.4 | 12-90 | 430 | 102 |
| 3200×4500 | 18 | 65 | ≤25 | 0.075 -0.4 | according to the technology | 800 | 137 |

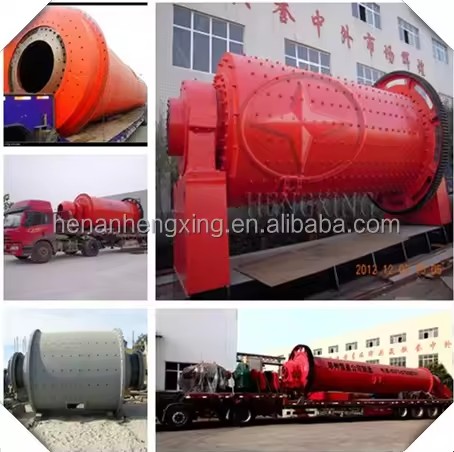

Ball mill installation site

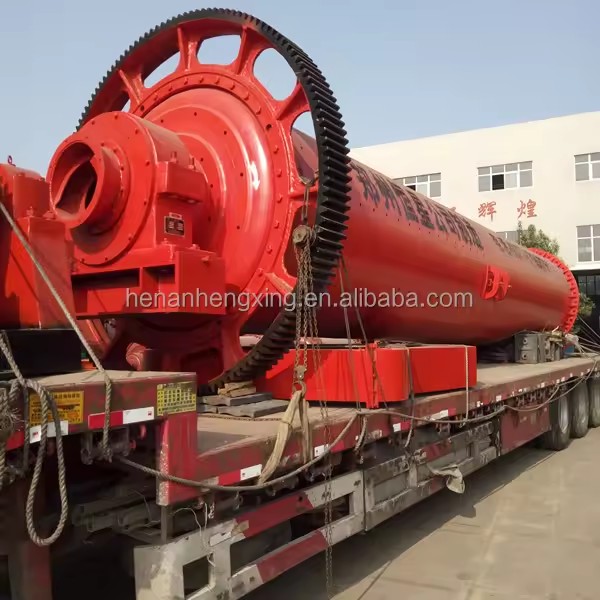

The ball mill will start delivery in 30 days after payment. It will be packed in the export standard container, its main motor and spare parts will be put in the water-proof and sealed wooden case.
We promise that the ball mill will be shipped to you timely and safely.
equipment can provide service for customers, such as engineering consultation, engineering design, equipment manufacturing, packing & transportation, installation & commissioning personnel training etc.
About Spare Parts
equipment will be dedicated to provide
About Training
equipemnt could offer excellent facilities and comfortable environment and training services to different customers. The training should include product training, safety training, operation training, maintenance know-how, technical know-how training, and regulations training, etc. All of the training is customized to fulfill every customer’s expectations. Training programs can be conducted in our workshop, or at customer’s site.
About Installation and Commissioning
equipment are able to guide the overall installation of whole set
What we offer?
We are developing heavy industrial machines and allowing mining companies to implement efficient and more effective ways of mining through our goods. We have variety of products available for sale. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, ball mill,, Ore Dressing Machines,rotary dryer,rotary kiln,coal briquette machine. Development of these machines had never been an easy task. Sand making equipments are offered by Equipment with very nominal prices. The research facility of our industry enables our engineers to serve international market with new theories and develop a perfect solution for the mining world. Our Products have a great demand in all over the world.
Q: How about the quality of your products?
A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery. You can also use
Q: How about the price?
A: We are manufactory, and we can give you lower price than those trade companies.
Q: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
