Product video
Certifications CE

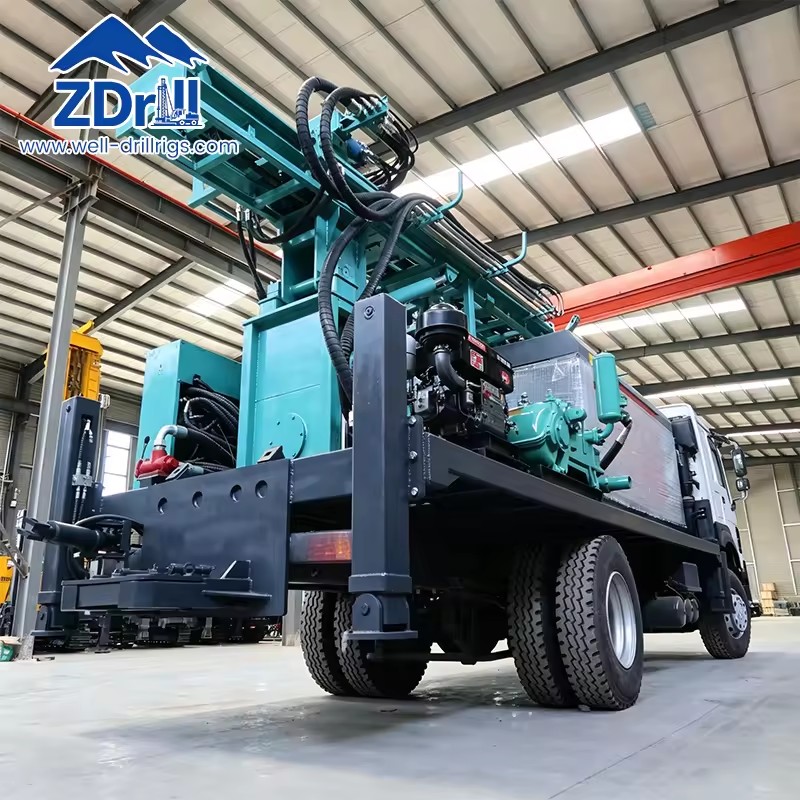

Multi-function ZDT700 Truck Mounted Water Well Drill Rig for Rock Soil Layer Water Well Irrigation Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 161,180.00 161180.0 USD $ 161,180.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Engine
  • Selling Units
  • Single volume
  • Single gross weight
  • Model number
  • Power (W) (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
ZDT700
Drilling Depth
Max.700m
Drilling Diameter
105-450mm
Power Type
Diesel
Core components
Bearing, Motor, Gear, Engine, Pump, Gearbox
Product description
  • ZDT truck drilling rig adopts distributed independent power system, which can save energy, modular operation, and easy to move. The wellbore and water well drilling rig supports both air DTH hammer drilling and mud drilling. A centralized control host is suitable for more comprehensive operations. Quick pull and lift reduce auxiliary time and improve work efficiency.
  • The truck chassis is the basis of the main drive system, and there is an independent power for the operation of the drilling rig, pump, air compressor, and hoisting system, which is highly efficient and energy-saving!
  • The vehicle-mounted water well drilling rig is a top-drive high-efficiency and multi-purpose hydraulic drilling rig with advanced technology, convenient use, high efficiency, reliability and durability, and is widely used in water well drilling, inspection, disaster relief and other fields. Drilling drilling, also suitable for ground source heat pump conditioning drilling in urban construction, coalbed methane, natural gas and oil exploration.

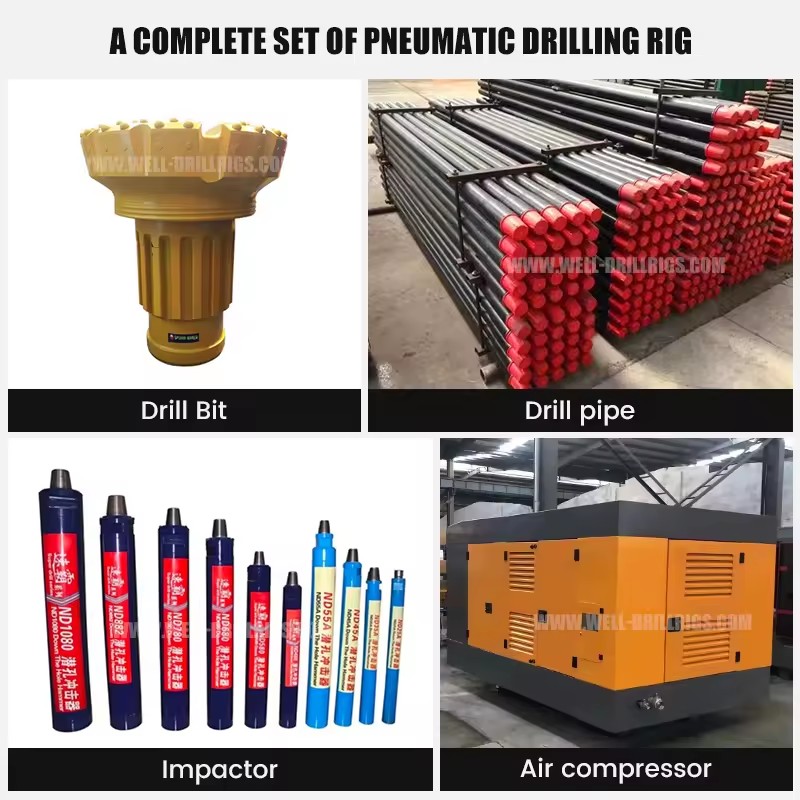

  • The drilling rig uses compressed air power drilling, casing drilling, mud drilling, and has a high drilling speed in the rock with a general hardness of f=6-20 This truck-mounted dual-purpose water-vapor drilling rig can be equipped with internationally renowned heavy-duty truck chassis including Mercedes-Benz, MAN, Scania and Volvo. Fitted with dual-function drilling assembly, it supports drilling depths from 200m to 2000m, with optional mud pump and air compressor.

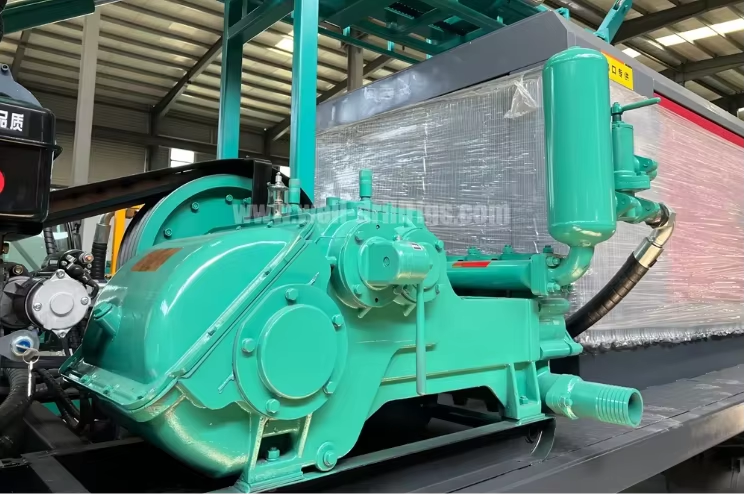

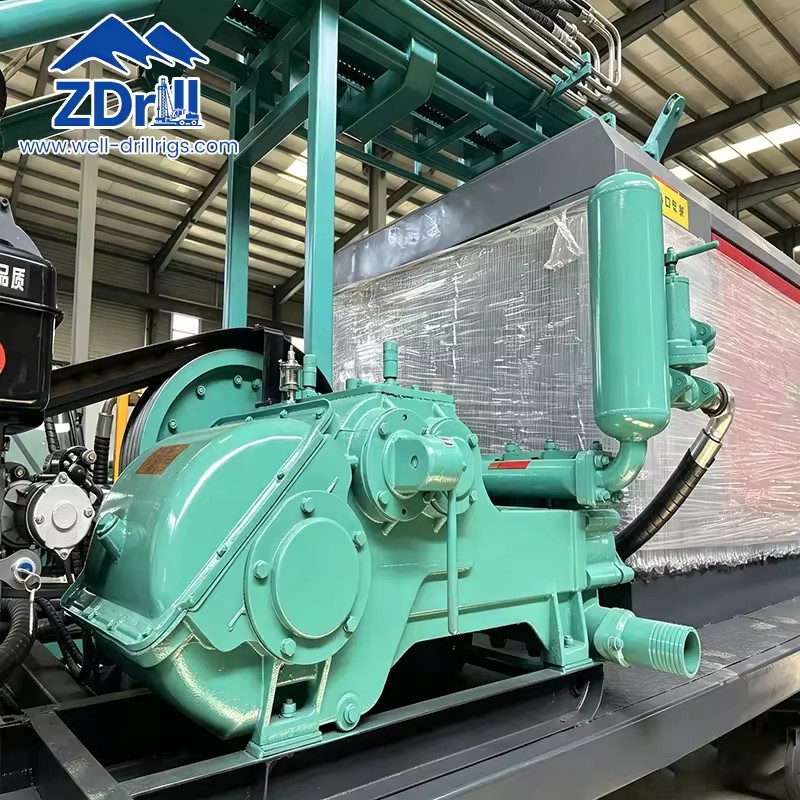

  • It switches freely between mud drilling for soil layers and DTH pneumatic drilling for rock formations. Full hydraulic control plus hydraulic outriggers enable convenient highway relocation without disassembly, ideal for domestic water well, farm irrigation and geothermal exploration projects.
    • Product nameZDT700 water well drilling rig
    Maximum drilling depth700m
    Drilling diameter105-450mm
    Air pressure1.6-6Mpa
    Air consumption16-75m³/min
    Drill pipe length6 m
    Drill pipe diameter102mm
    Axial pressure6T
    Lifting force40T
    Lifting speed31m/min
    Feed speed65m/min
    Maximum turning torque12600/6300Nm 14000/7000 Nm
    Rotation speed95/190r/min
    Winch lifting force2.5T
    Drilling efficiency10-35m/h
    Machine weight14T
    Drilling rig size6.3×2.25×2.65m
    Drilling methodAir drilling or mud pump drilling
    Certifications & compliance
    CE
    Complies with EU standards
    Description images
    Product detail

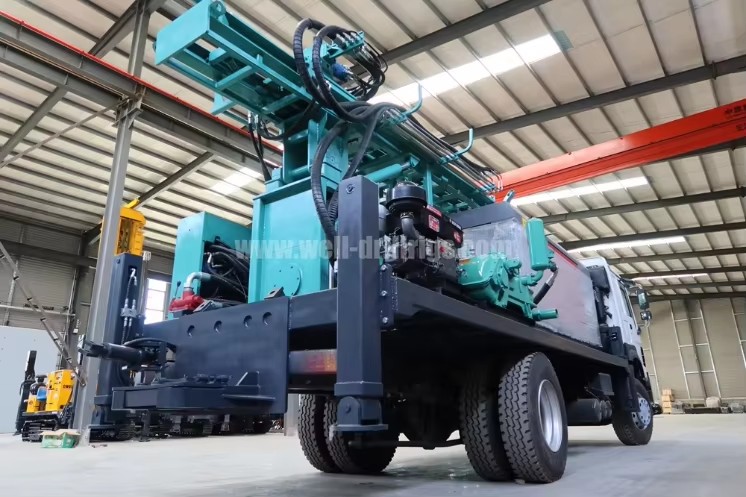

    Multi-function ZDT700 Truck Mounted Water Well Drill Rig for Rock Soil Layer Water Well Irrigation Drilling

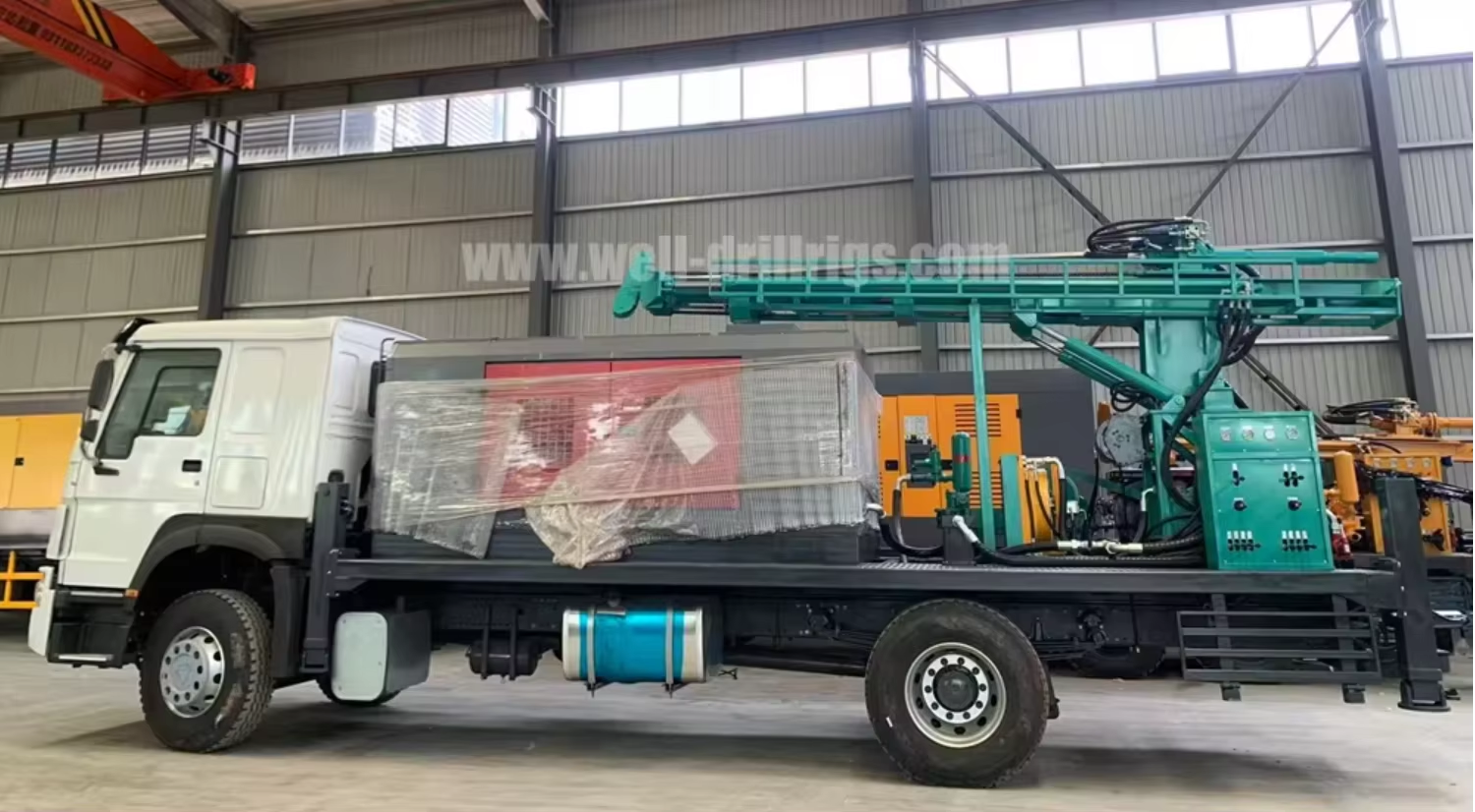

    Multi-function ZDT700 Truck Mounted Water Well Drill Rig for Rock Soil Layer Water Well Irrigation Drilling

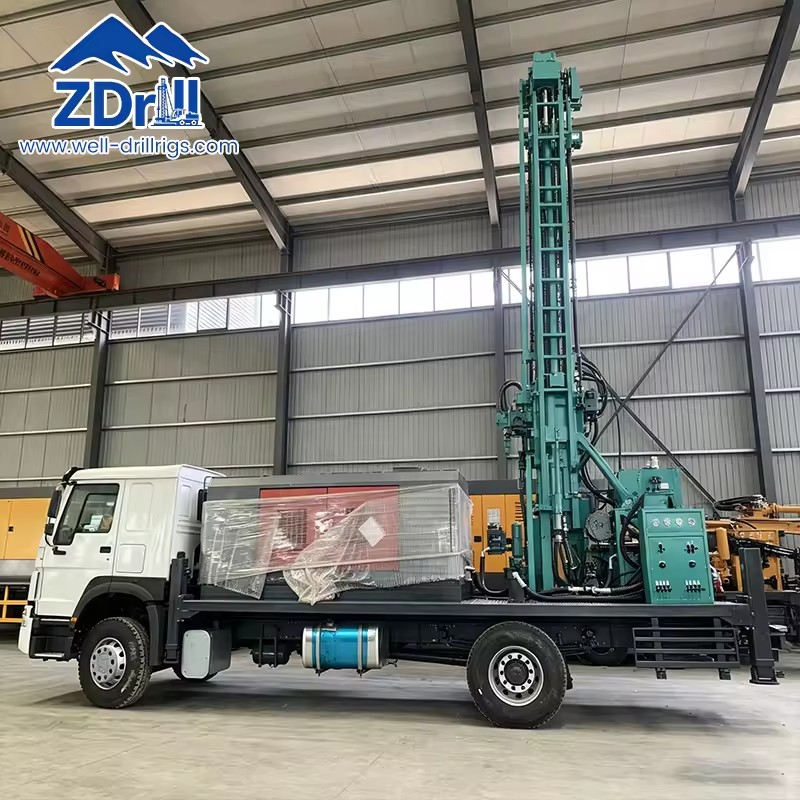

    Multi-function ZDT700 Truck Mounted Water Well Drill Rig for Rock Soil Layer Water Well Irrigation Drilling
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 21 fields
    Usage
    Water Well
    Type
    ZDT700
    Drilling Depth
    Max.700m
    Drilling Diameter
    105-450mm
    Power Type
    Diesel
    Core components
    Bearing, Motor, Gear, Engine, Pump, Gearbox
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Easy To Operate
    Place of origin
    China, Hebei
    Weight
    14000 KG
    Dimension (L*W*H)
    6.3*2.25*2.65m
    Mobility
    truck mounted
    Engine
    Yuchai, Weichai, Cummins, Quanchai
    Selling Units
    Single item
    Single volume
    0 cm3
    Single gross weight
    0.0 kg
    Model number
    ZDT700
    Power (W) (Product option)
    Engine:Cummins, Yuchai, Weichai, Quanchai, 155kw
    Certifications & Compliance
    CE
    Lead time
    30 days
    Minimum order
    1 Units
