Name: Mining Grinding Mill Quartz Feldspar Silica Sand Raymond Machine Wear Proof Design Southeast Asia for Ore Beneficiation
SKU: B2B-57764
Price: 8750.0 USD
Availability: PreOrder

Product description

Mining Grinding Mill Quartz Feldspar Silica Sand Raymond Machine Wear Proof Design Southeast Asia for Ore Beneficiation

Top Questions from Buyers

Q1: I need 2 tons per hour — should I get YGM75 or step up to YGM85?

For 2 t/h at 200 mesh on limestone, YGM75 (1-3 t/h, 18.5 kW) is a comfortable fit — it has been running at 2.8 t/h consistently in our case study. Step up to YGM85 (1.2-4 t/h, 22 kW) only if you expect to grow beyond 3 t/h within 2 years. The YGM75 has the lowest total cost per ton in its class: 18.5 kW for 1-3 t/h means approximately 6-18 kWh/t depending on fineness.

Q2: Do I need a separate crusher before feeding into the YGM75?

The YGM75 accepts feed up to ≤15 mm. If your raw material is already crushed to below 15 mm (from a jaw crusher or hammer mill), it can be fed directly via the bucket elevator. If your feedstock is larger, we recommend a small jaw crusher (e.g., PE-150×250, 5.5 kW) as pre-processing. We can include it in the complete line package — ask us for a turnkey quote with all auxiliary equipment.

Q3: The YGM75 floor space is only 4300×3500 mm — is there enough room for maintenance access?

The YGM75 is the most compact production-grade mill in the YGM series, ideal for sites with space. The machine footprint is 4.3×3.5 m, but for full maintenance access (roller/ring replacement clearance, classifier removal), you need a total area of approximately 50 m². Our customer’s complete line (crusher + elevator + mill + collector) fits within a 50 m² plant. We provide a detailed layout drawing with order confirmation.

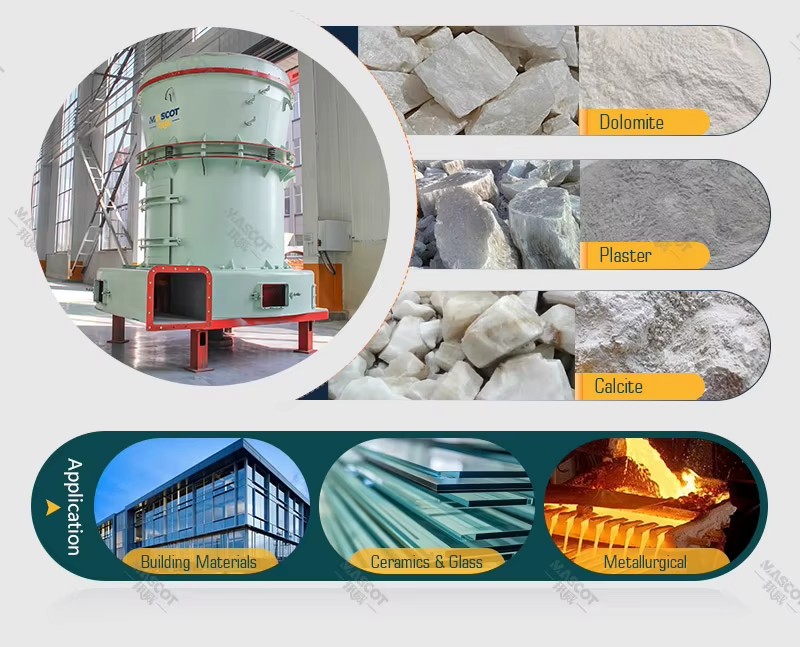

Material Group	Typical Materials	Mohs Hardness	Typical Mesh
Construction Minerals	Limestone, Gypsum, Dolomite, Marble, Quicklime	Mohs 3-4	80-325 mesh
Industrial Minerals	Calcite, Kaolin, Talc, Bentonite, Barite	Mohs 1-4	100-325 mesh
Energy & Power	Coal, Petroleum Coke, Fly Ash, Desulfurization Gypsum	Mohs 2-4	100-200 mesh
Chemical Industry	Chemical Pigments, Carbon Black, Activated Carbon, Manganese Dioxide	Mohs 2-5	80-325 mesh

Technical Parameters

Model	Roller No.	Roller Size (mm)	Grind Ring Inner Dia. (mm)	Feeding Size (mm)	Output Size (mm)	Capacity (t/h)	Power (Kw)	Overall Dimension (mm)
YGM65	3	210×150	650×150	≤ 15	0.613-0.033	0.4-1.8	15	4100×3300×4500
YGM75	3	260×150	780×150	≤ 15	0.613-0.033	1-3	18.5	4300×3500×5100
YGM85	3	270×150	830×150	≤ 20	0.613-0.033	1.2-4	22	5300×4100×5200
YGM95	4	310×190	950×190	≤ 25	0.613-0.033	2.1-5.6	45	7100×5900×7900
YGM130	5	410×230	1280×230	≤ 30	0.613-0.033	2.5-9.5	90	7900×8000×9700
YGM160	6	450×300	1600×300	≤ 35	0.613-0.033	8-16	132	12550×5700×8355
YGM190	6	500×330	1900×330	≤ 40	0.613-0.033	18-36	250	11200×8530×9685

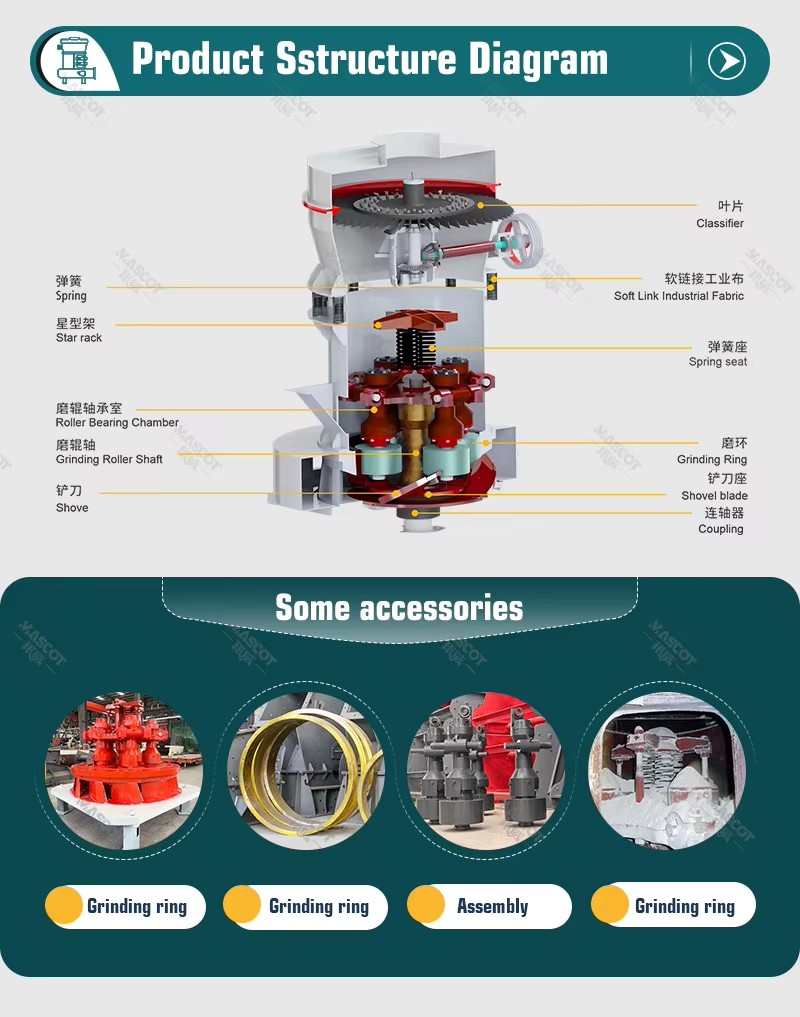

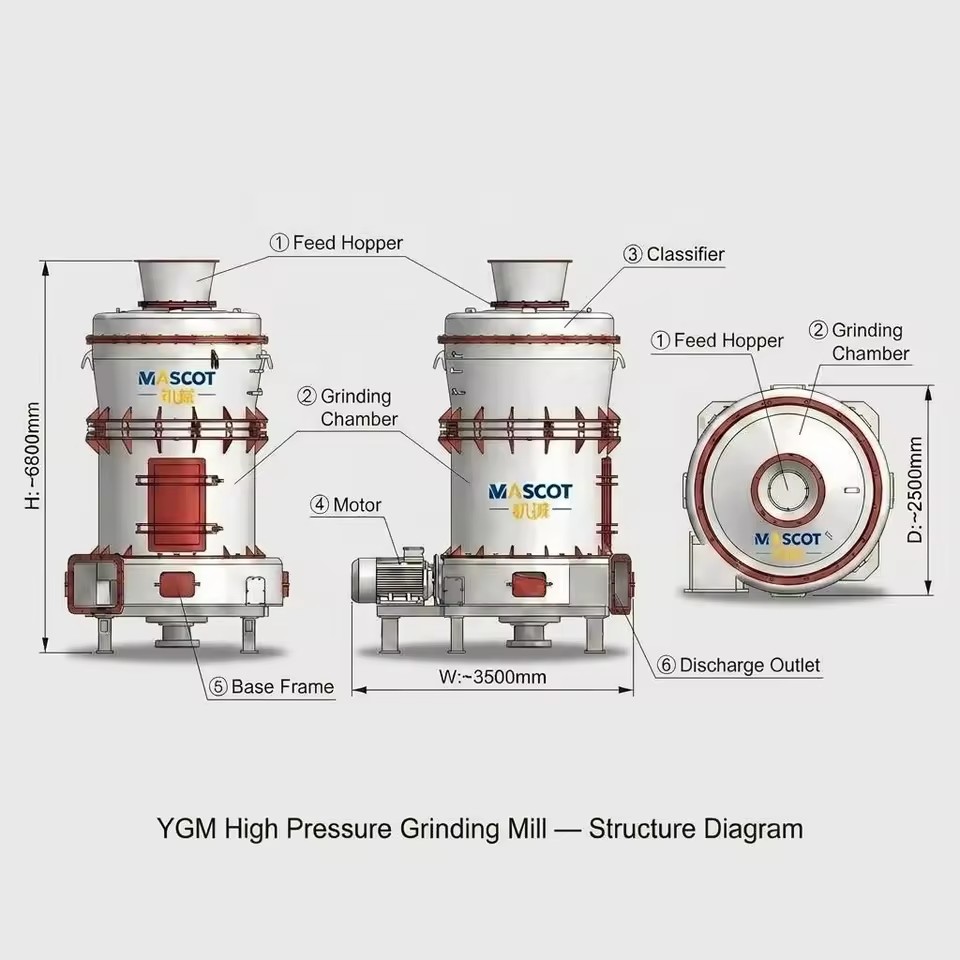

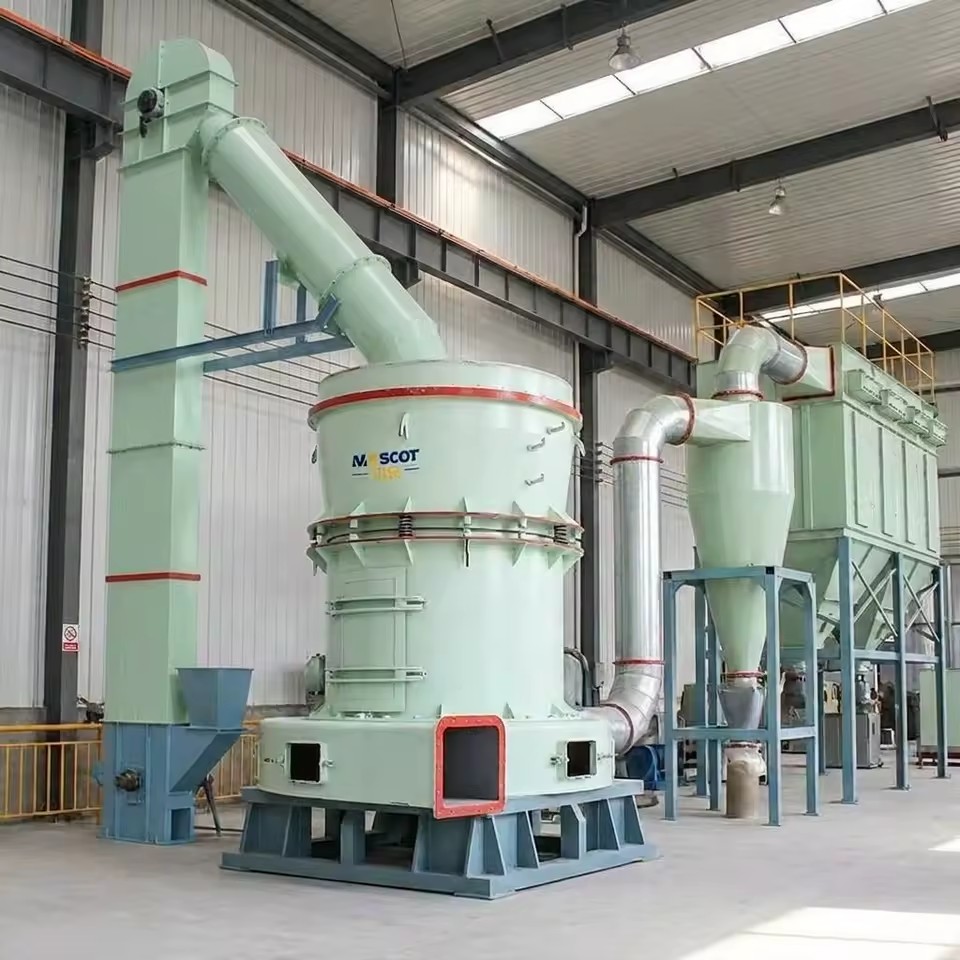

Working Process of YGM Grinding Mill

1. Feeding:Raw mineral materials are evenly and continuously fed into the grinding chamber via the feeding device under stable feeding speed.

2. Grinding: Driven by the main motor, grinding rollers and grinding ring squeeze, impact and grind raw materials repeatedly into fine powder particles.

3. Classification: High-speed air flow cooperates with the built-in p owder classifier to screen and separate qualified fine particles from coarse ones precisely.

4. Collection: Qualified fine powder is transported by airflow into the dust collector and collected as finished mineral powder products.

5. Re-circulation: Oversized unqualified particles fall back to the grinding area automatically for secondary regrinding until reaching required fineness.

The Customer Site

1.Proven Reliability & Durability: Our machines are built for 24/7 operation in the toughest environments.

2.Professional Technical Support: From plant design to installation and maintenance, we are with you every step of the way.

3.Quality You Can Trust: We use premium materials and strict QC to ensure every machine performs as promised.

's Service

We offer a 12-month warranty for the whole machine and also a 12-month warranty for core components such as rollers, rings, and classifiers, along with 24/7 online consultation via

FAQ

1. What is the minimum plant space required for a YGM75 installation?

The YGM75 has a compact footprint of just 4300×3500×5100 mm. Including auxiliary equipment (feeder, collector, piping), a total floor area of approximately 50 m² is sufficient for a complete

2. Can the YGM75 be upgraded to increase capacity later?

While the YGM75 is optimized for 1-3 t/h, customers looking for future expansion often start with the YGM85 which shares the same 3-roller layout but offers 1.2-4 t/h capacity. We can help you choose the right model based on your 3-year growth plan.

3. How long does spare parts delivery take for the YGM75?

We maintain a comprehensive inventory of YGM75 wear parts (rollers, rings, classifier blades). Standard spare parts ship within 3-5 working days. For urgent requirements, we can arrange express air freight delivery to most countries within 7-10 days.

4. Is the YGM75 suitable for wet or sticky materials?

The standard YGM75 is designed for dry grinding with material moisture below 6%. For materials with higher moisture content, we recommend equipping the system with a hot air generator to pre-dry the material during the grinding process.

Description images

Mining Grinding Mill Quartz Feldspar Silica Sand Raymond Machine Wear Proof Design Southeast Asia for Ore Beneficiation

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Type

Raymond Mill

Motor Type

AC Motor

Core components

Engine

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Capacity(t/h)

0.5-60t/h

Place of origin

China, Henan

Weight

5000 kg

Dimension (L*W*H)

According to the models

Device Type

YGM

MAX Feed size(mm)

40mm

Output Size (mm)

0.613-0.033mm

Application materials

quartz, feldspar, barite, fluorite, dolomite, garnet, silicon carbide

After-sales Service

Online Video or Dispatch After-sales Team

Accessories Supply

Anytime

About Installation

Dispatch professional technicians to install on site

Process Design

Free

Factory Visit

Welcome to Visit

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

250kw

Model number

YGM65, YGM75, YGM85, YGM95, YGM130, YGM160, YGM190, YGM85B

Lead time

10 days

Minimum order

1 Units
