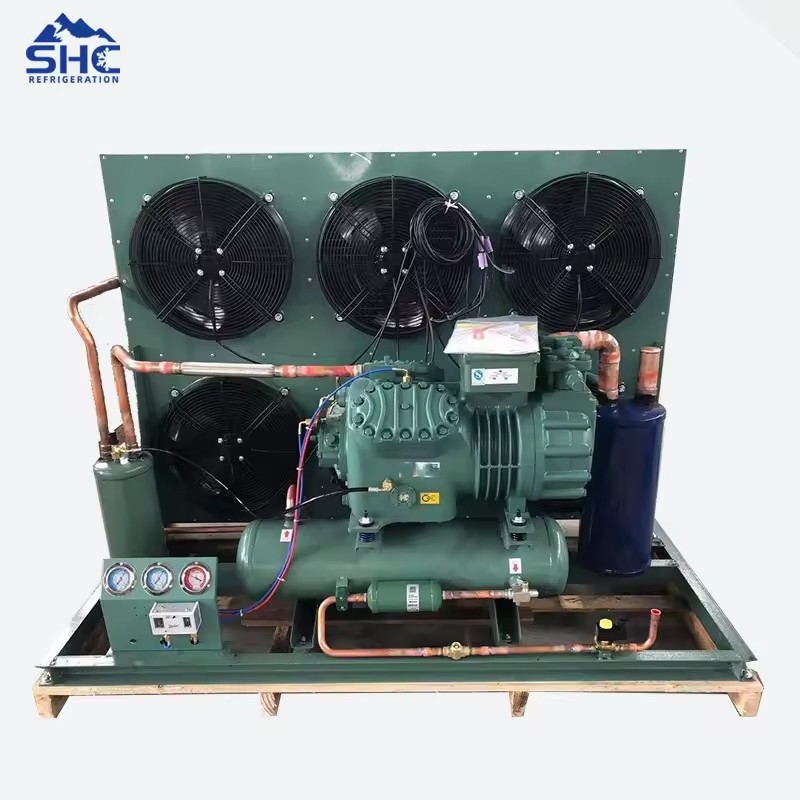

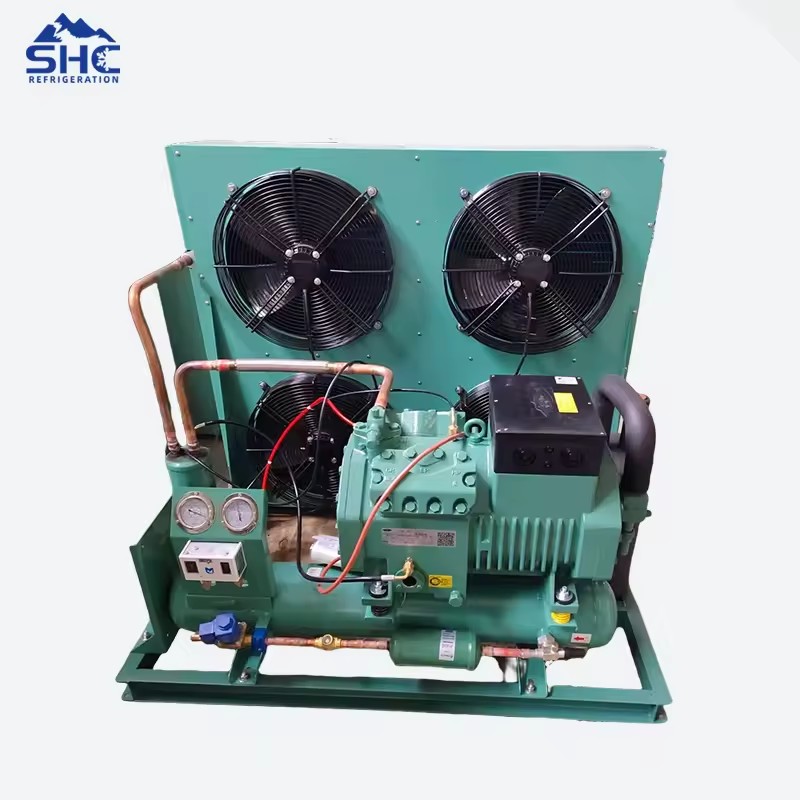

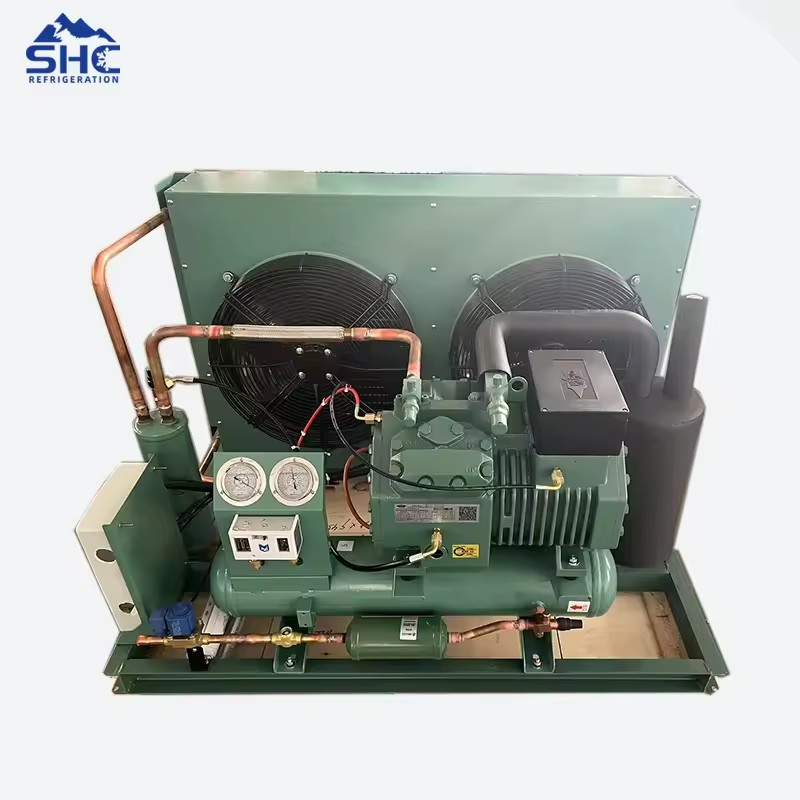

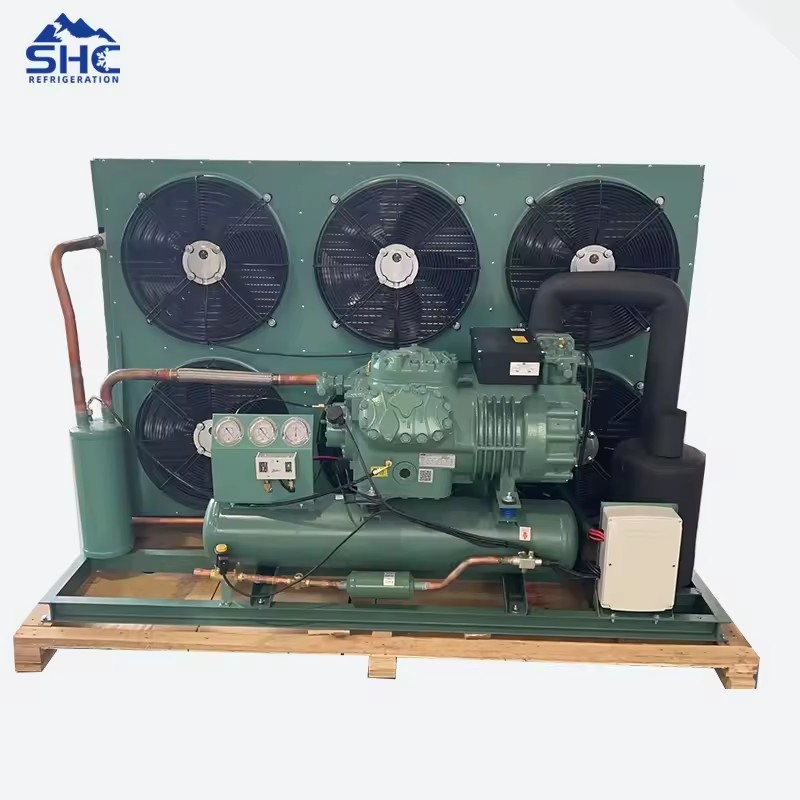

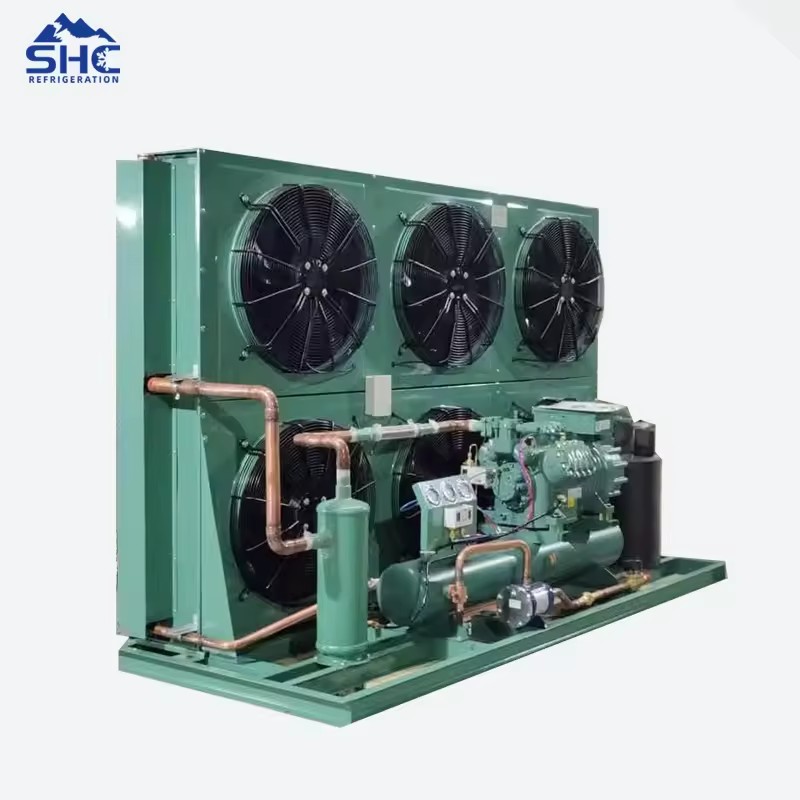

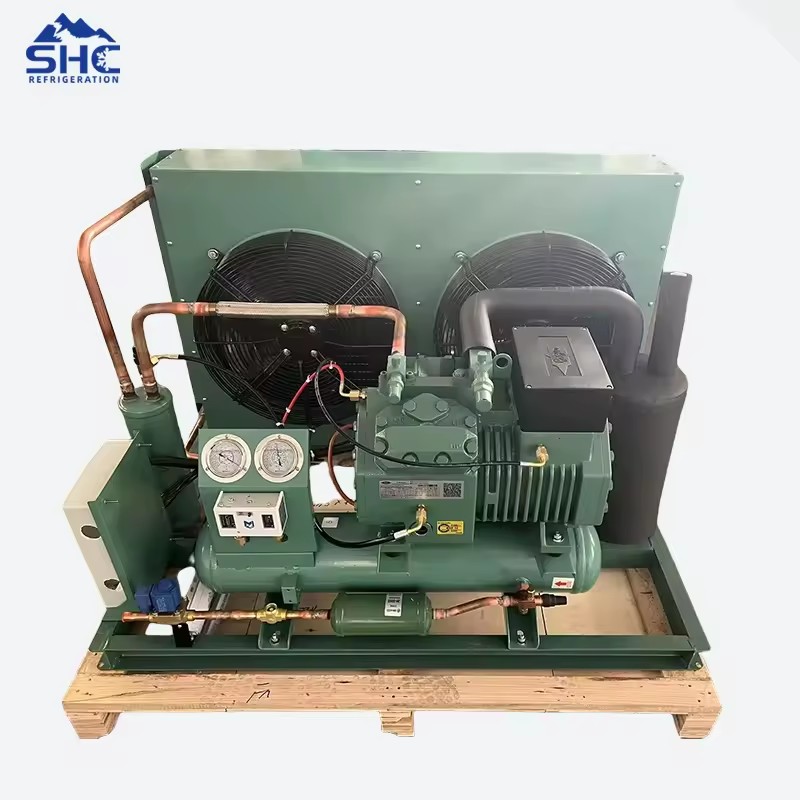

Cold Room Storage Walk in Freezer Equipment 5HP 4DES-5.2Y Condensing Unit Energy Saving Remote Control

Cold Room Storage Walk in Freezer Equipments 5hp 4DES-5.2Y Condensing Unit

What is Condensing Unit?

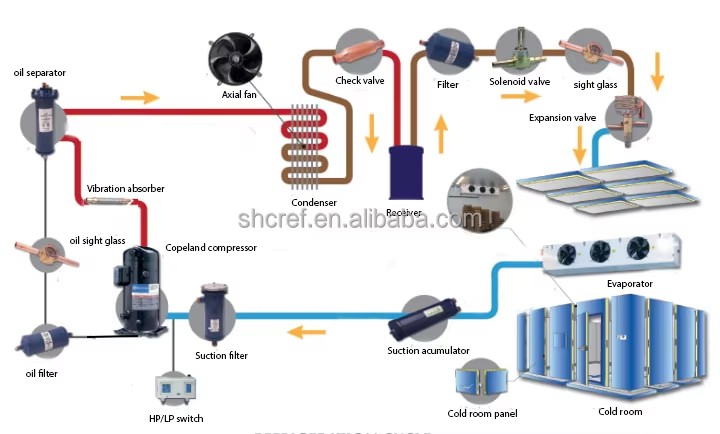

A condensing unit is a key component of an air conditioning or cold room refrigeration system that is responsible for transferring heat from inside the building to the outside. It consists of a compressor, a condenser coil, a fan, and controls, all housed in a single unit.

SHC Refrigeration Series units are designed to reflect the proven reliability and engineering excellence that can only come from the premier manufacturer of heating and cooling products.

The compact and robust structural shape of the condensing units and the use of efficient, optimally coordinated components enable an extensive range of both applications and capacities. They are Eco design-compliant and enable use of low-GWP refrigerants.

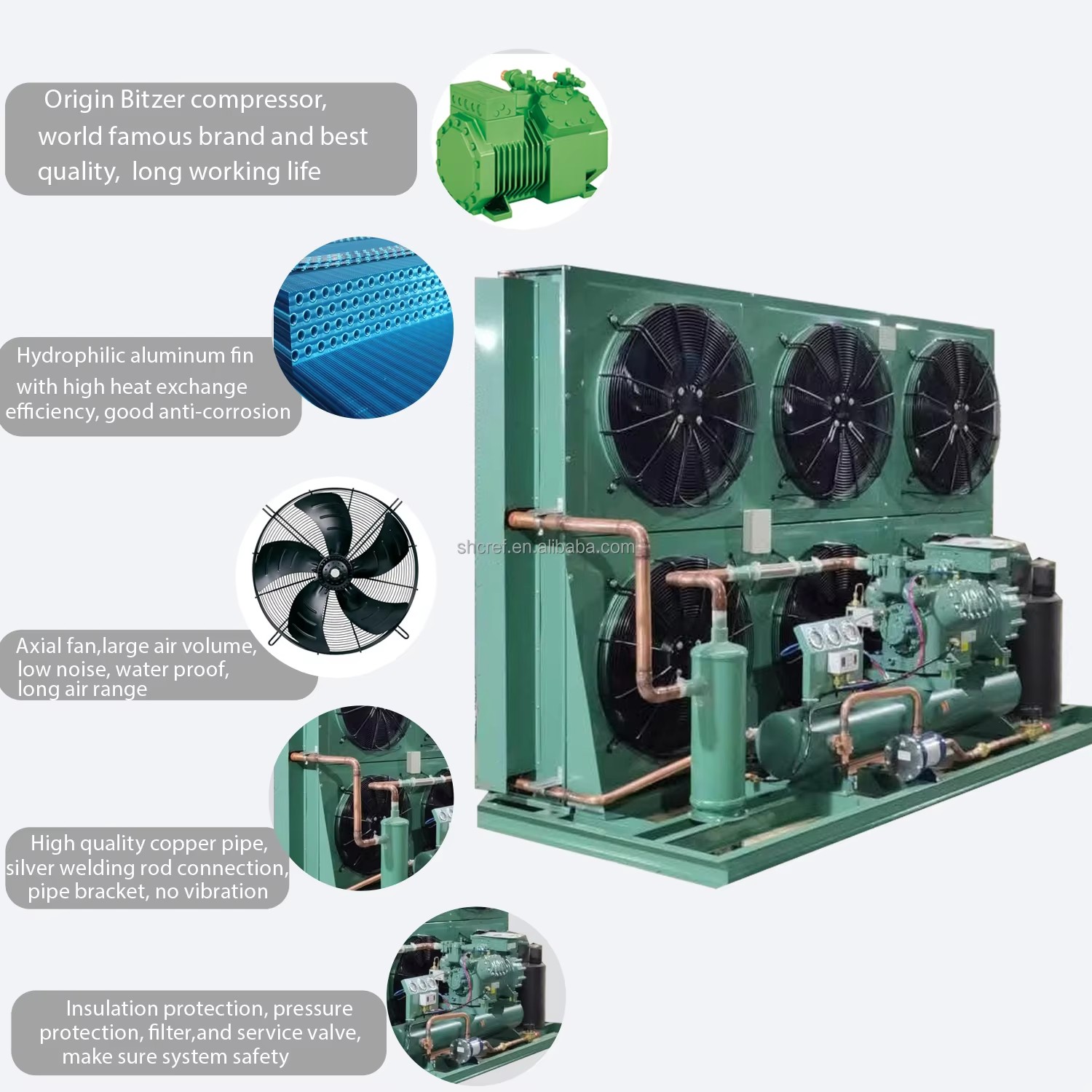

SHC Refrigeration condensing unit Features

Indoor Unit

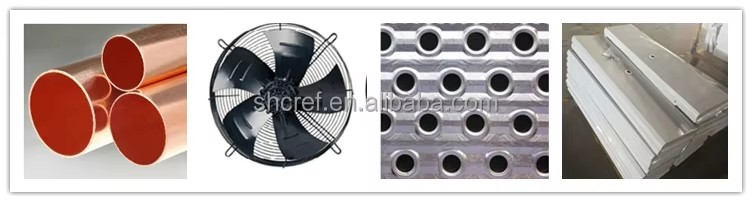

Spring mount compressor with discharge vibration eliminator.

Welded-hermetic or semi-hermetic compressor, world famous brand.Bitzer, Tecumseh, Copeland, Frascold compressor, etc.

High efficiency enhanced tube and fin condenser design

Quiet axial fan motor operation(option 1: can add single pressure switch for condenser fan, power saving

option 2: SmartSpeed EC Fan Motor)

Energy efficient PSC condenser fan motor on models using chassis 3 ( See our Product Data and Specifications for full details )

Wide-open front design, convenient for heat exchange

Unit leak tested and shipped with dry Nitrogen gas pre-charged.

Painted cabinet with galvanized steel, anti-rust.

Receiver with fusible plug and liquid shut off valve

Suction service valve

Copper tubing secured with cushion clamps

Fixed high and low pressure control

SHC Refrigeration Condensing Unit Specification and Advantage

1. Large capacity range · Cooling capacity: 1.8KW to 100KW, from 1HP to 50HP.

2. Large Cold Room Temperature Range · the working Temperature: +10 ~-30℃.

3. Voltage customized · Voltage: 380V/3PH/50HZ, 230V/3PH/60HZ, 460V/3PH/60HZ.

4. Variety refrigerant using · Many Refrigerant application, can be suitable to different countries: R404a, R507c, R454c, R455a, R448a, R449a.

5. Easy of maintenance · Modular refrigeration system are designed for easy maintenance and service ability, with individual units that can be accessed and serviced independently.

6. Energy Efficiency · Modular refrigeration systems are designed to be energy-efficient, with individual units operating independently to cool designated areas or food items
