Product video
Certifications CE

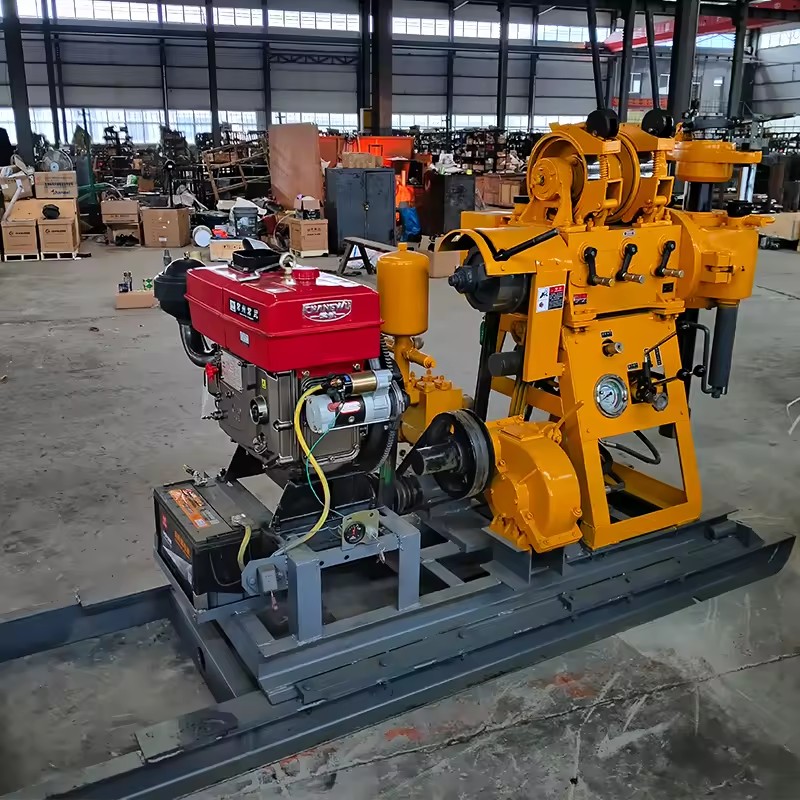

Max.200m Diesel Vertical Spindle Mine Drilling Rig Core Drill with Mud Pump Gearbox Engine & Bearing

Available for enquiry 0.0 · 0 reviews
USD

$ 1,640.00 1640.0 USD $ 1,640.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Model
  • Engine
  • Maximum torque(N.m)
  • Spindle stroke(m)
  • Drilling angle°
  • Mud Pump Dispalcement(L/min)
  • Drill mast Height(m)
  • Selling Units
  • Single volume
  • Single gross weight
  • Power (W) (Product option)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Core sample & Water well
Type
Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
75~325mm
Power Type
Diesel
Voltage
none
Product description
Rig parameterModelXY-130XY-150XY-200
Drilling depth(m)130150200
Open hole dia.(mm)220220325
End hole dia.(mm)757575
Drill rod dia.(mm)42-6042-6042-60
Drill angle(°)90-7590-7590-75
Matching power (Hp)222222
Weight without power (kg)600/740750880/970
Dimension (m)2.4*0.8*1.42.4*0.8*1.42.7*0.8*1.5
SpindleSpeed (r/min)142/285/57064/128/287/55764/128/287/557
Stroke(mm)450450450
Max.torque(N.m)89020002200
Thrust (k.N)404040
Lifting force (k.N)606060
WinchSingle rope lift force(kg)200021002500
Lifting speed Head(m/min)0.41-1.640.35-2.230.12-0.95
Rope dia.(mm)φ9.3φ9.3φ12.5
Rope capacity(m)273035
Drill mastRated load(ton)181818
Height(m)6.56.56.5
Mud pumpDispalcement(L/min)9595145
Max.pressure(Mpa)1.21.22
Times(pcs/min)939393
Inlet hose dia. (mm)515151
Outlet hose dia. (mm)323232
The Engine,Tower, Outriggers and Chassis can all be customized, and can be equipped with Wheels, Tracks to control walking.
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 28 fields
Usage
Core sample & Water well
Type
Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
75~325mm
Power Type
Diesel
Voltage
none
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
1200 KG
Dimension (L*W*H)
2400*800*1400(mm)
Mobility
YES
Model
XY-130/XY-150/XY-200/Customized
Engine
Depend on model
Maximum torque(N.m)
890/2000/2200(depend on model)
Spindle stroke(m)
450
Drilling angle°
90-75
Mud Pump Dispalcement(L/min)
95~145(depend on model)
Drill mast Height(m)
6.5
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Power (W) (Product option)
Depend on model
Model number
XY-130, XY-150, XY-200
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
