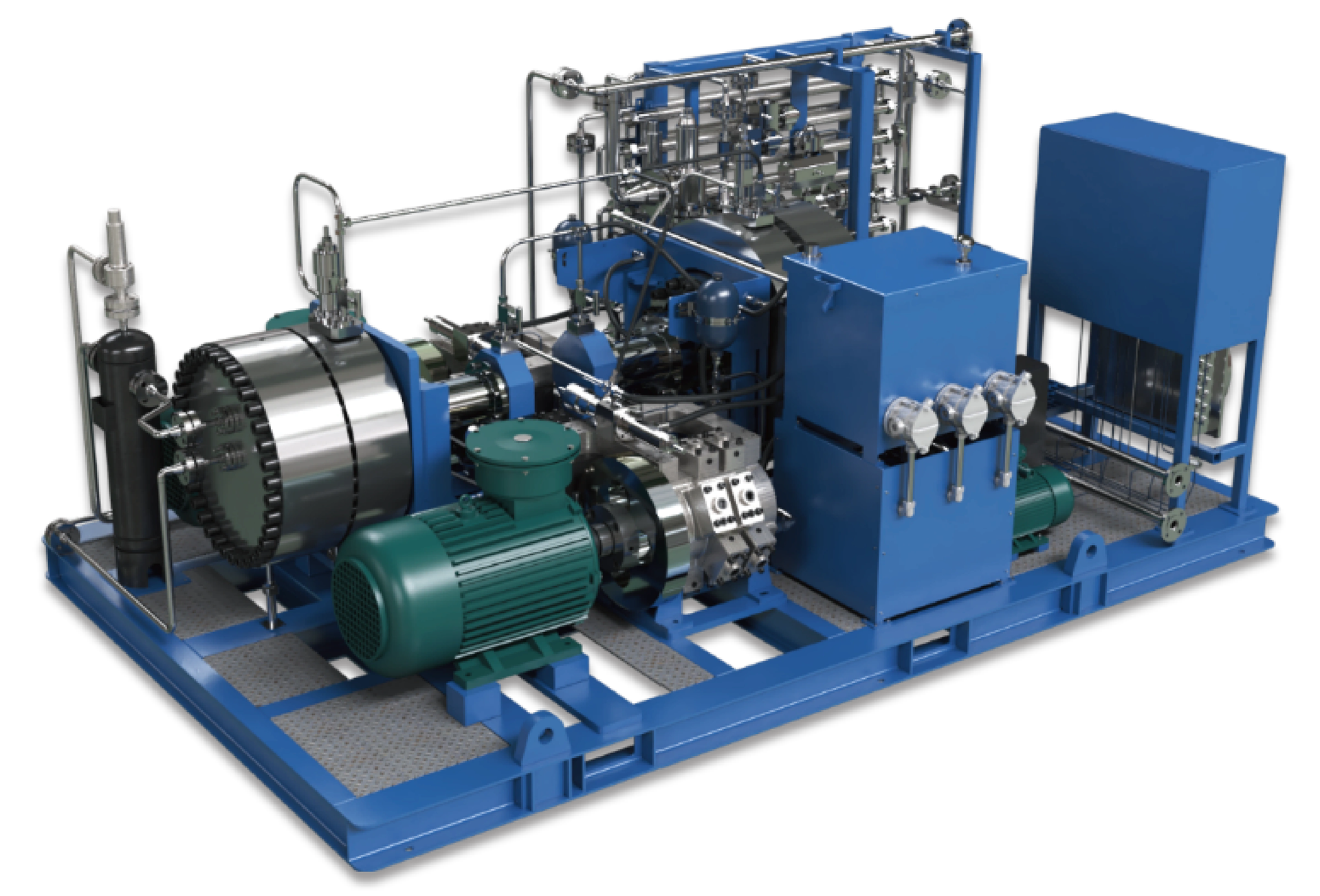

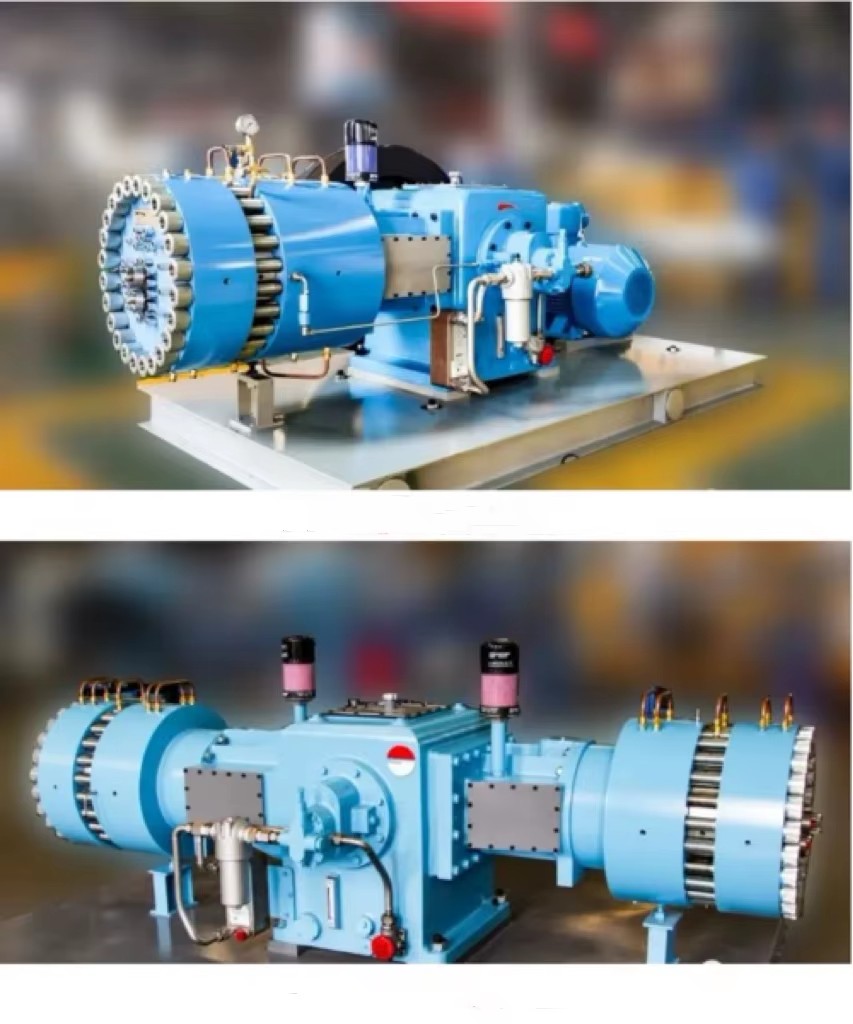

45MPa Liquid Drive Diaphragm Hydrogen Compressor Essential Gas Generation Equipment Part for Hydrogen Refueling Stations

The whole machine scheme is "born for hydrogen energy", and the liquid drive scheme can adapt to the special working conditions of the hydrogen refueling station with "frequent start and stop, cold driving, start and stop with load". Through the multi-stage series and parallel operation of the drive and booster units, the demand for large displacement and large pressure ratio is realized. Due to the cancellation of the crankshaft connecting rod transmission mechanism, the volume of the machine is very compact, only about 50% of the similar traditional diaphragm compressor, and the application scenario is very wide.

Structure principle

The pressure source is provided by the self-developed high-pressure piston pump, and the hydraulic direction is reversed by the self-developed high-frequency reversing valve, which drives the diaphragm to compress the gas

Features

hydraulic pump direct drive + high-frequency reversing valve instead of the traditional crank rod + piston, belt drive, the whole machine modular, adapt to changing conditions, frequent start and stop.

Application scenarios

1) How is the product quality?

Our products are produced in accordance with international standards, and the production process has strict quality control and inspection procedures, and all products are qualified products.
