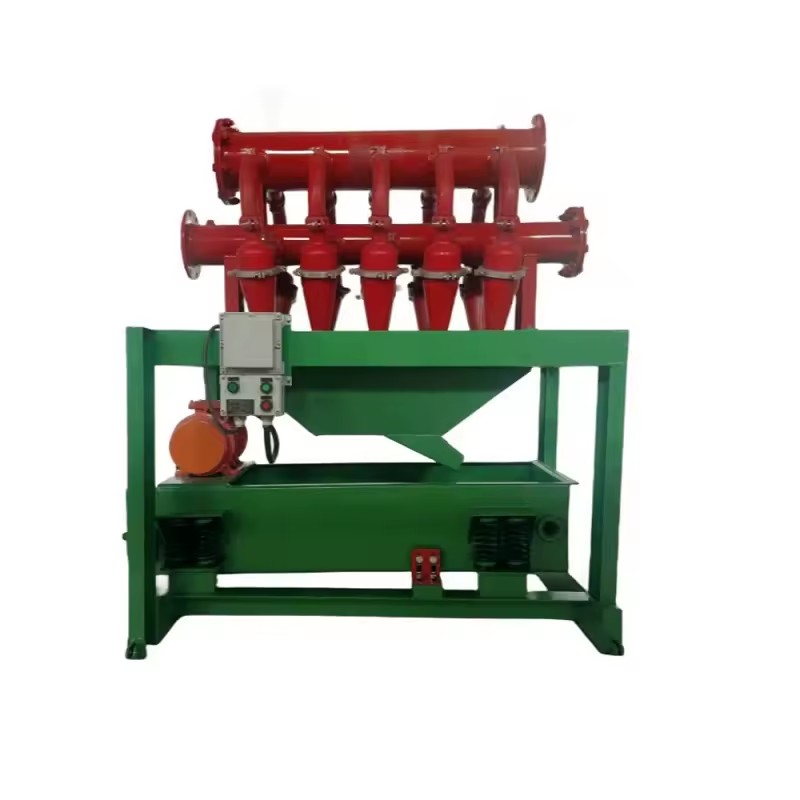

Product Importer Gallery 01 · fe9df2cabd

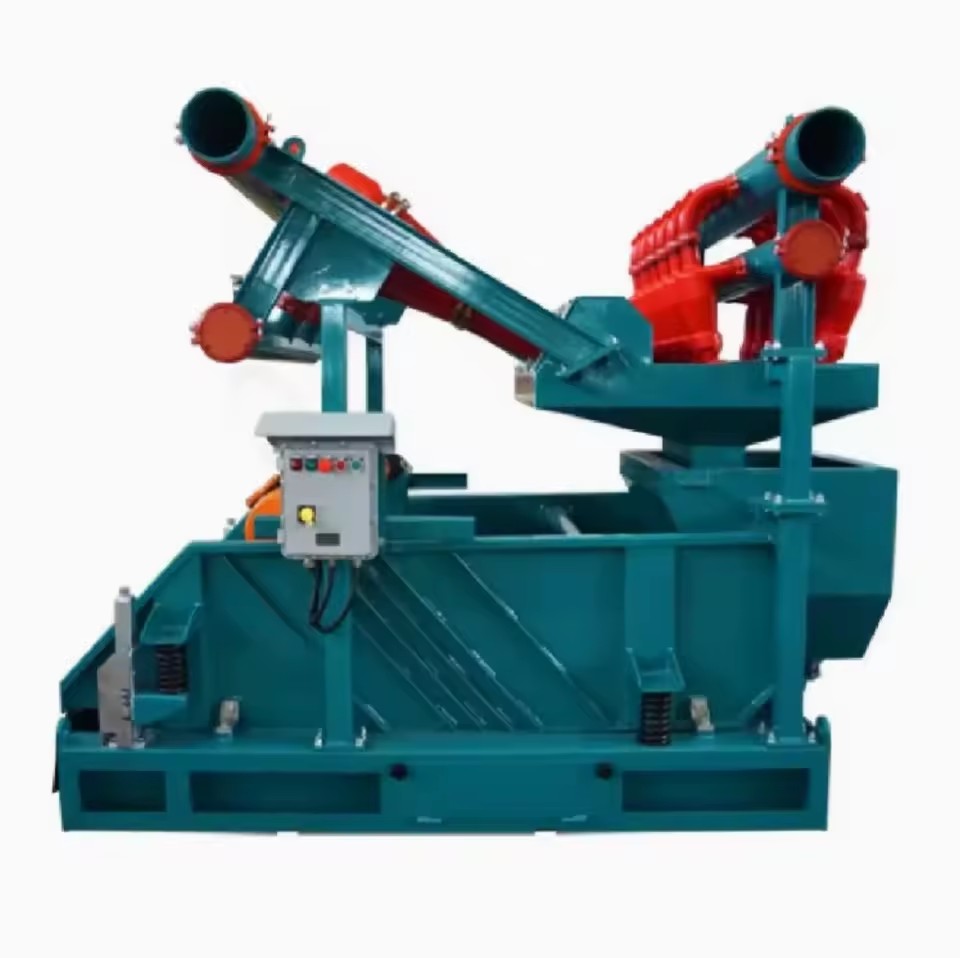

Product Importer Gallery 02 · 3b29a2b63e

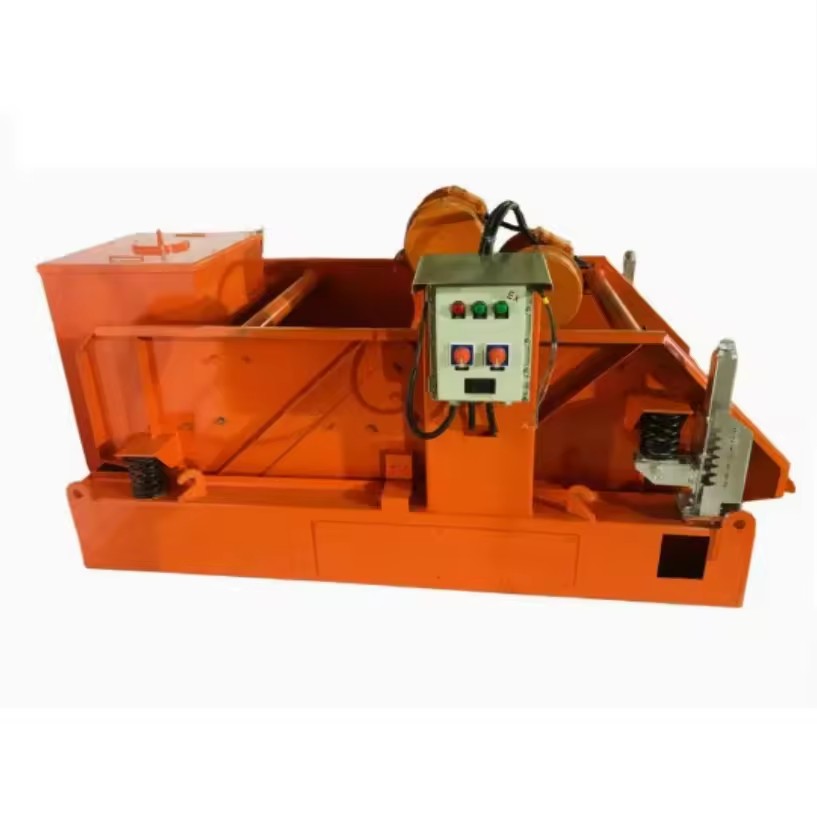

Product Importer Gallery 03 · 1f536f400f

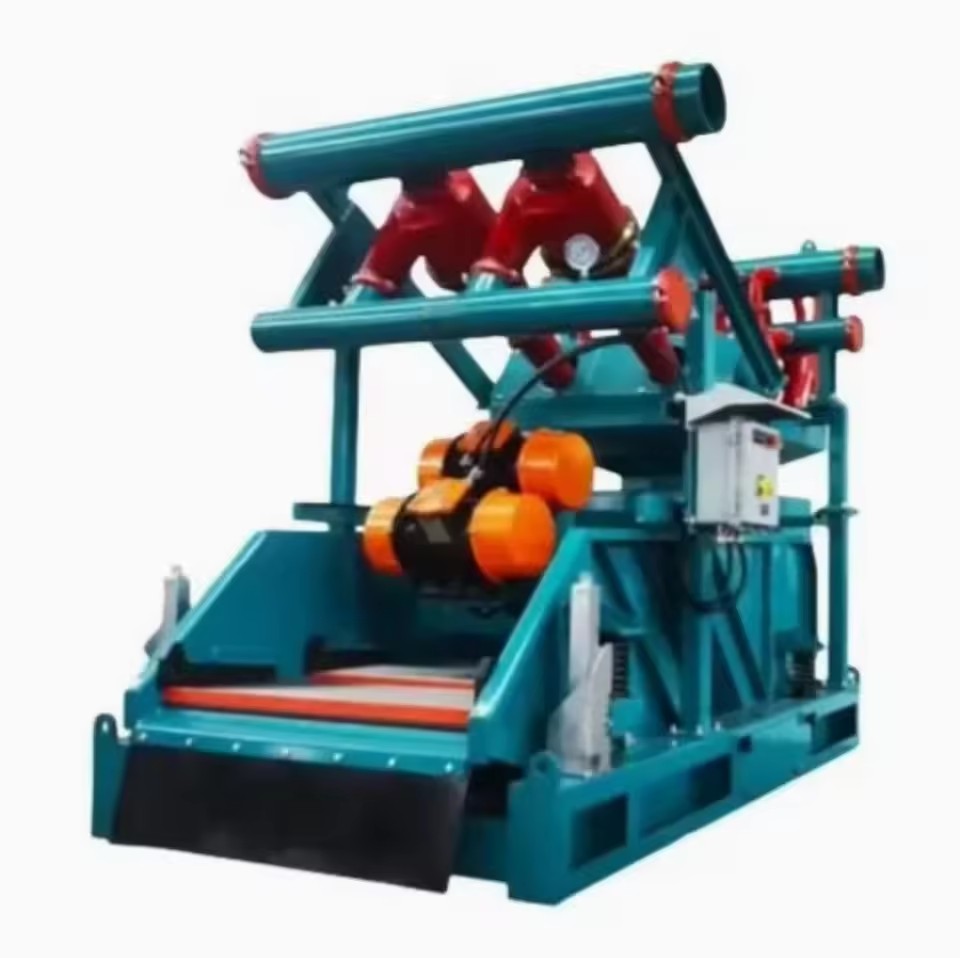

Product Importer Gallery 04 · 2caa634cf7

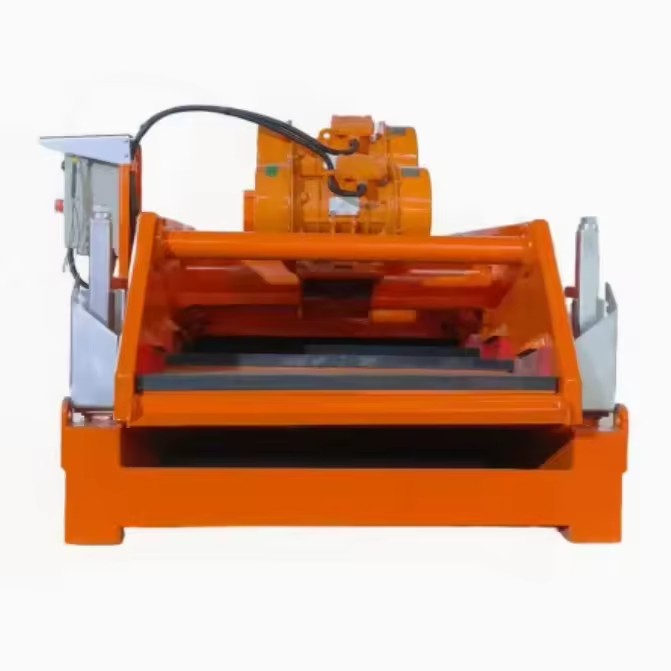

Product Importer Gallery 05 · 004fca2b19

Product video

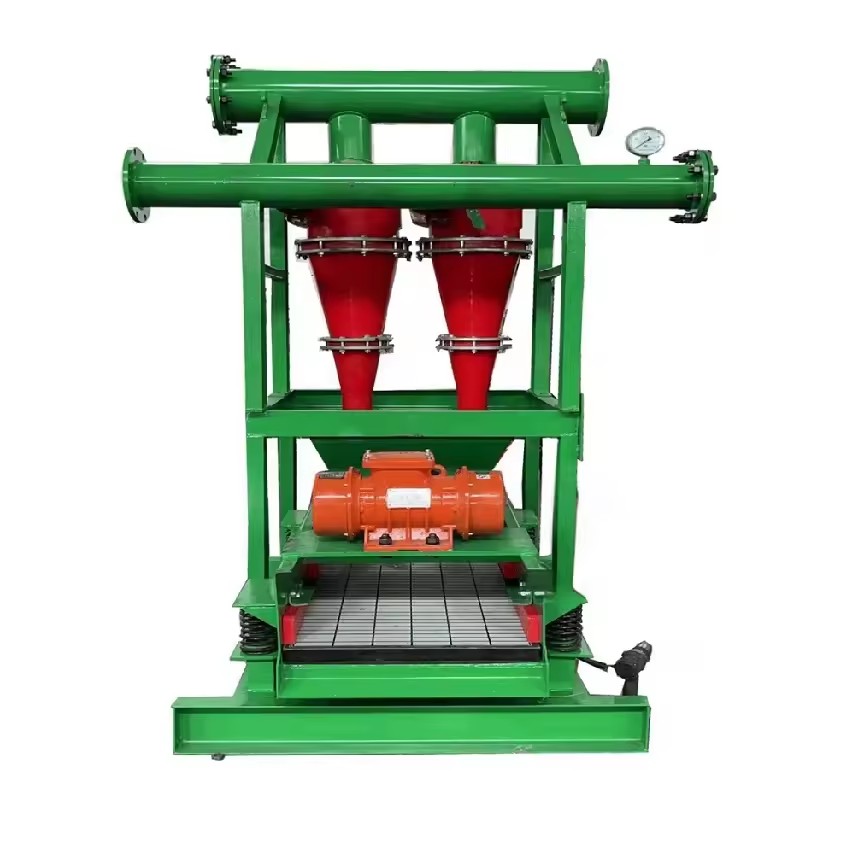

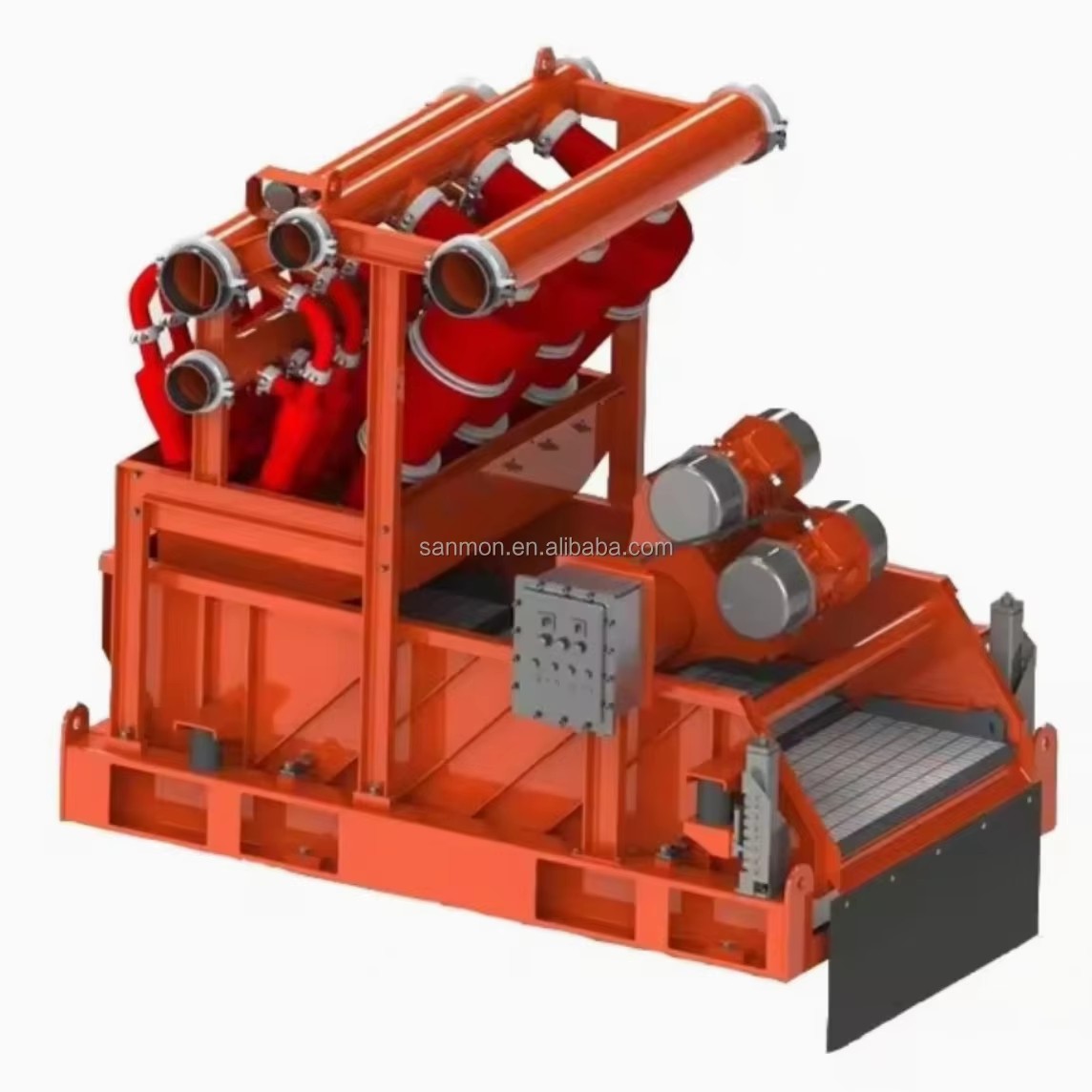

Oil Field Machinery Drilling Fluid Mud Cleaner Desander

Name: Oil Field Machinery Drilling Fluid Mud Cleaner Desander
SKU: KHJN-MVED-Y88G
Price: 4890.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 4,890.00 4890.0 USD $ 4,890.00

Minimum order quantity: 1 Units

Key attributes

View all

Core components

Pressure Vessel

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000pcs/year

Place of origin

China, Shandong

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Multimodal transport · Approx. shipping fee: $ 801.27 for 1 unit · Estimated delivery in 38-48 business days

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

$980 / set

SHALE SHAKER
型号Model	QJ/200×1/2	QJ/250×1/2/3	QJ/300×1/2
旋流器标称直径（mm）Hydrocyclone DN	200	250	300
旋流器数量（个） hydrocyclone qutlity	1/2	1/2/3	1/2
工作压力（MPa） Working pressure	0.2～0.45
分离粒度（μm） Separation particle Size	44～74
处理量（m³/h） Treating Capacity	≤60/120	≤100/200/300	≤120/240
适用振动筛 Suitable Bottom Shaker	ZS/TR	筛网规格shaker screen size：600mm×1120mm（软）、电机motor ：0.75kW
ZS/T	筛网规格shaker screen size: 585mm×1165mm、电机motor： 0.75kW
进液管通径（mm）Liquid Inlet DN	125/150	150	200
出液管通径（mm） Liquid Outlet DN	150/200	200	250
配套砂泵（kW） Matching Centrifugal pump Motor	45/55	45/55/55	55/75
理论重量（kg） Theoretical weight	880/920	1160/1205/1250	1520/1571/1622
外形尺寸 Dimension （Lmm×Wmm×Hmm）	1500×1160×2000	1800×1500×2200	1800×1650×2400

Desander parameters
Hydrocyclone	12″×2	10″×2
Working pressure	0.2~0.45 MPa
Capacity	240 m3/h	200 m3/h
Seperation size	44~74 μm
Desilter parameters
Hydrocyclone	4″×12	4″×14	4″×16	4″×12	4″×14	4″×16
Working pressure	0.2~0.45 MPa
Capacity	200 m3/h	220 m3/h	240 m3/h	200 m3/h	220 m3/h	240 m3/h
Seperation size	20~44 μm
Inlet diameter	6″ (150mm)
Outlet diameter	8″ (200mm)
Supporting shaker	JZS220-3P / JZS240-3P / JZS280-3P
Weight	2600kg / 2750kg / 2950 kg
Overall dimension	2700×2550×2600/2700×2550×2600/3140×2550×2600mm

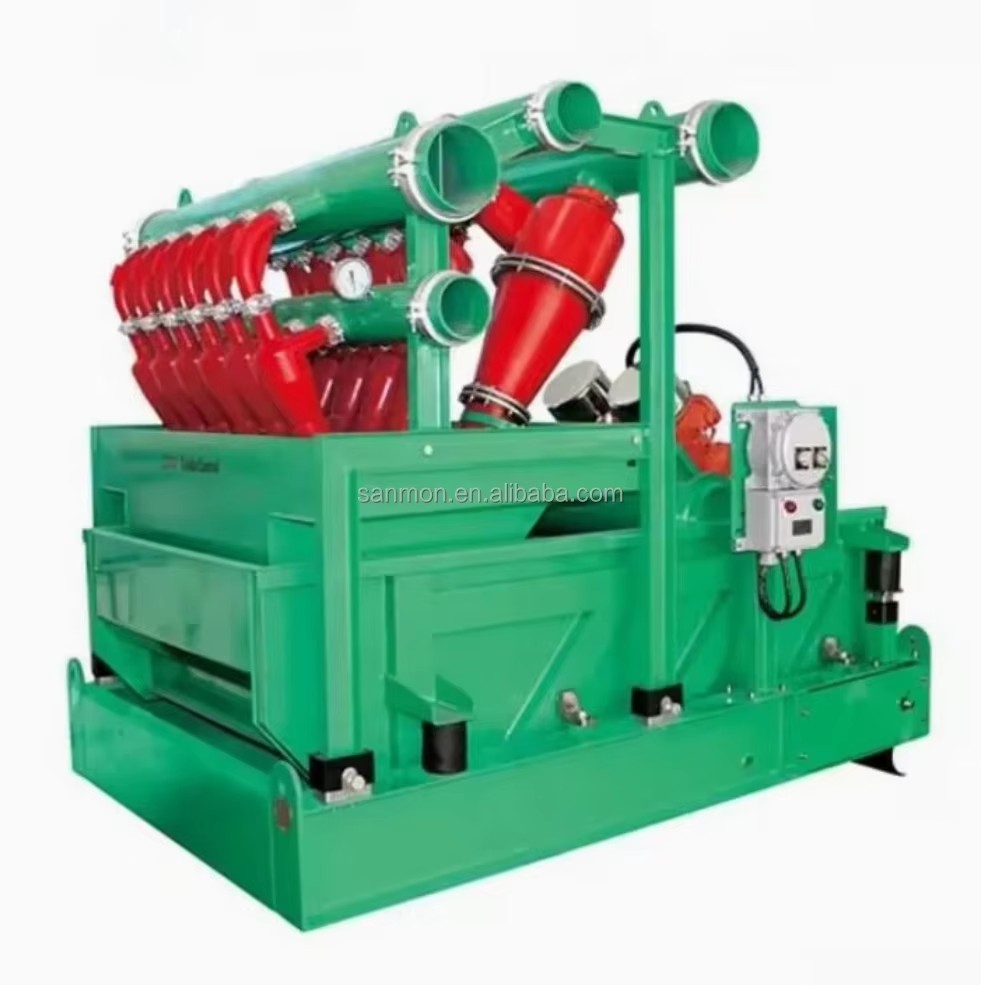

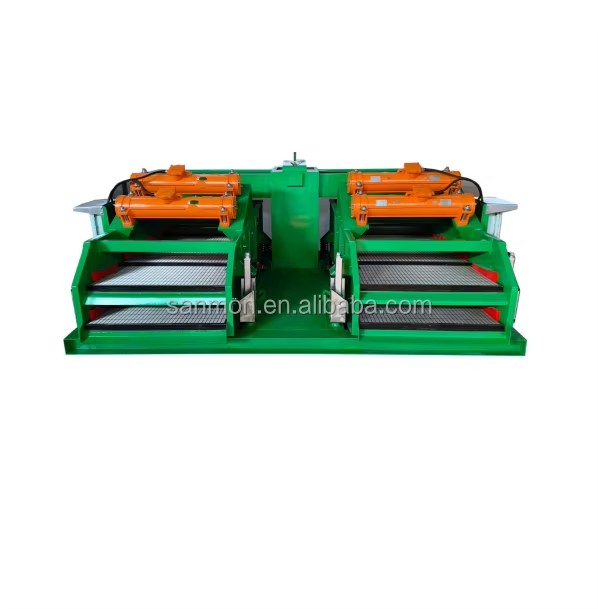

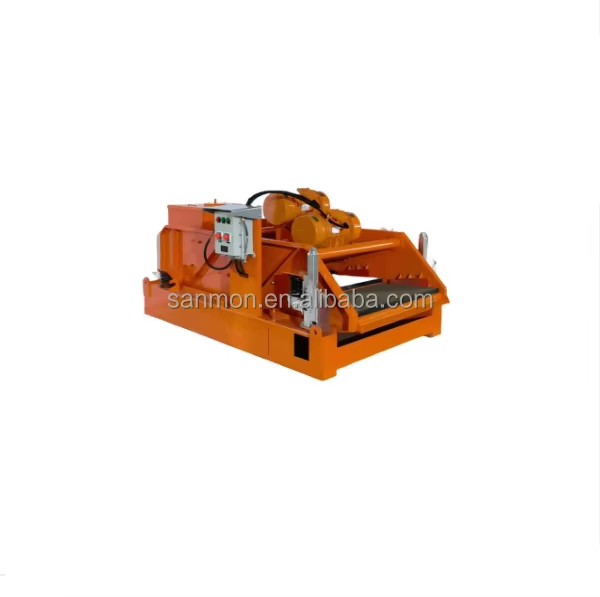

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

35 days
Step 3

Packaging and dispatch

Multimodal transport · Approx. shipping fee: $ 801.27 for 1 unit · Estimated delivery in 38-48 business days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Core components

Pressure Vessel

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Production Capacity

1000pcs/year

Place of origin

China, Shandong

Weight (kg)

138

Application

drilling mud

Features

Mud Cleaner Desander

Dimension (L*W*H)

1500*1160*2000mm

Item Name

oil well drill mud fluid solid control mud cleaner

Matrial

Alloy

Operation pressure

Pump

Working pressure

0.2-0.45

Cyclone Quantity

47-46

Function

Mud Cleaner Sand Separation

Type

Fluid Mud Desander

Color

as per request

Selling Units

Single item

Single package size

159X125X210 cm

Single gross weight

167.0 kg

Model number

SMCS/200x1/2

Lead time

35 days
