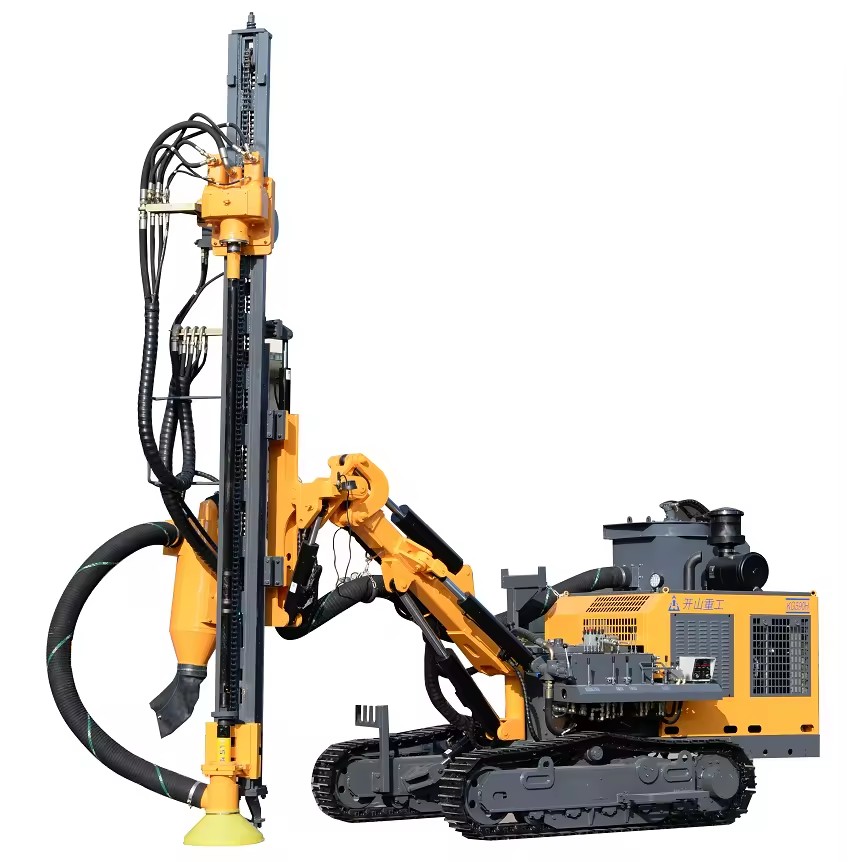

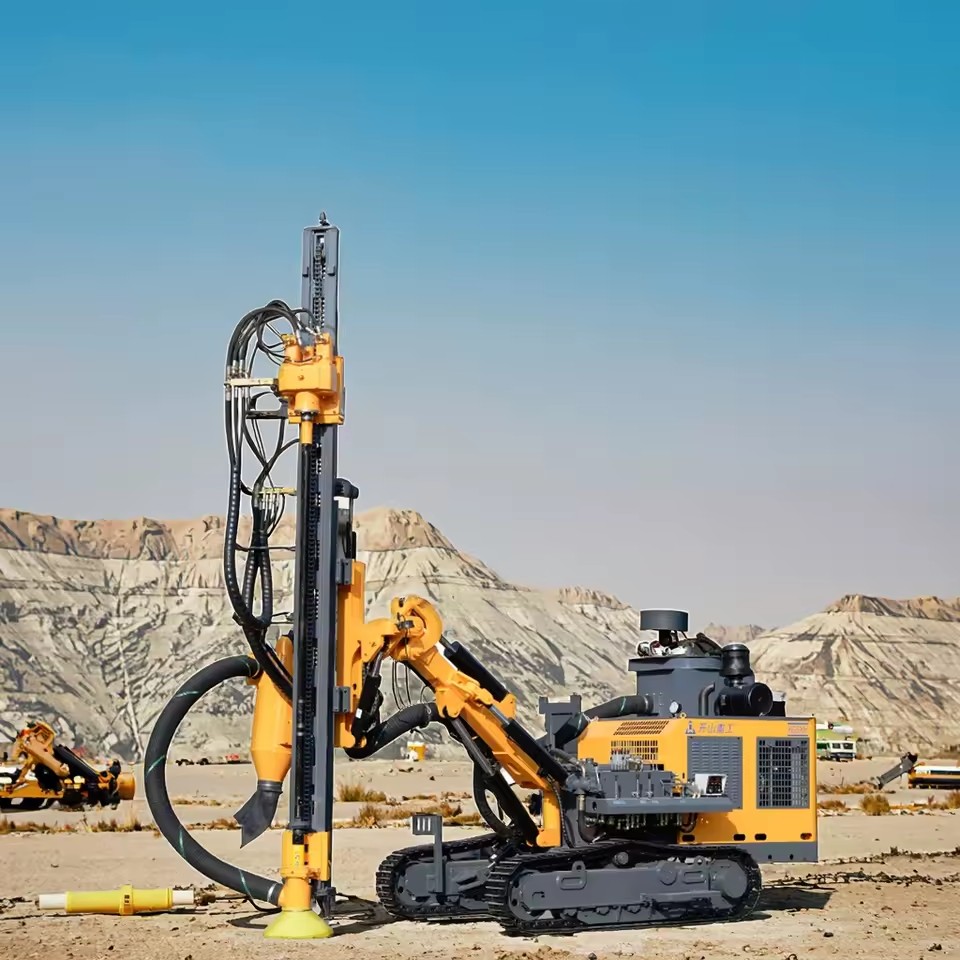

Name: Kaishan KG Series KG590H Ore Mine Drill Rig DTH Digging Blasting Hole Drilling Rig Machine
SKU: B2B-39332
Price: 45620.0 USD
Availability: PreOrder

Product description

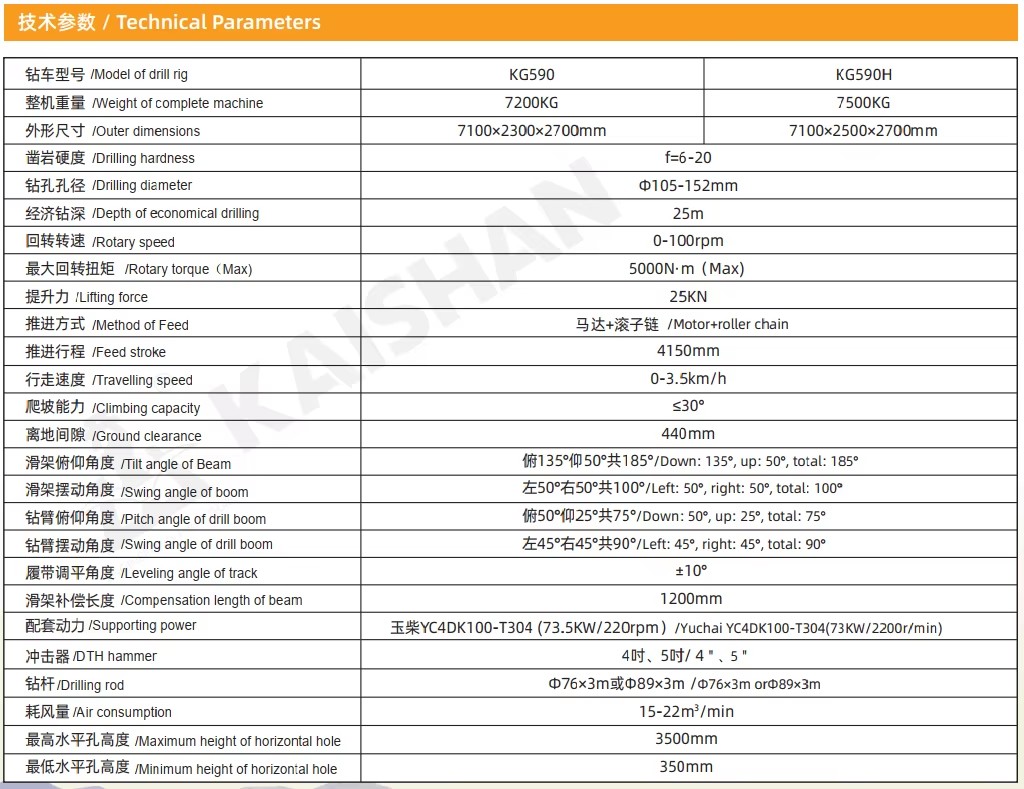

Model	KG590	KG590H
Outer size	710023002700mm	710025002700mm
Weight	7200KG	7500KG
Drilling hardness	f=6-20
Drilling diameter	105-152mm
Economical drilling depth	25m
Supporting power	Yuchai 73.5KW/2200 r/min

1.High rock rigidity, hard to move or low efficiency?

KG series drilling rig's Max.Climb Capacity is 30°, and Max.Ground Clearance is 450 mm, so it can be easily overcome obstacles and be better to achieve climbing and mining. The Rotation speed and torque have a direct impact on the drilling speed and the drilling cost. KG series' Rotation speed is controlled within a reasonable range of 70-120 r/min. Although the machine vibration is reduced, the drilling speed is guaranteed.The greater the rotation torque, the stronger the ability to prevent stuck drilling. KG series drilling rig's Max rotation torque is 5000 N.m. Even if the drilling rig is on a slope, it can be keep working high efficiently.

2.More conditional restrictions, hard to drill or less workload?

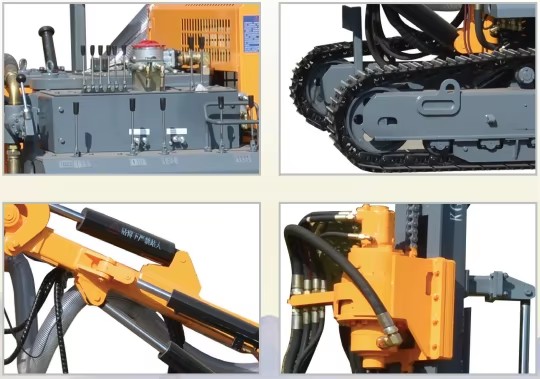

KG590 series drilling rig' hydraulic system has been updated and upgraded. The lifting force is 25 KN. And the range of Boom lift is too wide, such as 25°up, 50°down and more. Also the range of Boom swing has tow ranges. The range of Guide Tilt Has 50°up, 135°down, also Guide swing has seven ranges. Even The compensation stroke can reach 1200 mm. Greatly expanded the drilling range, so KG series drilling rig has strong environmental adaptability.

3.Unstable gas supply affects project progress?

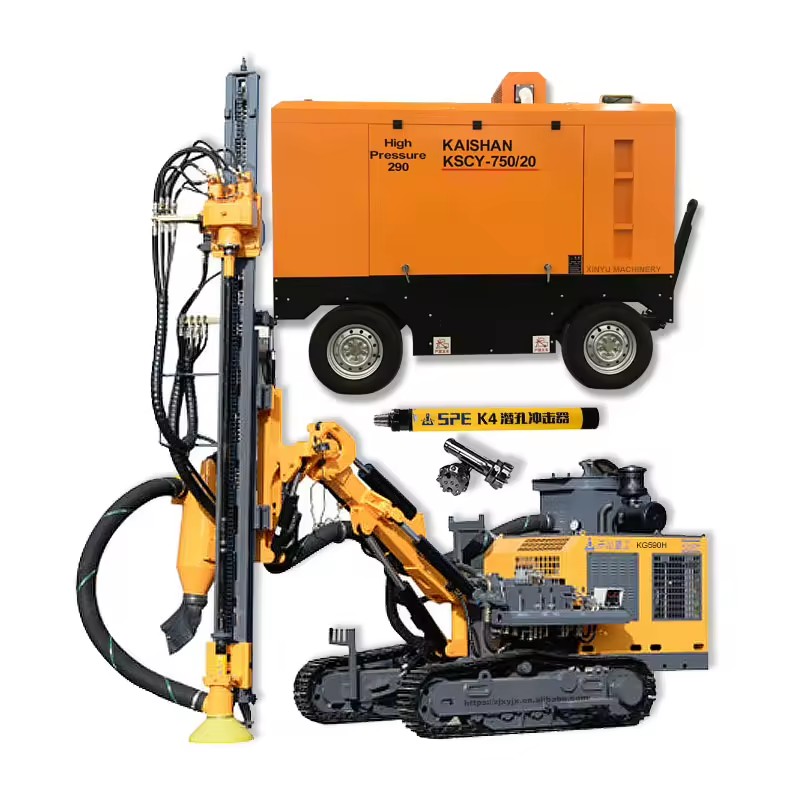

Kaishan LGCY series and KSCY series portable diesel screw air compressor often provide power for KG series drilling rig. The efficiency of the screw air compressor depends on the rotor, also the life of the screw air compressor depends on the bearing and the shaft seal. Only Kaishan can produce a whole pedigree of rotor in the world and the diameter of 220kw rotor can reach 386cm. The bearing of screw air compressor generally use SKF, and low speed,the bearing no extra force,the work-life of the screw air compressor will be longer. Kaishan compressor's rotor is direct driven,no speed gear,lower speed, higher efficiency. So the work-life of Kaishan compressor is longer than other brand compressor. Kaishan compressor can continue to provide stable and efficient power for the mechanical equipment and support the equipment at a high speed and stability.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Usage

Ore

Type

dth drill rig

Drilling Depth

25m

Drilling Diameter

105-152mm

Power Type

Diesel

Voltage

24 V

Core components

Engine, Other

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

Zhejiang, China

Weight

7500 kg

Name

KG590H DTH Drill Rig

Color

Yellow

Drilling hardness

f=6-20

Dimension

7100*2500*2700mm

Rotary Speed

0-100 rpm

Rotary torque(max)

5000N.m(Max)

Lifting force

25KN

Method of Feed

Motor + roller chain

Feed stroke

4150mm

DTH Hammer

4", 5"(inch)

Selling Units

Single item

Single package size

560X245X235 cm

Single gross weight

4350.0 kg

Power (W) (Product option)

73.5KW/2200 r/min

Model number

KG590, KG590H

Lead time

30 days

Minimum order

1 Units
