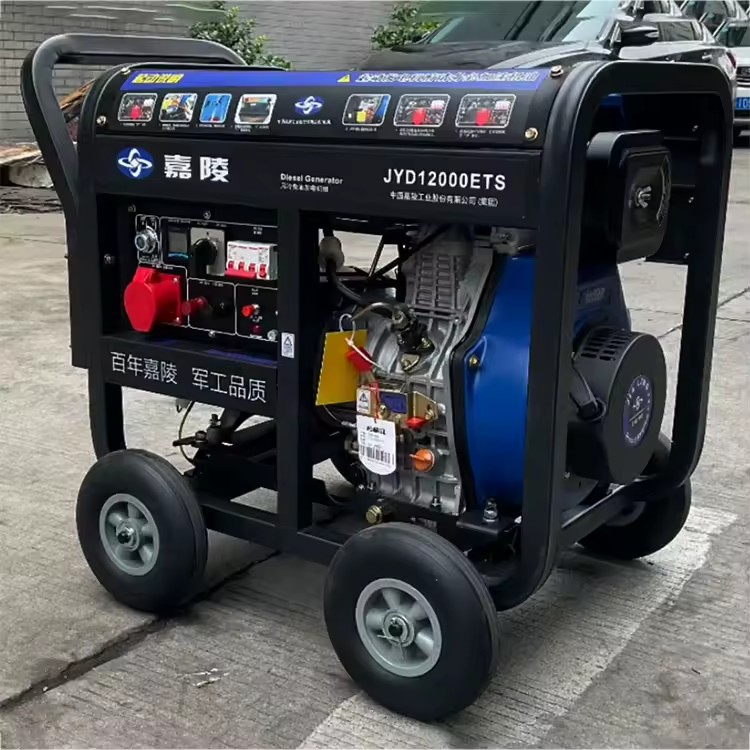

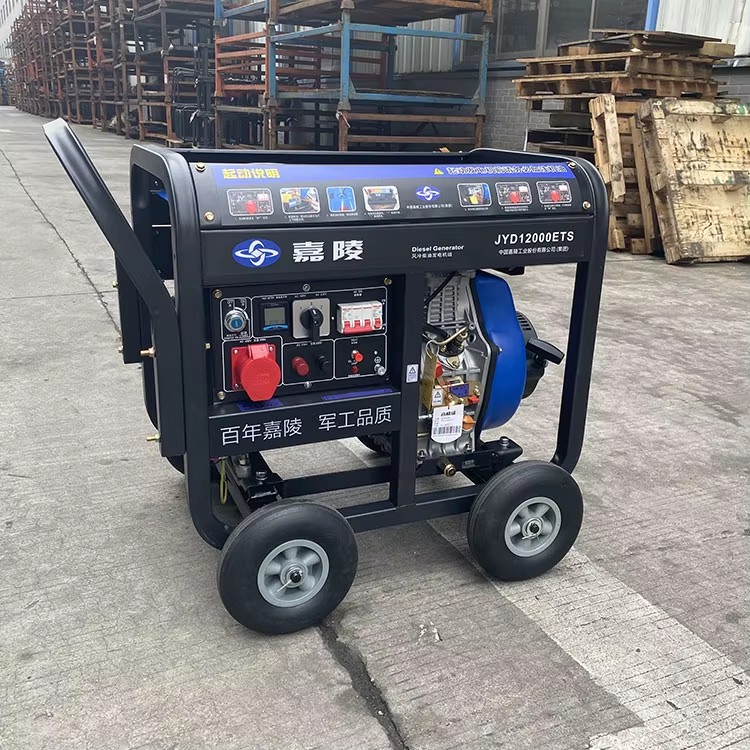

Name: Jialing Electricity Generation Machines diesel Generator Single 3 Phase 7.5Kva 8Kw Small Diesel Generator
SKU: B2B-42360
Price: 1090.0 USD
Availability: PreOrder

Product description

20 pieces

Generator	Model	JYD12000ETS
Rated voltage (V)	230/400
Rated frequency (Hz)	50
Phase number	Single/3
Power factor	1/0.8
Rated power(KVA)	7.5/9.3KVA
Max. power(KVA)	8.25/10.2KVA
Rated current(A)	32.6/13.4
DC output voltage (V)	12
Dc output current (A)	8.3
THD(%)	15%
Noise Level at 7m(dB)	105
Temperature range℃	5℃～+45℃
Engine	Engine model	CG195FG3TE
Engine type	Single-cylinder, 4-stroke, air-cooled
Displacement(ml)	532
Fuel	diesel oil
Bore*Stroke(mm)	95*75
Compression Ratio	19
Starting system	Electric starting
The ignition system	Compression ignition
Cooling system	Air-cooled
Rated Output(kW)	9.2/3600
Max. Output(kW)	10.1/3600
Fuel Consumption	3L/h
Oil volume(L)	1.65
Package	Net Weight(kg)	126
Dimensions(L×W×H)(mm)	740×510×630
Fuel tank capacity(L)	12.5
Full load continuum running time (h)	4
Panel	CGF95-3E-D8-2A-Z
Alert/Protector	Low oil pressure
Ac Output type	230V
Dc Output type	12V
Motor type	Excitation generator
Heat insulation level	F
Protection class	IP21
The battery spec.	U1-9MF

Diesel Generator

Advantages Of Diesel Power

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 20 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 26 fields

Frequency

50HZ/60HZ

Rated voltage

100V,110V,120V,220V,110/220V,240V,380V,230/400V

Type

Portable Type, Open Frame

Cooling System Type

Air Cooling System

Rated current

As your choice

Speed

3000/3600RPM

Starting System

Recoil Start, 12V DC Electric Start, Manual/Electric starter

Place of origin

China

Application

Industrial, Construction Site, residential, Commercial

Model number (Specification)

JYD12000ETS

Weight

150kg

Engine model

CG195FG3TE

Rated Frequency (Hz)

Phase number

single/three-phase

Noise Level at 7m(dB)

Displacement(ml)

532

Bore*Stroke(mm)

95*75

Oil volume(L)

1.65

Max. Output(kW)

Warranty

3months-1year

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Color (Product option)

Blue

Rated Power (Product option)

8.0/8.8-10.0/11.7KW/Kva

Output Type

AC Single Phase, DC

Lead time

30 days

Minimum order

20 Units
