Cheap Compact Rotary Drilling Rig Diesel-Powered 220V with Long Service Life for Underground Mining and Quarry Operations

Available for enquiry 0.0 · 0 reviews
USD

$ 128,710.00 128710.0 USD $ 128,710.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Product description

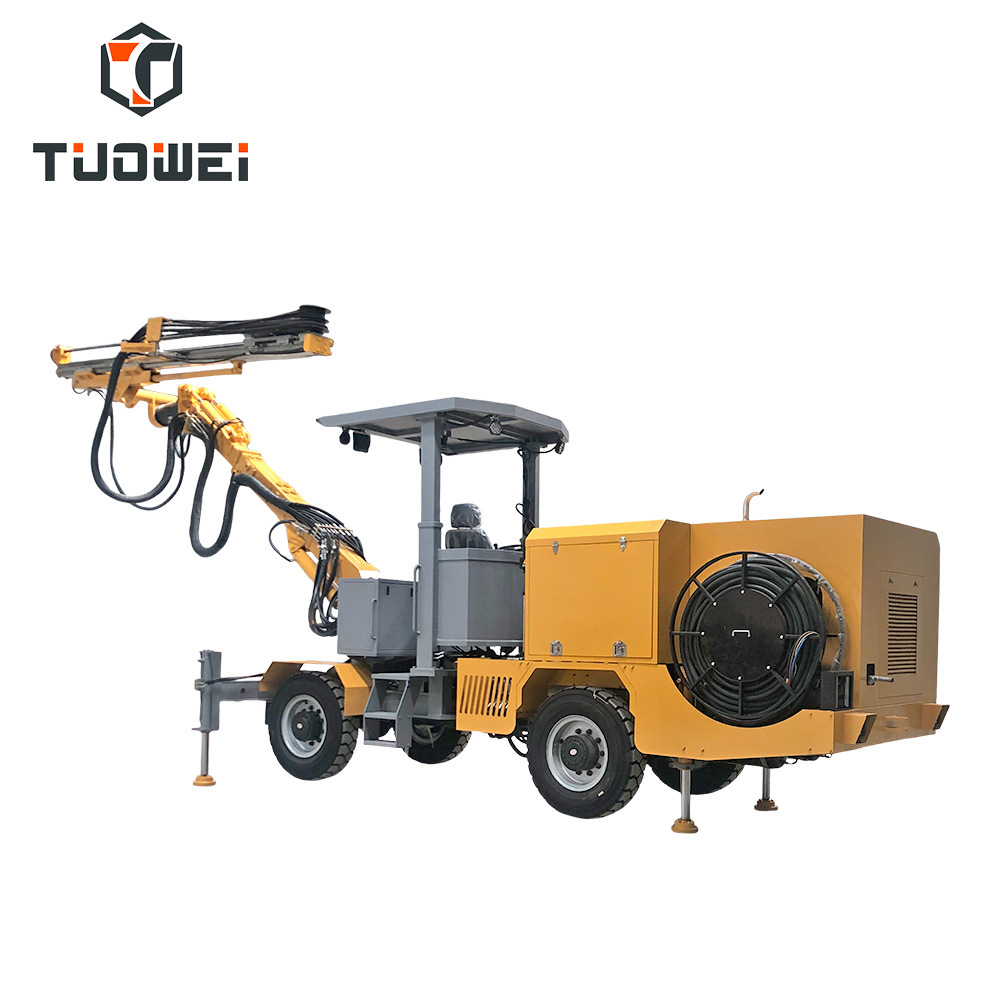

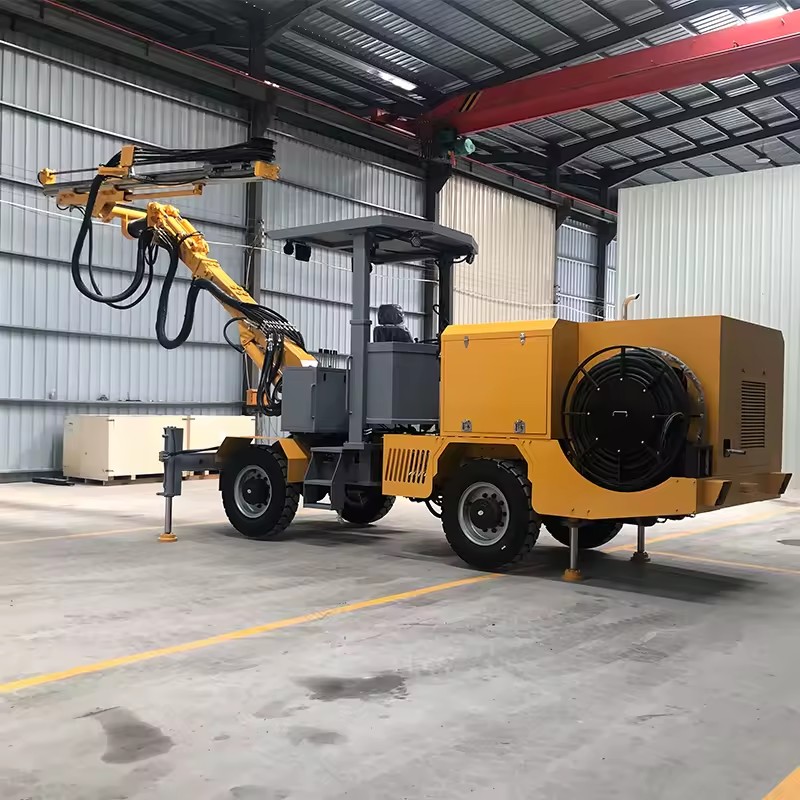

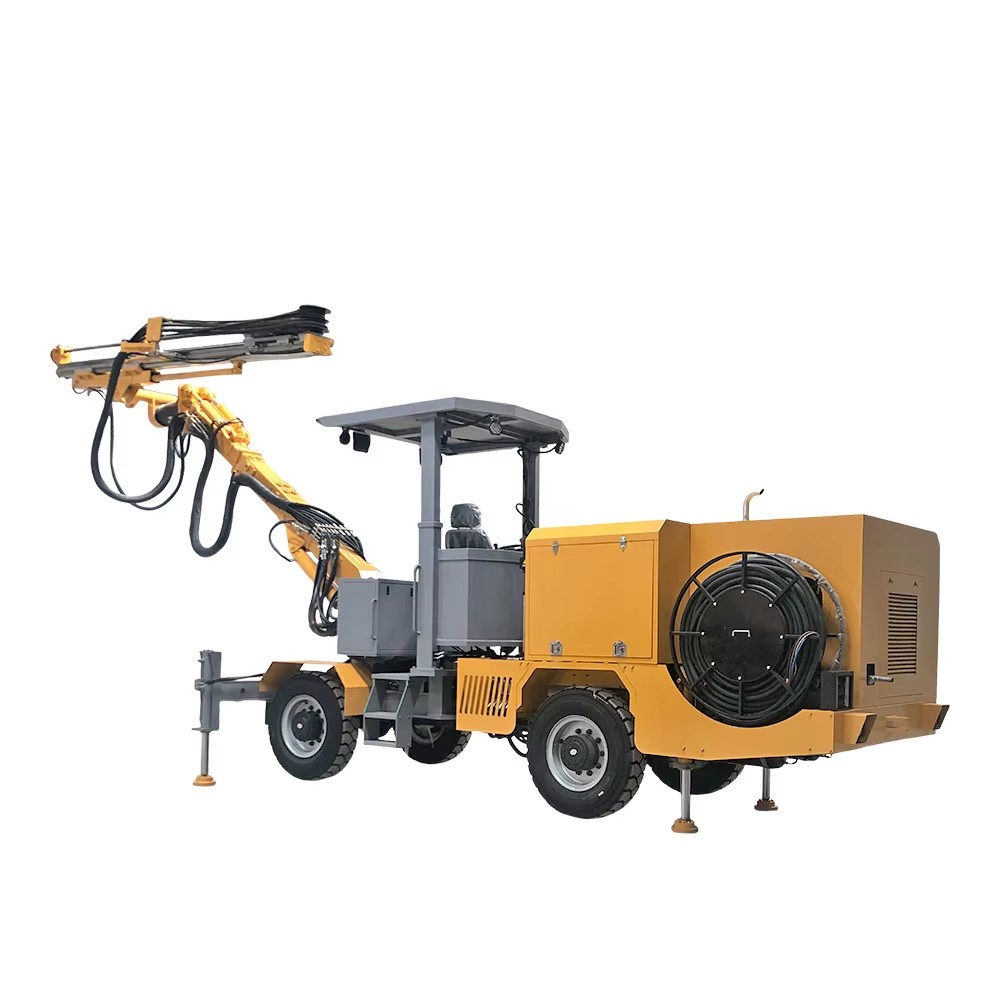

Face Drilling Rig · AZK-125

Single Boom Drilling Jumbo · AZT1-6500

Double Booms Drilling Jumbo · AZT2-9700

AZK-125CategoryTechnical parameters
1Basic parameters
1.1Equipment weight (kg)10000

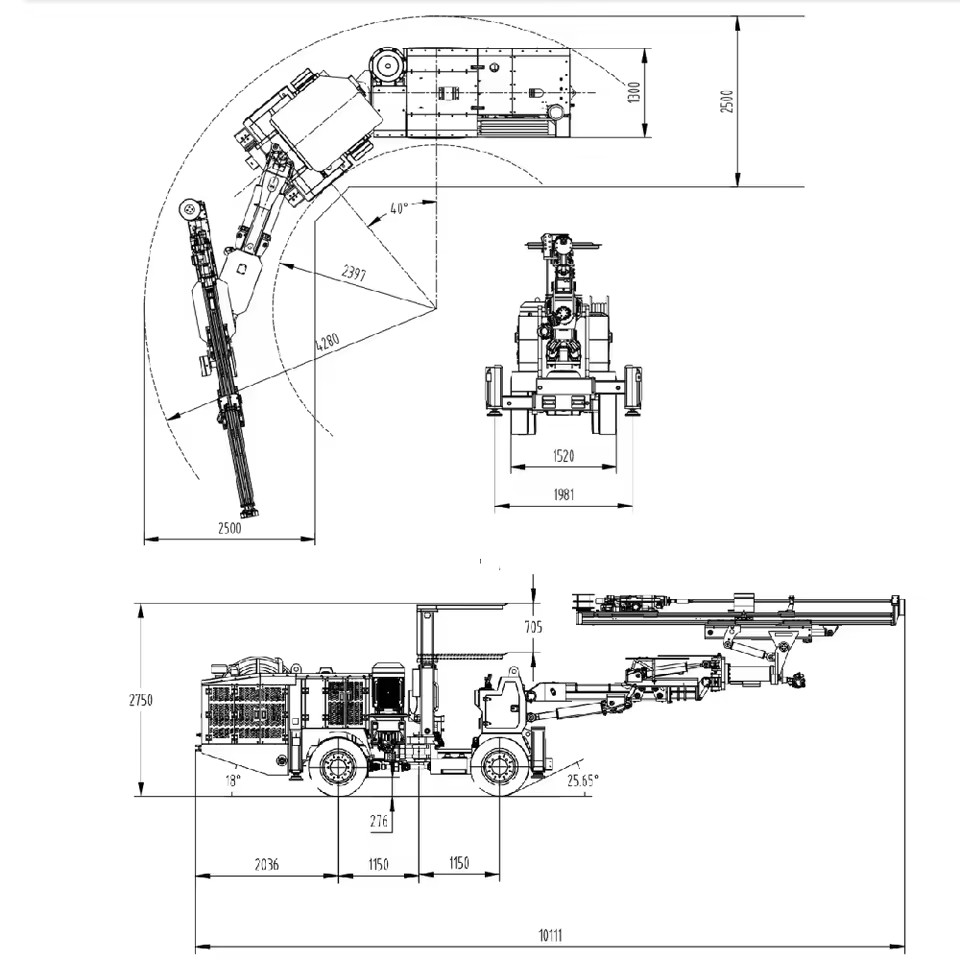

1.2Dimensions (mm) L x W x H10111×1520/1320×2750 (2045)
1.3Maximum operating range (width x height, mm)5697×5400 (6092 maximum height)
1.4Turning radius (mm)2397/4280
1.5Maximum coverage area (㎡)30
1.6Aisle width (m)2.5X2.5
2Equipment configuration
2.1Rock drillModelStandard PD380 (optional)
BrandWell-known manufacturer
System pressure (bar)200
Impact power (kW)20
Impact energy (Hz)380
Maximum rotation torque (N·m)820
Rotation speed (r/min)220
Lubrication air consumption (at 3bar) (L/s)3.3
Water consumption (L/min)30-50
Drilling diameter (mm)φ45-φ115
2.2Drill armThruster compensation stroke (mm)1500
Parallel maintenance throughout the whole processYes
Coverage area (㎡)24
Coverage width/height (mm)5025/5000
Boom lifting angle43° ~ +52°
Boom swing angle±30°
2.3Propulsion beamTotal length of propulsion beam (mm)4740 (standard)/5400
Maximum propulsion force (kN)15
Drill rod length (mm)3090 (standard)/3700
Drilling depth per push (mm)2830 (standard)/3440
Flip angle±180°
Pitch angle3°~ +90°
2.4ChassisGradeability (°)20
EngineManufacturerYuchai
Power (kW)55.8
Maximum torque310Nm/1600rpm
Emission and noise standardsNational IV (EURO IV)
Transmission systemFour-wheel drive
Travel speed (km/h)0~15
Ground clearance (mm)220
Steering systemArticulated steering
Steering angle (°)±40
Wheelbase (mm)2300
2.5Drilling hydraulic systemHydraulic control methodManual valve control
Motor power (kW)55
Hydraulic oil tank capacity (L)180
Pressure oil and return oil accuracy (μm)10
2.6Water systemWater pump power (kW)3
Rated displacement (L/min)52 (12bar)
Water outlet pressure (bar)12
Minimum water inlet pressure (bar)2
2.7Electrical systemMain electrical component manufacturerABB
Voltage (V)/frequency (Hz)380/50
Starting methodStar delta
Safety protection system functionLeakage protection, overload protection, short circuit protection
Basic Parameters of Drilling Jumbo · AZT1-6500
Applicable section3000x3000-5050x6500 mm
Dimensions L*W*H11189×1760×2375(3005) mm
Ground clearance330 mm
Weight12000 KGS
Minimum turning radiusInside:3450/Outside: 5510mm
Climbing ability15°
Running speed≤7.2 kM/h
Cable length90 m
Specifications of rock drill
Rock drillDZ622
Impact power22 kw
Impact frequency62 Hz
Impact pressure130-200 bar
Impact pressureIndependent rotation
Rotation speed0-275 r/min
Rotation torque (max)980 Nm
Thruster
Total length5800 mm
Drill rod length4300/3700 mm
Depth of hole4000/3400 mm
Propulsion force15 KN
Drilling arm
Compensation itinerary1400 mm
Horizontal holeComplete coverage
Sliding frame rotation±180°
Pitch angle+60°/-30°
Swing angle±35°
Drilling arm weight2000 kg
Hydro-pneumatic system
Maximum displacement of water pump (12 bar)4 m³/h
Air flow0.55 m³/min
Electrical system
Total installed power65 kW
Main motor power55 kW
Voltage380V(Customizable)
Hydraulic system
Closed hydrostatic drive walking system
Hydraulic direct control operating system
Equipped with anti-stuck function
Chassis
Diesel engineCummins
Rated output power (2200r/min)66 kW
Basic parameters of double arm drill jumbo · AZT2-9700
Main parameterParameter values
Size17000*2800*2900/3750mm
Maximum excavation height9700mm
Drilling diameterφ43mm-φ102mm
Drill pipe length5525mm
Drilling depth5300mm
Drilling speed0.8-2m/min
Motor power55*2KW
Fuel tank capacity600L
Overall weight33000kg
Rock drilling power head model1838ME
RotationPositive 135 ° Reverse 225 °
Swing arm45 ° left and right
Travel compensation1800mm
Main arm stroke1600mm
Sliding rail swing angle2 ° elevation and 90 ° elevation
Diesel engine power129kw
Turn±40
Tires14.00-24.00
Climbing ability≤17°
Rear axle swing angle±10°
Approach angle/departure angle20°/17°
Inside turning radiusInner side 3.3m/outer side 6.95m
Walking speed15km/h
Ground clearance350mm
Fuel tank capacity120L
Air compressor flow rate1m³/min
Pressure0.3-0.6MPa
Air compressor motor power4.5KW
Water pump flow rate10m³/h
Pressure0.2-0.8MPa
Pump motor power7.5kw
Battery rate2x12v
Driving lighting24v
Work lighting220v
Description images

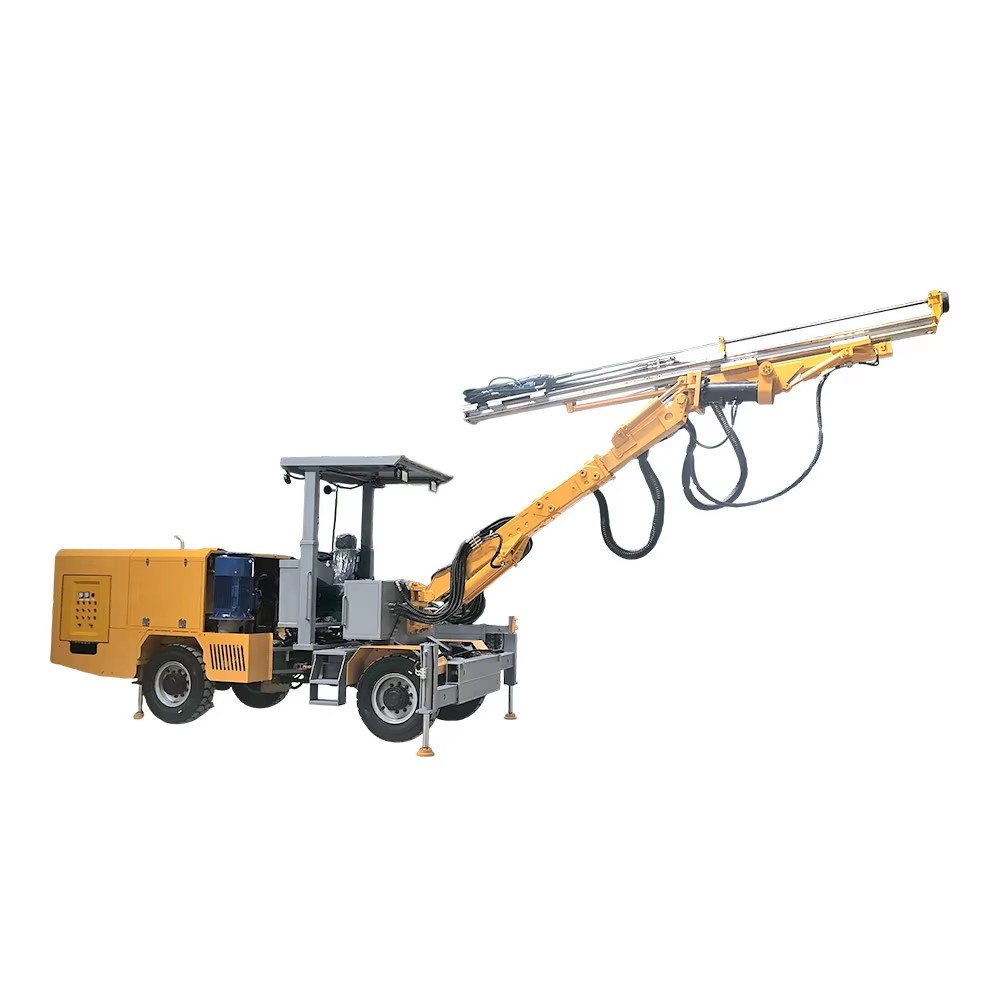

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 26 fields
Type
Rotary Drilling Rig
Drilling Depth
Max.5.3m
Drilling Diameter
43mm, 102mm
Power Type
Diesel
Voltage
220v
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Long Service Life
Place of origin
China, Fujian
Weight
3300 KG
Dimension (L*W*H)
17000*2800*2900mm
Mobility
15km/h
Rock drill
RD19M
Impact power
18 kw
Impact Frequency
57 Hz
Impact pressure
130-200 bar
Rotary system
Independent rotation
ROTATION SPEED
0-220 r/min
Rotation torque (max)
1050 Nm
Selling Units
Single item
Single package size
1100X205X280 cm
Single gross weight
12000.0 kg
Model number
AZK125
Power (W) (Product option)
55 kW
Lead time
30 days
Minimum order
1 Units
