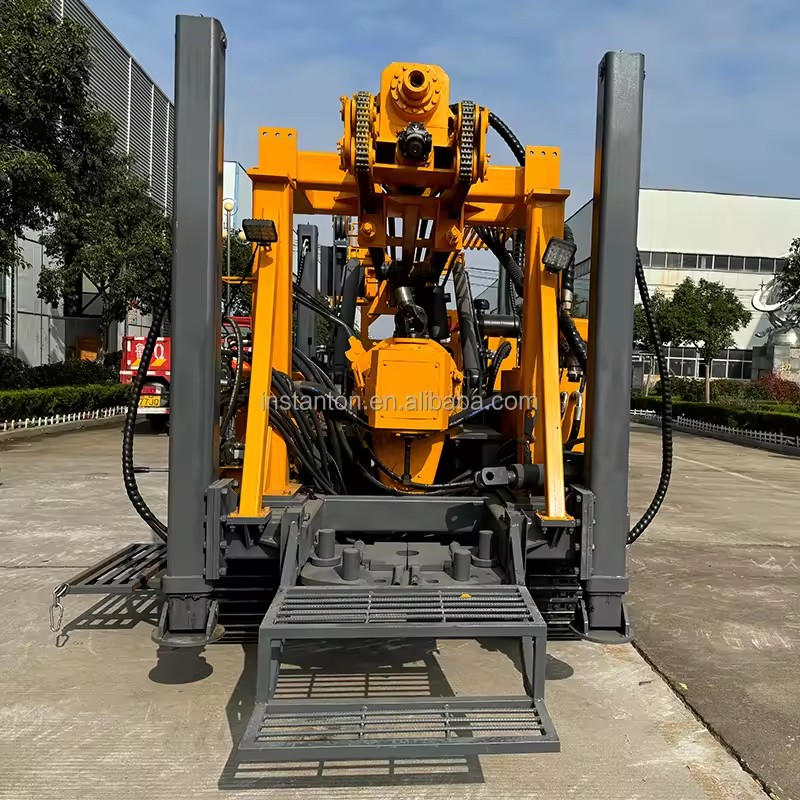

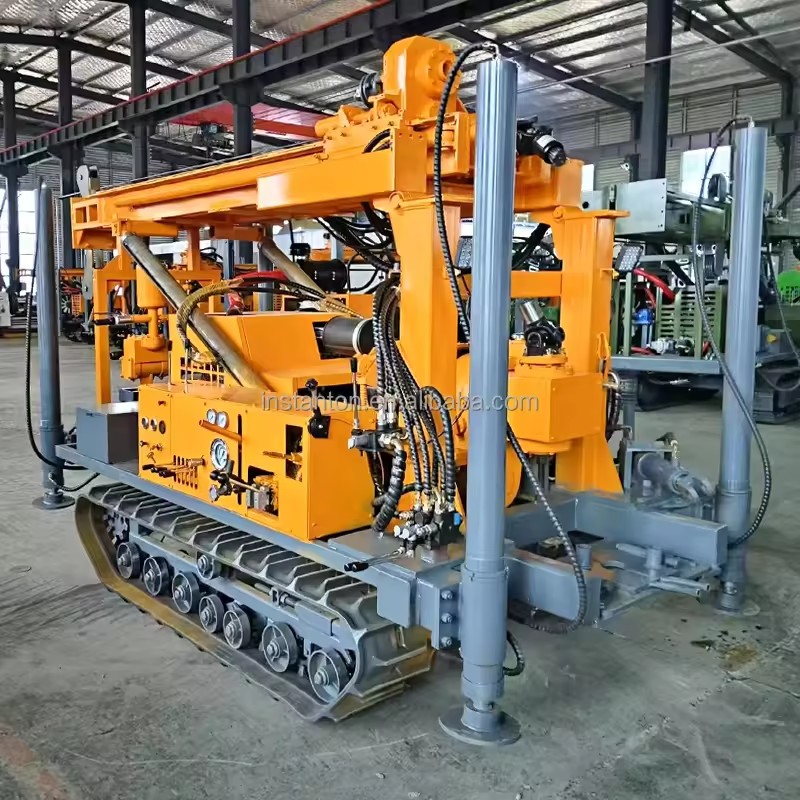

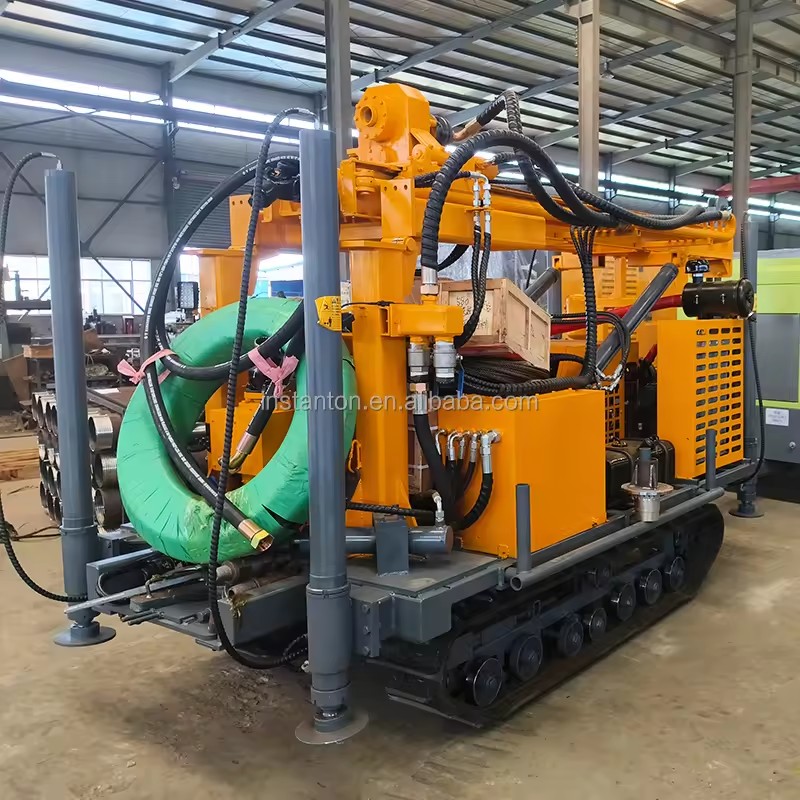

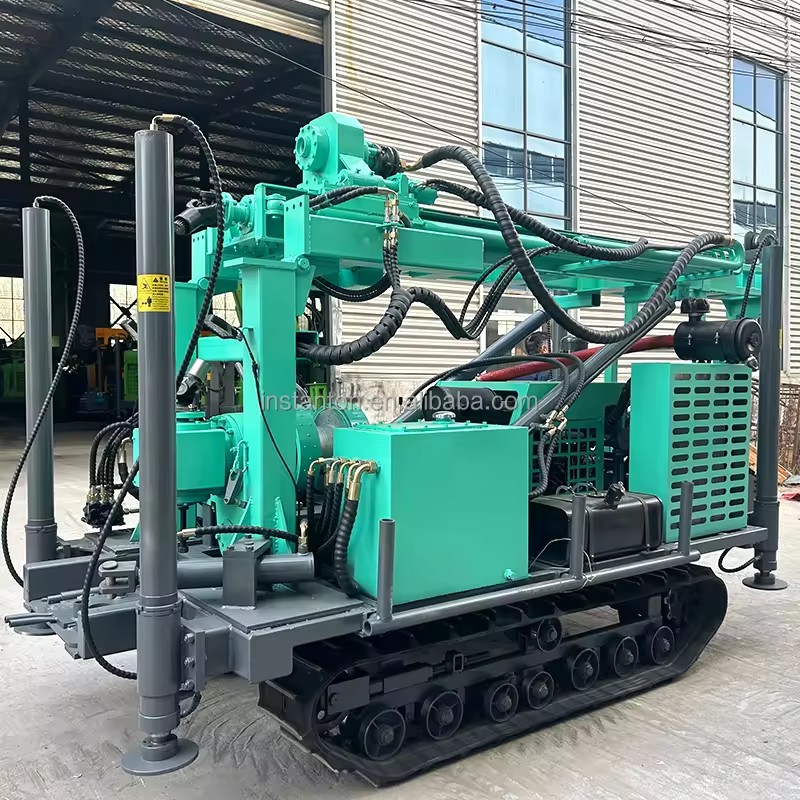

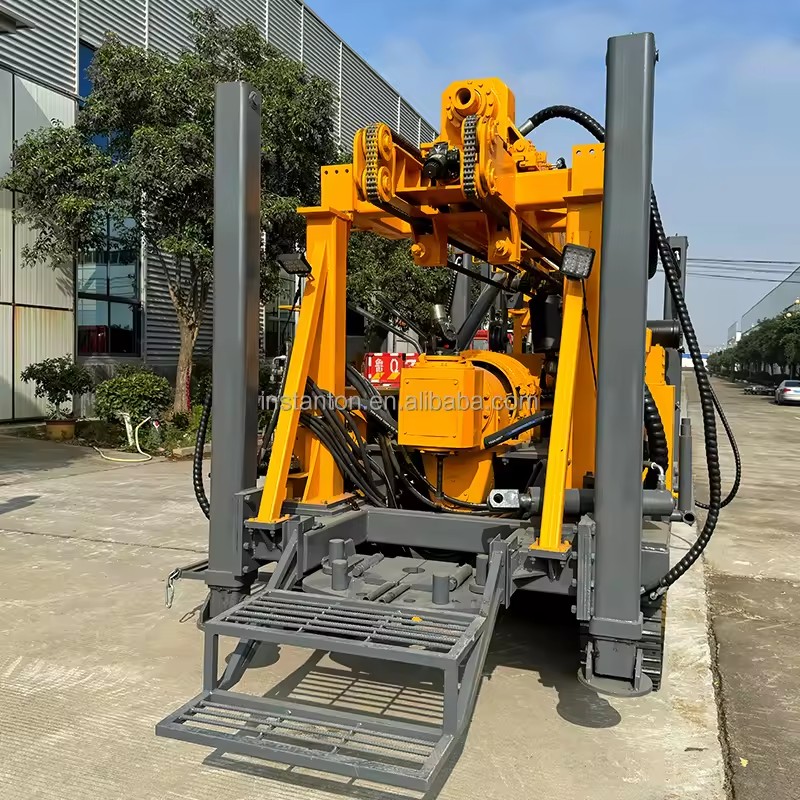

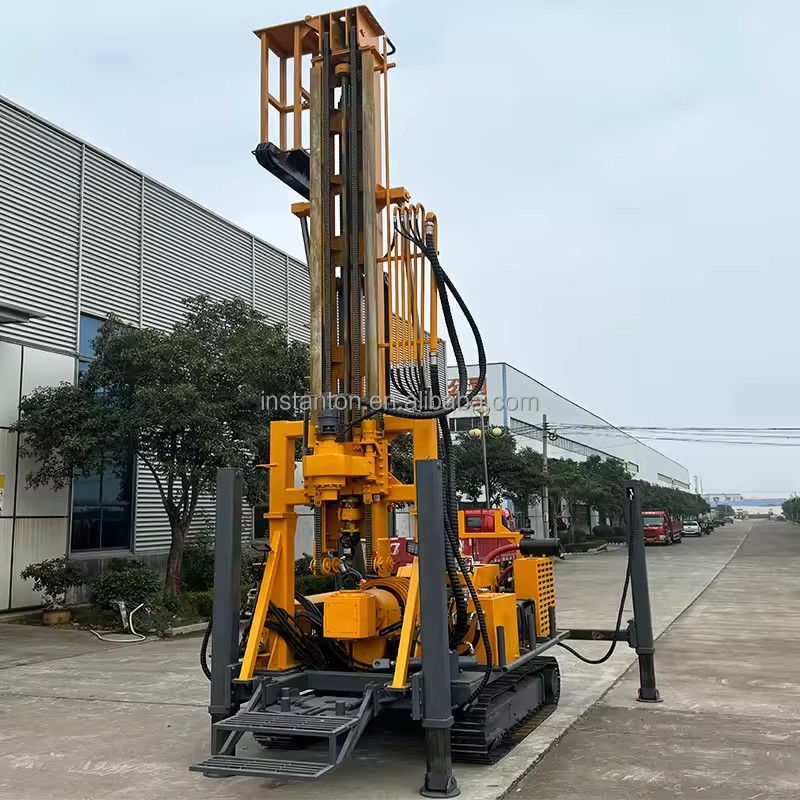

JDL280/JDL350 Diesel Engine Mud Pump Bearing Water Well & Rock Drilling Rig 200-300m Depth Portable

Available for enquiry 0.0 · 0 reviews
USD

$ 6,260.00 6260.0 USD $ 6,260.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Mobility
  • Model
  • Engine
  • Maximum torque(N.m)
  • Drilling depth(for water well)
  • Drilling depth(for coring)
  • Mud Pump Dispalcement(L/min)
  • Drilling Angle
  • Drill pipe dia(mm)
  • Drill pipe length
  • Selling Units
  • Single volume
  • Single gross weight
  • Power (W) (Product option)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Core sample & Water well
Type
Drilling Rig
Drilling Depth
280~800m(918.64~2624.67ft)
Drilling Diameter
75~350mm(2.95~13.78in)
Power Type
Diesel
Voltage
none
Product description

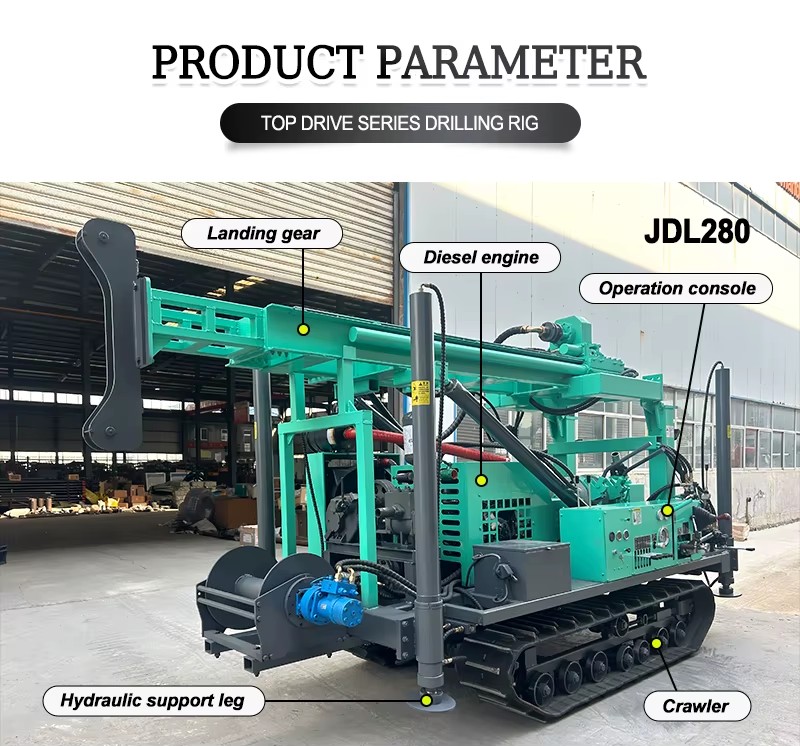

ModelJDL280JDL350JDL-5
Drilling capacityDrilling depth280m(152mm~203mm)350m(152mm~203mm)800m(152mm~203mm)
Wireline coring N size(75mm)500m600m1200m
Borehole (Drill bit) dia.Ø75～Ø350mmØ75～Ø350mmØ75～Ø500mm
Drilling angle90°90°75-90°
Drive headLifting capacity100kN120kN240kN
Thrusting capacity50kN85kN180kN
Rotary speed(rpm)Forward：33-1120r/minForward：27-901r/minForward：43-1080r/min
Reversal：37、180 r/minReversal：48、219 r/minReversal：47、144 r/min
Max. Torque9800N.m10500N.m16500N.m
Power UnitEngine ModelYN27YN27YN48GBZ
Rated power/speed42kW/ 2400r/min58kW/ 2400r/min92kW/ 2400r/min
Mechanical winch capacity4.5Ton5.5Ton7.5Ton
Drill pipeDrill pipe dia.Ø50/ Ø60 / Ø76/ Ø89mmØ50/ Ø60 / Ø76/ Ø89mmØ50/ Ø60Ø76/ Ø89mm
NQ/ HQ /PQNQ/ HQ /PQNQ/ HQ /PQ
Drill pipe length2000mm3000mm3000mm
Mud pumpBW160/ BW200/ BW250BW160/ BW200/ BW250/BW320/BW450BW160/ BW200/ BW250/BW320/BW450
Air compressorAir consumption16～35m3/min16～35m3/min16～35m3/min
Air pressure10.5～24.6bar10.5～24.6bar10.5～24.6bar
Crawler chassisWalking speed0～2 km/h0～2 km/h0～2 km/h
Climbing angleMax. 25°~30°Max. 25°~30°Max. 25°~30°
DimensionTransport(mm)4600*1900*25405600*2100*26006300*2000*2650
Working(mm)3800*2200*57003800*2400*76003800*2500*8500
Weight with steel crawler3500kg6500kg11500kg
Certifications & compliance
CE
Complies with EU standards
Description images

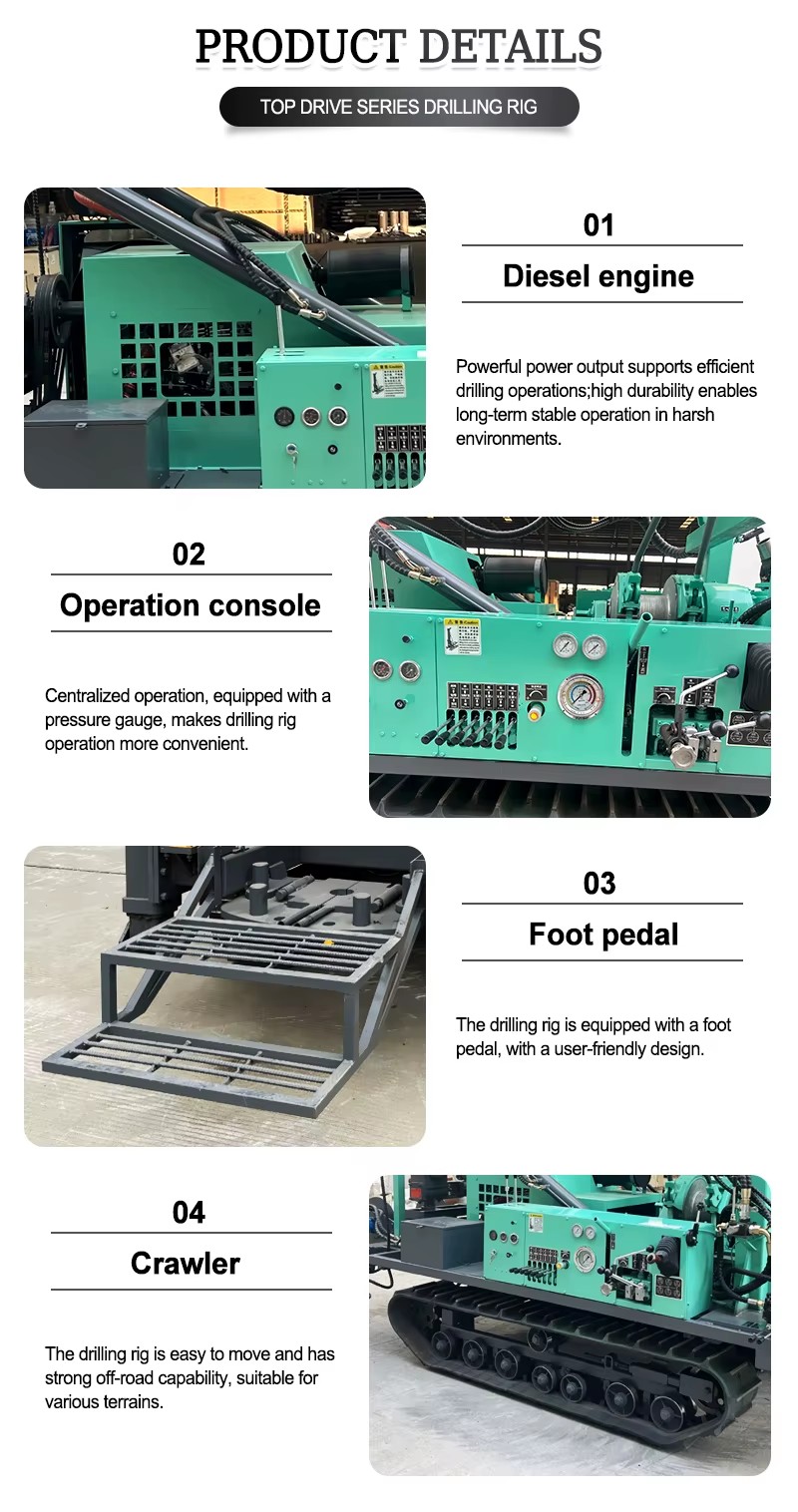

Product detail
Product detail
Product detail
Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Core sample & Water well
Type
Drilling Rig
Drilling Depth
280~800m(918.64~2624.67ft)
Drilling Diameter
75~350mm(2.95~13.78in)
Power Type
Diesel
Voltage
none
Core components
Bearing, PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Multifunctional
Place of origin
China, Shandong
Weight
3500 kg(7716.18lb)
Dimension (L*W*H)
4600*1900*2540(mm)
Mobility
YES
Model
JDL280/JDL350/JDL-5/Customized
Engine
Depend on model
Maximum torque(N.m)
9800/10500/16500(depend on model)
Drilling depth(for water well)
280~800m(152mm~203mm)
Drilling depth(for coring)
500~1200m(Wireline coring N size(75mm))
Mud Pump Dispalcement(L/min)
16~35m3/min
Drilling Angle
75-90°
Drill pipe dia(mm)
50/ 60 / 76/ 89
Drill pipe length
2000~3000mm(depend on model)
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Power (W) (Product option)
Depend on model
Model number
JDL-5, JDL280, JDL350
Certifications & Compliance
CE
Lead time
7 days
Minimum order
1 Units
