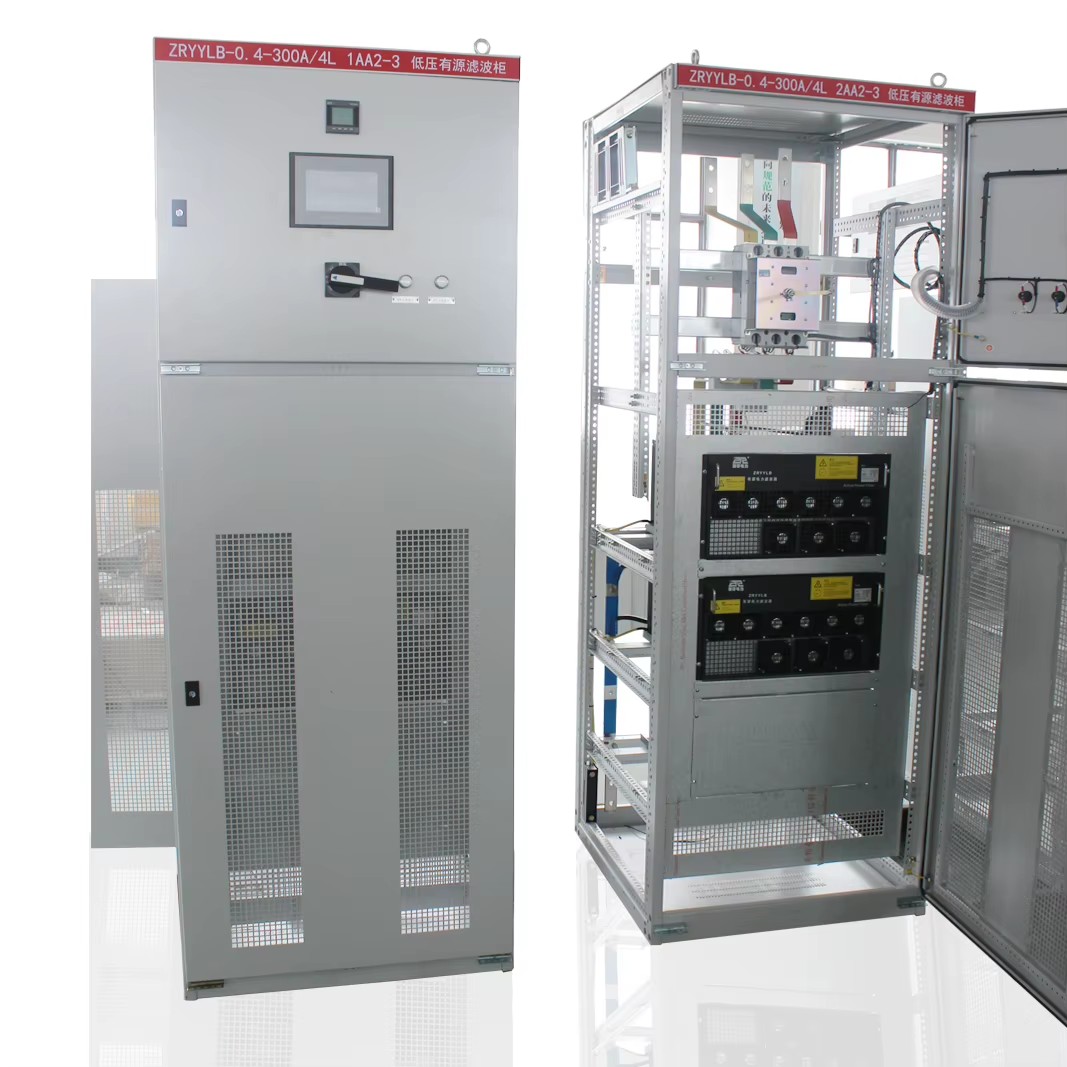

Power Factor Correction Equipment Electricity Saving Device 400v 75kvar Static Var Generator Chinese Suppliers

Available for enquiry 0.0 · 0 reviews
USD

$ 2,450.00 2450.0 USD $ 2,450.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Model number (Specification)
APF
Place of origin
Zhejiang, China
Application
Electric Power Transmission
Material
Stainless Steel, Cold Rolled Sheet, aluminum-zinc coated sheet
Color
Grey green white
Supply capacity
20000 a month
Product description
APF/SVG Functional Principle 1. Principle of filtering out harmonic APF / SVG acquires the current signal in real time through an external current transformer, and separates the harmonic part through the internal detection circuit, and generates a compensation current with the opposite phase of the harmonics in the system through the IGBT power converter to realize the function of filtering out harmonic. The output compensation current of APF/SVG varies accurately according to the dynamic harmonics of the system, so there will be no compensation problem. In addition, APF/SVG has overload protection function. When the harmonic of the system is larger than the filter capacity, the device can automatically limit the output of 100% rated capacity without overload. 2. Principle of compensating for reactive power According to the reactive power of the system, APF / SVG generates capacitive or inductive fundamental current through the IGBT power converter to achieve the purpose of dynamic reactive power compensation. The compensation target value can be set through the operation panel without overcompensation. The compensation is smooth and there is no inrush current impact on the load and the grid.. 3. Principle of compensating for three-phase unbalance The APF / SVG extracts the unbalanced component according to the system current, and the three phases emit a current of the same phase as the unbalanced component, and the unbalanced portion is compensated to zero, so that the three-phase unbalanced current can be corrected to the three-phase balanced current.

1.What's the order process?

1)Inquiry · provide us all clear requirements (total qty and package details).

2)Quotation · officaial quotation from with all clear specifications from our professional team.

3)Marking Sample · confirm all quotation details and the final sample.

4)Production · mass production. 5)Shipping · by sea or by air.

Description images
Power Factor Correction Equipment Electricity Saving Device 400v 75kvar Static Var Generator Chinese Suppliers
Power Factor Correction Equipment Electricity Saving Device 400v 75kvar Static Var Generator Chinese Suppliers
Power Factor Correction Equipment Electricity Saving Device 400v 75kvar Static Var Generator Chinese Suppliers
Power Factor Correction Equipment Electricity Saving Device 400v 75kvar Static Var Generator Chinese Suppliers
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Economy · Approx. shipping fee: $ 655.97 for 1 set · Estimated delivery: Oct 12–Dec 3 (37–89 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 14 fields
Model number (Specification)
APF
Place of origin
Zhejiang, China
Application
Electric Power Transmission
Material
Stainless Steel, Cold Rolled Sheet, aluminum-zinc coated sheet
Color
Grey green white
Supply capacity
20000 a month
Quality
good
Sea port
Dalian ningbo Shanghai
Packing
Packing in wooden cases for export
Size
640*600*250mm
Weight
45kg
Selling Units
Single item
Single package size
100X120X220 cm
Single gross weight
500.0 kg
Lead time
7 days
Minimum order
1 Units
