Industrial PLC Motor Automatic Gas Filling System for Gases Cylinder Tank Vaporizer Cryogenic Pump Valve Skid

Available for enquiry 0.0 · 0 reviews
USD

$ 7,820.00 7820.0 USD $ 7,820.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Product Type
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Type
  • Capacity
  • Place of origin
  • Weight (kg)
  • Working pressure
  • Voltage
  • Key words
  • Operation Cycle
  • Advantage
  • Condition
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number

This combination is unavailable.

Key attributes

View all
Product Type
Industry Gas plant
Core components
PLC, Motor, Pump, Valve, Instrument
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Energy Saving
Product description
  • The gases gasification and filling station system is used widely in the Industrial gas field and play a important role for the Industrial development. Our system includes the design, equipment manufacturing,Inspection, Installation Commissioning and after-sale service. A Gases gasification & fillling system: The filling system mainly includes: Cryogenic liquid storage tank, Cryogenic pump, frequency control cabinet, pump control cabinet, Vaporizer, buffer system, matrix filling rack, water bath heater, filling valve skid, vacuum pump, HMI, filling control cabinet, pump control cabinet etc.
  • 1. Liquid Gas tanks: Cryogenic Tanks Technical parameters： Cryogenic tank volume：30m3, 50m3, 100m3, and customized as the specific project requirement Cryogenic working pressure：0.8-1.6Mpa[LIN/LAr/O2] and 2.2-2.4Mpa[CO2] 99.999%[LIN/LAr] and 99.5%[LO2/CO2]， Pressure & level monitoring.
  • 2. Cryogenic Pumps: Feeding pump capacity for N2: 500 Nm3/h, Ar: 500 Nm3/h, O2: 500 Nm3/h; Filling Pump flow - 11L/ min. CO2 Cryogenic Pump Feeding pump capacity CO2: 250/500 (dual speed) Nm3/h All the flow will be customized as the specific project requirement.
  • 3. AMBIENT AIR VAPORIZERS: Ambient Air vaporizers with aluminium finned outer tubes and high strength stainless steel inner tubes for gas vaporization through ambient air heat exchange. Available in different sizes and flow capacity for pressure up to 500 bar
  • 4. ELECTRICAL TRIMHEATERS: Electric trimheaters with power up to 90kW to warm up the gas. Available in different sizes for pressure up to 420bar.
  • 5. Control panels (Valve Control Skid)： Available in two different execution: 5.1 Buffer control system can storage the compressed gas and be used directly when filling 5.2 Filling valve skid: O2,N2,Ar,CO2 Mixture and protection in terms of temperature and pressure etc, the technical parameter: 1) Design pressure：150 bar, 200 bar, 300 bar 380 bar 2) Filling pressure：300 barg/ 200 barg/ 150barg. 3) Filling Gas: O2, N2, Argon, CO2 4) Oxygen compatibility：Yes 5) Vacuum pump：100Nm3/H to be designed as the needs.6) Dimension of valve skid：Suitbable for contrainer' size. 7) Valve：Mtech/butech, and owned brand.

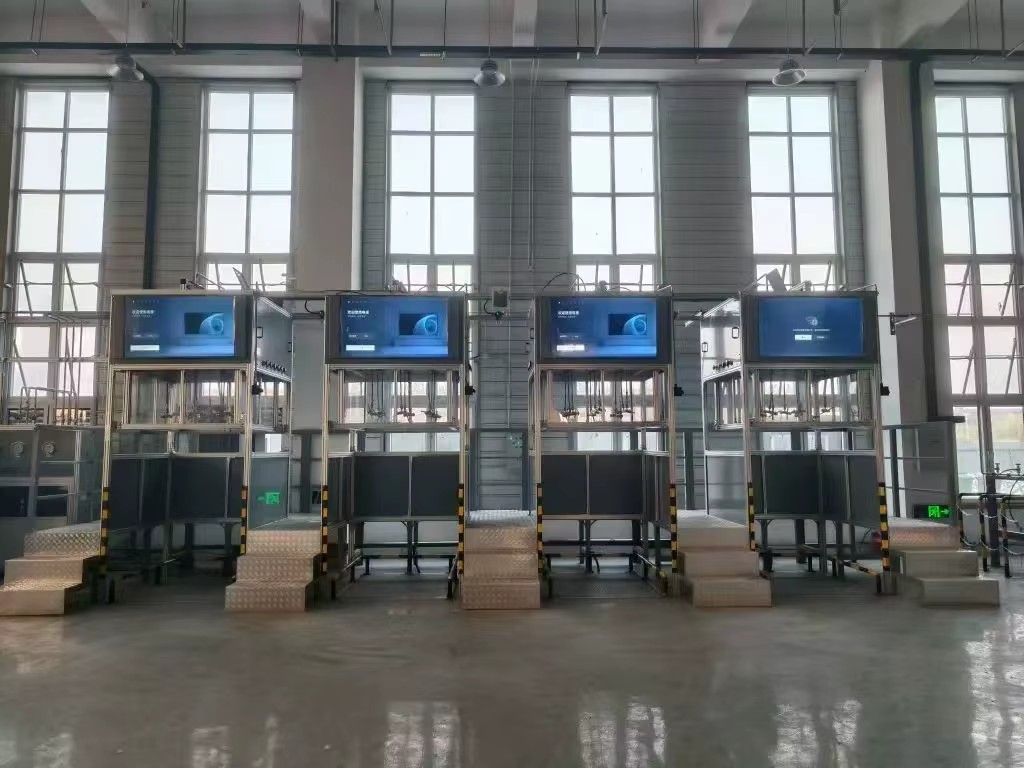

  • 6. GAS FILLING EQUIPMENT: The filling racks can fill batches of 8, 10, 12 or 16 bottles. The filling racks are composed of: * An aluminum structure * A tray supporting the flexible hoses or the lyres (adapted to different cylinder heights) * A safety cage to protect the operator
  • 7. Liquid Filling system: Complete skid with all valves and instruments to fill cylinders in total safety with the highest accuracy. supplies single gas, double mono gas or mixture filling systems and filling skid equipment are CTE or BAM approved for O2 filling and ATEX approved for explosive gases.
  • 8. PLC Control system: PLC system can monitor and control all modules of the cylinder filling stations with integrated secured processes to reduce human errors. All operator panels are user friendly with high quality touch screen. PLC control systems are available with remote access for a total peace of mind. Full traceability & historian software for reporting, configuration, modular and scalable, recipes builder, multilanguage, link with ERP…
  • 9. Analyzer Cabinet: detect the H2O, O2
    • Description images
    Industrial PLC Motor Automatic Gas Filling System for Gases Cylinder Tank Vaporizer Cryogenic Pump Valve Skid
    Industrial PLC Motor Automatic Gas Filling System for Gases Cylinder Tank Vaporizer Cryogenic Pump Valve Skid
    Industrial PLC Motor Automatic Gas Filling System for Gases Cylinder Tank Vaporizer Cryogenic Pump Valve Skid
    Industrial PLC Motor Automatic Gas Filling System for Gases Cylinder Tank Vaporizer Cryogenic Pump Valve Skid
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      9 days

    • Step 3

      Packaging and dispatch

      Economy · Approx. shipping fee: $ 652.89 for 1 set · Estimated delivery: Oct 14–Nov 29 (36–82 days)

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 20 fields
    Product Type
    Industry Gas plant
    Core components
    PLC, Motor, Pump, Valve, Instrument
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Energy Saving
    Type
    Industrial, System
    Capacity
    1.6
    Place of origin
    Zhejiang, China
    Weight (kg)
    500
    Working pressure
    16 bar ~ 380 bar
    Voltage
    380V/50-60Hz
    Key words
    reliability and Safety
    Operation Cycle
    3 Months
    Advantage
    High-efficiency
    Condition
    New
    Selling Units
    Single item
    Single package size
    150X85X100 cm
    Single gross weight
    500.0 kg
    Model number
    HH P 1, HH P2
    Lead time
    9 days
    Minimum order
    1 Units
