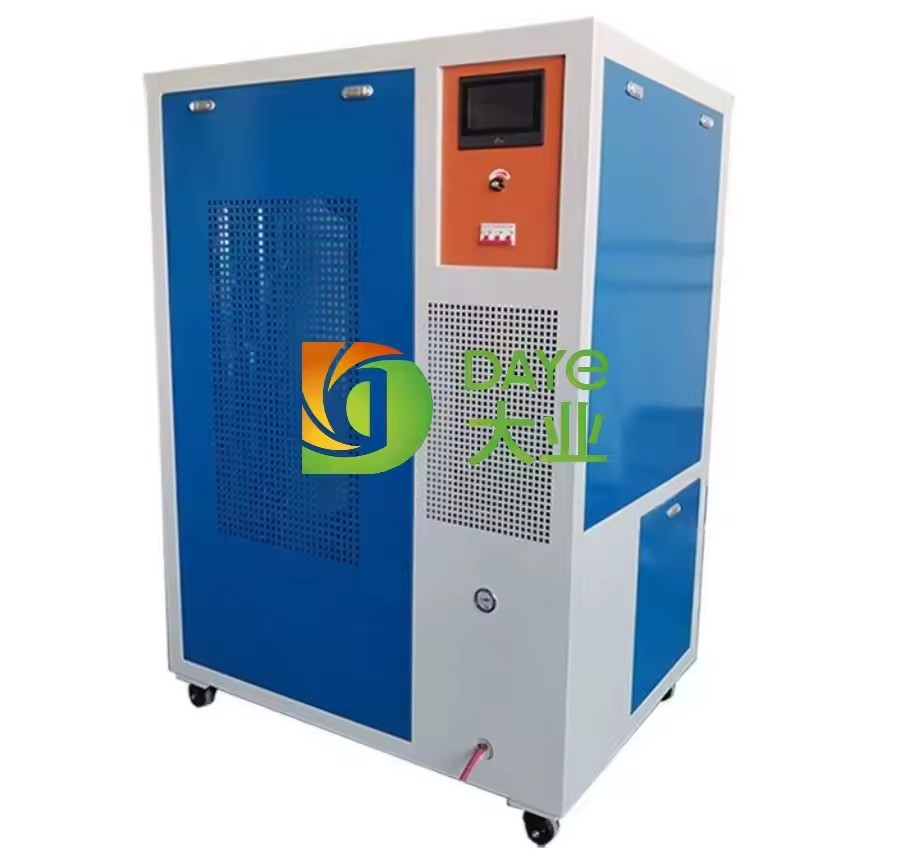

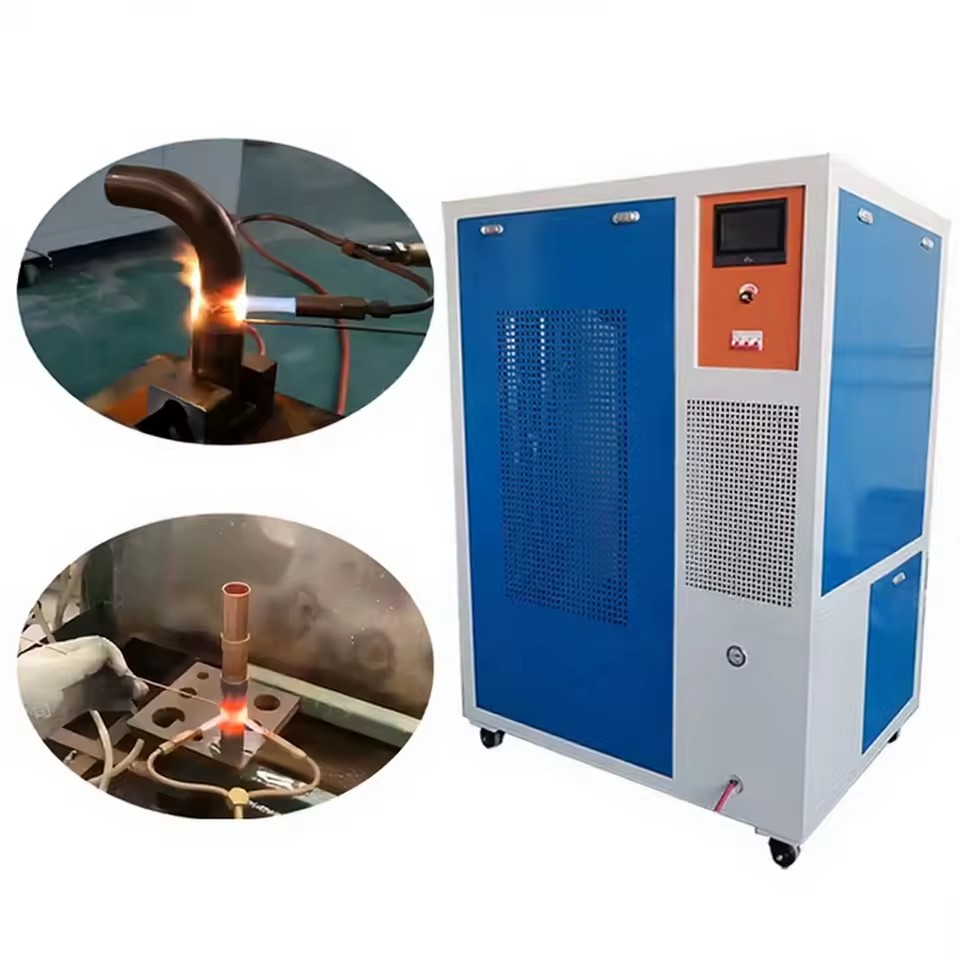

Name: Hydrogen Oxygen Flame Copper Tube Welding Machine-High Precision Energy-Efficient Safe & Environmentally Friendly
SKU: ERT2-ZHDR-ZV3T-03
Price: 17400.0 USD
Availability: PreOrder

Product description

ENERGY- oxy-hydrogen welding machine

Principle introduction

Product Features

Model	DY100	DY200	DY300	DY400	DY600	DY1000
AC Voltage(V)	220/110	220/110	220/110	220/110	220/110	220/110
Rated Power(KW)	0.4	0.8	1.2	1.6	2.4	3.5
Max.Working Pressure(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2
Flame temperature	3000°	3000°	3000°	3000°	3000°	3000°
Max.Gas output(L/h)	0-100	0-200	0-300	0-400	0-600	0-1000
Max.Water Consumption(L/h)	0.05	0.11	0.16	0.22	0.32	0.54
Water Feed	manual	manual	manual	manual	manual	manual
Dimension- LWH(mm)	380250480	450250480	580250480	680250480	880250480	66060078 0
Gross Weight(kg)	12	17	22	26	45	95

Model	DY2000	DY3500	DY6000	DY7500	DY10000	DY20000
AC Voltage(V)	380,threephase	380,threephase	380,threephase	380,threephase	380,threephase	380,threephase
Rated Power(KW)	7	12	21	26	35	70
Max.Working Pressure(Mpa)	0.2	0.2	0.2	0.2	0.2	0.2
Flame temperature	3000°	3000°	3000°	3000°	3000°	3000°
Max.Gas output(L/h)	0-2000	0-3500	0-6000	0-7500	0-10000	0-20000
Max.Water Consumption(L/h)	1.1	1.9	3.2	4.0	5.4	10.7
Water Feed	auto	auto	auto	auto	auto	auto
Dimension- LWH(mm)	11006701030	11307701300	13009501670	13009501880	15009101920	230010102050
Gross Weight(kg)	180	360	500	650	900	1400

Traditional gas welding	PK	Hydrogen-oxygen welding machine

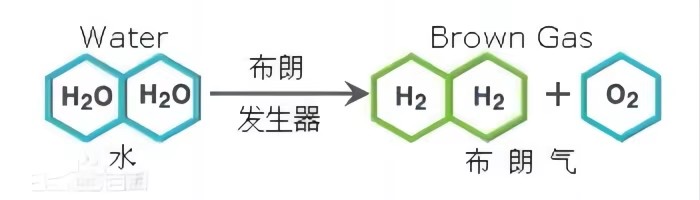

Gas cylinders and oxygen cylinders are classified as pressure vessels with extremely high risk levels. In the past, some factories have suffered significant losses due to fires caused by gas leaks.	Gas supply principle	Hydroelectrolysis generates hydrogen and oxygen gases, which are used immediately without storage, eliminating all safety hazards.
Flame heating welding	Welding method	Flame heating welding
For flammable and explosive gases, gas cylinders must be upright and securely fixed, protected from compression, impact, and direct sunlight exposure. When replacing gas cylinders, handle with gentle and cautious force. When used in conjunction with other flammable gases such as oxygen, maintain a safety distance of at least 5 meters and implement appropriate protective measures.	Safety	The hydroelectrolysis process generates hydrogen and oxygen gases, which are used immediately without storage. The system automatically activates during operation and shuts down when idle, with a working pressure below 0.1Mpa. There is no explosion risk, and the equipment is equipped with multiple fire prevention devices to ensure 100% safety.
The prices of bottled oxygen and acetylene have been rising year after year, leading to a continuous increase in gas usage costs. Currently, the price of oxygen is approximately 30 yuan per bottle, while acetylene costs 1 80 yuan per bottle.	Energy saving	It consumes only a minimal amount of water and electricity, achieving over 40% energy savings compared to oxyacetylene.
When burning, it produces black smoke exhaust and emits toxic gases such as hydrogen sulfide and phosphine, causing continuous environmental pollution and harming the health of operators.	Environmental protection	The raw material is water, which produces no black smoke emissions during combustion and converts into water vapor for evaporation. This hydrogen energy device is recyclable and regenerable.
All personnel must undergo corresponding safety training prior to commencing duties to minimize the risk of accidents. However, even if manual operations are deemed compliant, outdated hardware supply equipment cannot eliminate potential hazards.	Experience requirement	Smart one-touch operation: press the confirm button to start gas production, and the welding gun automatically pauses when turned off. No prior experience required—learn and use instantly, with guaranteed safety and reliability.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

15 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Machine type

Flame welding

Core components

PLC, electrolyzer

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Key selling points

Long Service Life, High Productivity, High precision, Simple Operation, environmentally friendly, multi-functional, high safety, competitively priced, energy-efficient, multi-layer

Place of origin

Jiangsu, China (Mainland)

Weight (kg)

Name

Hydrogen oxygen generator, Water welding machine

Pipe Shape

Round Square Rectangle Pipe

Keyword

Energy saving and efficient, safe and environmentally friendly

Function

No need for oxygen acetylene cylinders, no risk of explosion

Usage

Steel Tube Seam Welding, Copper welding

Application

Refrigeration, Motor, transformer welding, Steel cutting

After-sales Service Provided

Online Support

Welding type

Flame weldingFlame welding

Fuels

A small amountof w ater and electricity

Selling Units

Single item

Single package size

1165.0X710.0X1170.0 cm

Single gross weight

180.0 kg

Model number

DY6000, DY3500, DY7500, DY2000

Lead time

15 days

Minimum order

1 Units
