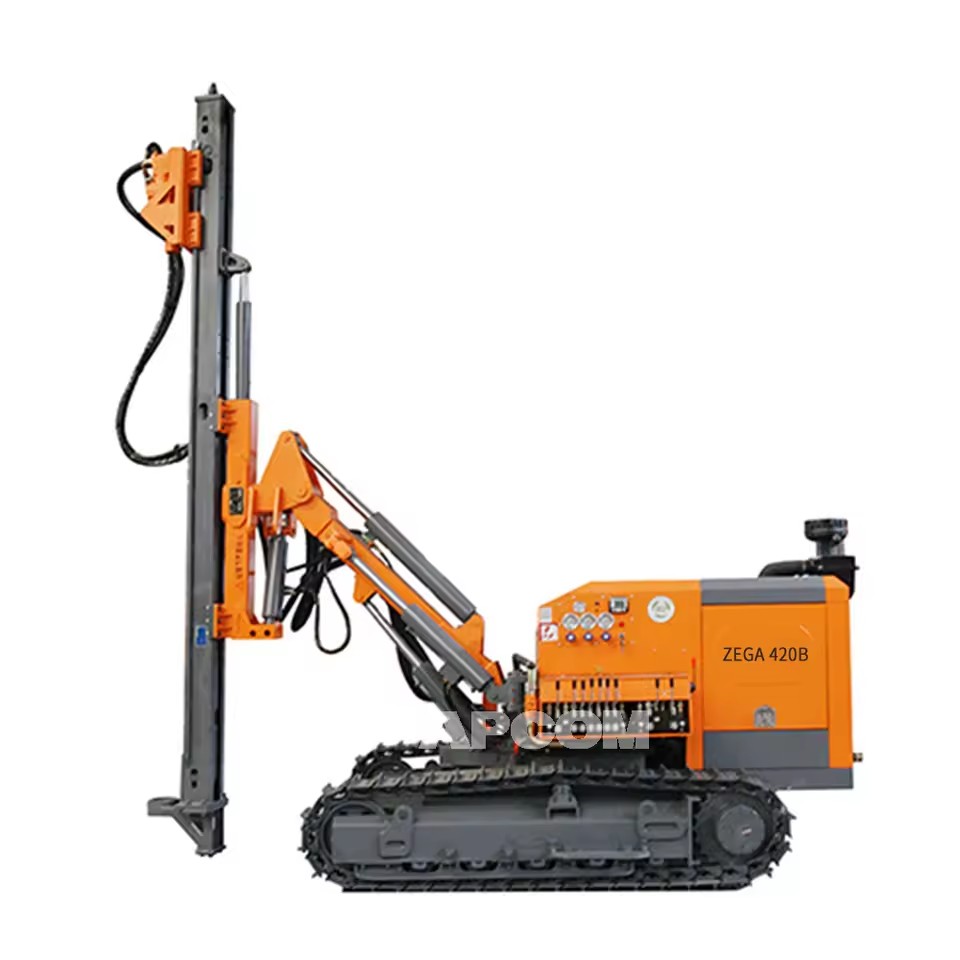

Name: Hydraulic Drilling Rig Mini Drill Rig ZEGA 420B Rotary Borehole Mine Drill Rig Mining Machine
SKU: B2B-39227
Price: 30.0 USD
Availability: PreOrder

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Economy · Estimated delivery: Oct 1–Oct 25 (29–53 days)

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Separated DTH Surface Drill Rig ZEGA-420B

Mode	ZEGA 412B	ZEGA 412B-1	ZEGA 416T	ZEGA 416T-1	ZEGA 420B	ZEGA 420B-1
Engine	Yuchai/58 kW
Rotation torque	1,650 N.m	2,200 N.m
Drilling hole diameter	Φ90-115 mm	Φ90-127 mm
DTH hammer	3.5"	4"
Drilling rod	Φ60*2,000 mm	Φ76*3,000 mm
Tank volume	115 L	70 L
Dust collector	No	Yes	No	Yes	No	Yes
Weight	3,850 kg	4,400 kg
Dimensions	4,4502,0802,460 mm	5,7002,1302,300 mm

Separated DTH surface Drill Rig without Air Compressor (Model with -1 with dust collector)
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	tank	Weight	Dimensions
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(kg)	(mm)
ZEGA 412B	Yuchai/58	1,650	Φ90-115	3.5"	Φ60*2,000	115	3,850	4,4502,0802,460
ZEGA 412B-1	Yuchai/58	1,650	Φ90-115	3.5"	Φ60*2,000	115	3,850	4,4502,0802,460
ZEGA 416T	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 416T-1	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420B	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420B-1	Yuchai/58	2,200	Φ90-127	4"	Φ76*3,000	70	4,400	5,7002,1302,300
ZEGA 420T	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	70	5,280	5,4202,3082,500
ZEGA 420T-1	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	70	5,280	5,4202,3082,500
ZEGA 425-1	Yuchai/73.5	3,200	Φ90-138	4"	Φ76*3,000	80	6,230	7,0002,2502,700
ZEGA 430	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	110	6,460	7,1202,4503,540
ZEGA 430-1	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	110	6,460	7,1202,4503,540
ZEGA 431	Yuchai/73.5	3,500	Φ115-152	4"	Φ76*3,000	156	7,340	7,0002,3002,800
ZEGA 845-1	Yuchai/73.5	3,500	Φ115-165	4"	Φ76*3,000	156	7,460	7,0002,3002,800

Anchor drill rig without Air Compressor (diesel-electric dual power) Electric Motor 55KW
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	Tank	Weight	Dimensions
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(kg)	(mm)
ZEGA 420ST	Yuchai/58	5,000	Φ90-203	4"	Φ76*3,000	80	5,340	6,5002,2802,400
ZEGA 425S	Yuchai/73.5	5,600	Φ110-203	4"	Φ76*3,000	105	7,070	6,9002,2702,210
ZEGA 430S	Yuchai/73.5	8,000	Φ110-250	5"	Φ76*3,000	105	6,870	7,3002,2803,000
ZEGA 435S	Yuchai/73.5	8,000	Φ110-250	5"	Φ76*3,000	105	8,030	7,3002,3702,700

DTH surface Drill Rig with Air Compressor
Mode	Engine	Rotation torque	Drilling hole diameter	DTH hammer	Drilling rod	tank	Compressor F.A.D	Compressor Pressure
CLICK ON	(kW)	(N.m)	(mm)	(mm)	(L)	(m 3 /min)	(bar)
ZEGA 421TA	Yuchai / 162	1,500	Φ90-127	3.5"	Φ60*3,000	250	12	18
ZEGA 421H	Yuchai / 162	1,500	Φ90-127	3.5"	Φ60*3,000	250	12	18
ZEGA 452T	Yuchai / 191	2,200	Φ90-138	4"	Φ76*3,000	300	15	18
ZEGA 452H	Yuchai / 191	2,200	Φ90-138	4"	Φ76*3,000	300	15	18
ZEGA 453T	Weichai / 220	2,800	Φ90-138	4"	Φ76*4,000	480	18	22
ZEGA 454T	Cummins/ 264	4,000	Φ115-152	5"	Φ89*5,000	480	20	22

Tophammer Surface Drill Rig with Air Compressor
Mode	Engine	Drifter model	Drifter power	Drilling hole diameter	Drilling rod	tank	Compressor F.A.D	Compressor Pressuer
CLICK ON	(kW)	(kW)	(mm)	(mm)	(L)	(m 3 /min)	(bar)
ZEGA 650A	Cummins/119	ZY103	15	Φ45-102	T38/T45*3660	280	5	8
ZEGA 655	Cummins/154	ZY104H	20	Φ64-115	T45/T51* 3660	340	7	8

Cummins Engine Blasting Drilling Rig for Mine
Model Click on	Borehole Diameter	Drill depth	DTH Hammer	Pipe	Cummins Power	Cummins Model	Air Compresor	Automatic Rod Change
V3	90-130mm	30m	3.5-4 inches	683m 763m	154kw	QSB5.9-C210	16bar 500cfm
V3A	90-130mm	21m	3.5-4 inches	76*3m	154kw	QSB5.9-C210	16bar 500cfm	6+1
V5	90-138mm	21m	3.5-4 inches	76*3m	194kw	QSC8.3-C260	17bar 550cfm	6+1
V6	90-138mm	21m	3.5-4 inches	76*3m	194kw	QSC8.3-C260	20bar 650cfm	6+1
V7	90-138mm	21m	3.0-4 inches	76*3m	264kw	QSL8.9-C360	18bar 550cfm	6+1 Cabin
V8	90-138mm	32m	3.0-4 inches	89*4m	264kw	QSL8.9-C360	20bar 700cfm	7+1 Cabin
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine
Model Click on	Hole	Depth	Drill pipe	Compresor	Cummins Power	Impactor parameter	Note
T5	45-90mm	25m	T38 T45	8bar 220cfm	134kw	Epiroc YYG14L	145bar 30kN	Cabin
T7	76-115mm	25m	T51	9bar 370cfm	194kw	AtlasCopco RD18S	200bar 20kN	Cabin

Certifications & compliance

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

14 days
Step 3

Packaging and dispatch

Economy · Estimated delivery: Oct 1–Oct 25 (29–53 days)

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 31 fields

Usage

Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.30m

Drilling Diameter

90 mm, 115 mm, 89 mm, 140 mm, 125mm

Power Type

Diesel

Voltage

No need

Core components

PLC, Engine, Diesel Engine, Air-end, Hydraulic motor, air compressor host

Warranty

1 years

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Easy To Operate

Place of origin

China, Shanghai

Weight

4400 KG

Dimension (L*W*H)

5,700*2,130*2,300 mm

Mobility

Crawler Type

New design

Rotary Drilling

New features

Low Maintenance Cost

New technology

For Hard Rock

New products

Crawler Mounted

New manufacturing

High Efficiency

New process

Hydraulic Drilling

Compressor Air-end warranty

1.5 years

Diesel Engine warranty

1 year
