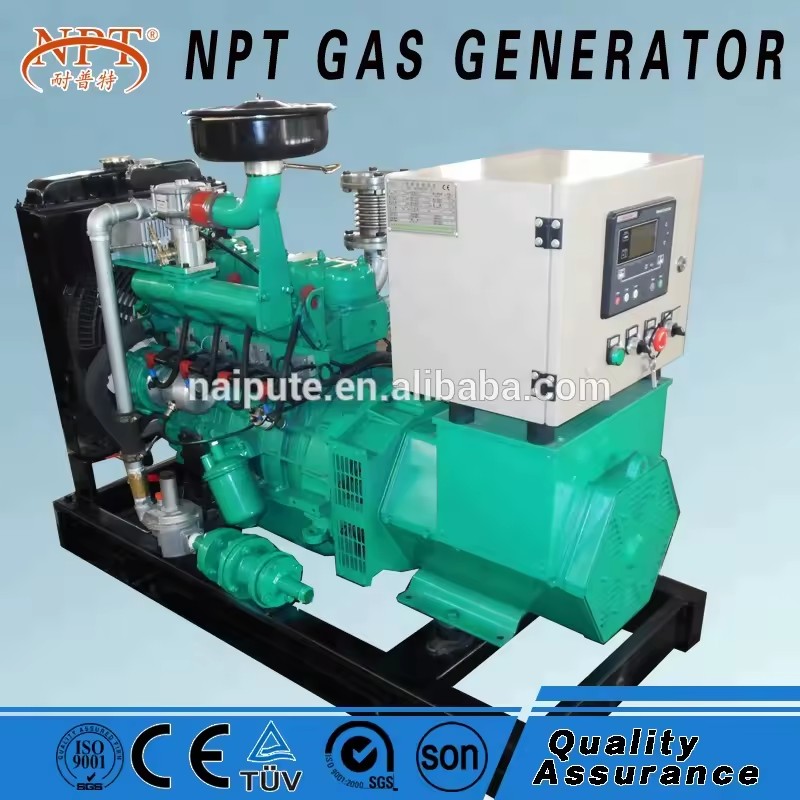

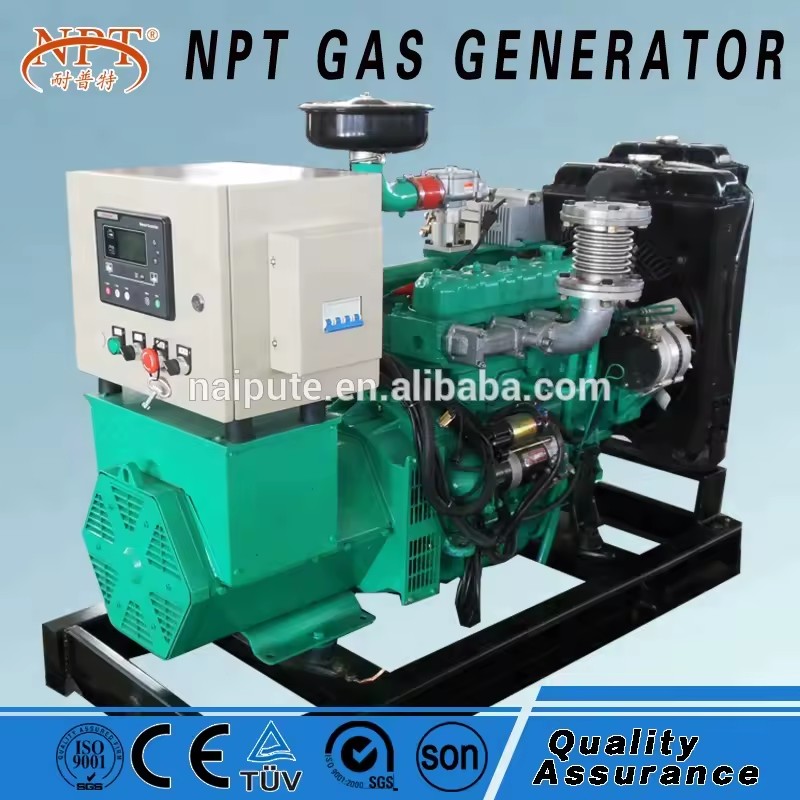

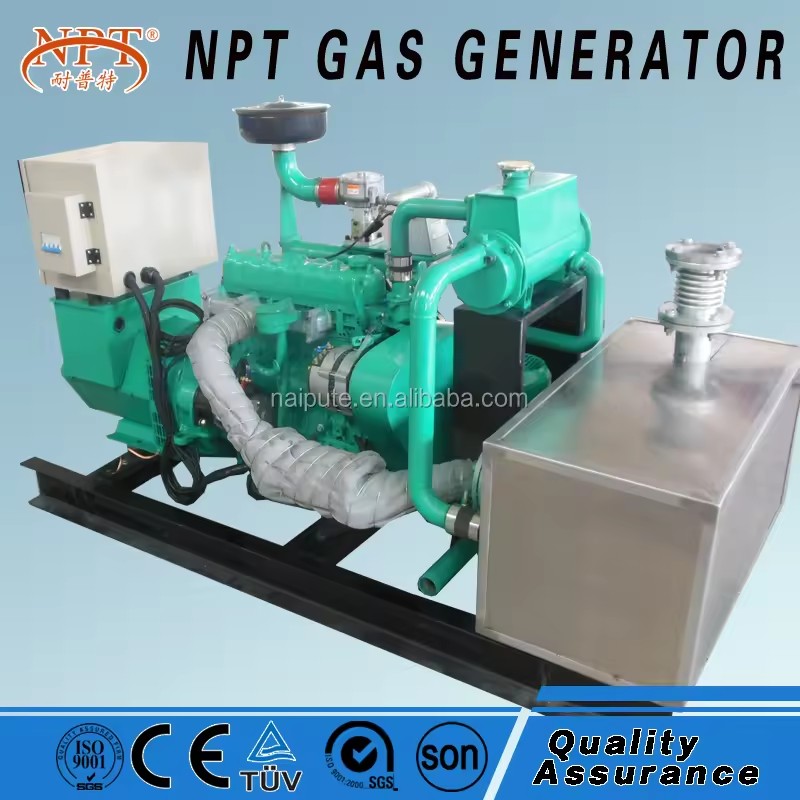

Technical parameter for 15kW natural gas generator set

Generating set general Model	15GFT
Structure	integral
Exciting method	AVR Brushless
Rated Power (kVA/kW)	18.75/15
Rated Current ( A )	27
Rated Voltage ( V )	400/230
Rated Frequency ( Hz )	50
Rated Power Factor	0.8 LAG
Overall dimension (L x W x H)(mm)	1360X600X900
Net weight (kg)	500
Gas Engine	Model	NQ25D 2
Type	In line 4stroke, electric control ignition, pre-mixed stoichiometry burn
Cylinder number	4
Bore x Stroke (mm)	90X100
Total displacement (L)	2.5
Rated Power (kW)	20
Rated Speed (r/min)	1500
Fuel type	Natural gas
Control panel	NPT Brand15KZY	LCD display
Circuit Breaker type	ATS SKT1-40
Control Module	Smartgen HGM6320
Operation language	English
Alternator	Model	XN184E
Brand	MBH( brand)
Shaft	Single bearing
Rated Power (kW)	18
Rating(kVA)	22.5
Enclosure protection	IP23
Efficiency (%)	84.3

Function

1. Adopt Genset controller with LCD display, taking microprocessor as the core.

2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity

3. The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity /grid electricity

4. The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts

5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

Optional devices

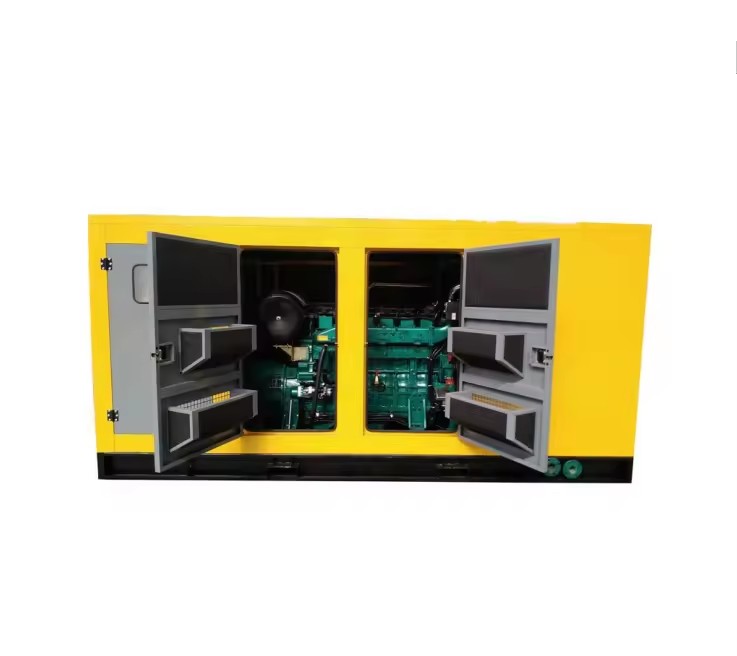

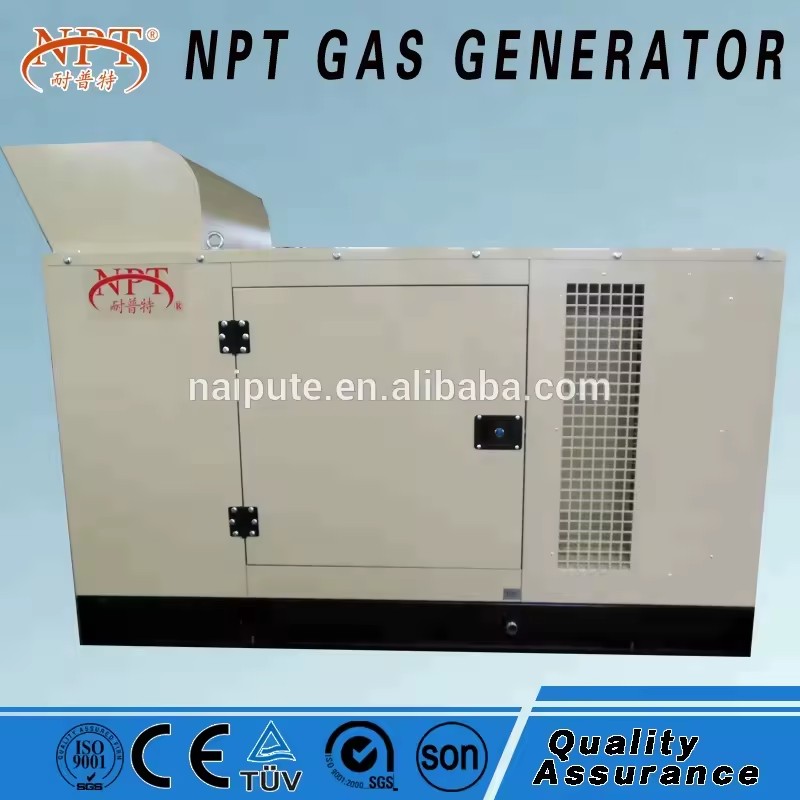

CHP device, Soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc

Application area

Natural gas generator: Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry

Biogas generator: dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill

LPG generator: Crude oil industry

Biomass generator: agriculture straw, wood chips etc.

Certifications

Patent list

Items	Patent Name	Patent No.	Patent Holder
1	Biogas generator set air/fuel inlet integrated system	201020548851.7	NPT
2	Gas generator set integrated control system	201020548831.X	NPT
3	Generator set waste heat utilization system	201020548780.0	NPT
4	Gas generator set exhaust heat utilization system	201020548858.9	NPT
5	Gas generator set jacket water heat utilization system	201020548835.8	NPT
6	Biogas generating set safety running control system	201020548821.6	NPT
7	container type gas generator set shift system	201120234706.6	NPT
8	container type gas generator set ventilation system	201120234643.4	NPT
9	Gas engine with lean burn technology	201120234661.2	NPT
10	Container type gas generator set with CHP	201120234653.8	NPT
11	Container type gas generator set automatic switch system of power off & on	201120234682.4	NPT
12	container type gas generator set automatic oil filling system	201120234691.3	NPT
