Product video
Certifications CE(2)

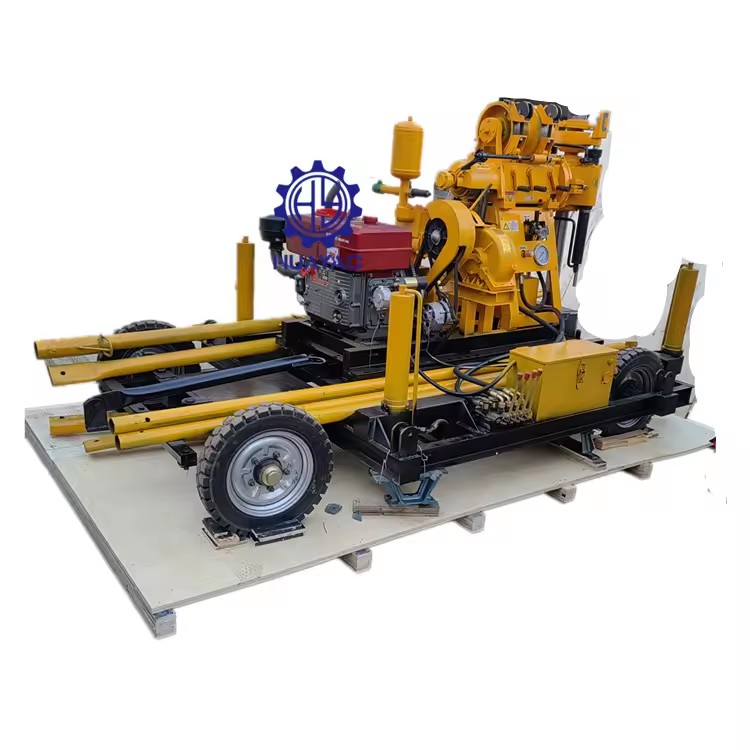

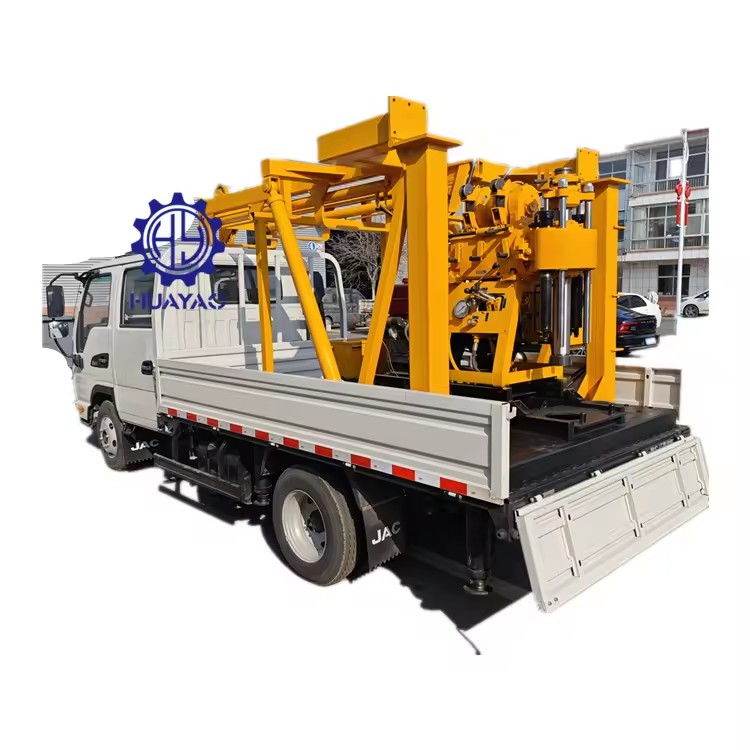

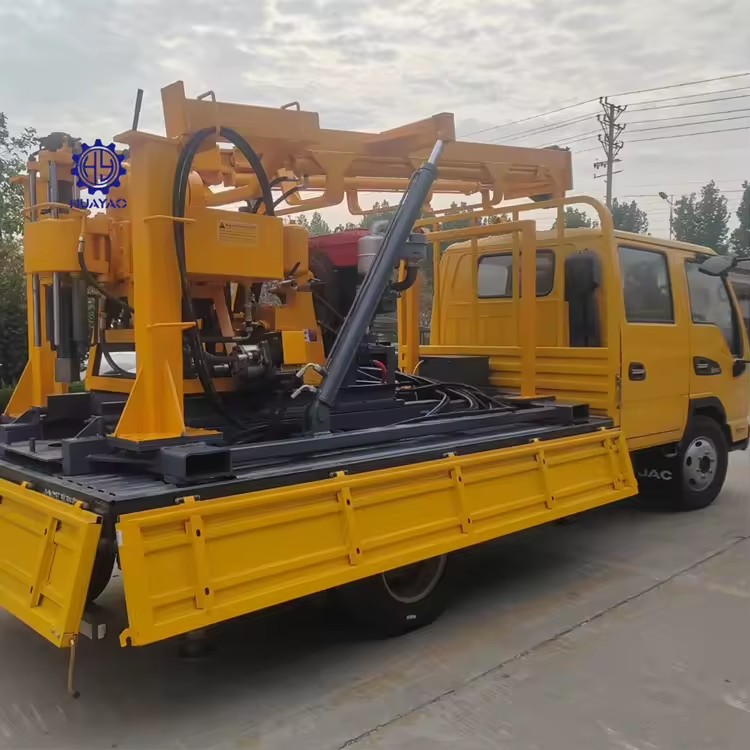

High Quality Rig Hydraulic Water Oil and Well Drilling Rig Machine for Road and Construction Exploration

Available for enquiry 0.0 · 0 reviews
USD

$ 4,160.00 4160.0 USD $ 4,160.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Application
  • Keyword
  • Model
  • Color
  • Engine
  • Max Drilling Depth
  • Engine Power
  • USES
  • ANGLE RANGE
  • Selling Units
  • Single package size
  • Single gross weight
  • Power (W) (Product option)
  • Model number
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
50 mm(1.97in), 75mm(2.95in)
Power Type
Diesel
Voltage
220v
Product description

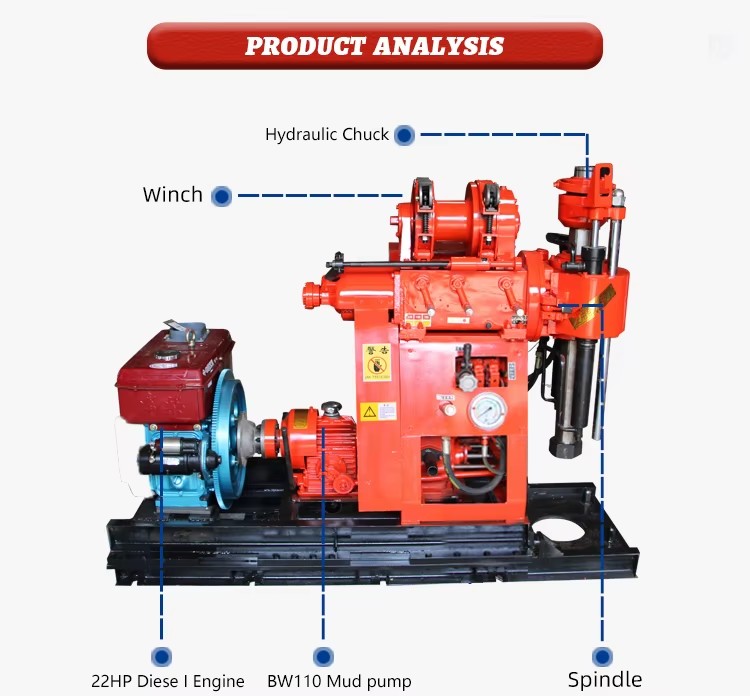

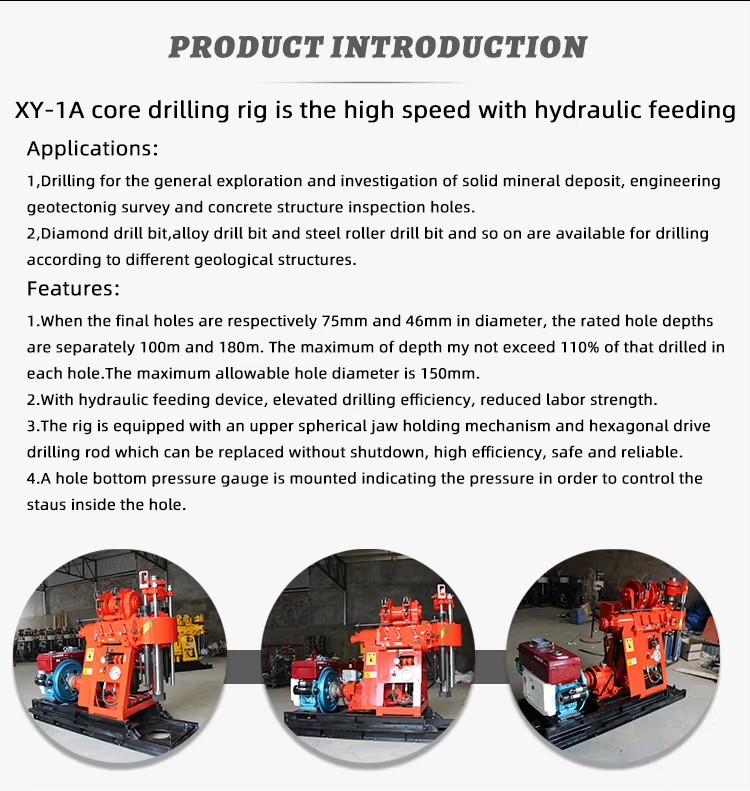

XY-1A Core Drilling Rig Technical Specification
Machine
Drilling Depth100、180mm
Initial hole dia.42、50mm
Final hole dia.150mm(Rock) 300mm(Soil)
Drill rod dia.46、75mm
Angle range90°-75°
Dimensions (L×W×H）1710×850×1340mm
Weight（without power unit)500kg
Stroke350mm

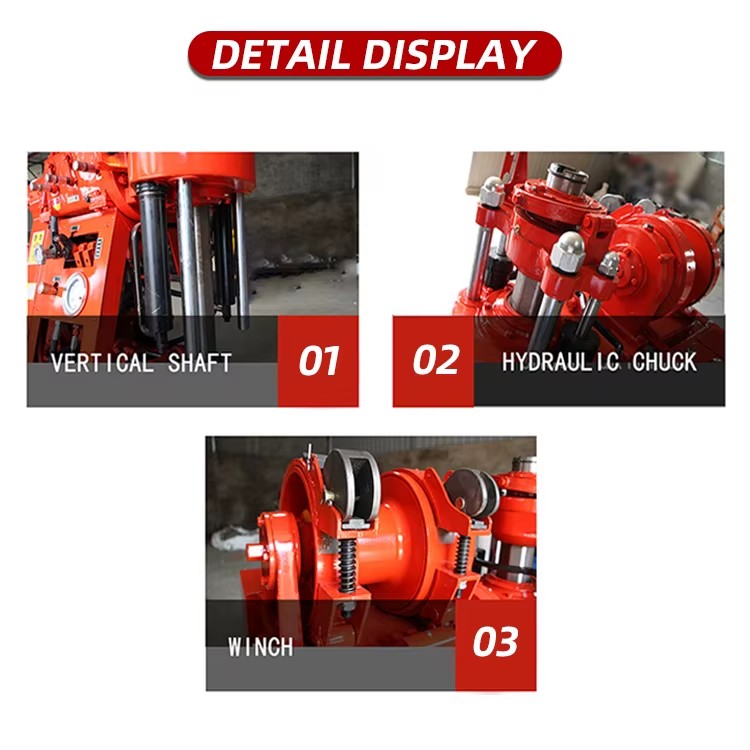

Vertical shaft
Spindle speed(5-speed）1010、790、470、295、140r/min
Spindle stroke450mm
Upward displacement speed of idling vertical spindle0.05m/s
Downward displacement speed of idling vertical spindle0.067m/s
Spindle pull-down max.15KN
Spindle lifting capacity max.25KN
Winch
Max. lifting capacity(single rope)15KN
Lifting rotating speed121、76、36r/min
Hoisting drum linear velocity(two levels)0.166、0.331、0.733、1.465m/s
Drum dia.140mm
Wire rope dia.9.3mm
Wire rope capacity35mm
Brake dia.252mm
Brake belt width50mm
Hydraulic Pump
Pump modelYBC-20/125
Rated pressure12.5Mpa
Displacement20ml/r
Rated speed1500r/min
Power (Diesel engine or motor)
Model(diesel engine)ZS1105
Rated power13.3KW
Rated speed2200r/min
Model(motor)Y132M-4
Rated power7.5KW
Rated speed1440r/min
Certifications & compliance
CE(2)
Complies with EU standards
Description images
Product detail
Product detail
Product detail
Product detail
CE(2)

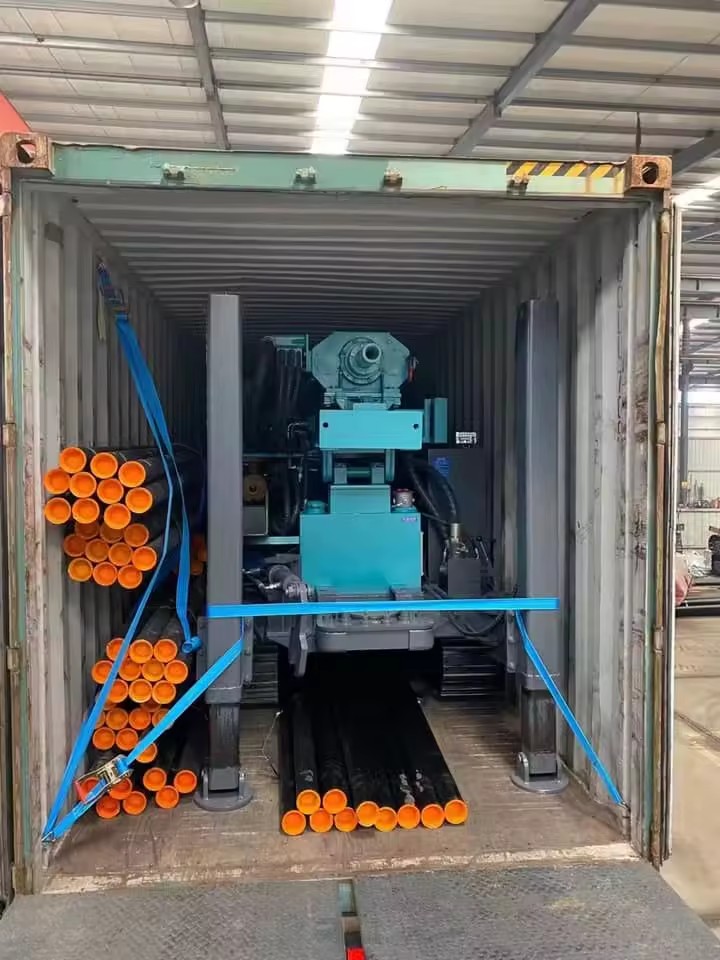

Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Approx. shipping fee: $ 770.00 for 1 set · Estimated delivery: Sep 24–Nov 5 (18–60 days)

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 29 fields
Usage
Water Well
Type
Core Drilling Rig
Drilling Depth
Max.200m
Drilling Diameter
50 mm(1.97in), 75mm(2.95in)
Power Type
Diesel
Voltage
220v
Core components
Gear, Engine, Pump
Warranty
1 Year
Machinery test report
Not Available
Video outgoing-inspection
Provided
Key selling points
HIgh speed with hydraulic feeding
Place of origin
China, Shandong
Weight
800 KG(1763.70lb)
Dimension (L*W*H)
1710*850*1340mm(67.32*33.46*52.76in)
Application
Water Wells Rock Drill Rig
Keyword
Drilliing Rig
Model
XY-1A
Color
Yellow or Red
Engine
Disel Engine
Max Drilling Depth
300 Meter
Engine Power
17
USES
Water Driling
ANGLE RANGE
90-75°
Selling Units
Single item
Single package size
380X195X270 cm
Single gross weight
740.000 kg
Power (W) (Product option)
17
Model number
HY-160, XY-1A
Certifications & Compliance
CE(2)
Lead time
7 days
Minimum order
1 Units
