What is Wet Ball Mill?

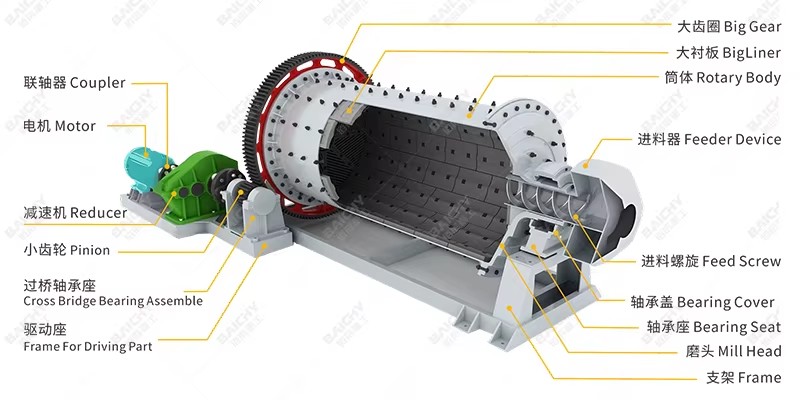

The wet ball mill is mainly composed of the feeding part, the discharging part, the rotating part, the transmission part (including the reducer, the small transmission gear, the motor, and the electronic control). Among them, the hollow shaft is made of cast steel, and the inner lining is removable; the rotating large gear is processed by casting hobbing; the cylinder is inlaid with a wear-resistant lining plate, which has good wear resistance.
Application scenarios of wet ball mill
Wet ball mills are widely used in the field of production and manufacturing, mainly including the manufacture of cement and ceramics. When making cement, the wet ball mill can mix and grind the raw materials into fine powder, and finally sinter them into cement at high temperature; in the process of manufacturing ceramics, the wet ball mill can make the raw materials finer after wet grinding, and improve the appearance and quality of ceramic products.
Wet Ball Mill Product features
Energy saving: Compared with traditional ball mills, the motor power matched by the ball mill using wet ball mill technology can be reduced by 18~25%, saving 70% of lubricating oil, saving 90% of cooling water, and saving more than 20% of comprehensive energy.
Environmental protection: Wet ball mills effectively avoid dust pollution.
High crushing efficiency: Due to the need to add water during the grinding process, the wet ball mill does not have the situation where the material cannot enter the dead corner and cannot be ground, which can effectively avoid the occurrence of the "closing" phenomenon of the ore cracks.
Wide range of applications: Wet ball mills are widely used in cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal beneficiation, glass and ceramics and other production industries.
Wet ball mill beneficiation process
Wet ball mills have the characteristics of efficient grinding capacity, uniform product particle size, good heat dissipation performance, environmental protection, and energy saving.
Compared with traditional dry ball mills, wet ball mills produce less dust during the grinding process, which is beneficial to environmental protection. At the same time, due to the cooling effect of the liquid medium, energy consumption can be reduced.
| Model | Cylinder Rotating Speed (r/min) | Ball weight (t) | Feeding Size (mm) | Discharging Size (mm) | Capacity (t/h) | Power (kw) |
| 900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 |
| 900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 |
| 1200×2400 | 35 | 4.6 | ≤25 | 0.075-0.6 | 1.6-5.8 | 37 |
| 1200×4500 | 35 | 5.5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 |
| 1500×3000 | 29 | 9 | ≤25 | 0.074-0.4 | 2-7 | 75 |
| 1500×5700 | 29 | 17 | ≤25 | 0.074-0.4 | 3.5-6 | 110-130 |
| 1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 |
| 1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 |
| 1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 |
| 2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 |
| 2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 |
| 2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 |
| 2200×6500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 14-26 | 380 |
| 2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 |
| 2400×3000 | 21 | 23 | ≤25 | 0.074-0.4 | 30-50 | 245 |
| 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 40-60 | 320 |
| 2700×3600 | 20.7 | 40 | ≤25 | 0.074-0.4 | 45-80 | 430 |
| 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 50-90 | 430 |
| 2700×13000 | 20.7 | 60 | ≤25 | 0.074-0.4 | 50-90 | 630 |
| 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | 800 |
The working principle of the wet ball mill is that the motor drives the cylinder to rotate through the reduction device. When the cylinder rotates, the crushed ore and steel balls in the cylinder are carried to a certain height by the liner due to friction and centrifugal force, and then fall down due to gravity. The ore is gradually crushed under the impact and grinding. The crushed ore is discharged from the cylinder through the discharge part.
Placer gold ore - gravity separation process
The gravity separation process of placer gold ore is a key link in the process of placer gold ore beneficiation. It is mainly used to separate gold ore particles from other mineral particles by gravity difference.
Gravity separation is a technology that uses the weight difference between gold ore particles and other mineral particles to separate gold ore particles by gravity separation. In placer gold ore, since gold usually exists in the form of monomer natural gold and its density is much greater than that of other minerals, gravity separation is the most important, effective and economical method for selecting placer gold ore.
Rock gold ore - flotation separation gold process

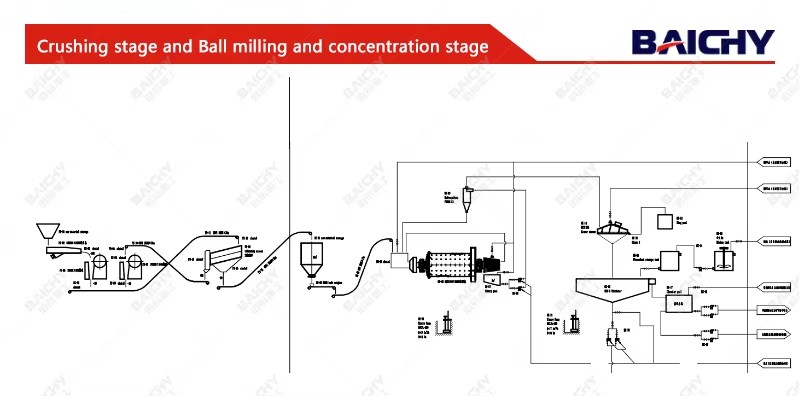

The flotation separation process of rock gold ore is a complex and delicate process, mainly involving multiple links such as crushing, grinding, and flotation.
Commonly used crushing equipment includes jaw crushers and cone crushers. Jaw crushers are suitable for coarse crushing and have strong processing capacity and durability; cone crushers are used for fine crushing and can crush ore to finer particle sizes.
There are two main types of equipment in the grinding stage: ball mills and rod mills. Ball mills are suitable for grinding fine particles and can effectively improve the degree of metal dissociation; rod mills perform well when grinding coarse particles and reduce over-grinding.
Flotation principle: When flotating high-density and coarse-grained minerals, a thicker pulp is often used; conversely, when flotating low-density, fine-grained, and slimy minerals, a thinner pulp is used. Using a thicker pulp for coarse selection can ensure a higher recovery rate; using a thinner concentration for fine selection is conducive to improving the quality of the concentrate.
