Product video
Certifications CE

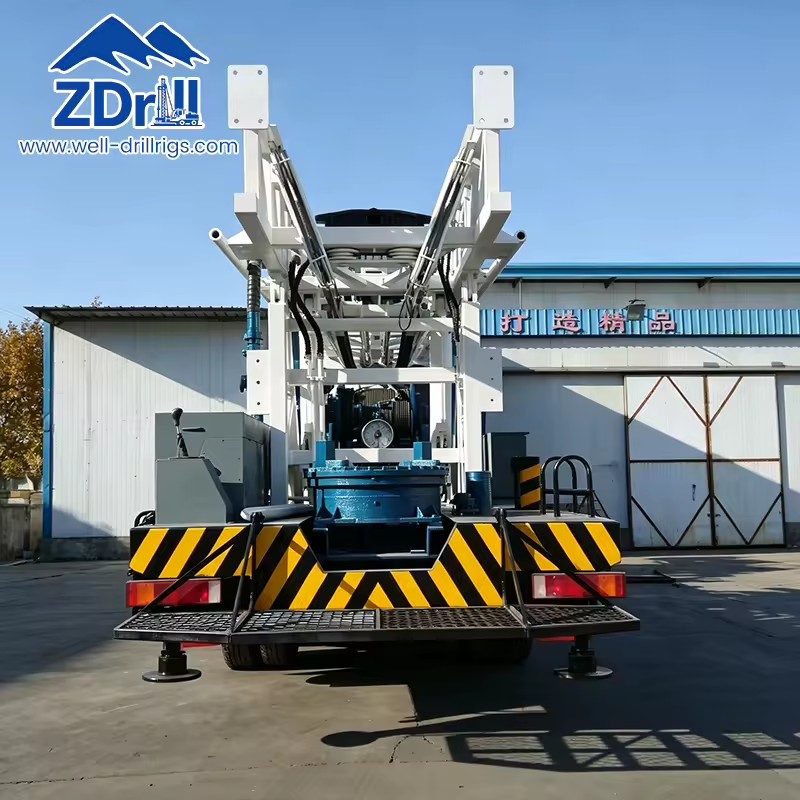

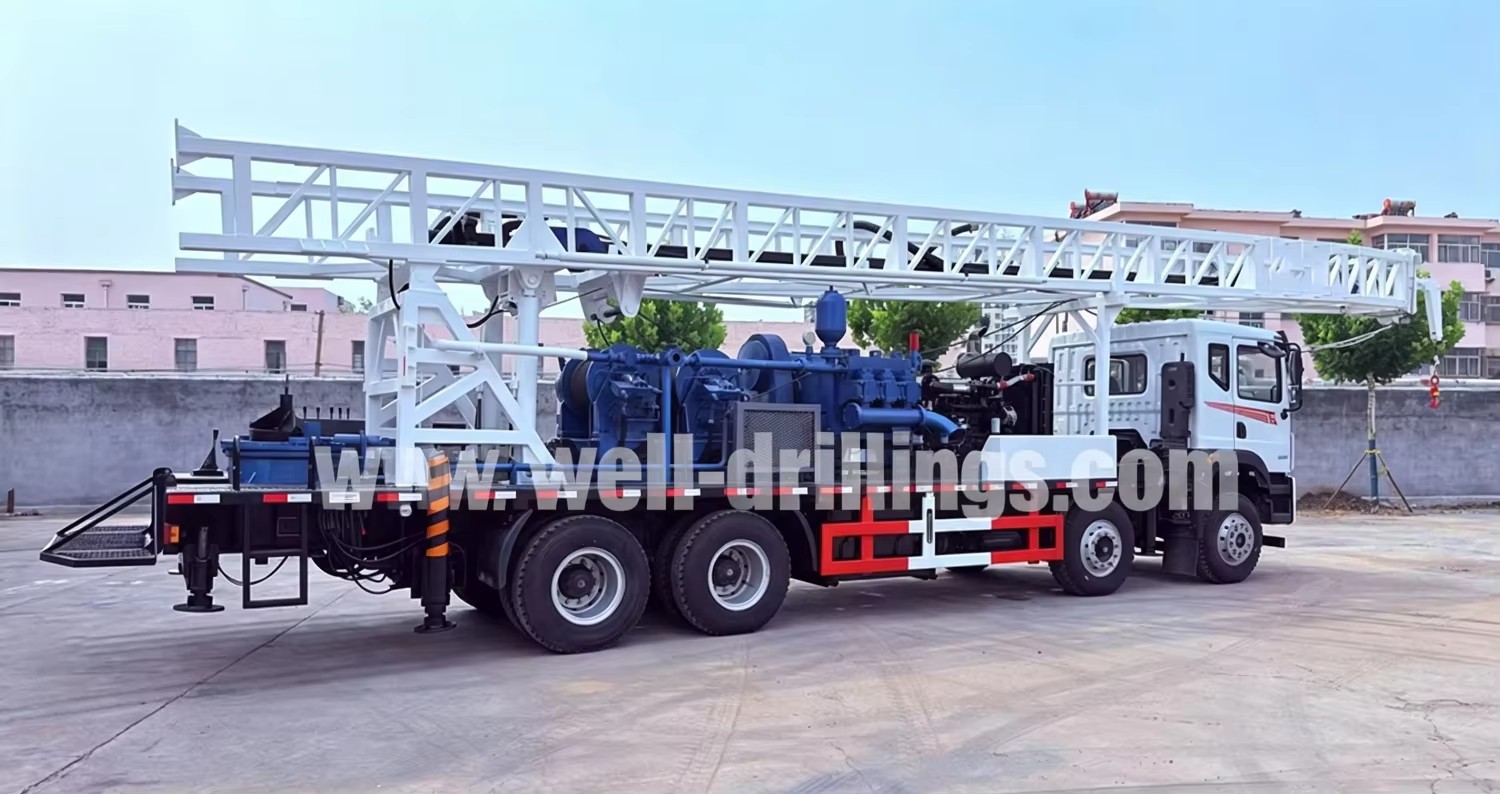

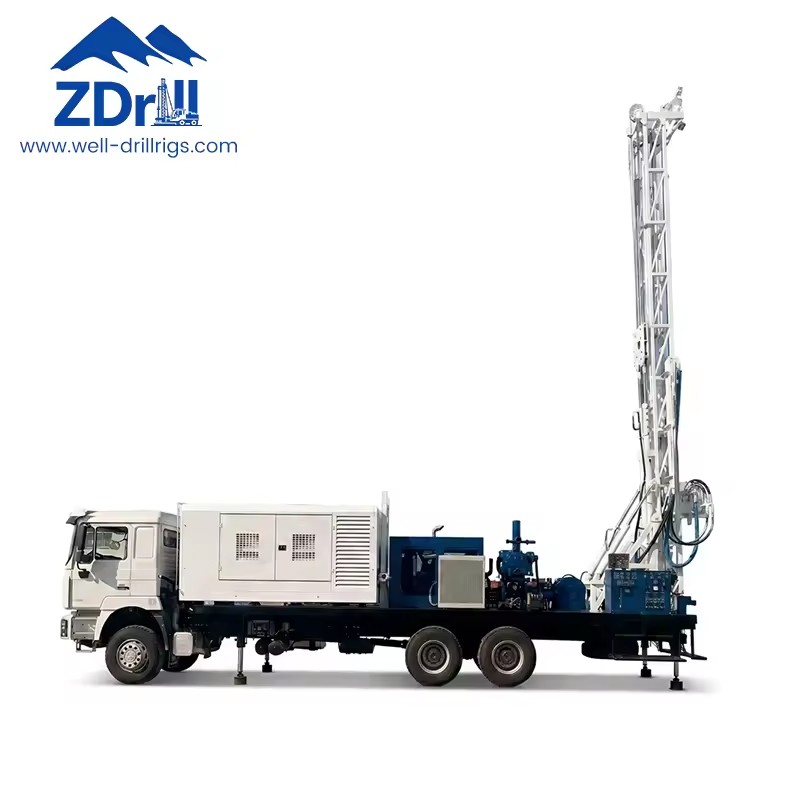

High Efficiency ZDSPJ800 Rotary Table Water Well Drilling Rig Deep Well Boring Machine for Construction and Mining

Available for enquiry 0.0 · 0 reviews
USD

$ 53,840.00 53840.0 USD $ 53,840.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Mobility
  • Engine
  • Selling Units
  • Model number
  • Power (W) (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Water Well
Type
ZDSPJ800
Drilling Depth
Max.800m
Drilling Diameter
500 mm(19.69in)
Power Type
Diesel
Core components
Bearing, Motor, Gear, Engine, Pump, Gearbox
Product description

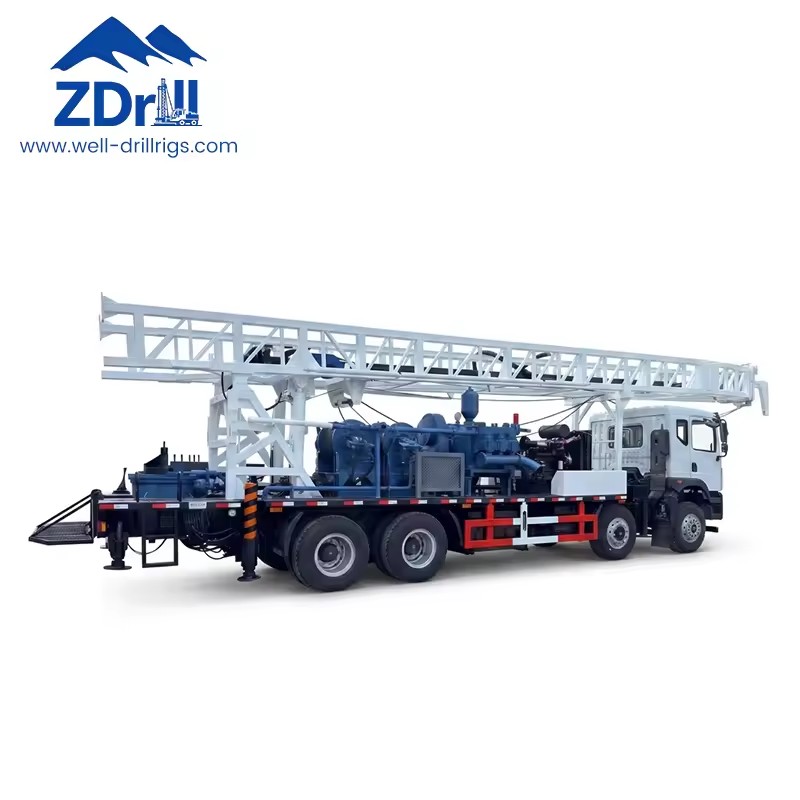

  • The ZDSPJ800 Truck Mounted Drilling Rig adopts advanced mud circulation drilling technology, delivering excellent performance in large-diameter water well and geothermal drilling projects. The mud system effectively stabilizes borehole walls, cools the drill bit, and removes cuttings efficiently, ensuring reliable operation in sand, gravel, clay, and mixed formations. The ZDSPJ series can be customized for various project requirements. Optional truck-mounted, crawler, and trailer-mounted versions provide flexible transportation solutions for different working conditions.
  • The ZDSPJ800 well drilling machine uses reinforced transmission structure to offer stable penetration capacity for gravel and soft rock formations. The circulating mud system realizes three core functions: hole wall support, bit cooling and debris removal. The whole machine is compactly arranged with reasonable space layout, convenient for daily inspection and maintenance. Multiple transport auxiliary schemes are optional to meet flat land, hills and other complex terrain transfer requirements.
  • The ZDSPJ800 series vehicle-mounted drilling equipment supports flexible matching of mud rotary drilling technique. Its matched large-volume mud tank reduces frequent slurry refilling during continuous operation. All core hydraulic parts adopt standard quality accessories to reduce failure rate and extend overall service life. Customers can choose different auxiliary accessories according to site conditions, including walking auxiliary wheels and slag separation devices. It is widely applied in residential wells, irrigation wells and ground source heat borehole projects.
    • Product nameZDSPJ800 water well drilling rig
    Geology drilledDifferent kinds
    Drilling TypeDTH & Mud Rotary
    Drill system and operationMechanical transmission, hydraulic system, pneumatic system
    Open Hole diameterφ500 mm
    Drill depth800 m
    Rotation speed12;24;44;76;96 r/min
    Rotation torque5.4 · 30 r/min
    Drill pipe diameter89 mm
    Drill pipe length6000mm
    Max. Lifting force of oil cylinder24.5 T
    Max. feeding force oil cylinder12 T
    Winch
    Single rope lifting force of main winch50 KN
    Main hook rated load30 T
    Rope capacity140 m
    Single rope lifting force of tool winch20 KN
    Rope capacity40 m
    Drilling Engine
    Diesel engine typeCUMMINS6BTA5.9-C180
    Rated power132 KW
    Chassis
    ManufacturerSHACMAN6x4
    Rated power300 HP
    Discharge standardEU 3
    Drive type6X4
    Max speed75 km/h
    Steering wheelLeft
    Mud pump
    TypeHorizontal Triplex Single-Acting Piston Pump
    Model3NB-130
    Stroke160 mm
    Displacement1000 L/MIN
    Pressure7 Mpa
    Suction tube diameter152 mm
    Discharge pipe diameter65 mm
    Liner diameter110 mm
    Generator
    Power30 KW
    Voltage230/400 V
    Current54.1 A
    Dimension
    Net weight32 T
    Shipping size (LXWXH)13000×2500×4300 mm
    Certifications & compliance
    CE
    Complies with EU standards
    Description images
    Product detail

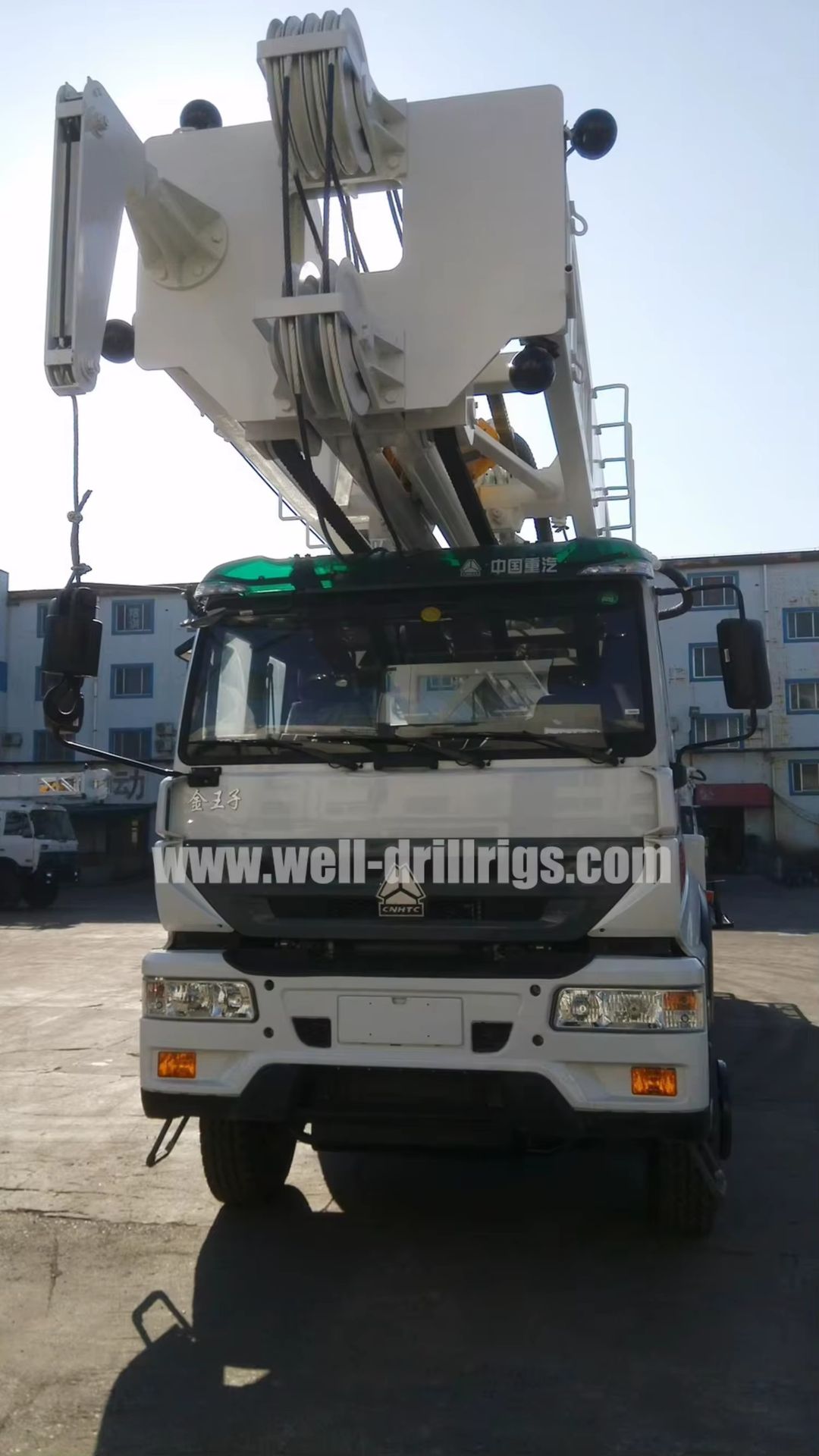

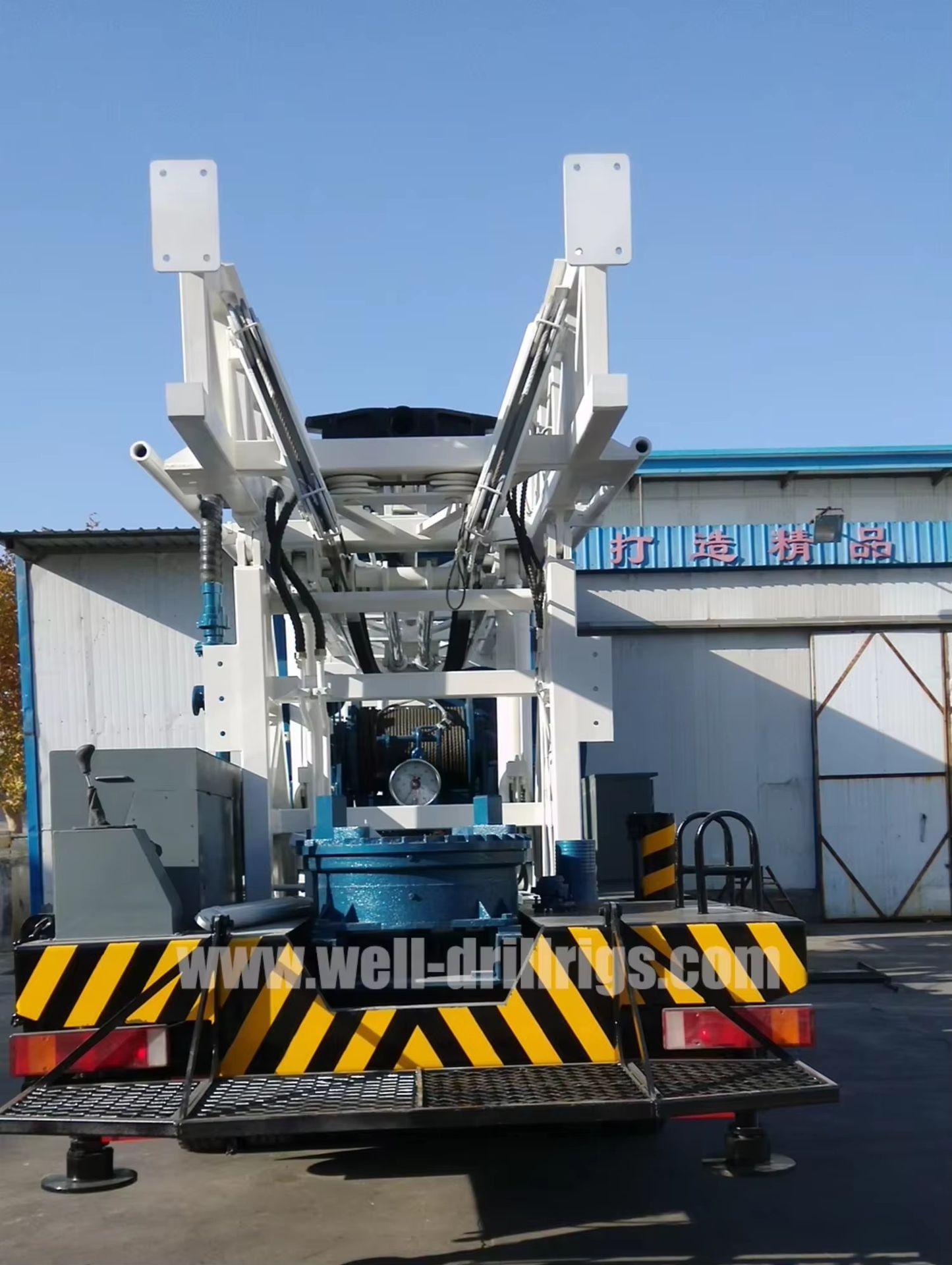

    High Efficiency ZDSPJ800 Rotary Table Water Well Drilling Rig Deep Well Boring Machine for Construction and Mining
    High Efficiency ZDSPJ800 Rotary Table Water Well Drilling Rig Deep Well Boring Machine for Construction and Mining
    High Efficiency ZDSPJ800 Rotary Table Water Well Drilling Rig Deep Well Boring Machine for Construction and Mining
    CE
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      30 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 18 fields
    Usage
    Water Well
    Type
    ZDSPJ800
    Drilling Depth
    Max.800m
    Drilling Diameter
    500 mm(19.69in)
    Power Type
    Diesel
    Core components
    Bearing, Motor, Gear, Engine, Pump, Gearbox
    Warranty
    1 Year
    Machinery test report
    Provided
    Video outgoing-inspection
    Provided
    Key selling points
    Easy To Operate
    Place of origin
    China, Hebei
    Weight
    32000 KG(70547.92lb)
    Mobility
    Crawler
    Engine
    Yuchai, Weichai, Cummins, Quanchai
    Selling Units
    Single item
    Model number
    ZDSPJ800
    Power (W) (Product option)
    132kw(177.01hp), Engine:Cummins, Yuchai, Weichai, Quanchai
    Certifications & Compliance
    CE
    Lead time
    30 days
    Minimum order
    1 Units
