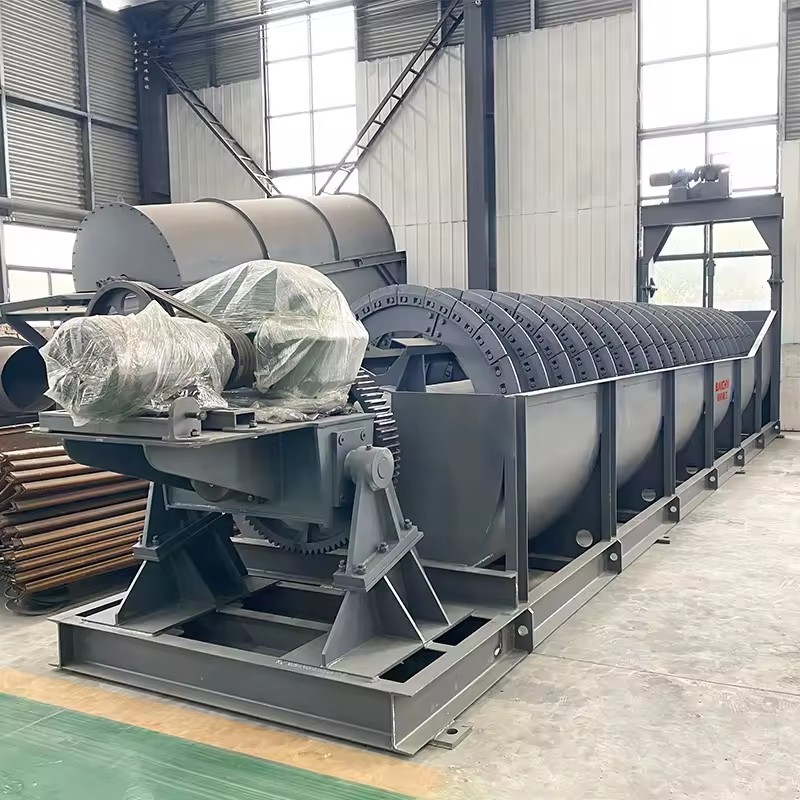

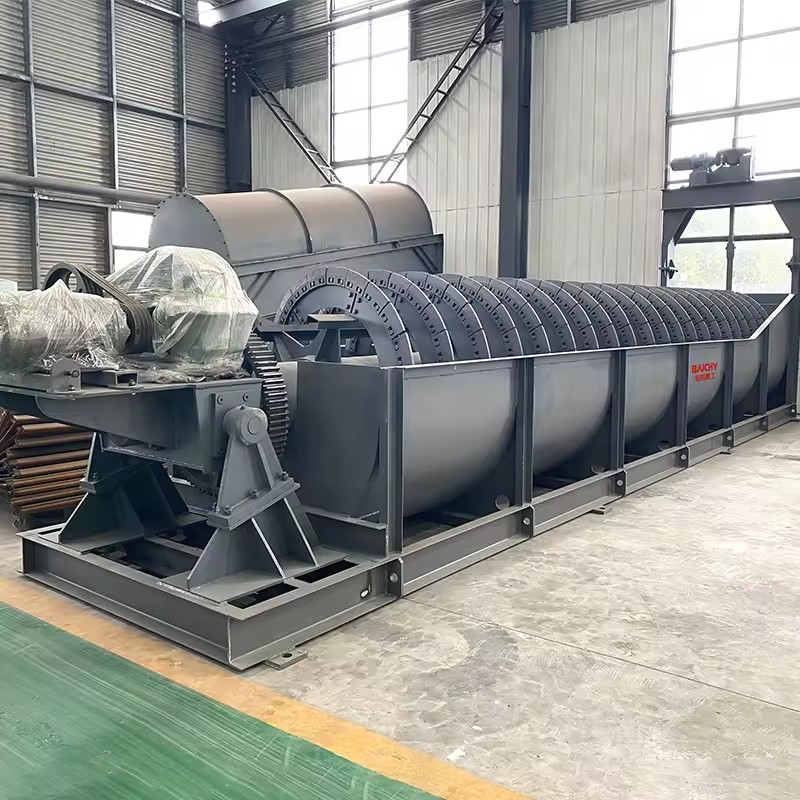

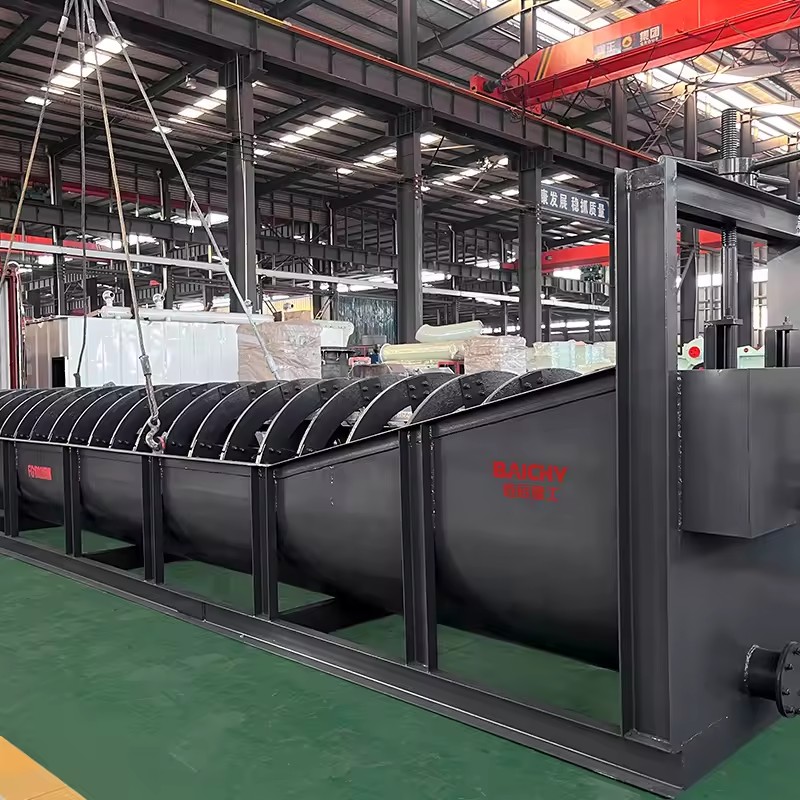

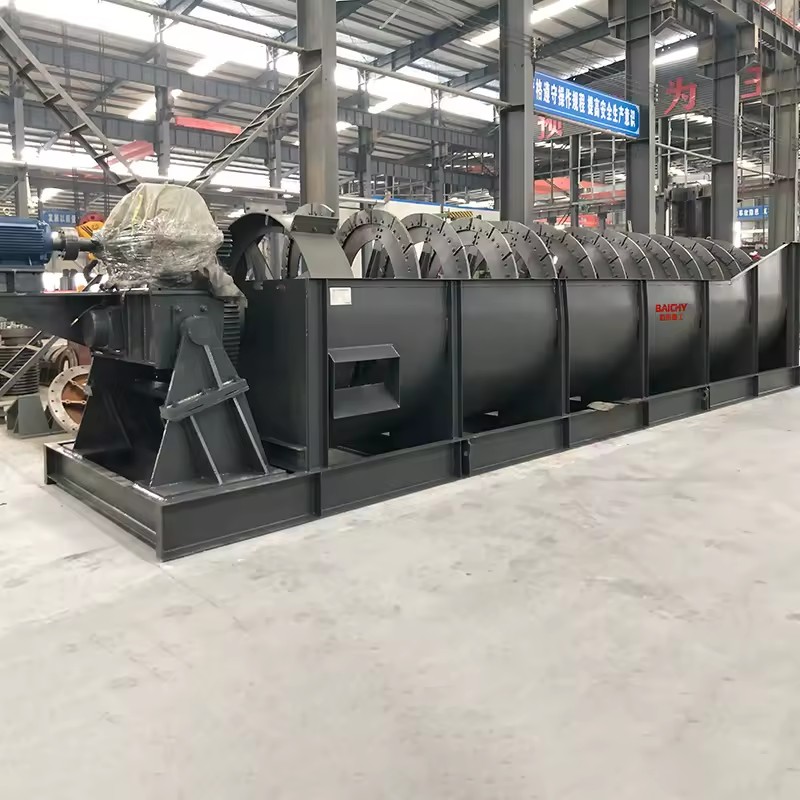

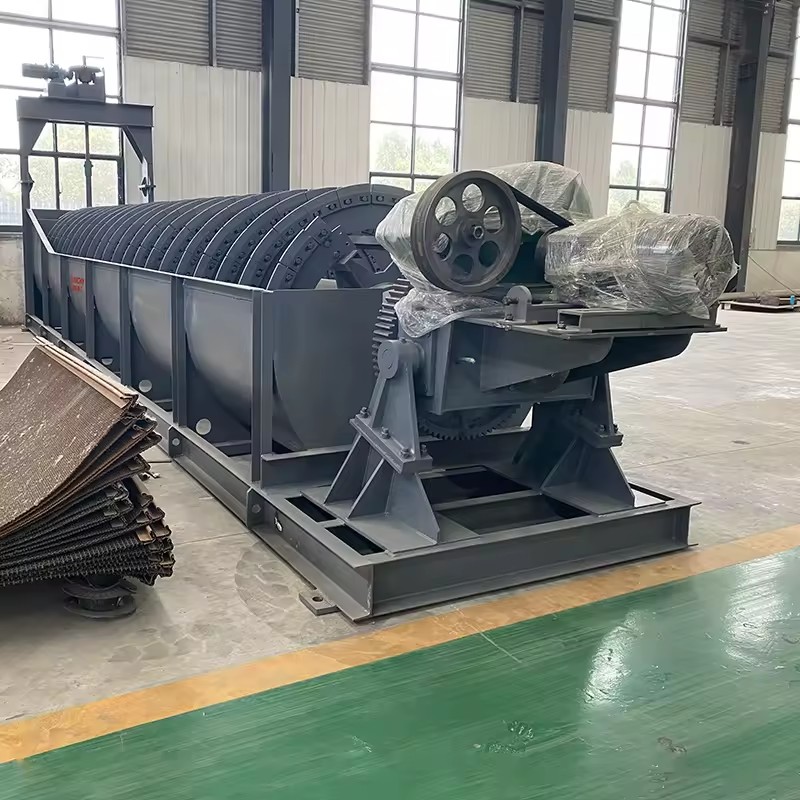

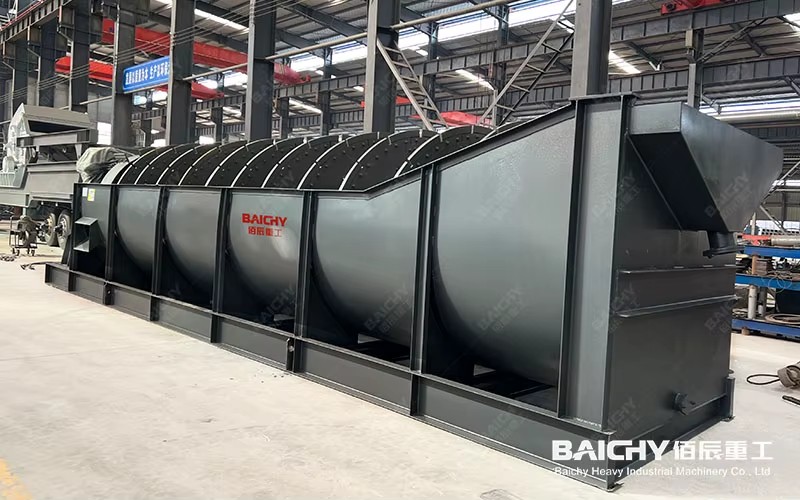

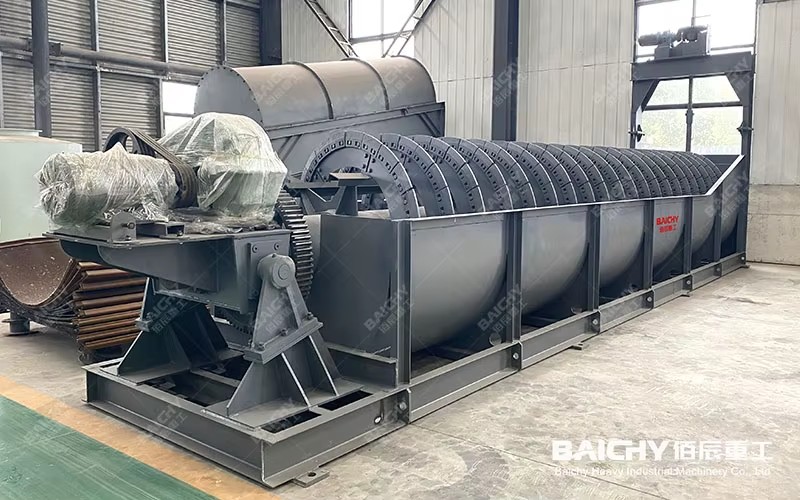

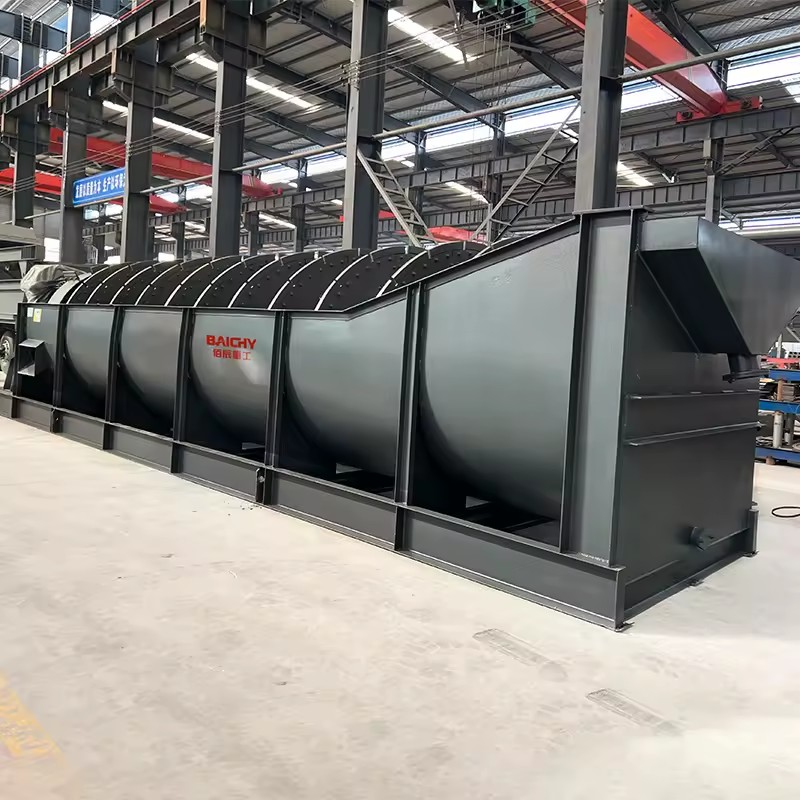

Spiral Sand Washing Machine
This XL Series Screw Sand Washer offers multiple standard models in single or double screw configurations, designed for washing ≤10mm materials. It efficiently removes clay, silt, and lightweight impurities through slow screw agitation and water rinsing. Double-screw models feature independent dual-motor drive, significantly boosting throughput—ideal for high-volume washing in medium to large aggregate plants. Built with a robust structure and smooth operation, it delivers clean sand with low moisture content, serving as a core piece of equipment for manufactured and natural sand processing.
Key Advantages
1. Superior Cleaning & Desliming Performance The elongated tank and optimized screw angle extend scrubbing time, while rising water current strips away fine clay and silt, delivering sand cleanliness that exceeds industry norms.
2. Independent Dual Drive & Continuous Operation Double-screw models utilize independent dual-motor drive, ensuring sides operate separately. Maintenance on one side never halts production, eliminating costly downtime and capacity loss.
3. Long-Life Wear Materials & Low Maintenance Blades are cast from high-chromium alloy, and the tank features replaceable wear liners for exceptional abrasion resistance. Routine upkeep requires only basic lubrication, keeping maintenance costs minimal.
Working Principle
The washer operates on the principle of gravity sedimentation and mechanical conveying. Installed at an incline, the motor drives the spiral shaft via a reducer. Material enters the water-filled tank where the spiral blades agitate and roll the sand, removing impurities through friction. Light impurities (clay/fines) overflow with water, while clean sand is conveyed upward for dewatering, achieving washing, grading, and dewatering in one unit.

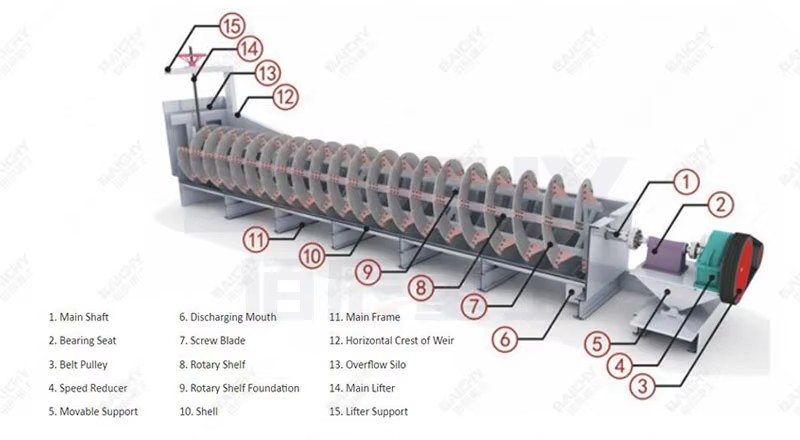

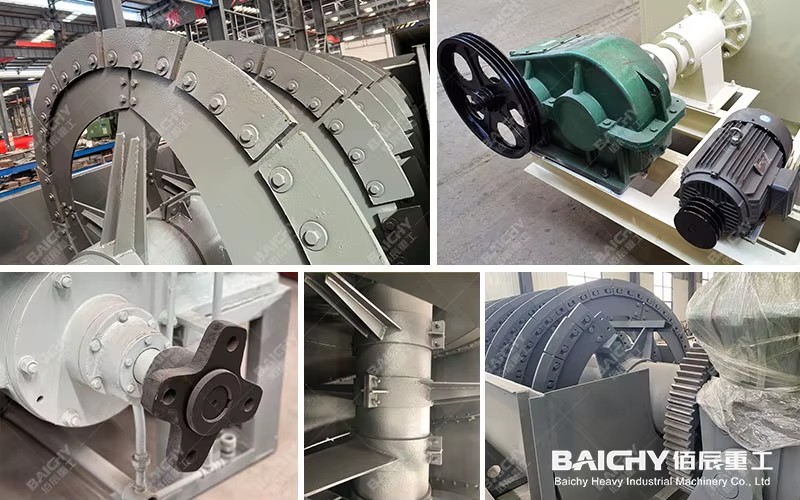

Core Components
Washing tank is a welded heavy-duty steel plate with a semi-circular bottom; main spiral shaft consists of a hollow shaft and wear-resistant spiral blades; drive unit includes motor, pulley, and reducer to rotate the shaft; support frame provides robust stability; adjustable weir plate governs the washing and classification process.
Technical Parameters
| Model | Spirals Number (pcs) | Screw Diameter (mm) | Sink Length (mm) | Capacity (t/h) | Motor Power (kw) |
| XL920-7.5m | 1 | Ø920 | 7500 | 40-60 | 11 |
| 2XL920-7.5m | 2 | Ø920 | 7500 | 90-120 | 11×2 |
| XL1120-7.5m | 1 | Ø1120 | 7500 | 40-120 | 18.5 |
| 2XL1120-7.5m | 2 | Ø1120 | 7500 | 80-240 | 18.5×2 |
| XL1500-9m | 1 | Ø1500 | 9000 | 100-170 | 22 |
| 2XL1500-9m | 2 | Ø1500 | 9000 | 200-280 | 22×2 |
Applicable Materials & Applications
Suitable for washing 0–30mm materials: Machine-made Sand: Crushed limestone, granite, basalt, etc. Natural Sand: River sand, lake sand, weathered sand. Others: Slag, tailings, recycled aggregates from construction waste.
Application Fields
Large-scale Aggregate Plants: Final washing and grading of machine-made sand. Mines & Mineral Processing: Washing and recovery of tailings sand. Building Materials & Cement: Producing high-quality sand for concrete. Hydropower & Road Construction: Supplying sand for hydraulic concrete and asphalt.
