Overview of Fruit and Vegetable Air Dryer
Core Functions Of The Food Dehydrator Machine As a key equipment in the food processing
Surface moisture removal is the most basic and important function of the fruit and vegetable air-drying machine. The equipment quickly and effectively removes free moisture from the surface of agricultural products through a carefully designed airflow system. Compared with traditional drying or manual wiping, mechanical air-drying can not only greatly improve efficiency, but also ensure product hygiene quality. The vegetable air-drying machine introduced on web page 2 uses upper high-pressure strong cold air blowing technology, which can completely dry even the water between the wrinkles of soft packaging. This efficient water removal ability greatly shortens the preparation time for subsequent labeling and packaging4. It is particularly worth mentioning that the drying air temperature of the equipment is kept at room temperature, which will not damage heat-sensitive materials and effectively protect the original color and quality of the product. This feature is crucial to maintaining the commodity value of fruits and vegetables.
Features of Fruit and Vegetable Air Dryer
The overturn air dryer uses the normal temperature of the fan to dry the moisture on the surface of the material. The overturn fan uses a large amount of low noise and natural wind to dry the overturn air dryer. The air dryer works well. The equipment adopts frequency conversion transmission, the speed is adjustable, the speed is stable, and the service life is long
1. Made of stainless steel to meet the national food hygiene regulations. 2. The electrical appliances are waterproof, so as to avoid burning out of the electrical appliances due to the humid environment. 3. The electrical appliances are equipped with overload protection and leakage protection to ensure the personal safety of operators. 4. This machine effectively removes water droplets on the surface of materials, greatly shortens the working time of labeling and packing, is suitable for assembly line operations, and improves the degree of automation of enterprise production. 5. The drying air is at normal temperature, which can effectively protect the color and quality of the material itself.

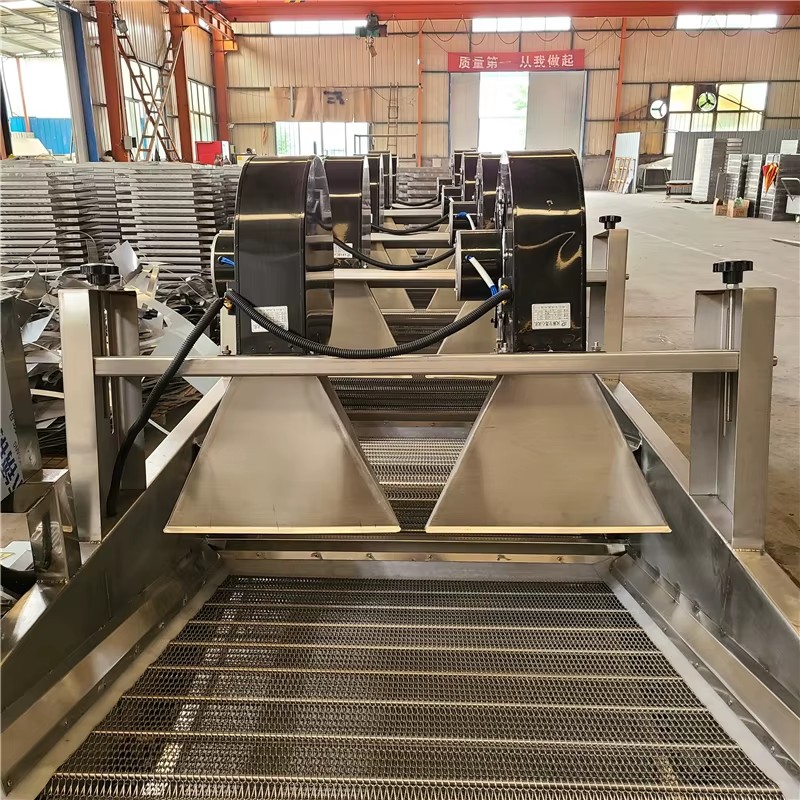

Equipment structure of Fruit and Vegetable Air Dryer The structural design of the fruit and vegetable air-drying machine directly affects its working efficiency and scope of application. Modern high-end equipment achieves efficient and uniform air-drying effects through carefully designed mechanical structures and intelligent control systems. In-depth analysis of these structural characteristics and technological innovations helps to understand the differences in equipment performance and provides professional references for purchase and use. The body structure is the basic framework of the fruit and vegetable air-drying machine, which usually adopts a modular design for easy transportation and installation. The conveying system is a key component that affects the uniformity of air-drying. Modern fruit and vegetable air-drying machines mostly use stainless steel mesh belts for conveying, which are not only hygienic and durable, but also effectively prevent material adhesion. It adopts "multiple flipping conveying, and has a reverse wind device to prevent the occurrence of dead corners in drying. This flipping design ensures that all surfaces of the material can fully contact the airflow, greatly improving the uniformity of air drying. Some high-end models are also equipped with variable frequency speed regulation functions. The air drying system is the core working part of the equipment, and its design directly affects the water removal efficiency and energy consumption level. These fans are usually arranged in a wind knife shape to produce concentrated and strong airflow. In the high-efficiency fan-forced circulation ventilation, it forms a strong convection zone. This airflow organization method ensures air drying without dead corners. Some models are also equipped with adjustable air knives. The position of the air knife can be raised or lowered according to the surface moisture of the food to be dried. However, safety must be paid attention to when adjusting. "The machine must be shut down and the power must be turned off to stop the belt from running.
Packaging Application Fruit and vegetable air-drying machines play a vital role in the processing link before packaging, and their performance directly affects packaging efficiency, product appearance, and shelf life. In the modern food processing industry, air-drying machines are no longer independently operated equipment but are part of an intelligent system that is closely connected with the previous and subsequent processes. An in-depth discussion of the application value of air-drying machines in the packaging field and their
Product parameter table
| Name | Model | Material | Power | Fans | Weight (kg) | Size (mm) | Capacity (kg/h) | Mesh Belt Width (mm) | Description | Function |
|---|
| Automatic Air Dryer Machine | RX-2500 | 304 Stainless Steel | 0.75kw * 5 | 4 | 200 | 2500* 1300* 1350 | 200 | 800 | Dry air at normal temperature - Independent control cabinet, partition control fan - Frequency conversion control, stable operation, small size, high efficiency - Potatoes automatically turn over during the blowing process, good dehydration effect | Drying materials (such as potatoes) - Provides efficient moisture removal - Automatic flipping mechanism improves drying uniformity |
| Automatic Air Dryer Machine | RX-3000 | 304 Stainless Steel | 0.75kw * 7 | 6 | 300 | 3000* 1250* 950 | 400 | 800 | Dry air at normal temperature - Independent control cabinet, partition control fan - Frequency conversion control, stable operation, small size, high efficiency - Potatoes automatically turn over during the blowing process, with a good dehydration effect | Drying materials (such as potatoes) - Provides efficient moisture removal - Automatic flipping mechanism improves drying uniformity |
Note
RX-2500 and RX-3000 are two different air dryer models, the main differences are power, number of fans, weight, size, and capacity. Both units are made of 304 stainless steel, which has good corrosion resistance and durability. The equipment runs smoothly, with high efficiency and energy saving through frequency conversion control. During the drying process, the material (such as potatoes) is automatically turned to ensure better moisture removal.
