Name: Hengwang DTH 20m Integrated Separated 2026 Blast Borehole Drill Rig for Gold Mine Quarry Diesel Engine High Efficiency CE
SKU: B2B-38001
Price: 2450.0 USD
Availability: PreOrder

Product description

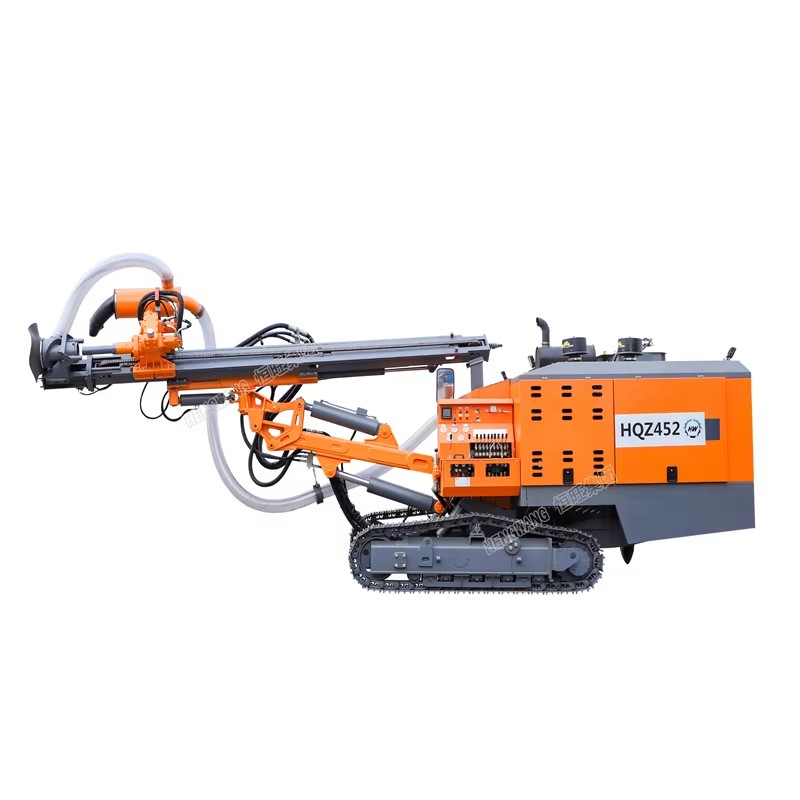

air compressor built-in HW452 dth drill rig Parameter
Drill pipe size	φ76*3000mm
Hole diameter range	φ110*138mm
Rotation torque(Max.)	2500N.m
Rotation speed	0-100rpm
DTH hammer	4inch
Drill depth	20m
Working pressure	17bar
Air consumption	16m3/min
Gradient	23°
Total weight	11300kg
Transportation dimensions	765725002900mm

$2,000-2,400 / set

HW452 explosive drilling hole purpose Crawler Drill with Compressor

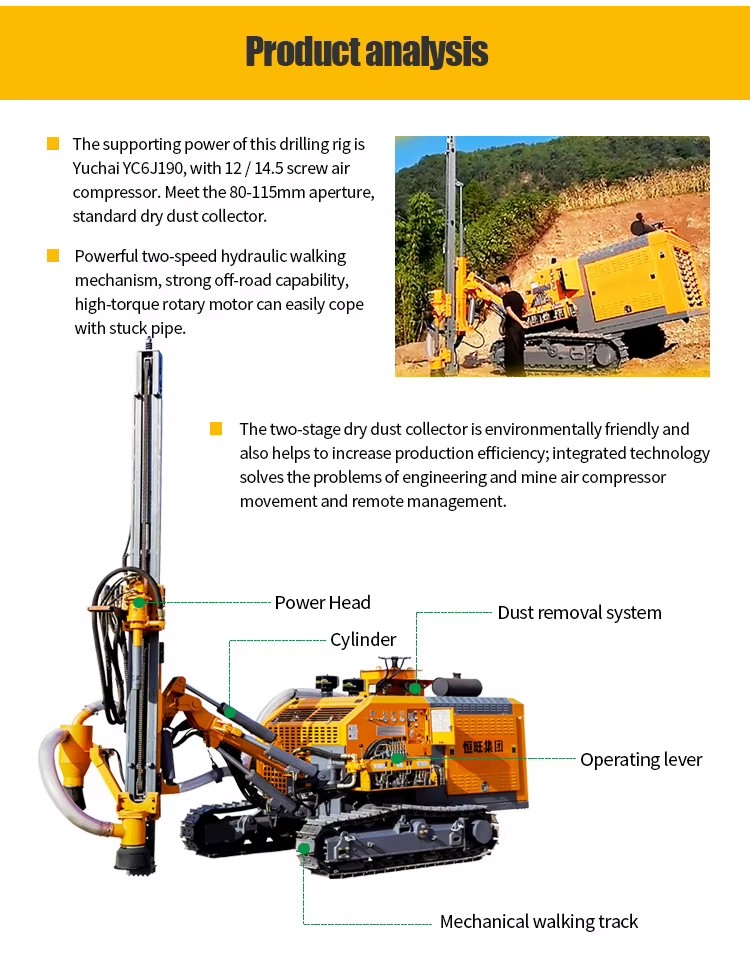

1. Sandard euipped with Yuchai 4 cylinder Diesel engine for 3m drill rod with Φ60mm or Φ76mm, dry dust collector for option. 2. All stuctural parts reinfoced for various work conditions. 3. The roration unit driven by cycloid motor for more compact structure and low failure rate. Torque improved for larger hole range drilling and widely used for foundation bolting and anchoring, casing and large hole spiral drilling. 4. New enclosure design for better appearance and converient for maintenance and serice. 5. Optional dry dust collector for dust free diling.more environment fiendly and energy saving.

larger displacement single motor

pneumatic drill machine compact size and large rotation torque,the rotary head adjustable according to different work conditions and requirement,greatly increasing drilling efficiency.

Casted track of DTH blast hole drilling rig

Piston tramming motor,special processed casted track shoe for stronger tramming traction force and more stable quality.

Eco-friendly dust collection system

rock drilling rig e quipped with Hengwang drill rig own developed dry dust collection system for high efficiency and more eco-friendly.

Boday layout

pneumatic rock drill machine Compact with air compressor housed in

Easy to maintance, less oil comsumption

Certifications & compliance

Complies with EU standards

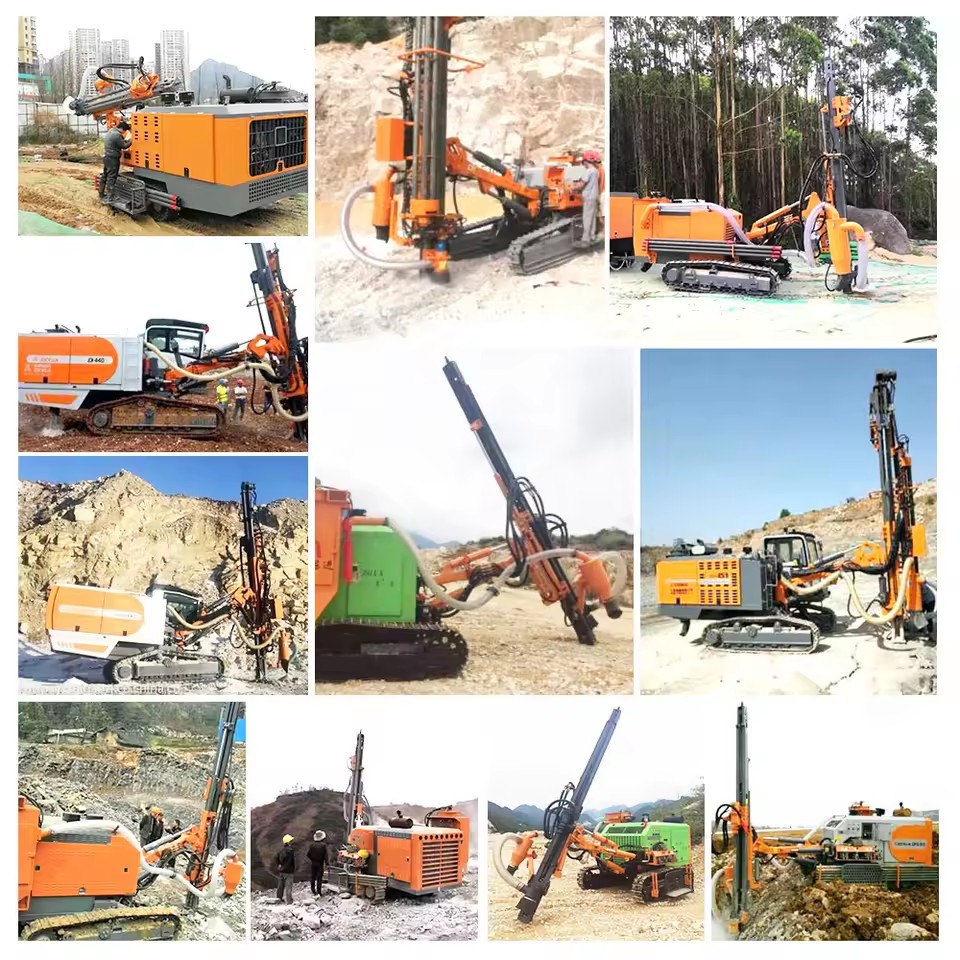

Description images

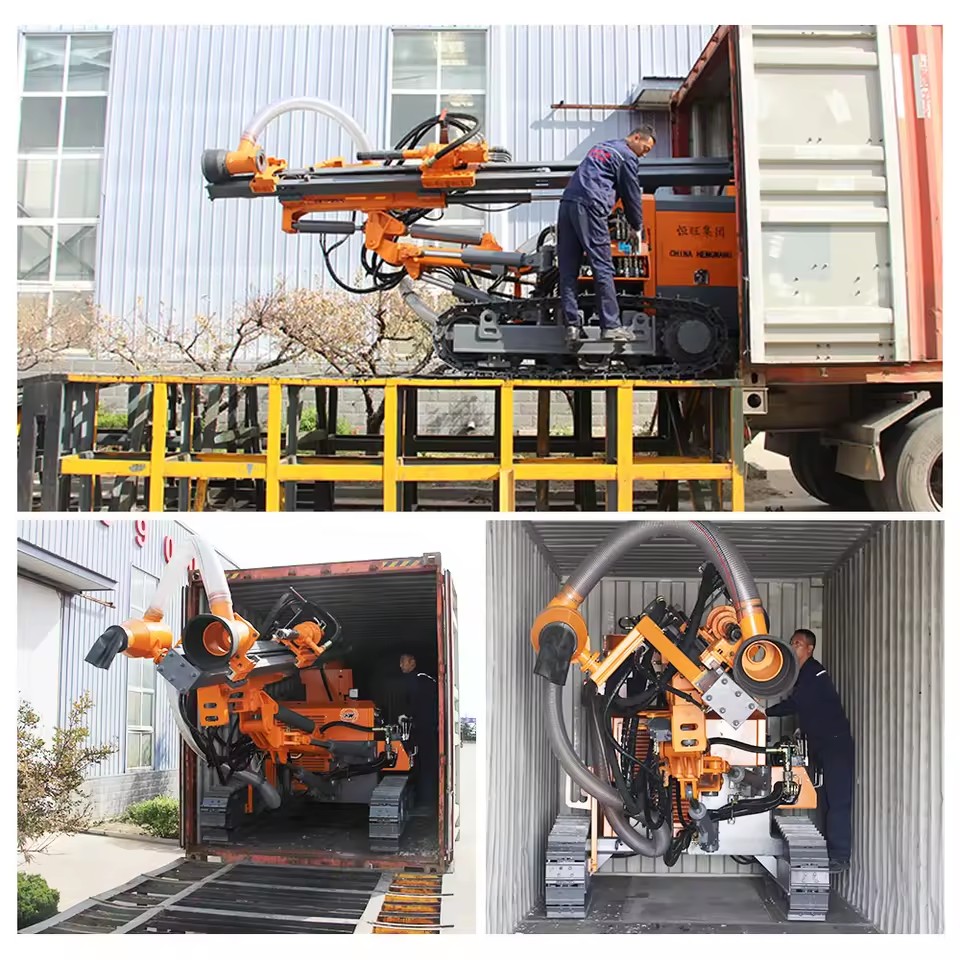

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

30 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 28 fields

Usage

Ore

Type

Rotary Drilling Rig

Drilling Depth

Max.50m, 20m

Drilling Diameter

300 mm, 100 mm, 200 mm

Power Type

Diesel

Voltage

220V/380V

Core components

Engine

Warranty

1 Year

Machinery test report

Provided

Video outgoing-inspection

Provided

Key selling points

Eco-Friendly

Place of origin

China, Shandong

Weight

11300 KG

Dimension (L*W*H)

7567*2500*2900mm

Name

Blast hole DTH Drilling Rig

Feature

pneumatic drilling

Drill pipe size

76*3000mm

Drilling method

DTH Hammer Drilling

Drilling Hole Diameter

110-138mm

Working pressure

17bar

Air consumption

16m3/min

Certification

iso ce

Selling Units

Single item

Single package size

765.7X250X290 cm

Single gross weight

11300.0 kg

Model number

HW910, HW910-1, HW916, HW916-1, HW925, HW925-1, HW930, HW930-1, HW935, HW938

Power (W) (Product option)

162KW, 191KW, 59KW, 73.5KW

Certifications & Compliance

Lead time

30 days

Minimum order

1 Units
