Product description

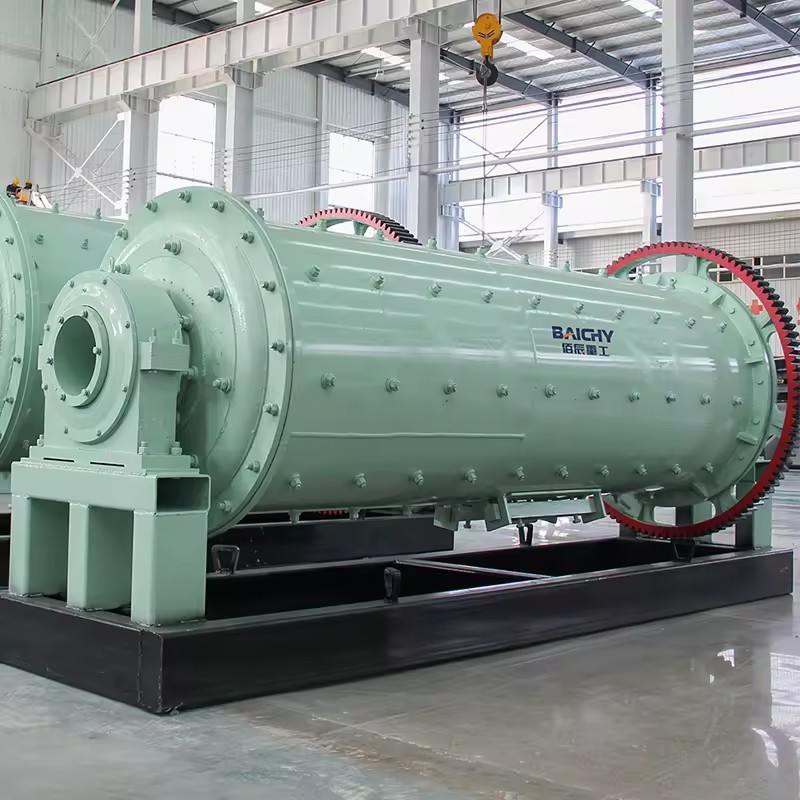

Gold Copper Iron Ore Grinding Mill Mining Beneficiation Mineral Processing Project Concentrate Dry Ball Mill

Corporate Profile

Product Introduction · Dry Ball Mill

The -Optimized Dry Ball Mill is designed for the country’s mining and construction sectors: copper ore, gold ore, nickel laterite, and cement. Processing feed sizes up to 50mm and moisture ≤5% (≤8% for laterite), it achieves 80-200 mesh for ore liberation and 80-325 mesh for cement. The corrosion-resistant construction withstands tropical marine environments, while the anti-stick ventilation system handles sticky laterite. Heavy-duty drive ensures reliable operation in remote mining sites. This mill is the preferred choice for dry grinding in the Philippine archipelago.

Key Advantages

1.Marine Tropical Protection

Stainless steel fasteners, epoxy coatings, and sealed bearings resist corrosion from salt spray, high humidity, and frequent rainfall – critical for island operations.

2.Handles Sticky Laterite for Nicke

Ventilation system with heated air option (for high moisture) prevents material adhesion. Smooth liner profile reduces buildup of sticky nickel ore.

3.Energy Saving for Remote Mines

15-20% lower energy consumption reduces fuel costs for diesel-powered plants in off-grid mining sites. Lower genset fuel burn directly improves operating margin.

4.Modular for Island Transport

Mill components designed for shipping container transport (max width 2.4m). Easy disassembly and reassembly for relocation between islands.

Working Principle

Material (≤50mm, moisture ≤5%) is fed into the grinding drum via a belt conveyor and feed chute. The motor drives the drum to rotate at 18-24 r/min through a reducer. Inside the drum, grinding balls are lifted and then fall, impacting and grinding the material. A ventilation system introduces dry air to remove dust and moisture, preventing caking. The ground powder is carried by airflow to a classifier, where it is separated into 80-325 mesh fractions. Qualified powder enters a pulse dust collector and is discharged via a star unloader; coarse particles return for regrinding. The dry process produces no wastewater, meeting environmental requirements.

Model	Capacity(t/h)	Rotate speed(r/min)	Grinding Balls(t)	Motor Power(kw)	Gear box
Model	Speed Ratio
1.2x4.5	1.6-5.8	30.3	5	55	ZD30	4.5
1.5x5.7	3.5-6	26.34	11	130	ZD40	4
1.83x6.4	6.5-15	23.9	21	210	ZD60	4.5
1.83x7	7.5-17	24.5	23	245	ZD60	4.5
2.2x6.5	14-20	21.4	31	280	ZD70	5
2.4x7	17-28	20.4	39	380	ZD80	5
2.4x8	20-35	20.3	42	570	ZD80	5
2.4x12	35-45	20	63	800	MBY710	6.3
2.4x13	35-38	19.4	68	800	MBY710	6.3
2.6x13	40-55	19.5	82	1000	JDX800	6.3
3x9	50-55	18.34	78	1000	JDX800	6.3
3.2x9	60-70	17.6	95	1250	MBY900	7.1
3.5x11	75-85	16.8	150	1250	JDX900	5.84
3.8x12	85-110	17	175	1600	MBY800	5.6
4.6x10+3.5	180-210	15	278	3550	JQS3500	15.1

Applicable Materials & Applications

Ideal for dry grinding of copper ore, gold ore, nickel laterite, limestone, and cement clinker in applications such as mining operations, cement plants, and construction material preparation across the Philippine archipelago (Luzon, Visayas, Mindanao).

Perfect After-sales Service

Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.

The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.

To prevent the rights and interests of customers from being infringed, Industry reminds customers: please contact

Quality Assurance & On-Time Delivery Commitment

We perform strict factory inspections on every unit to ensure compliance with international standards and your technical requirements, guaranteeing reliable and stable operation. Supported by an efficient supply chain, we commit to on-time delivery and provide customized transport solutions combining land and sea shipping, including modular packaging, professional securing, and door-to-door services. This ensures your equipment arrives safely, intact, and on schedule at project sites worldwide, supporting smooth project execution.

Service & Certification

We offer a complete EPC service that includes free consultation, solution customization, installation guidance, and regular follow-ups, ensuring full project support.

About Customer Visits

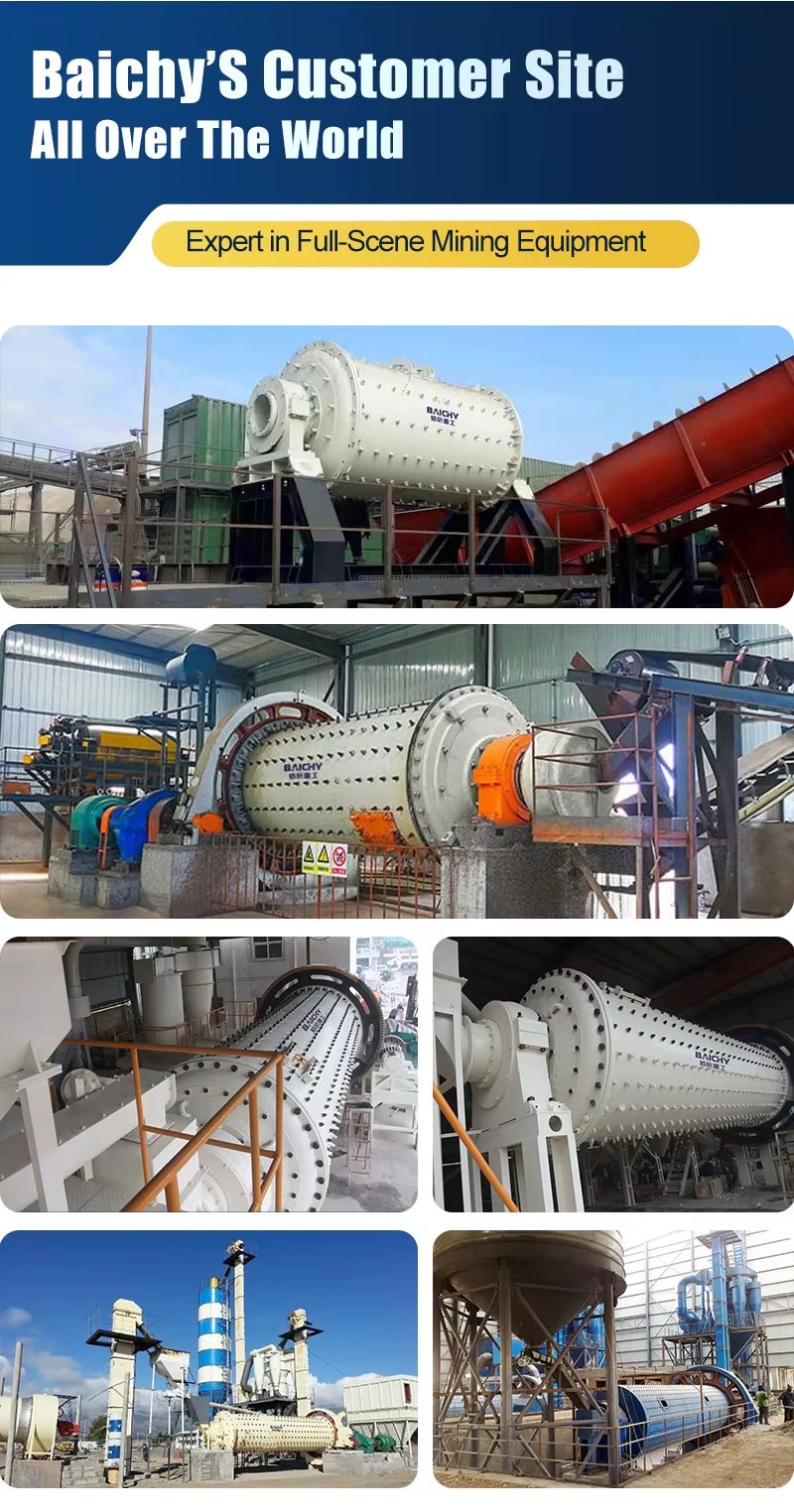

Machinery's equipment has been exported to more than 150 countries around the world. This global business layout requires Baichen Heavy Industry to frequently communicate and exchange with customers from all over the world; visiting customers may include potential customers, existing customers, and partners.

Machinery attaches great importance to customer visits and has formulated a complete reception process and standards for this purpose. The company has a professional reception team responsible for receiving visiting customers, arranging itineraries, and providing explanations and demonstrations.

Frequently Asked Questions

1. Are you manufacture or trading company?

We are factory, established in 2003.

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment.

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at lowest cost.

5. If I need the complete crushing plant can you help us to build it?

Yes, we can help you set up a complete

Certifications & compliance

CE(8)

Complies with EU standards

Description images

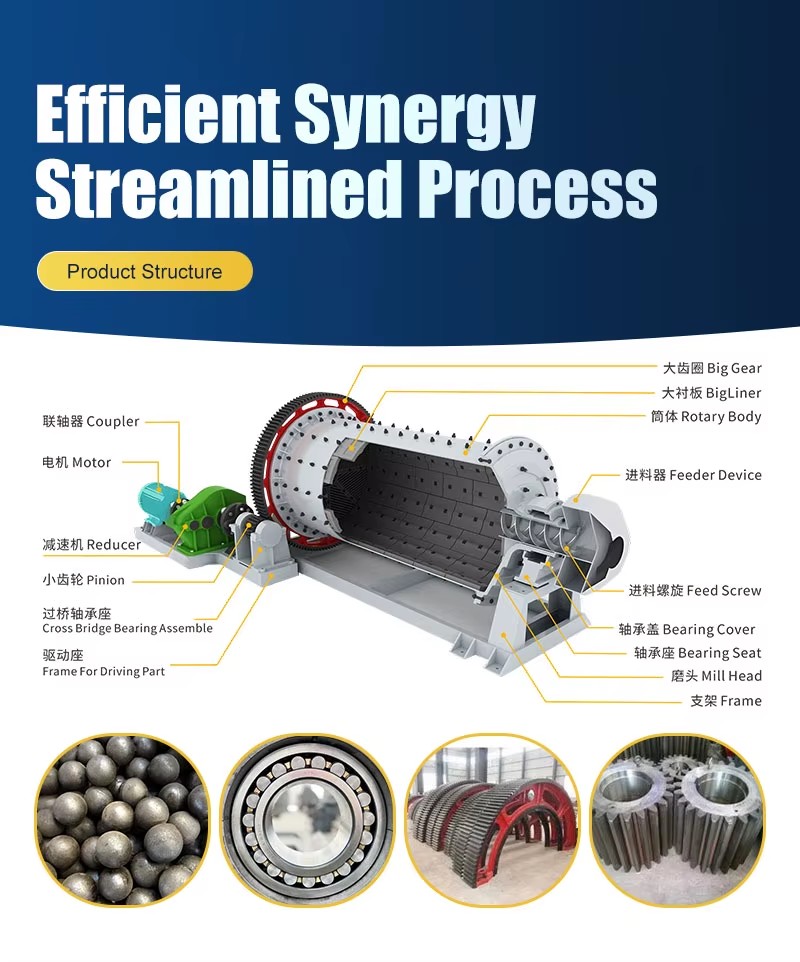

Gold Copper Iron Ore Grinding Mill Mining Beneficiation Mineral Processing Project Concentrate Dry Ball Mill

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

10 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 25 fields

Type

Dry Ball Mill

Motor Type

AC Motor

Core components

Bearing, Motor, Gear, Gearbox

Machinery test report

Provided

Warranty

1 Year

Video outgoing-inspection

Provided

Capacity(t/h)

1.6-210 t/h

Place of origin

China, Henan

Weight

8000 KG

Dimension (L*W*H)

1830x7000x2000mm

Rotate speed(r/min)

15-30.3 r/min

Grinding Balls(t)

5-278 t

Motor power(kw)

55-3550 kw

Feed size

≤25mm

Application materials

etc, Used for grinding ore, beneficiation tailings

After-sales Service

Online Video or Dispatch After-sales Team

Accessories Supply

Anytime

About Installation

Dispatch professional technicians to install on site

Factory Visit

Welcome to Visit

Selling Units

Single item

Single volume

0 cm3

Single gross weight

0.0 kg

Power (W) (Product option)

55-3550 kw

Model number

1.2x4.5, 1.5x5.7, 1.83x6.4, 1.83x7, 2.2x6.5, 2.4x7, 2.4x8, 2.4x12, 2.4x13, 2.6x13, 3x9, 3.2x9, 3.5x11, 3.8x12, 4.6x10+3.5

Certifications & Compliance

CE(8)

Lead time

10 days

Minimum order

1 Units
