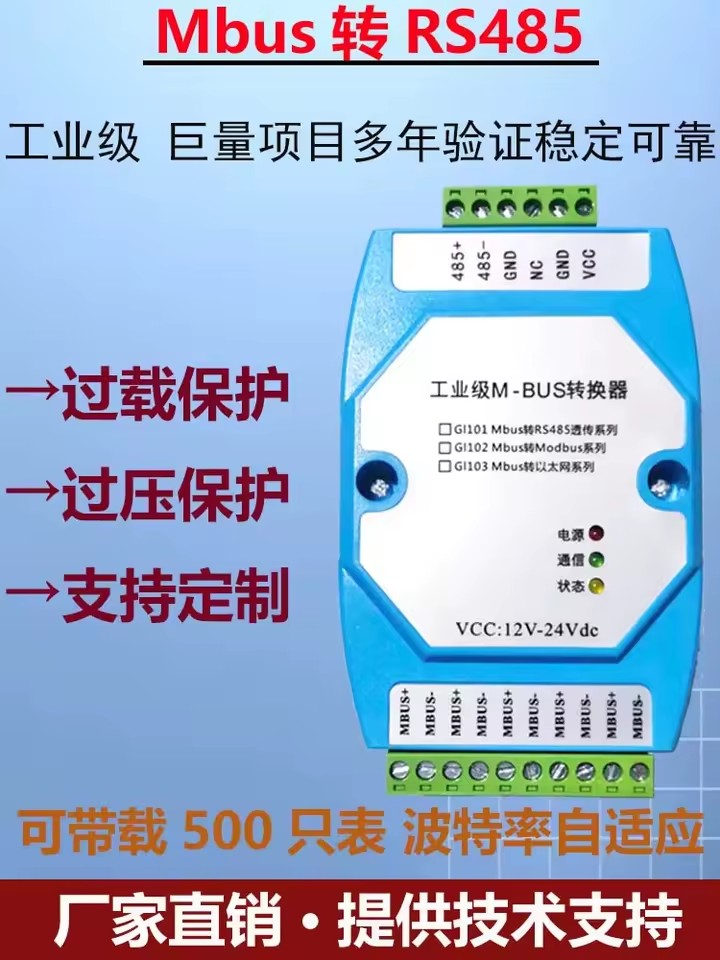

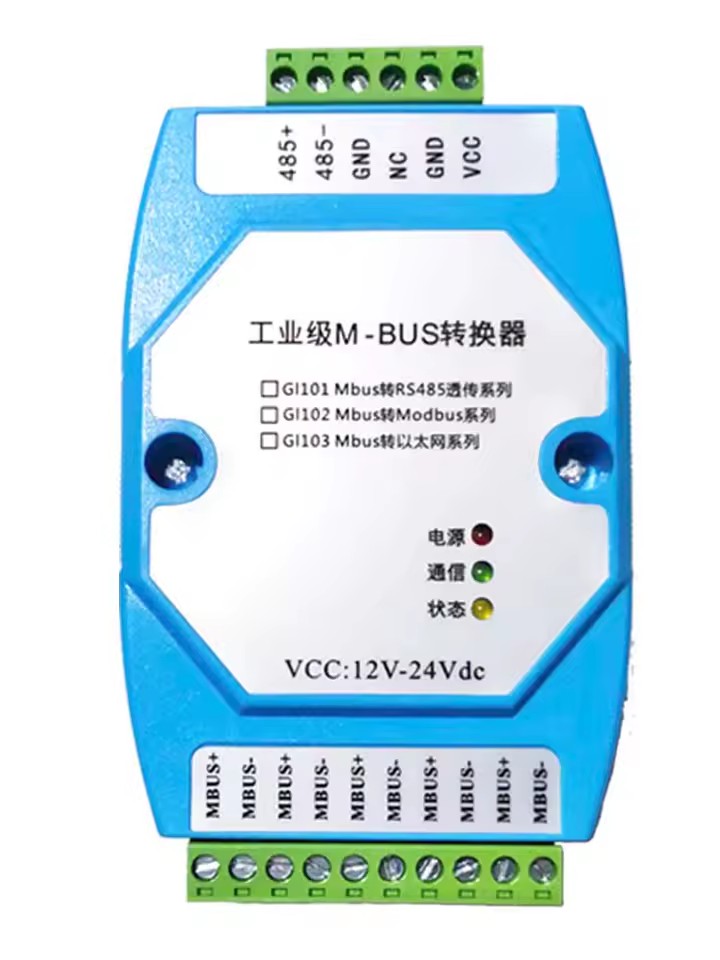

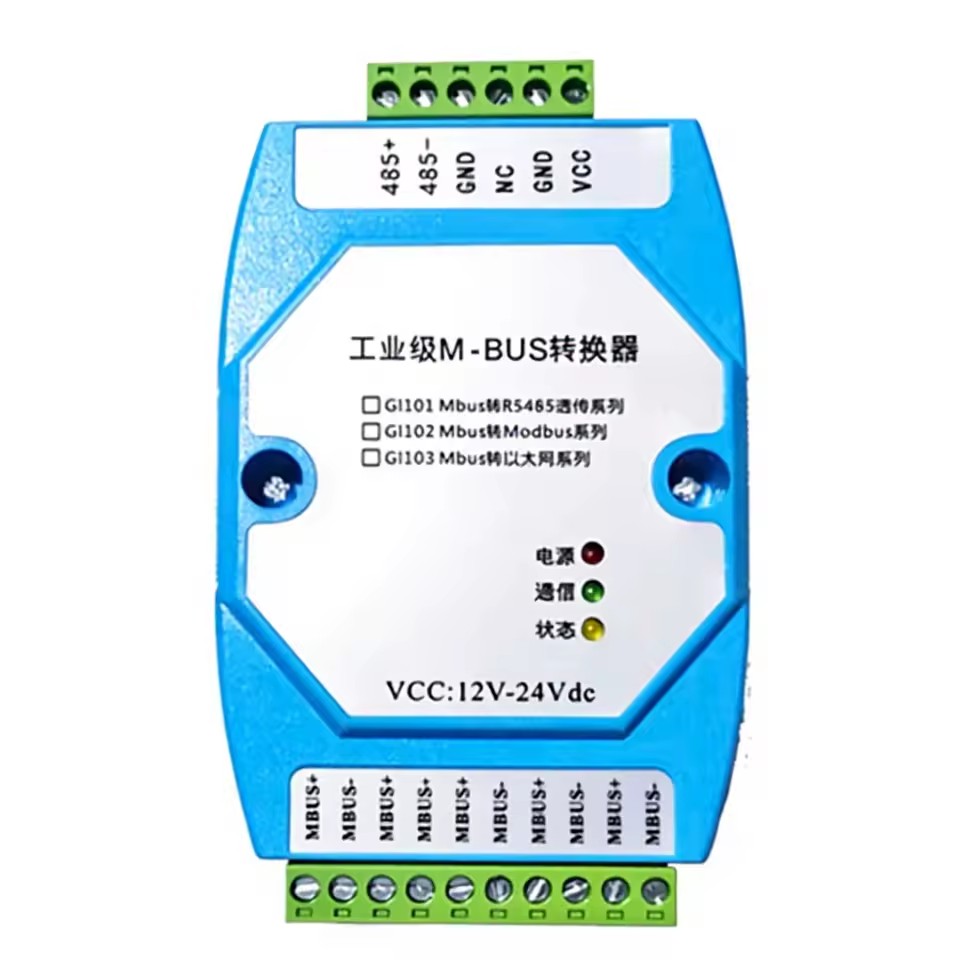

Name: GL101-S/R MBUS/M-BUS master station to RS485/RS232 converter, meter reading concentrator, supports up to 500 slave devices M01
SKU: 3YGV-MCV6-PPXQ-02
Price: 60.0 USD
Availability: PreOrder

Product description

Description	Module
Condition	100% New and Original
MOQ	Sample
Trade Terms	DAP
Lead Time	3 working days
Delivery Time	Depend on destination

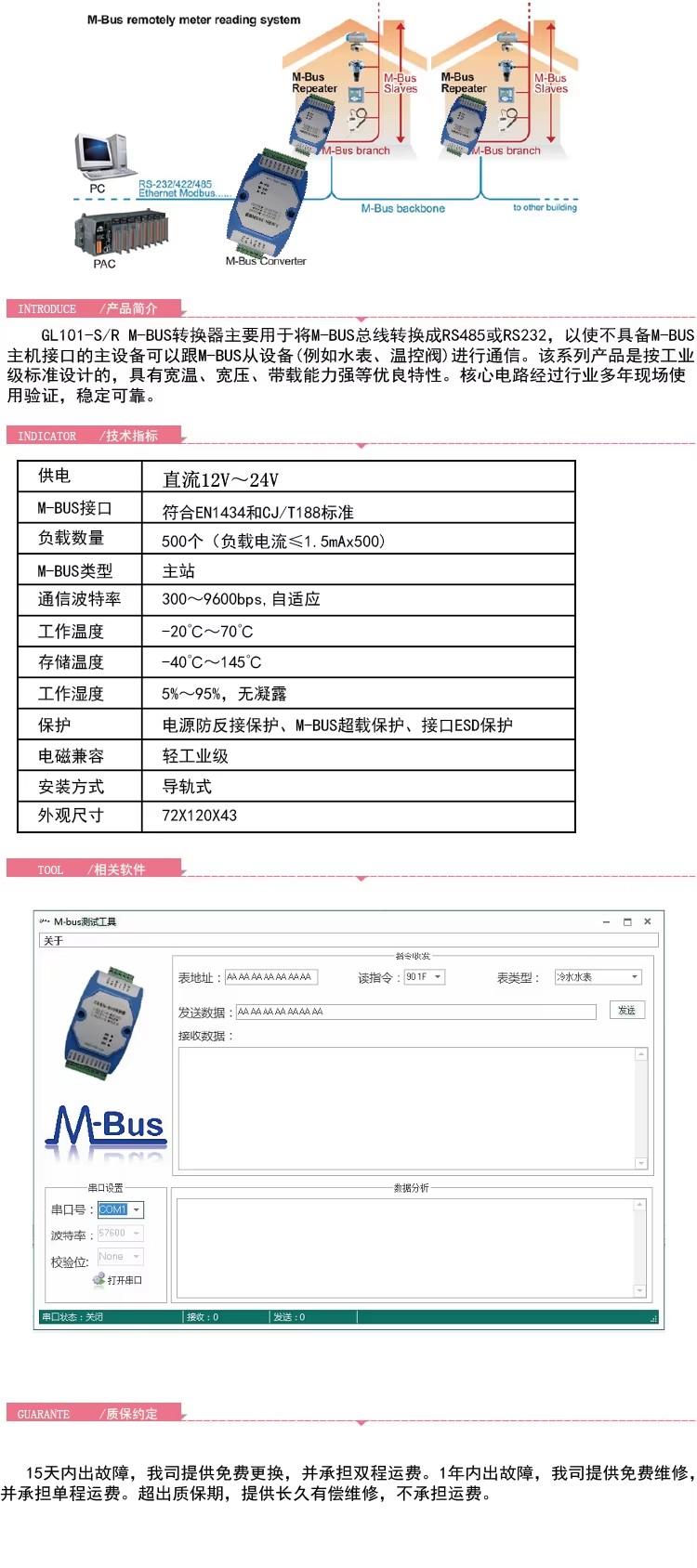

PRODUCT INTRODUCTION

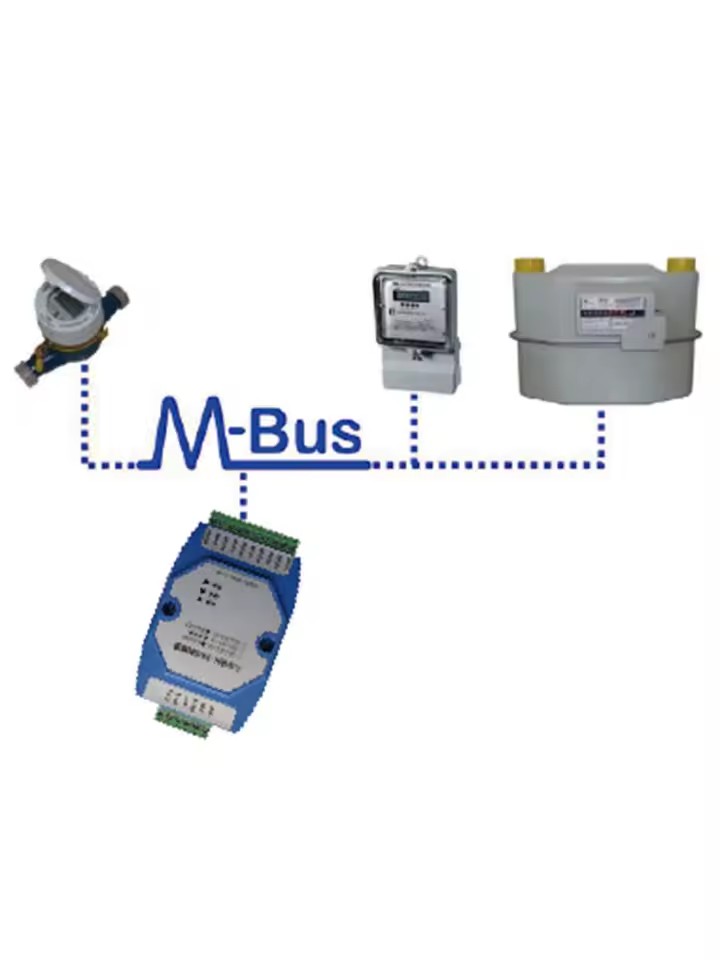

The GL101-S/R M-BUS converter is primarily designed to convert the M-BUS bus to RS485 or RS232, enabling host devices that do not have an M-BUS master interface to communicate with M-BUS slave devices (e.g., water meters, thermostatic valves). This series is designed to industrial-grade standards, featuring excellent characteristics such as wide operating temperature, wide input voltage range, and strong driving capability. The core circuitry has been verified through years of field use across various industries, ensuring stable and reliable operation.

TECHNICAL SPECIFICATIONS

Parameter	Specification
Power Supply	DC 12V ~ 24V
M-BUS Interface	Compliant with EN1434 and CJ/T188 standards
Number of Slave Devices	Up to 500 (load current ≤ 1.5mA × 500)
M-BUS Type	Master
Communication Baud Rate	300 ~ 9600bps, auto-adaptive
Operating Temperature	20℃ ~ 70℃
Storage Temperature	40℃ ~ 145℃
Operating Humidity	5% ~ 95%, non-condensing
Protection	Reverse polarity protection on power supply, M-BUS overload protection, ESD protection on interfaces
EMC Compliance	Light industrial grade

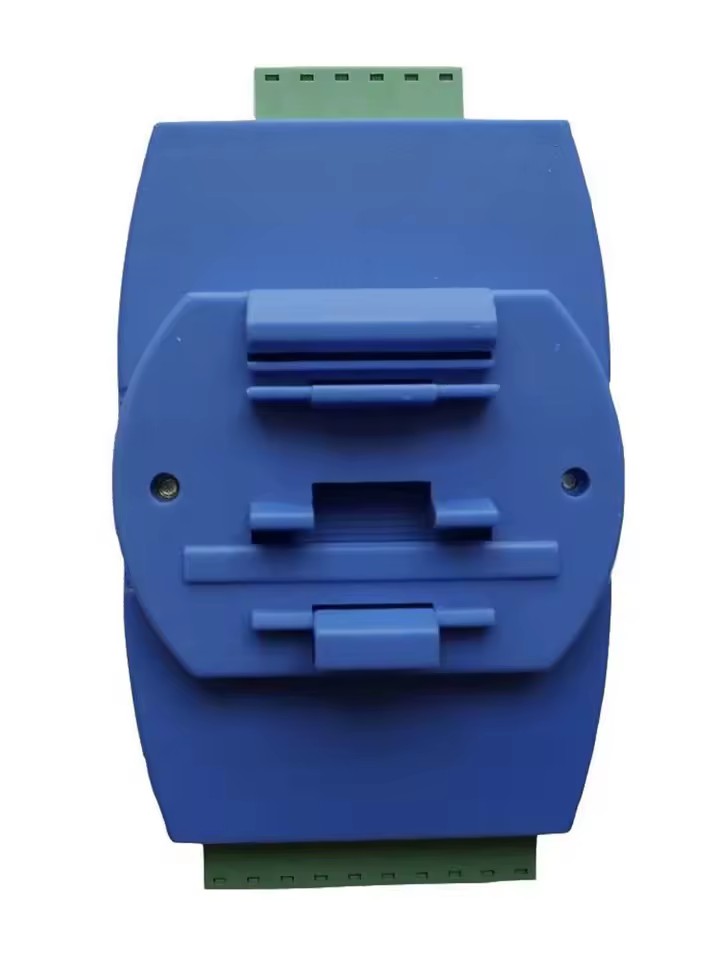

Mounting Method	DIN-rail mountable
Dimensions	72 × 120 × 43 (mm)
