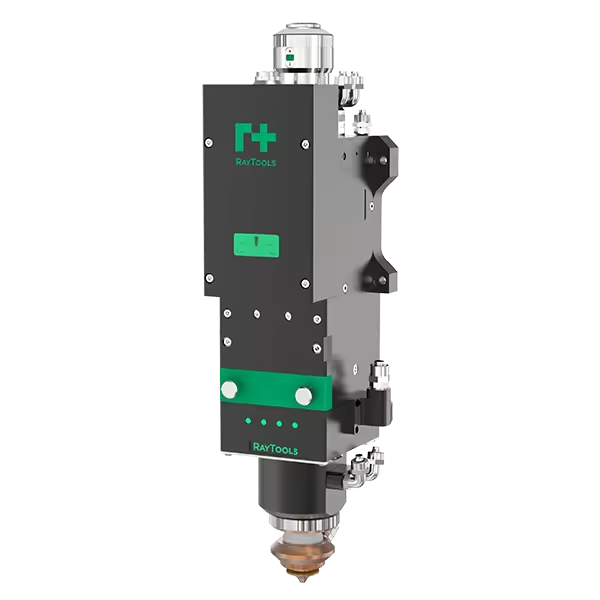

High Power Laser Cutting Head 12000W Raytools BS12K for Metal Cutting Machine Auto Focus Smart Laser Cutting Head

Product Importer Gallery 01 · 8f423cca2a

Product Importer Gallery 02 · 023b06a0d8

Product Importer Gallery 03 · 10933a0259

Product video

Certifications CE(2)

High Power Laser Cutting Head 12000W Raytools BS12K for Metal Cutting Machine Auto Focus Smart Laser Cutting Head

Name: High Power Laser Cutting Head 12000W Raytools BS12K for Metal Cutting Machine Auto Focus Smart Laser Cutting Head
SKU: GJGF-5HVQ-8FR4
Price: 5420.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 5,420.00 5420.0 USD $ 5,420.00

Minimum order quantity: 1 Units

Key attributes

View all

Spare parts type

cutting head

Wavelength

1030-1080 nm

Operating voltage

Dc 24V

Accessory Type

Driver

Key selling points

Competitive Price

Warranty

2 Years

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Efficient cooling

Multiple protective lenses

Fast focus

Intelligent monitoring

Fiber Optic Interface	QBH、LOE、QD、Q+
Applicable wavelength	1080nm
Laser power	12kw
NA	0.14
Optical ratio Collimation focal length (fC) Focus distance (fF)	100 200
Focus adjustment range Level Vertical	1.5~+1.5mm -40…+40mm
Install Back panel mounting hole screw quantity/size Amplifier mounting hole screw quantity/size	4×M6 4×M3
Pipeline interface Cutting gas Water cooling (cocurrent and countercurrent)	Φ12 connector, maximum 25 bar Φ8 connector, maximum value 5bar, minimum volume flow rate 1.5L/min
Operating Voltage	24V±10%, 4A max
I/O connector (socket, 19-pin)	The switch output current is to 30mA
Operating temperature	5℃～55℃
Humidity	30%～95%, no frost
Weight	Approx. 8.3kg～8.7kg

Cutting gas	Purity	Maximum water vapor content (ppm)	Maximum content of hydrocarbons (ppm)
Oxygen	＞99.5%	＜5ppm	＜1ppm
Nitrogen	＞99.95%	＜5ppm	＜1ppm

Minimum flow rate	1.5 L/min
Inlet pressure	170-520kPa
Inlet temperature	≥Room temperature /＞Dew point
Hardness (relative to CaCO3)	＜250mg/L
PH range	6 to 8
By particle size	Less than 200 microns in diameter

Certifications & compliance

CE(2)

Complies with EU standards

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Spare parts type

cutting head

Wavelength

1030-1080 nm

Operating voltage

Dc 24V

Accessory Type

Driver

Key selling points

Competitive Price

Warranty

2 Years

Condition

New

Place of origin

China, Hubei

Weight (kg)

8.2

Auto focus range

40mm ~ +40mm

Auto focus speed

≤200mm/s

Auto focus acceleration

≤10m/s2

Auto focus accuracy

0.01mm

Numerical aperture

0.14

Auxiliary gas pressure

≤30bar

Weight

~ 8.2kg

Nozzle specifications

Single layer, double layer, non-standard

Nozzle hole diameter

0.8mm/1.0mm/1.2mm/1.5mm/2.0mm/2.5mm/3.0mm/3.5mm/4.0mm/4.5mm/5.0mm

Application

Metals Cutting

Selling Units

Single item

Single package size

XX cm

Single gross weight

0.0 kg

Model number

BM12K

Certifications & Compliance

CE(2)

Lead time

7 days

Minimum order

1 Units
