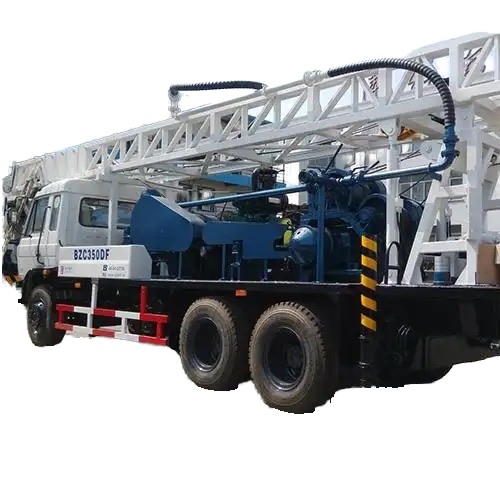

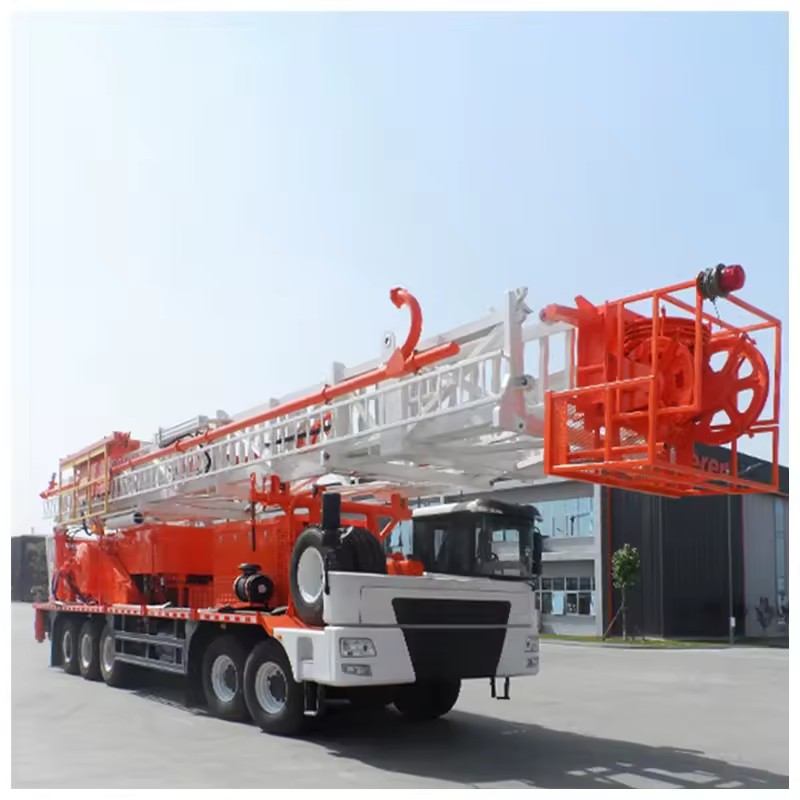

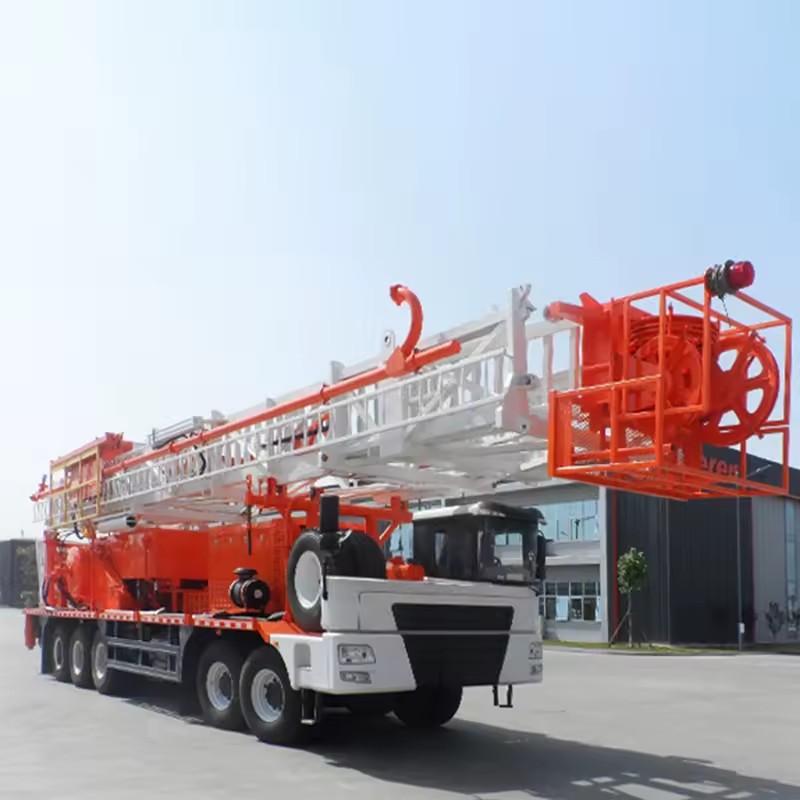

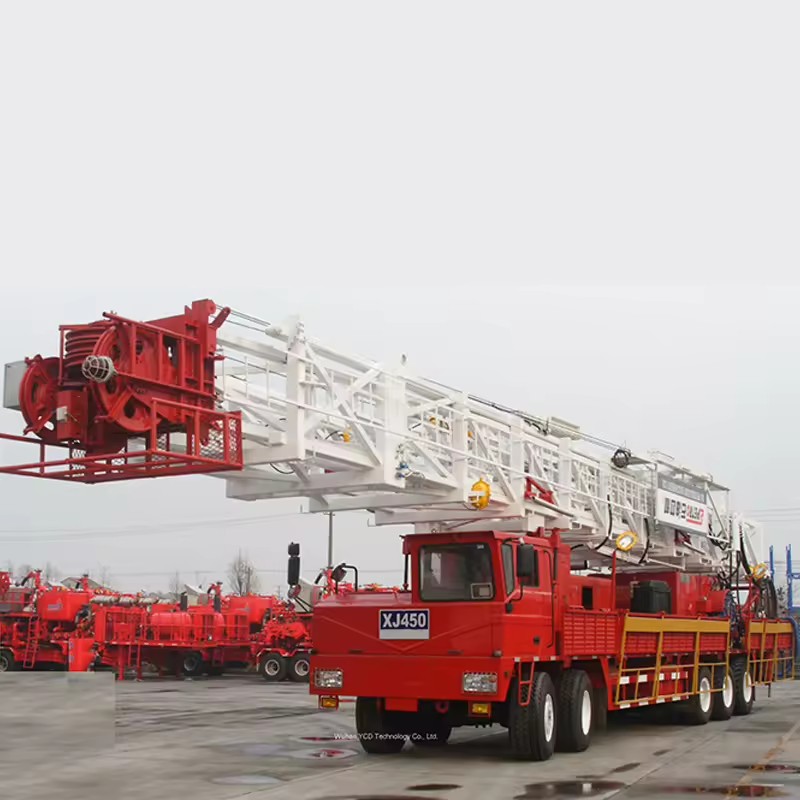

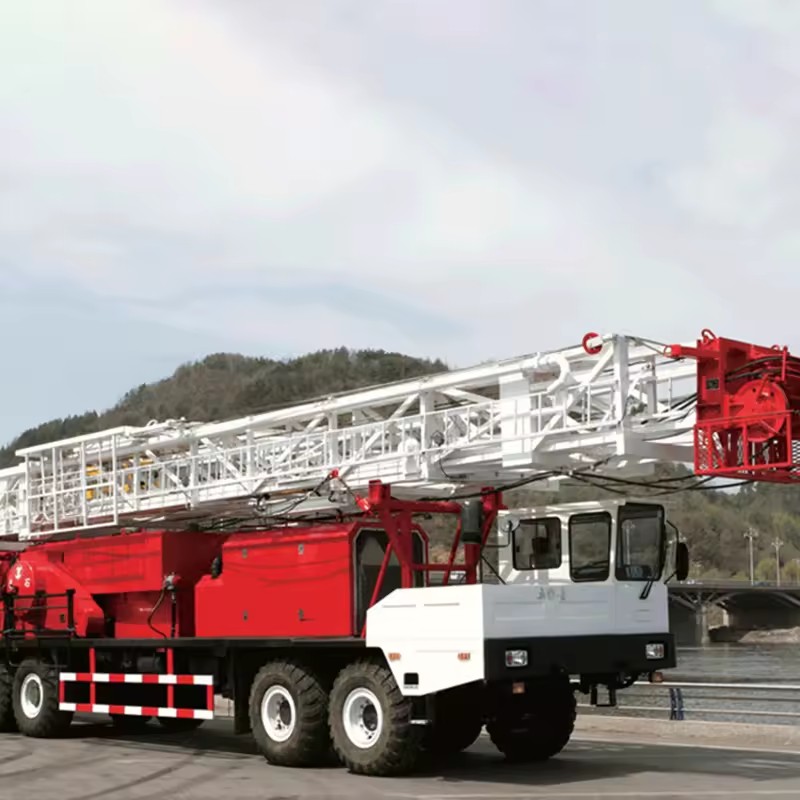

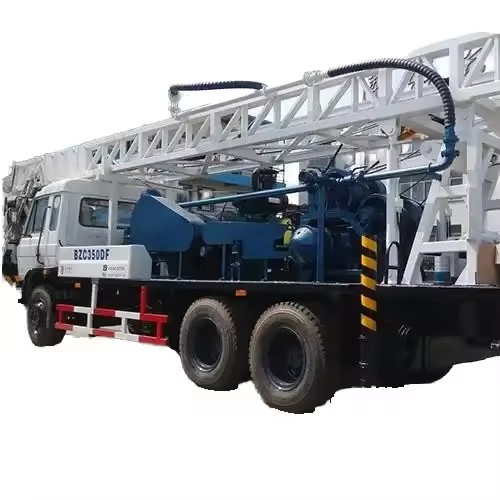

Oilfield Truck-mounted Drilling Rig 250ph 350ph Oilfield Automatic XJ250/ XJ350 Workover Rig Drilling

Available for enquiry 0.0 · 0 reviews
USD

$ 121,570.00 121570.0 USD $ 121,570.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Usage
Oil Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
140mm
Power Type
Diesel
Voltage
Customized
Product description

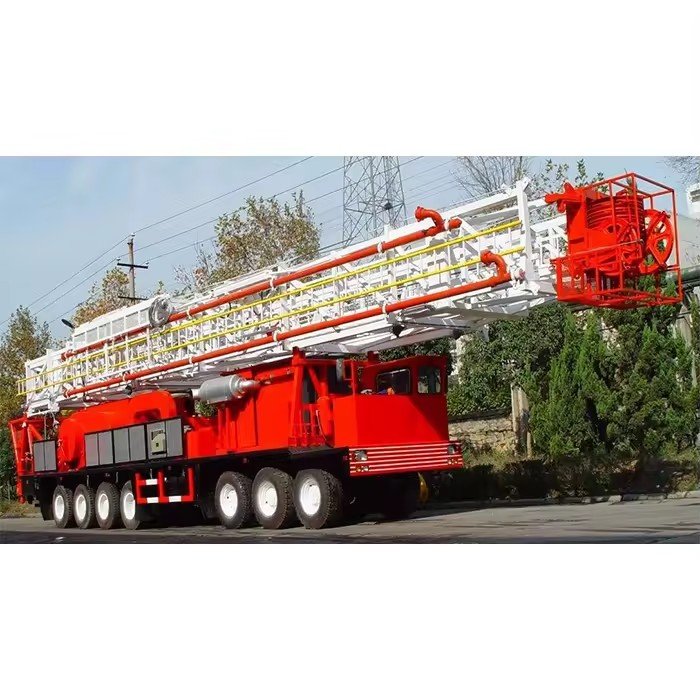

ZJ40/2250CZ Truck-mounted Drilling Rig

Main parameters of Truck-mounted drilling rigs
ModelZJ10/1125CZZJ15/1350CZZJ20/1470CZZJ30/1700CZZJ40/2250CZ
Drilling depth(4 1/2"drill pipe)m(ft)1000(3280)1500(4920)2000(6560)3000(9840)4000(13120)
Workover depth(3 1/2"drill pipe) m(ft)3500(11483)4000(13123)5500(18045)6500(21325)7500(24606)
Max. hook load kN(lb)1125(253000)1350(303696)1470(330700)1700(381260)2250(505800)
Drill line diameter mm(in.)/linesφ26(1")/8φ26(1")/8φ29(1-1/8")/8φ29(1-1/8")/8φ32(1-1/4")/10
Max. hook speed m/s(ft/s)1.23(4)1.33(4.36)1.31(4.3)1.36(4.46)1.36(4.46)
Overall dimensions(m)17.5×3.1×4.18 (57.4×10.17×13.7)19.6×2.9×4.3 (64.3×9.5×13.8)20.13×3.2×4.4 (66×10.5×14.44)21.25×3.3×4.47 (69.7×10.8×14.67)22.45×3.3×4.48 (73.65×10.8×14.7)
Weight kg(lb)42000(92590)51000(112430)56000(123456)76000(167548)82000(180776)
Power systemCAT3406CCAT3408CAT3412CAT3406CCAT C-16
Engine power kW(hp)(2100r/min)343(460)354(480)485(650)343×2(460×2)448×2(600×2)
Model, transmissionALLISON-S5600DBALLISON-S5600HRALLISON-S6610HRALLISON-S5600×2ALLISON-S6610×2
Emergency power(eletrical motor)OptionalOptionalOptional
Chassis driving type10×8(8×8)10×812×814×814×10
Min. turning dia. m(ft)34(111.55)34(111.55)36(118.11)42(137.8)44(144)
Min. ground clearanec in. mm(in.)340(13.39)340(13.39)340(13.39)340(13.39)340(13.39)
Drawworks typeDouble drum(Single drum)Double drum(single drum)Double drum(single drum)Double drum(Single drum)Double drum(single drum)
Drawworks power hp4505506507501000
Dia. Length,main drum in.(in.)φ429×965(φ16.9×38)φ429×965(φ16.9×38)φ480×914.5(φ18.9×36)φ480×914.5(φ18.9×36)φ635×1254(φ25×49.4)
Main brake type, main drumBand type(or hydraulic disc type) Force spray water cooling-forcedBand type(or hydraulic disc type)Band type(or hydraulic disc type)Band type(or hydraulic disc type)hydraulic disc
Auxiliary brake, main drum22"SR hydro brake22"SR hydro brake(force spray water cooling-forced)22"SR hydro brake(force spray water cooling-forced)WCB324 disc brakeWCB224 disc New
Speeds of drawworks5 forward 1 reverse5 forward 1 reversefive forward 1 reversefive forward one reversefive forward one reverse
Mast typeJJ119/33.1-WJJ135/34-WJJ155/35-WJJ180/36-W / JJ180/38-WJJ225/39-W
Mast height m(ft)31.3(102.69)34(111.55)35(114.83)36(118.11) / 38(124.6)39(127.92)
Height,Monkey boardm(ft)19.7/20.7(55.77/64.6)20/21.5(65.62/70.54)20/21.5(65.62/70.54)20.4(66.9)20.4(66.9)
Max. wind load km/h(kn)110(60)110(60)110(59.35)110(60)110(60)
Control/lighting/power system24V/220V/380V()24V/220V/380V()24V/220V/380V()24V/220V/380V()24V/220V/380V()
Reted pressure, hydraulic/air system Mpa(psi)14/0.833-0.93(2002/119.12-133)14/0.833-0.93(2002/119.12-133)14/0.833-0.93(2002/119.12-133)14/0.833-0.93(2002/119.12-133)14/0.833-0.93(2002/119.12-133)
SubstructureZT1470/3.7-S telescoping substructureZT1470/4.5-S telescoping substructureZT1690/4.5-Z foldable substructureZT2250/5-Z foldable substructureZT3000/6.7-Z foldable substructure
Rotary tableZP175(ZP105)ZP175ZP175ZP205ZP275
Travelling blockYG150YG150YG150YG170YG225
SwivelSL120SL135(SL160)SL160SL225SL225

$36,000 / set

Description images

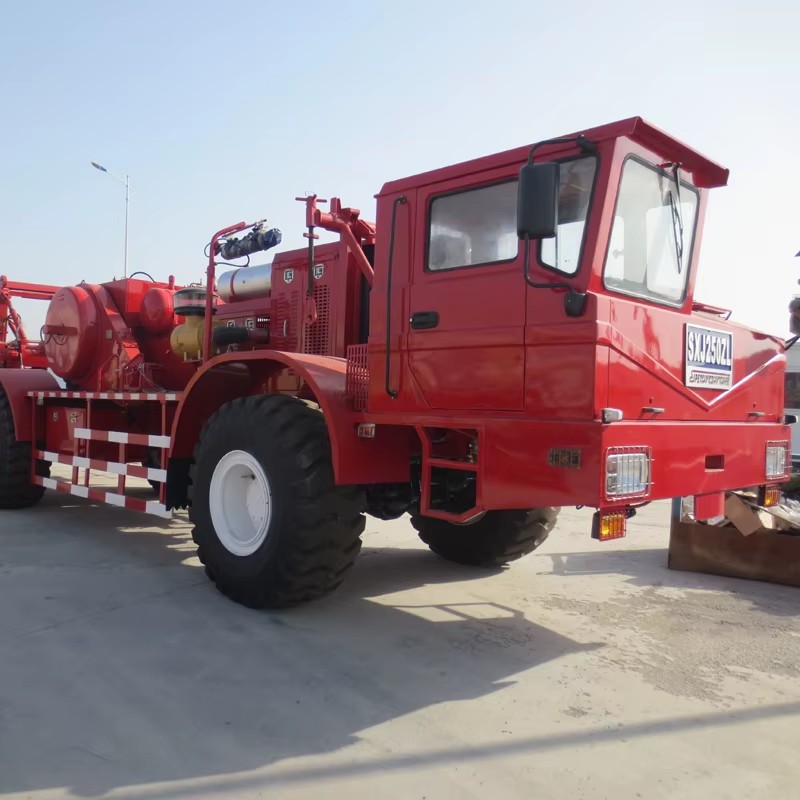

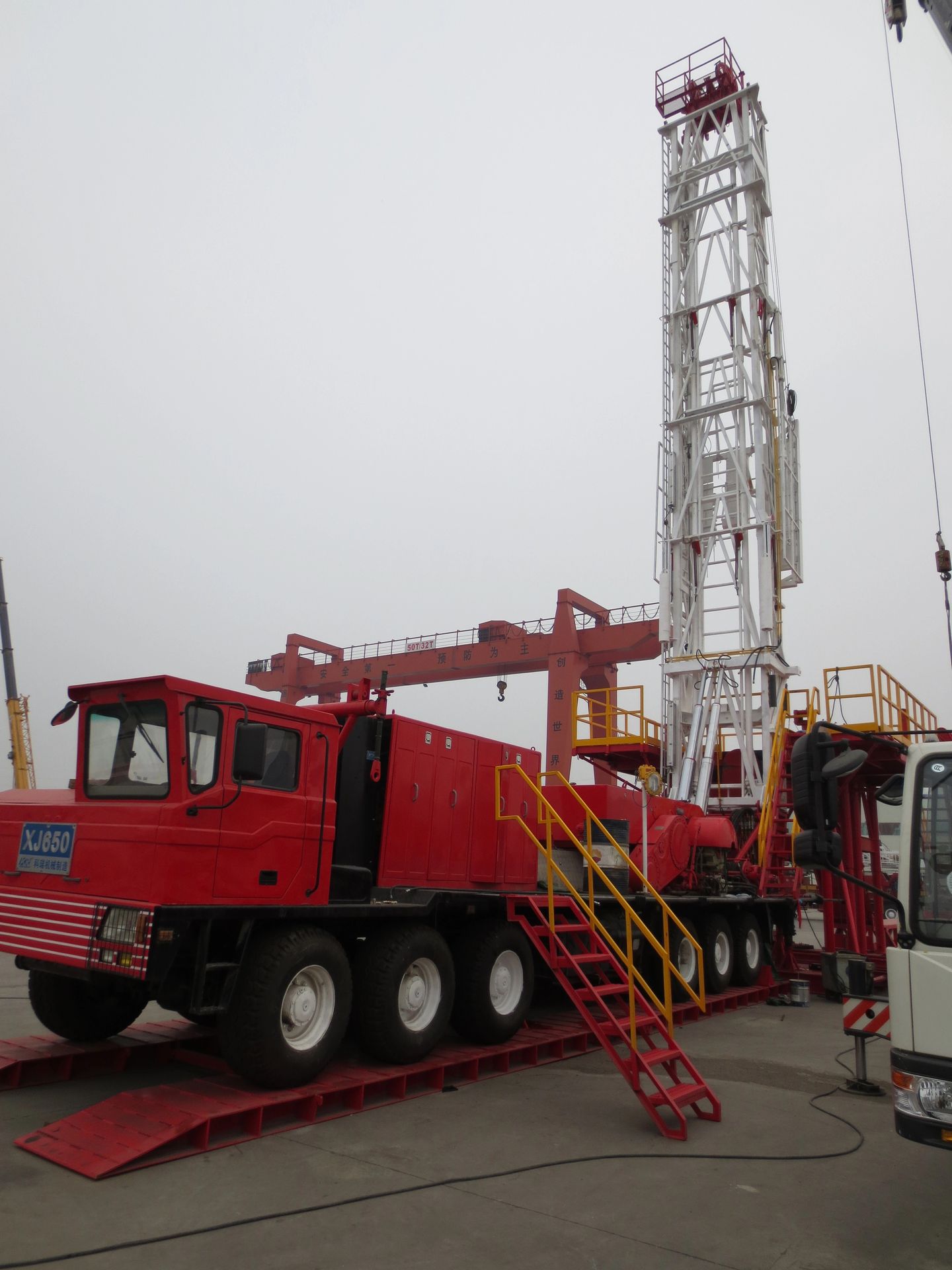

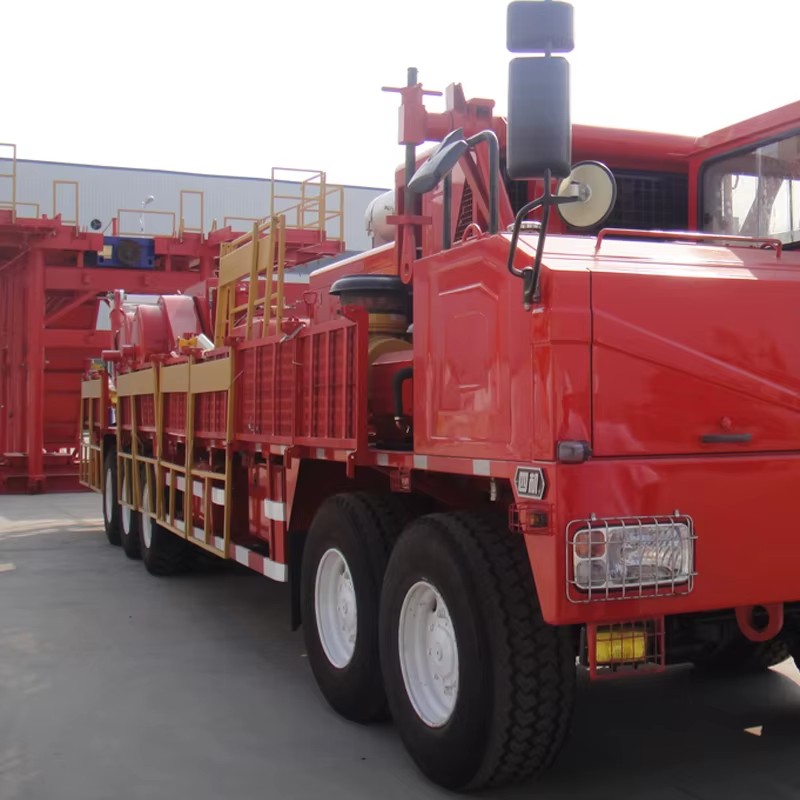

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    40 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Oil Well
Type
Rotary Drilling Rig
Drilling Depth
Max.500m
Drilling Diameter
140mm
Power Type
Diesel
Voltage
Customized
Core components
Mast
Warranty
12 Months
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
Easy To Operate
Place of origin
China, Shandong
Weight
82000 KG
Dimension (L*W*H)
60.7x9.5x13.8ft
Mobility
Move by crawler
Name
ZJ40/2250CZ Truck-mounted Drilling Rig
Power System
CAT C-16
Rotary Table
ZP275
Feature
High Drilling Efficiency
After-sales Service Provided
Engineers available to service machinery overseas
Application
Drilling Wells
Keyword
Drilliing Rig
Color
red
Model
Workover rig
Market
Gloabl
Selling Units
Single item
Single package size
1000X1000X1000 cm
Single gross weight
100000.000 kg
Model number
ZJ30
Power (W) (Product option)
448*2 KW
Lead time
40 days
Minimum order
1 Units
