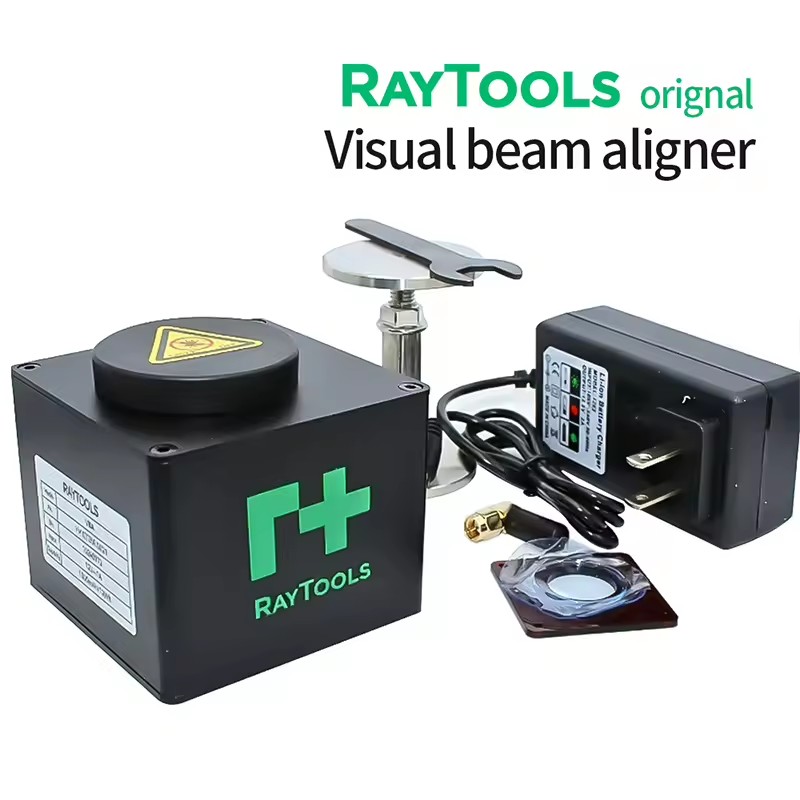

Raytools Nozzle Visual Aligner Smart Laser Cutting Calibration Tool High Precision Portable Fast Alignment NVA

Available for enquiry 0.0 · 0 reviews 1 sold
USD

$ 1,170.00 1170.0 USD $ 1,170.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Spare parts type
Nozzle Visual Aligner
Wavelength
1064 nm, 940-980 nm, 1030-1080 nm, 1900-2000 nm
Operating voltage
Dc 12V
Laser type
Fiber Laser
Accessory Type
Nozzle Visual Aligner
Key selling points
Long Service Life
Product description

Product details

AI-Powered High-Precision Calibration:Integrated AI vision technology with high-precision circle-fitting algorithm ensures accurate nozzle centering for fiber laser cutting machines. Say goodbye to traditional tape-burn guesswork - achieve professional-grade alignment in minutes.

Universal Compatibility:Works as a standalone module with virtually any fiber laser cutting machine - no dependency on specific laser cutting heads or CNC controllers. Compatible with RayTools, WSX, Precitec, BOCI, Ospri, Durma, and more.

High-Tolerance Design:No need to perfectly center the red beam within the module or maintain absolute leveling. The forgiving design makes calibration fast and stress-free for all skill levels.

Built-in 1000mAh Battery:Cordless-ready with 1000mAh/12Wh rechargeable lithium battery (12V DC input). Portable and easy to use anywhere on the shop floor without power constraints.

Complete Kit Included:Package includes: VBA alignment module, Li-ion battery charger, stainless steel calibration target, adjustment wrench, and full accessories kit - everything ready out of the box.

Wavelength: 1064nm - Purpose-Built for Fiber Lasers:Engineered specifically for 1064nm fiber laser systems, ensuring optimal optical compatibility and calibration accuracy.

1-Year Warranty + Lifetime Technical Support:Backed by RayTools official quality with 1-year hardware warranty and ongoing remote technical support via video consultation.

Certifications & compliance
CE(4)
Complies with EU standards
FCC
Electromagnetic Compliance
RoHS(6)
RoHS compliant
MSDS(2)
Chemical Properties
REACH(2)
REACH Certified
Frequently asked questions

Yes. This is a genuine RayTools VBA (Visual Beam Aligner) manufactured by RayTools AG, model YM.QTZ05.0021. Certificate of authenticity available upon request.

The VBA is designed as a universal standalone device. It is compatible with virtually all fiber laser cutting machines, regardless of the cutting head brand (RayTools, WSX, Precitec, BOCI, Ospri, Durma, HSG, etc.) or CNC controller model.

The standard (cable) version connects via USB to a computer running the provided alignment software. No advanced technical skills are required - most operators master the process within minutes.

The VBA is optimized for 1064nm fiber laser systems, the standard wavelength for industrial fiber laser cutting applications.

The built-in 1000mAh (12Wh) lithium battery supports multiple calibration sessions per charge. It charges via the included Li-ion charger (Input: 100-240V AC, Output: 12.6V/2A). Typical charge time is approximately 1-2 hours.

The complete kit includes: VBA alignment module, Li-ion charger, stainless steel calibration target, adjustment wrench, accessories kit (adapter rings, seals), and user manual.

We offer 1-year warranty coverage, online video call technical support, step-by-step tutorial guidance, and lifetime remote consultation. Replacement parts are available for non-human-caused defects within the warranty period.

Yes. The VBA features a high-tolerance design that does not require the module to be absolutely leveled or the red beam to be perfectly centered within the aperture - making it much easier to use than traditional alignment tools.
Description images
Product detail
Product detail
Product detail
Product detail
CE(4)
FCC
RoHS(6)
MSDS(2)
REACH(2)
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    7 days

  • Step 3

    Packaging and dispatch

    Air + Express via FLY Logistics · Approx. shipping fee: $ 12.00 for 1 piece · Transit time: Est. 8-9 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 15 fields
Spare parts type
Nozzle Visual Aligner
Wavelength
1064 nm, 940-980 nm, 1030-1080 nm, 1900-2000 nm
Operating voltage
Dc 12V
Laser type
Fiber Laser
Accessory Type
Nozzle Visual Aligner
Key selling points
Long Service Life
Warranty
1 Year
Condition
New
Place of origin
China, Jilin
Weight (kg)
0.3
Selling Units
Single item
Single package size
15X15X15 cm
Single gross weight
2.5 kg
Model number
VBA(YM.QTZ05.0021)
Certifications & Compliance
CE(4), RoHS(6), FCC, MSDS(2), REACH(2)
Lead time
7 days
Minimum order
1 Units
