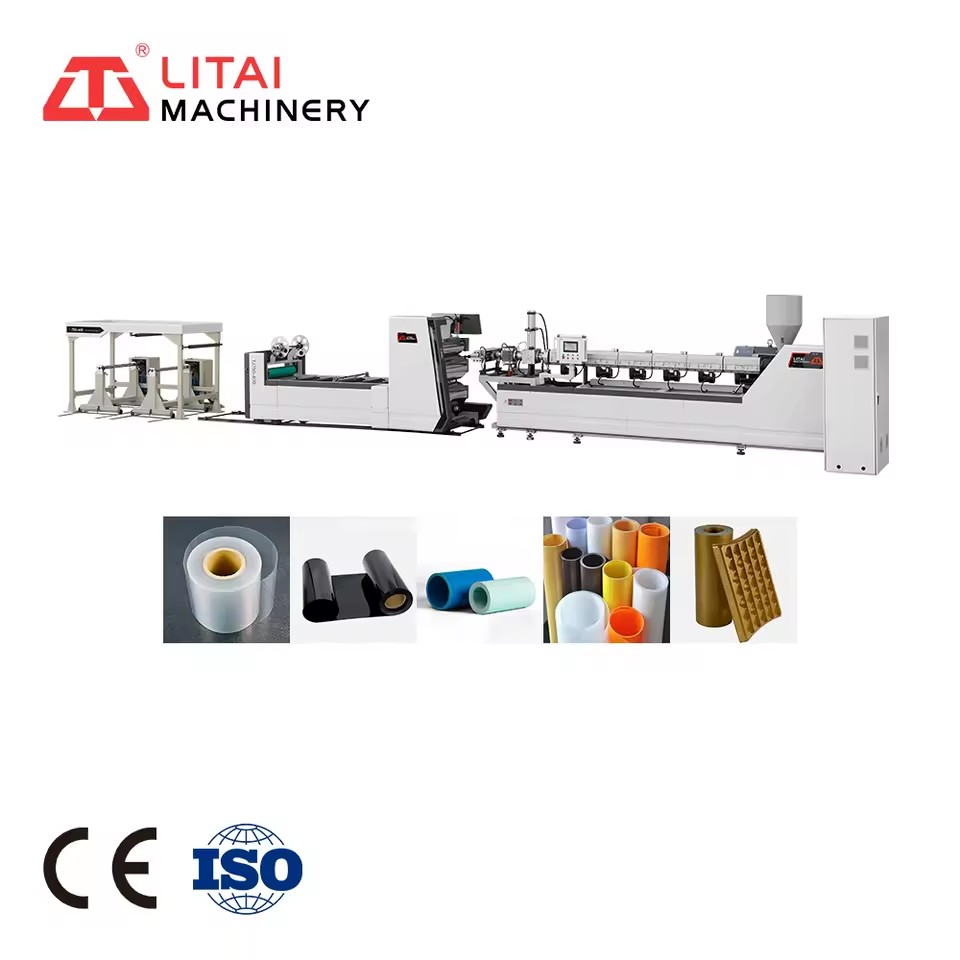

Fully Automatic Digital Single Screw Plastic PP/Polystyrene Extruder Machine Production Line for Thermoforming

• Application
  • Film
  • Sheet
• Plastic processed
  • PP
  • Polystyrene
• Extruder type
  • single screw
• Screw diameter (mm)
  • 125
• Voltage
  • Custom Made
• Screw L/D Ratio
  • 35:1
• Screw Material
  • 38CrMoALA
• Key selling points
  • Automatic
  • Easy To Operate
  • Competitive Price
  • Multifunctional
  • High-Accuracy
  • Long Service Life
  • High Productivity
  • High Safety Level
  • Eco-Friendly
  • Energy Saving
  • Low Noise Level
  • Remote Monitoring
  • Flexible Manufacturing
  • Remote Control
  • IOT
  • Digital
  • Multilayer Co-Extrusion Line
• Machinery test report
  • Provided
• Video outgoing-inspection
  • Provided
• Warranty
  • 1 Year
• Core components
  • Bearing
  • PLC
  • Motor
  • Pressure Vessel
  • Engine
  • Gearbox
  • Screw
• Screw Design
  • Single-screw
• Screw Speed (rpm)
  • 108
• Place of origin
  • Zhejiang
  • China
• Weight (kg)
  • 12000
• Dimension(L*W*H)
  • L15388*W3615*H2900mm
• Power (kW)
  • 132
• Suitable Sheet
  • PP/PS/HIPS
• Max.Sheet Width
  • 750mm
• The Range of Sheet Thickness
  • 0.3~2mm
• Heating method
  • Mesh Ceramic Air-Cooled Heating
• Cooling Method
  • AIR COOLING
• Motor And Gearbox Connection Mode
  • Direct Connection
• Heating Way Of Screen Changer
  • Stainless Steel Heating Rods
• Structure of Screen changer
  • Double-Pillar
  • Double-Station
  • Replacement Automatically
• Pressure Control
  • With Pressure Sensor Before And After The Pump
• Heating Zones For T-Die
  • 5 Zones
• Selling Units
  • Single item
• Single package size
  • 1538X361.5X290 cm
• Single gross weight
  • 12000.0 kg
• Output (kg/h)
  • 400
• Model number
  • TJ-750E
  • TJ-750E with auxiliary equipment + $ 15,730.00
• Certifications & Compliance
  • CE(2)
