Certifications ISO9001,CE · rohs

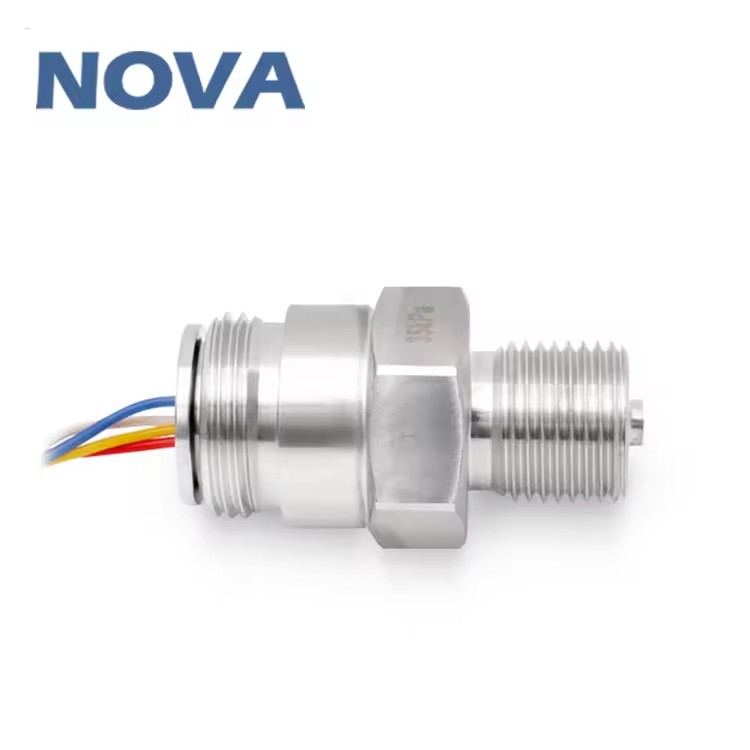

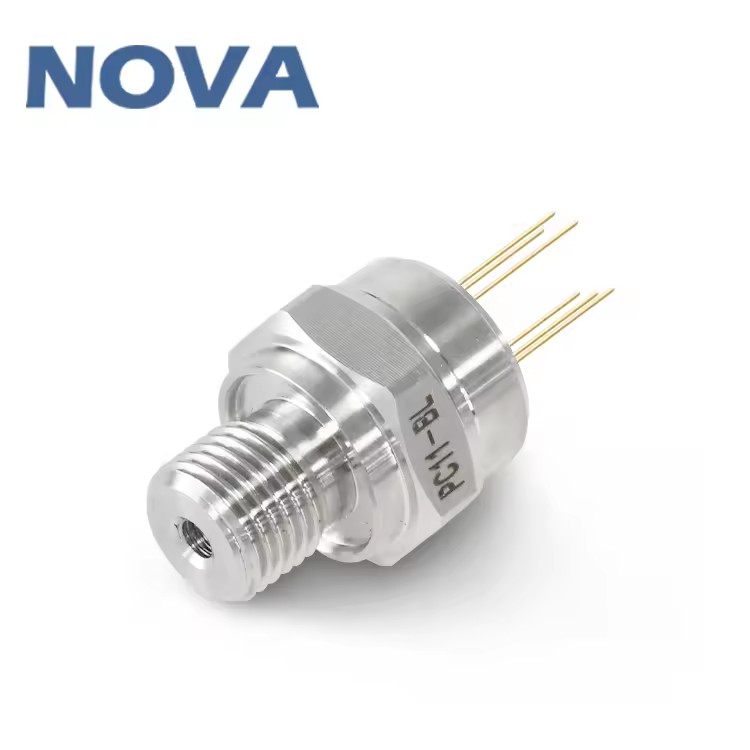

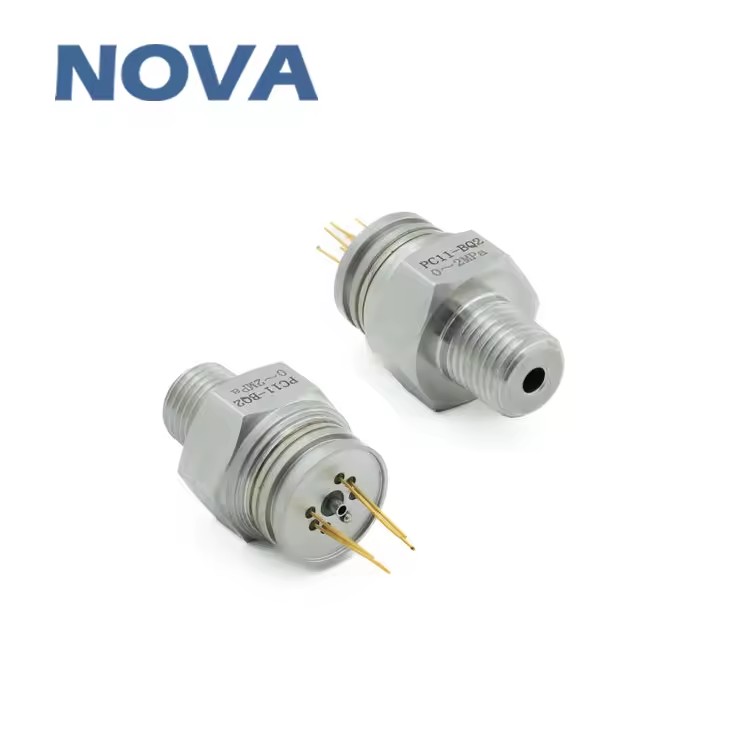

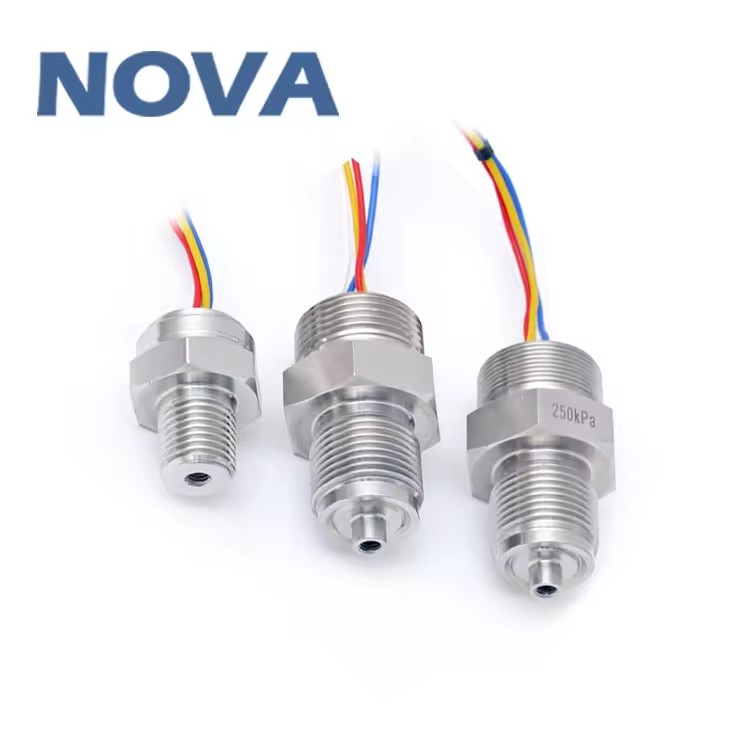

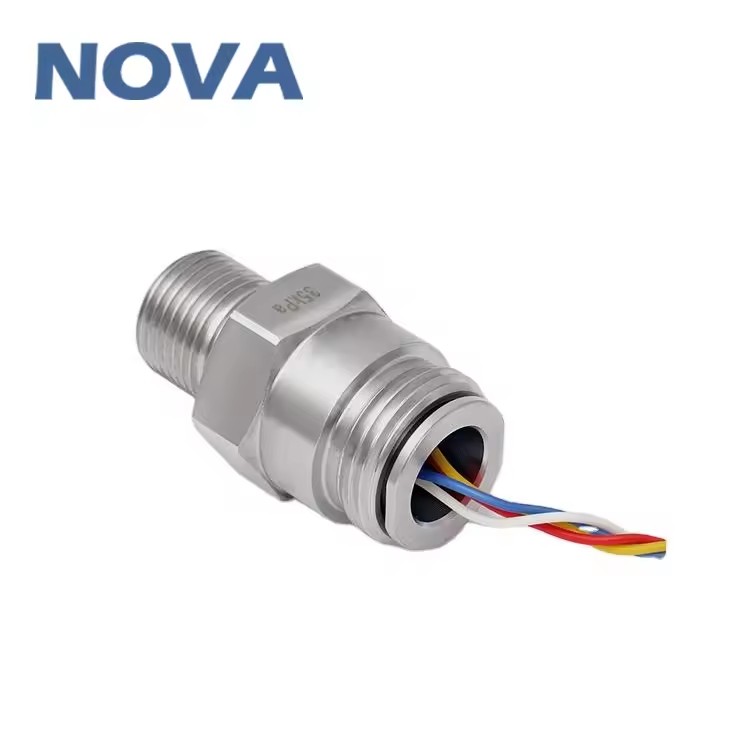

NOVA OEM Customized 0.2%FS -1 to 1000 Bar Pressure Sensor with Various Types of Pressure Connection and Threads

Available for enquiry 0.0 · 0 reviews
USD

$ 30.00 30.0 USD $ 30.00

Not Available For Sale

Minimum order quantity: 5 Units

Key attributes

View all
Accuracy
0.25%
Protection Class
IP65
Warranty
1 Year
Customized support
OEM, ODM, OBM
Place of origin
China, Shaanxi, Xi'an
Material
Stainless steel 316L,304
Product description

Highlights at a glance

  • Diffused Silicon Sensor & Solid State Structure Piezoresistive Silicon Sensor: Highly reliable imported diffused silicon pressure die packaged in 304 stainless steel housing with 316L diaphragm and silicon oil fill, forming an all-solid-state structure compatible with all liquids and gases compatible with 304 material.
  • Wide Pressure Range & Reference Types Wide Pressure Range: Covers -100kPa to 100MPa with gauge pressure, absolute pressure, and sealed gauge pressure reference options, supporting diverse process control, calibration, and level measurement requirements.
  • Flexible Excitation & Electrical Performance Electrical Compatibility: Supports constant current (1.5mA) and constant voltage (10V) excitation; input impedance 2k to 18k Ohm; response time under 1ms; insulation resistance 200MOhm minimum; silicon soft wire connection for reliable signal output.
  • Temperature Performance & Protection Temperature Reliability: Operating range -40 to 120 degree C with wide temperature compensation; moisture-proof compensating board with glue coating; 20g vibration resistance (20-5000Hz), 100g shock resistance (10ms), and 1x10^6 cycle durability for harsh industrial environments.

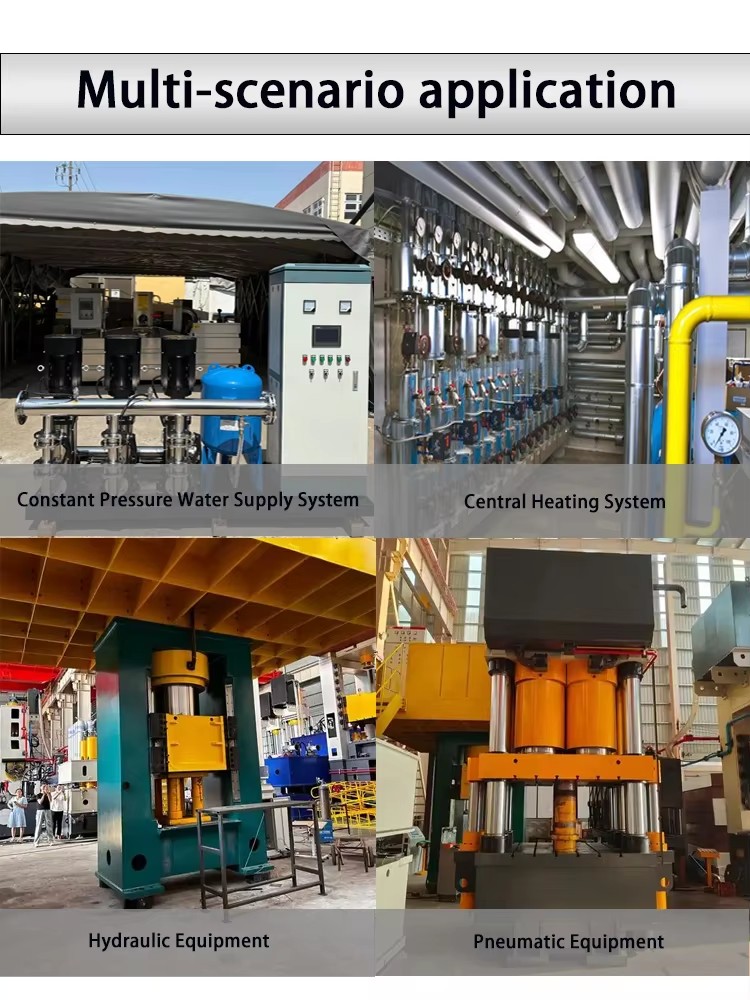

  • Multi-Industry Application & Housing Compatibility Application: Standard pressure port design compatible with 2088 housing via 300-to-2088 adapter or direct 400 model mount; widely used in petroleum, chemical, metallurgy, HVAC, hydraulic systems, refrigeration, biomedical instruments, avionics, marine, and weaponry.
    • Frequently asked questions

    We have the certification of ISO, Europe standard ATEX, TUV-CE and ROSH,we could send the certification test of our company to you.

    1pcs

    12-18month

    Mostly within 10days
    Description images

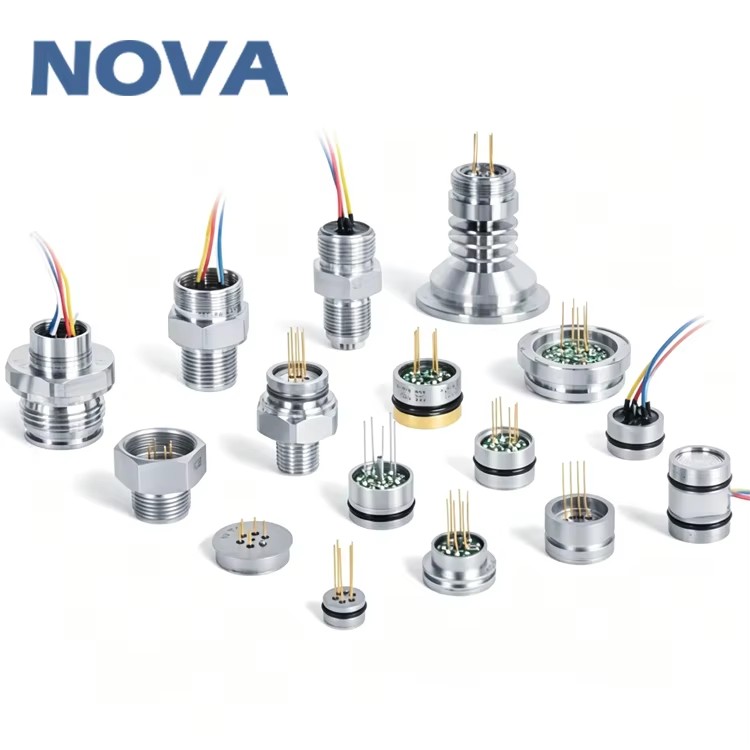

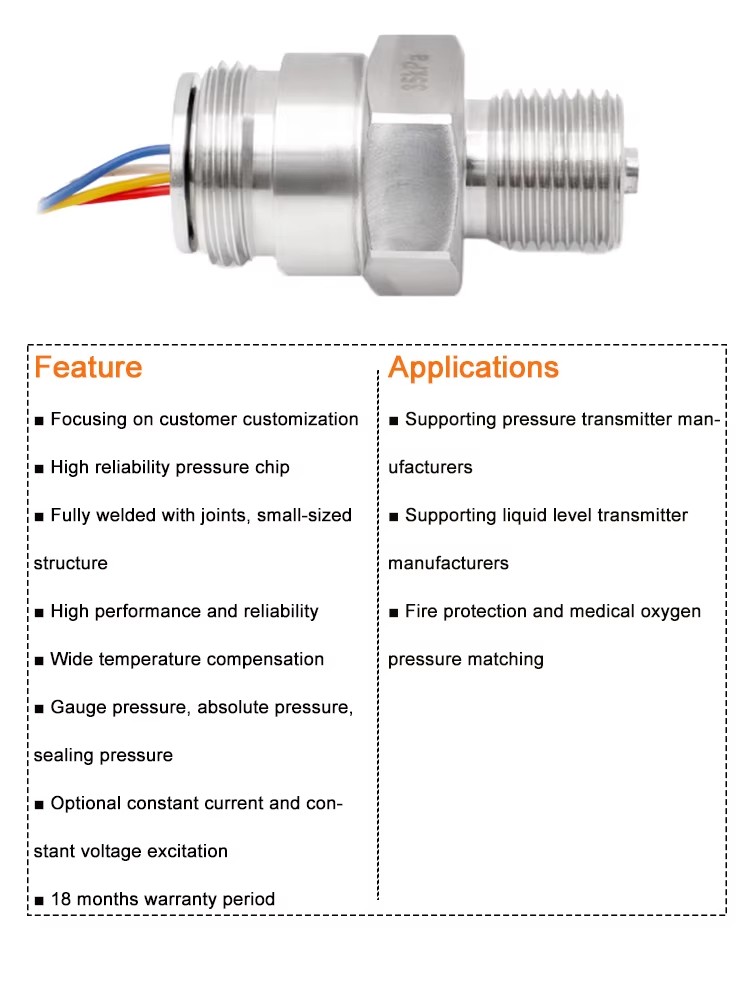

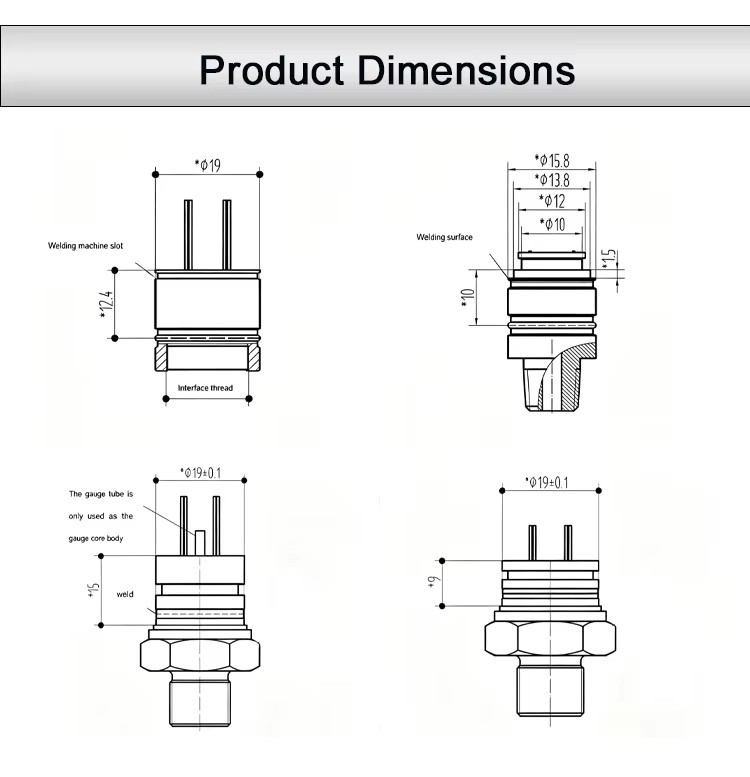

    Product detail
    Product detail
    Product detail
    Product detail
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 5 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      15 days

    • Step 3

      Packaging and dispatch

      Ocean + Express via FLY Logistics · Approx. shipping fee: $ 20.64 for 5 pieces · Transit time: Est. 16-23 days

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 16 fields
    Accuracy
    0.25%
    Protection Class
    IP65
    Warranty
    1 Year
    Customized support
    OEM, ODM, OBM
    Place of origin
    China, Shaanxi, Xi'an
    Material
    Stainless steel 316L,304
    Pressure Range
    1bar...0~0.1bar...1000bar
    Certification
    ISO9001,CE, rohs
    Excitation
    1.5mA,10V
    Type
    difused silicon oll filled pressure sensor
    Input Impedance
    2kΩ-5kΩ
    Operating Temp
    40°C~125°C
    Selling Units
    Single item
    Single package size
    15X15X30 cm
    Single gross weight
    0.200 kg
    Measure range
    1bar...0~0.1bar...1000bar
    Lead time
    15 days
    Minimum order
    5 Units
