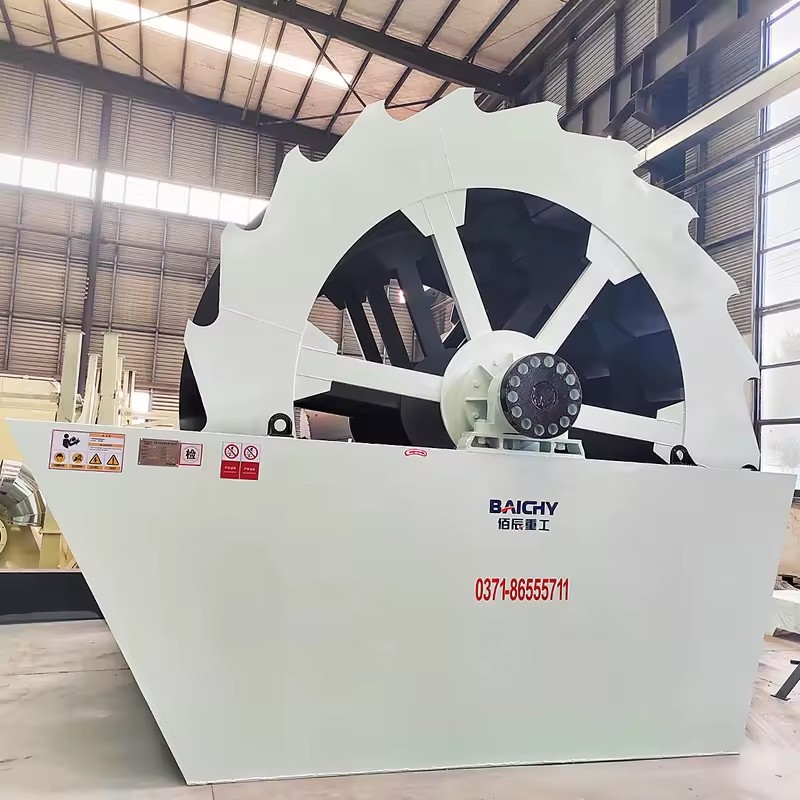

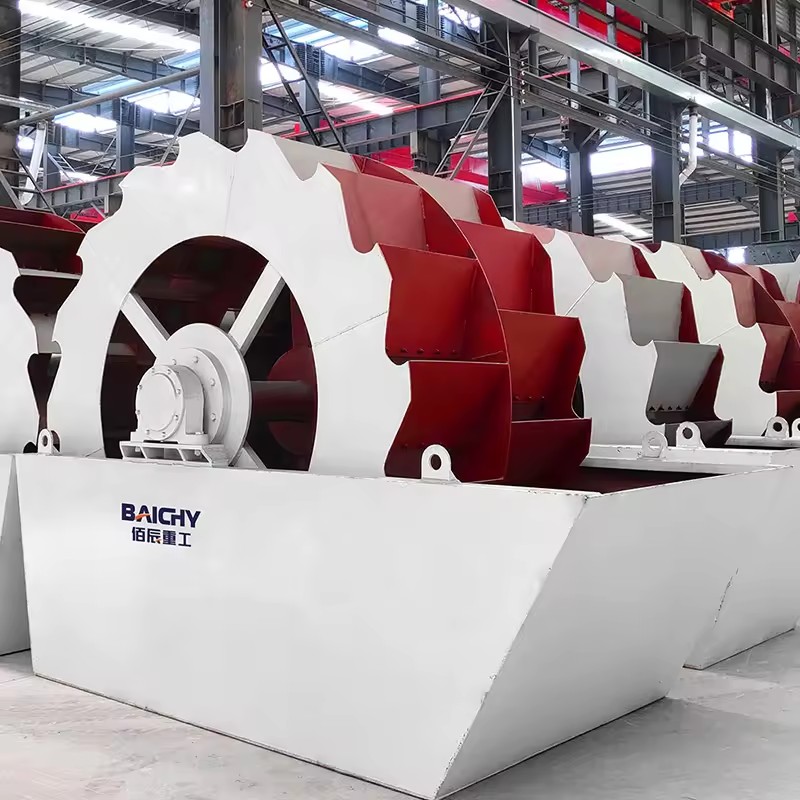

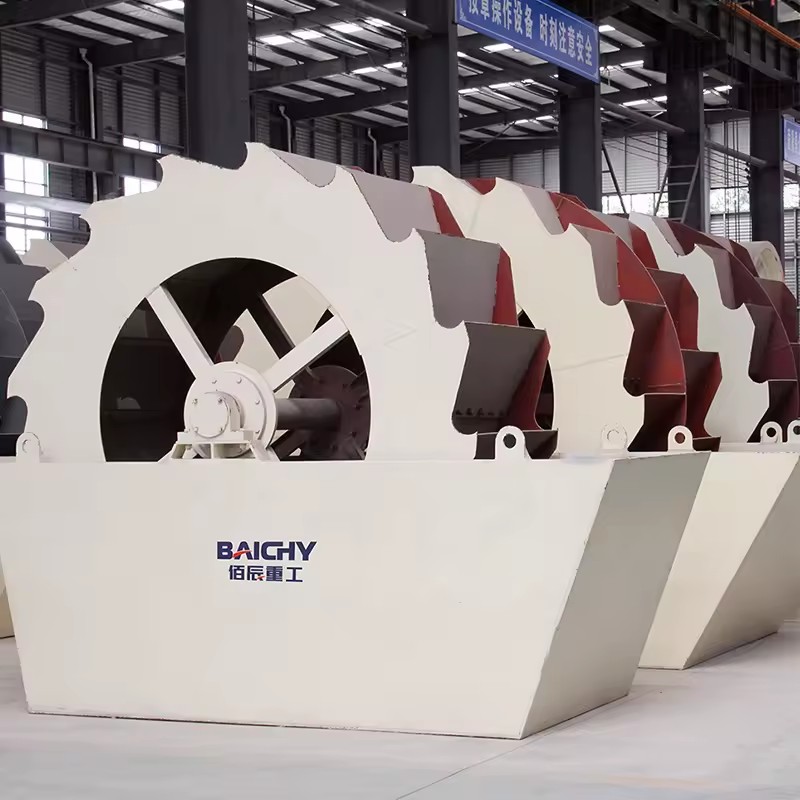

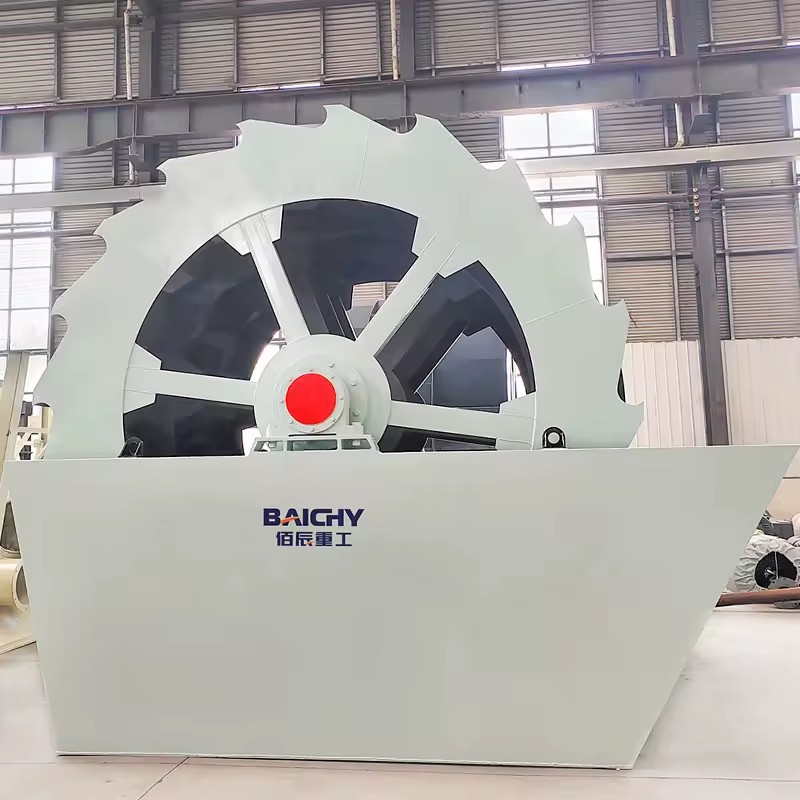

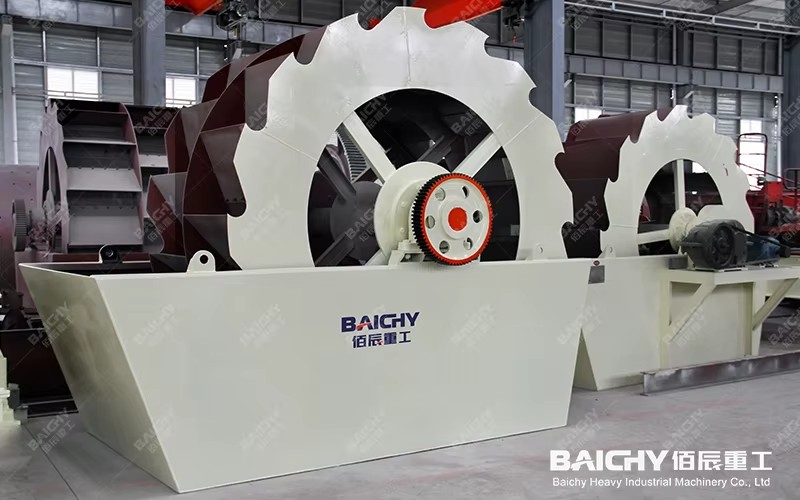

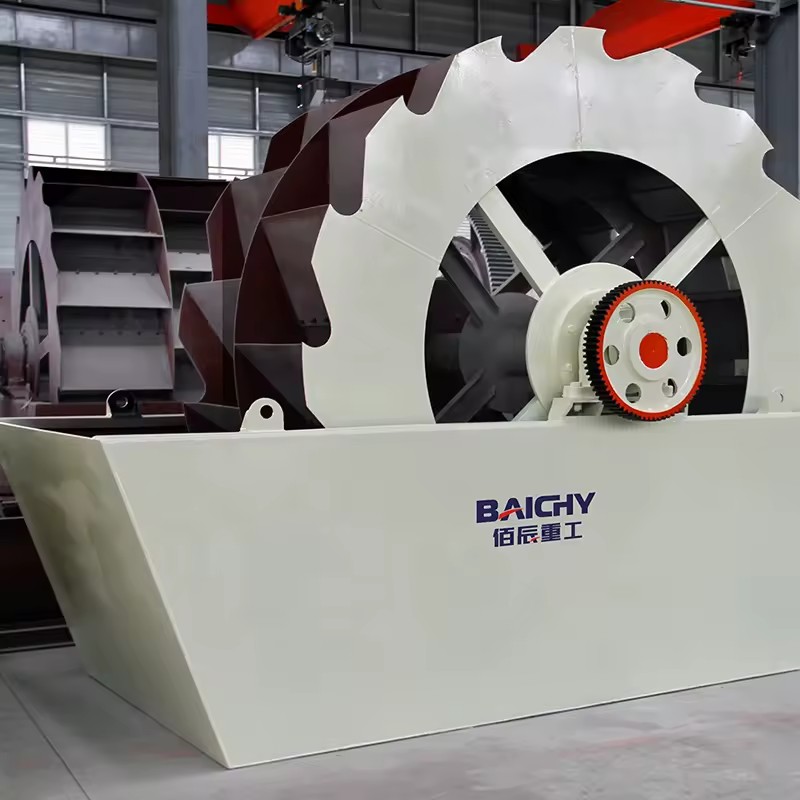

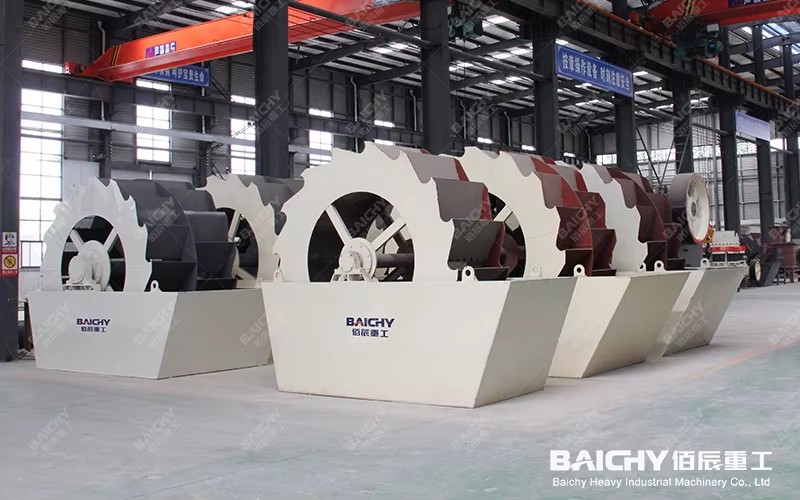

Wheel Sand Washing Machine
XSD Wheel Sand Washer is designed for washing, dewatering and grading of manufactured & natural sand. It removes clay and impurities to improve sand quality. Equipped with high-pressure flushing system + fine sand recovery unit. Tank made of thickened steel plate. Eco-friendly: circulating water system + intelligent water make-up reduces water consumption by 30% vs traditional machines. Meets green production standards.
Key Advantages
1. High Cleaning Purity (≥99%) Continuous rotation of the wheel fully stirs and rubs sand in water, combined with high-pressure flushing, effectively removes clay and organic impurities, significantly improving sand quality.
2. Low Fine Sand Loss (<5%) Fine sand recovery device and overflow control system precipitate and recover fine particles. Sand recovery rate increases by more than 15% compared to traditional washers, bringing notable economic benefits.
3. Water-saving & Eco-friendly Circulating water system + intelligent water make-up reduce water consumption by 30% and wastewater discharge by 50%, complying with green production standards.
4. Stable & Easy Maintenance Sealed transmission and anti-corrosion treatment on key components ensure low failure rate and long service life. Main maintenance interval up to 3 months, greatly reducing operating costs.
Working Principle
1. Feeding & Soaking – Sand-water mixture enters the tank evenly and soaks fully under wheel rotation, initially separating clay and impurities.
2. Stirring & High-pressure Washing – The rotating wheel drives sand to tumble and rub violently, while high-pressure water jets from multiple angles thoroughly clean the sand surface.
3. Lifting & Dewatering – Clean sand is lifted by wheel blades to the discharge port, naturally dewatering during lifting. Water drains through sieve holes, significantly reducing sand moisture.
4. Fine Sand Recovery – Wastewater flows into the sedimentation tank through overflow weirs. Fine sand settles and is sent back to the washing system by the recovery device, maximizing fine sand utilization.

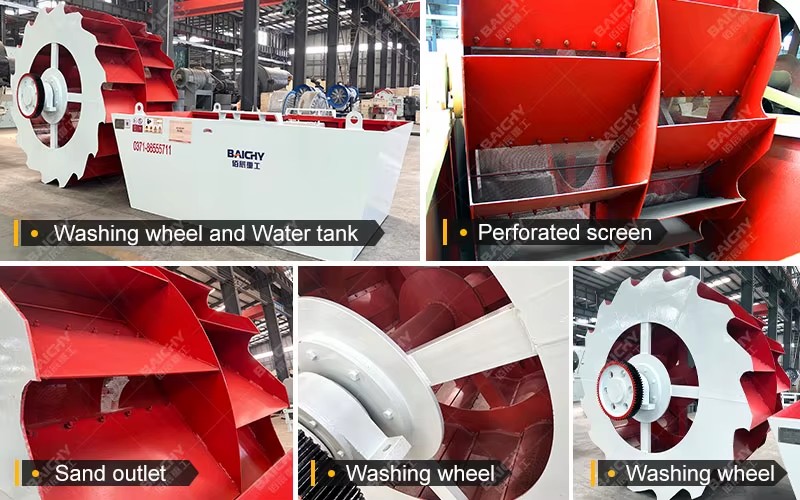

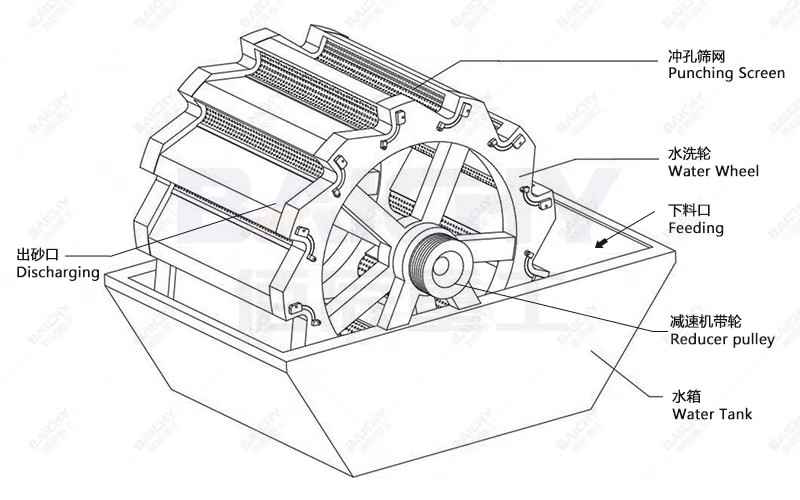

Core Components
1. Wheel Assembly System – High manganese steel blades, thickened walls and replaceable wear liners. Service life >5,000 hours under harsh conditions.
2. Transmission System – Fully sealed system with hardened gear reducer, gear drive and bearing housing. IP65 protection rating, suitable for wet and dusty environments.
3. Tank & Chute Structure – 8mm steel plate welded, lined with wear-resistant rubber to reduce noise and prevent corrosion.
4. Fine Sand Recovery Device – Three-stage recovery system (sedimentation tank + recovery pump + cyclone). Recovers fine sand ≥0.15mm with recovery rate ≥85%.
Technical Parameters - Wheel Sand Washer
| Model | Impeller Diameter (mm) | Feed Size (mm) | Capacity (t/h) | Power (kw) | Overall Dimensions (mm) |

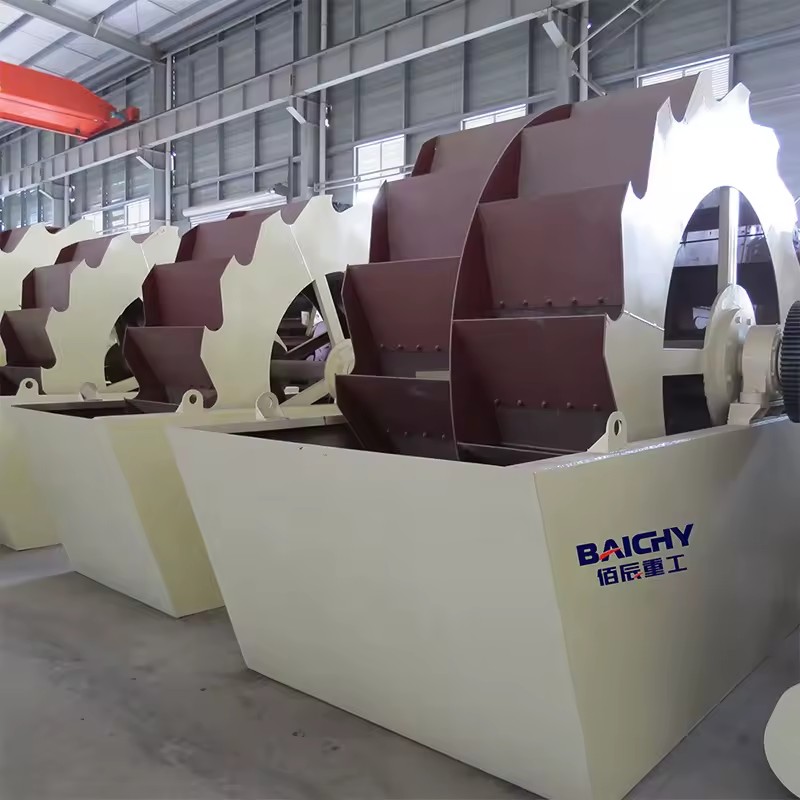

| XSD2610 | Φ2600 | ≤10 | 30-80 | 7.5 | 3260×2000×2690 |
| XSD2915 | Φ2900 | ≤10 | 60-120 | 11 | 3720×2504×2980 |
| XSD3016 | Φ3000 | ≤10 | 80-160 | 15 | 3830×2310×3070 |
| XSD3420 | Φ3400 | ≤10 | 130-220 | 18.5 | 3830×2710×3070 |
| XSD3624 | φ3600 | ≤10 | 160-320 | 22 | 4300×4150×3660 |
Applicable Materials & Applications
1. Applicable Materials XSD wheel sand washer is suitable for manufactured sand such as limestone, granite and basalt, natural sand including river sand and mountain sand, tailings sand from metal mines, crushed stone powder of 0 to 5 mm, recycled fine aggregate, and small-particle ores like iron ore and manganese ore.
2. Applications XSD wheel sand washer is widely used in mining and quarrying for washing aggregate and tailings, in construction sand production lines, concrete batching plants, dry-mixed mortar plants, recycling of construction and mining waste, road, railway and hydraulic engineering projects, as well as in mineral processing pretreatment to remove slime and improve ore grade.
