1.Working Table & Controllor
Model
1515
2515
3020
4020
Dimension(mm)
2150*2150mm
3100*2150mm
4500*2300mm
5250*2300mm
2150*2200mm
Max. cutting range
1500*1500mm
2000*1500mm
3200*1750mm
4000*1750mm
1500*1550mm
Travel of Z axis
180mm
Servo system
Weihong,OEM Panasonic
ball-screw linear-rail
ABBA/TBI, Brand
Re-positioning accuracy
±0.025mm/m
Cutting accuracy
±0.1mm
Max. running speed
15m/min
lubrication
Oil Immersion
Material
203stainless steel material tank,cast steel beam,rubber and stainless steel cover
Dimension(L*W*H)
1800*1000*1400mm
Weight
1200Kg
Power rate
37kw/50hp
Max. pressure
400Mpa /4000bar
Working pressure
320-350Mpa
Max. oil discharge
104L/min
Max. Flow rate
3.8 L/min
Power supply
380 V 50hz
Water supply
≥15.1L/min
Accumulator
1.5liter
Hydraulic system
Bosch Rexroth
Main Motor
Siemens Brand
Φ of orifice
0.30-0.33mm
AC220V 50/60Hz
Drawing system
Auto-CAD
Computer system
Windows 7
Function
Remoter controller
screen
Apply 19 inch LCD
Water jet software NC-Studio-V10
Support DXF file and NC code
±0.05/1000mm
±0.15/1000mm
Max. prussure
400mpa
Orifice type
Parse 3
Nozzle type
7.14*1.02*76mm
application
glass/tiles cutting
cutting head has working life each one.
700*700*1350mm
80kg
Max. capacity
200kg
Max. air pressure supply
2bar
software controlling motor adjustting regulator
Eliminates abrasive waste
Product Description
Advantage of PMT waterjet cutting machine
1. Smooth cutting quality is.
Rexroth hydrualic and siemens motor and eletric part.
2.The cutting accuracy of waterjet cutter is up to 0.1mm. Edge joints are regular, and waterjet cutting can also make very complex puzzles and murals.
3.Cutting speed is fast, and product consistency and interchangeability are very good.
4. Drilling, cutting and forming can be done at once.
5. Improve the working environment and reduce the impact of dust and noise on the operator.
6. Waterjet cutting is a cold cutting that does not damage the internal structure of the material.
7. It is the only machine for processing composite materials and fragile porcelain.
8. Waterjet Cutter can cut metal, rubber, foam, plastic, composite materials, stone, ceramic tile, marble,glass, etc.
About size, we have
4000*2000 mm, 3000*2000mm, 2000*1500mm, 2500*1550mm, 1500*1500,6000*1950mm
ect, which you want?

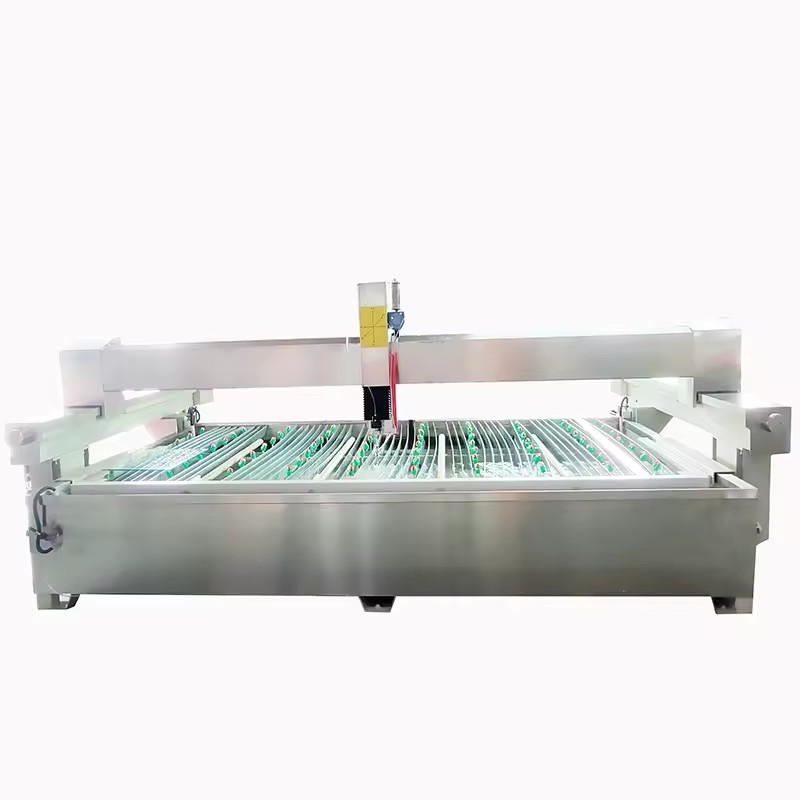

PMT waterjet cutting table consists of transmission part with X axis, Y axis and Z axis, water tank, cutting head, lubrication part and servo driving system. Gantry mechanical structure is fit to large size machines, long running distance of X and Y axis,suitable for processing a variety of complex big size parts.
The cutting table is a 2-D pc-controlled table, consisting of Y-axis, catcher, X-axis, Z-axis (cutting head rest), cutting head,high pressure hose, and the abrasive box. Both the X axis and the Y-axis are installed with linear guide and ball screw.
2. ESL
50 High presssure pump structure
It is includes water supply system
Hydraulic system
Waterjet Intensifer system
Electrical control system.
The motor is Siemen
Hydraulic system is
The main engine needs two water sources for cutting and cooling, thus we need two drainages: the cooling water drainage and the water leakage drainage.
Special definition is listed below
Cutting water: The intensifier must be supplied with water of 20-1000psi (1.4-6.9bar). The input water should not less than the output water by 1.5 times.
Cooling water (for the heat exchanger): The heat exchanger is used to adjust the accumulated heat in the hydraulic oil.
The hydraulic system consists of pressurization, filtration, and cooling systems. The intensification principle is: a motor of
37kw drives the hydraulic pump, then the pump will pressurize the hydraulic oil up to 20Mpa max.
The intensification system mainly refers to the intensifier, but it also includes other components in the water circuit that make the lower pressure water into high pressure water. Specifically, it includes intensifier, accumulator, high pressure tube,connector etc. Intensifier is main part of the intensification system. A section for the intensifier 's principle, structure, and maintenance is contained in this manual.
④
Electrical control system
The electric control system is integrated into the control panel, including PC, control circuit. This control system is used to start/stop the main engine and adjust the speed. The function of the display, buttons and knobs on the panel is listed below.
"power indicator" "voltage meter" "currency meter" "master switch" "Pump & main engine switch" "high pressure/abrasive switch" "emergency stop"
3.
Swing-Arm PC Controller
、
Water jet software
NC-Studio-V10
Support
DXF
file and NC code
4.
Three axis cutting system
5.
Abrasive Feeding System
Company Profile
00:00
After-sales service
Waterjet machine
Waterjet machine in
Waterjet machine
1, basic working principle of the super-high pressure water jet cutting machine2, working principle of the high-pressure system and supercharge
3, replacement of the high-pressure sealed, low-pressure sealed and high-pressure parts
4, maintenance of the high-pressure system and judgment and troubleshooting of common failures
5, CNC Programming&operation&operation of the NC cutting platform
6, daily maintenance of the NC cutting platform
7, equipment installation
8, abrasive control and transportation operation and CNC communication
9, operation of the CAD / CAM software and CNC communication
10, working principle, maintenance and judgment and troubleshooting of common failures of the main high-pressure functional parts, high-pressure water switches and abrasive cutting head
1, Free warranty for the whole machine for one year or 2000 high-pressure/hour
2, Training of two personnel for operation and maintenance of equipment and one computer operator for the user
3, On-line installation and commissioning (the user is responsible for board and lodging)
4, Lifetime maintenance
5, To Guarantee long-term supply of spare parts
6, To enjoy upgrade of special prices when there are new products and technologies
7, Repair response time: during the quality assurance period, when the user's equipment fails, respond within 24 hours after receipt notice. For a common failure, direct the user to resume production as soon as possible by way of
Certifications
Ralevant Products
Our factory not only have all kinds of size of water jet machines and waterjet spare parts, but also our company sell all kinds of stone carving machines, laser machines, bridge cutting machines, edge grinding machines, row pitch machines and rope machines and so on!!!
Product packaging
Wate jet cutting machine package
wooden package out side, inside soft packages or all of soft film and ensure safety. including hp pump,waterjet cutting table bed with cutting head,CNC waterjet controller,waterjet sand feeder,spare parts with the pump,loading by 20feet or 40feet container. about 30-40cbm, 4000-6000kgs,whole one set waterjet machine equiment.
Water jet
spare parts
soft package inside,carton package outside. waterjet abrasive garnet sand: packing by*25kg small packing + 40bags in a big bag. The package ways aslo can according to customer requirement.
Delivery time for machines
15-30days Delivery time
waterjet spare parts
1-7days
FAQ
Q: What is the advantage of water jet cutting head machine?
A:Cold processing, no heat reaction zone. no deformation; strong cutting ability, pure water jet can cut soft materials, abrasive waterjet can cut hard materials; can cut flammable and explosive objects;cutting precision is high, edge is neat no secondary processing is required. Waterjet also has the title of universalcutting machine.
Q: How to choose the cutting table for waterjet cutting machine?
A:You need to offer the size of the materials.you want to process or the size of the cutting table.
Q:How to solve the incision problem of water cutting for waterjet machine?
A:It is not a vertical cutting for a waterjet cutter. This is due to the physical characteristics of waterjet. If it is required
precise vertical angle cutting, we will provide you with a five-axis dynamic cutting system.
Q:Is the equipment easy to operate for waterjet cutting machine?
A:PMT intelligent waterjet cutting machine is easy to operate. You could upload the electronic images file of DXF format to the operating system via USB or network.
The system will automatically program, and only need to set a few simple parameters, it can automatically complete the cutting operatio.
Q
Can your waterjet machine cut different thicknesses of glass? What's the range?
A
Yes, our waterjet machines are highly versatile. We can cut glass with a thickness ranging from 2mm to 50mm, ensuring we can meet various project requirements, whether for thin decorative glass or thick industrial - grade glass.
What is the cutting accuracy of your waterjet for glass? How do you ensure the quality of the cut edges?
A:Our waterjet cutting technology can achieve an accuracy of ±0.1mm. To ensure the quality of cut edges, we use advanced software for precise path planning, and our machines are equipped with high - pressure pumps and specialized nozzles. Additionally, each piece of cut glass undergoes a strict quality inspection process, checking for any chipping, cracks, or unevenness.
What types of glass can waterjet cut?
A：Waterjet cutting is highly versatile and can handle a wide range of glass materials. It works effectively on tempered glass, maintaining its strength and durability without thermal damage. Float glass, commonly used in windows and mirrors, can also be precisely cut with clean edges. Laminated glass, which consists of multiple layers bonded together, is another suitable material—the waterjet slices through without separating the layers. Additionally, artistic glass, acid - etched glass, and toughened glass are all viable options. This makes waterjet ideal for architectural, automotive, and decorative applications.
Q：Can waterjet cut thick and high - strength glass?
A：Yes, it excels at cutting thick and high - strength glass. Waterjet machines can handle glass up to 50mm or even thicker, depending on the equipment’s power. For materials like bulletproof or blast - resistant glass, the non - thermal cutting process of waterjet prevents heat - induced cracks or weakening, ensuring structural integrity while achieving precise shapes and sizes.
Q：Are there any limitations on glass types for cnc glass waterjet cutting?
A：While waterjet is adaptable, extremely brittle or low - quality glass with internal stress may crack during cutting. Glass with uneven surfaces or pre - existing damage can pose challenges too. However, for most commercial and industrial - grade glass types—such as annealed, heat - strengthened, and patterned glass—waterjet cutting offers reliable results without significant limitations.
Certifications & compliance
CE
Complies with EU standards
