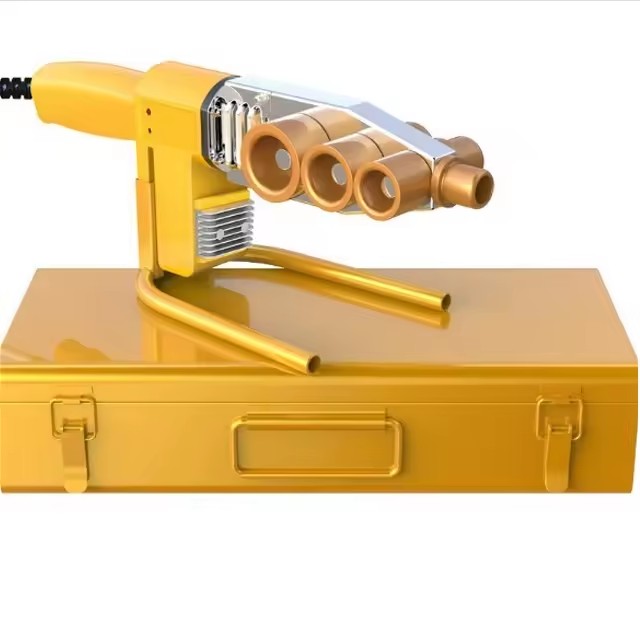

Name: Factory Outlet PPR Pipe Welding Machine
SKU: B2B-8734
Price: 60.0 USD
Availability: PreOrder

Product description

Electric / Manual ppr plastic pipe welding machine

Product Name	plastic pipe welding machine
Application	PPR, PE, PPC connection
Ambient temperature	10 ° C - +60 ° C
Voltage range	AC 176V-245V
frequency	50 ± 5HZ
Working temperature	260 ± 5% °C
Insulation resistance	≥1MΩ
Leakage current	electric ≤4mA / manual ≤5mA

nominal outside diameter(mm)	Hot melt depth (mm)	heat-up time (s)	processing Time(s)	cooling time (min)
20	14	5	4	3
25	16	7	4	3
32	20	8	5	4
40	21	12	6	4
50	22.5	18	6	5
63	24	24	8	6
75	26	30	10	8
90	32	40	10	8
110	38.5	50	15	10
160

The method of use

Ⅰ: Place the fusion splicer on the base, install the corresponding heating die according to the required pipe specifications, and tighten with the hex. Generally small at the front end is big at the back end.

Ⅱ:Turn on the power (note that the power supply must have a grounding protection wire), the heating indicator light is on, after a few minutes of heating, the heating indicator light is off, the constant temperature indicator light is on, so after two cycles, it indicates that the fusion splicer enters the computer to automatically control the temperature. Status, you can perform the welding operation.

Ⅲ:Cut the pipe vertically with a pipe cutter, and push the pipe and pipe fittings into the die without rotating the screw, and operate according to the following table. Immediately after the heating time, the pipe and the pipe fittings are removed from the die at the same time. The non-rotating straight line is evenly inserted into the desired depth to form a uniform flange at the joint.

Note: if the operating temperature is lower than 5 ° C, heating time be prolonged by 40%.Special reminder: 1. In order to be safe, the power socket with ground wire must be inserted into the power socket and the power supply is stable. The bottom line is well grounded! 2. The user shall not change the structure of the plug of the power cord without permission. In case of any failure, the user shall start up the power line and repair it by himself.

Hand-Rotating Butt Welding Machine (Y) Type

Full Automatic Multifunction Elector Machine

Hydraulic butt welding machine315/355

Piping is a professional manufacturer and exporter of plastic pipes and fittings for more than 10 years,which can provide complete ranges and provide integrated system solutions to all kinds of piping assembly problems for home,industry,agriculture. Piping's main products is HDPE,PPR,PVC,UPVC,CPVC,MPVC pipes&fittings,manifold,valves,pipe tools ect. which is over 1000 different types.The products are widely used in water supply,floor heating, and has good feedback in home and abroad.Currently,Our products has been exported to East Europe,middle east,,South America, Southeast Asia etc.

Certifications & compliance

RoHS(2)

RoHS compliant

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

3 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Connectivity

Welding

Technic

Casting

Shape

Equal

Head code

Hexagon

Customized support

OEM, ODM, OBM

Warranty

3 Years

Model number (Specification)

PPR Pipe Welding Machine

Place of origin

China, Henan

After-sales Service Provided

Engineers available to service machinery overseas

Application

PPR, PE, PPC connection

Ambient temperature

10 ° C - +60 ° C

Voltage range

AC 176V-245V

Frequency

50 ± 5HZ

Working temperature

260 ± 5% °C

Leakage current

≤4mA

Function

butt fusion

Power

600W/ 800W/ 1200W/ 2000W

Selling Units

Single item

Single package size

80X80X80 cm

Single gross weight

80.0 kg

Type (Product option)

Cap, Elbow, Flange, Union, Coupling, Adapters, TEE, Sight Glass, Bushing, Nipple, Plug, Cross, Other, Cleanups, P-Traps, WYES

Material (Product option)

PPR Pipe Welding Machine

Pipe size

10 mm, 12 mm, 14 mm, 50 mm, 30 mm

Certifications & Compliance

RoHS(2)

Lead time

3 days

Minimum order

1 Units
