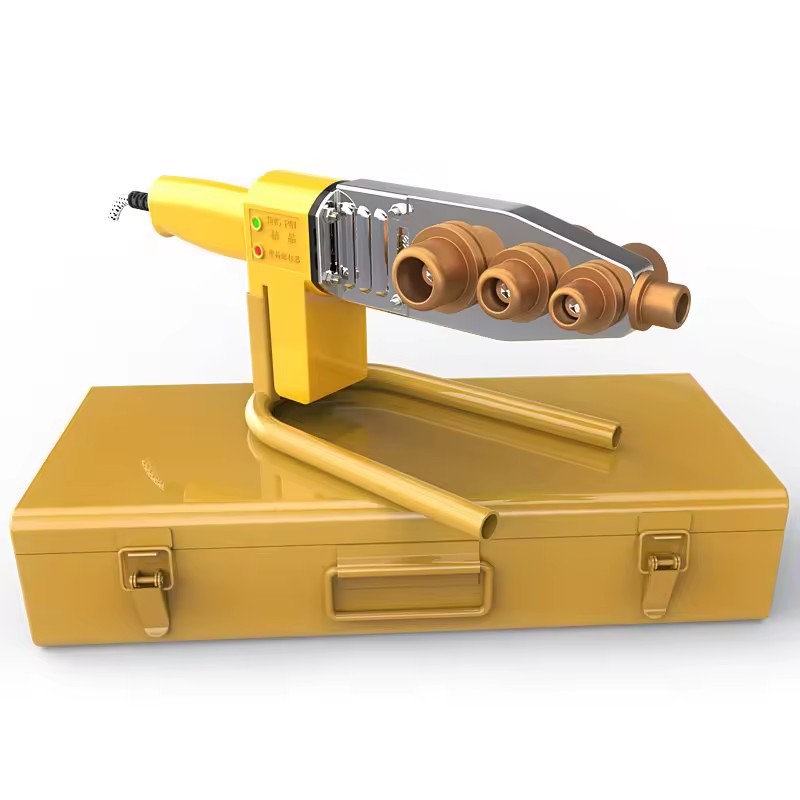

Name: Factory Outlet Candan Plastic Pipe Welding Machine Butt Welder for Sale
SKU: B2B-8720
Price: 30.0 USD
Availability: PreOrder

Product description

Product Name	welding machine
Application	PPR, PE connection
Rated Power	600-800W
Voltage range	AC 120V
frequency	50/60 HZ
Working temperature	240-280° C

nominal outside diameter(mm)	Hot melt depth (mm)	heat-up time (s)	processing Time(s)	cooling time (min)
20	14	5	4	3
25	16	7	4	3
32	20	8	5	4
40	21	12	6	4
50	22.5	18	6	5
63	24	24	8	6
75	26	30	10	8
90	32	40	10	8
110	38.5	50	15	10

The method of use

Ⅰ: Place the fusion splicer on the base, install the corresponding heating die according to the required pipe specifications, and tighten with the hex. Generally small at the front end is big at the back end.

Ⅱ:Turn on the power (note that the power supply must have a grounding protection wire), the heating indicator light is on, after a few minutes of heating, the heating indicator light is off, the constant temperature indicator light is on, so after two cycles, it indicates that the fusion splicer enters the computer to automatically control the temperature. Status, you can perform the welding operation.

Ⅲ:Cut the pipe vertically with a pipe cutter, and push the pipe and pipe fittings into the die without rotating the screw, and operate according to the following table. Immediately after the heating time, the pipe and the pipe fittings are removed from the die at the same time. The non-rotating straight line is evenly inserted into the desired depth to form a uniform flange at the joint.

Note: if the operating temperature is lower than 5 ° C, heating time be prolonged by 40%.Special reminder: 1. In order to be safe, the power socket with ground wire must be inserted into the power socket and the power supply is stable. The bottom line is well grounded! 2. The user shall not change the structure of the plug of the power cord without permission. In case of any failure, the user shall start up the power line and repair it by himself.

Hand-Rotating Butt Welding Machine (Y) Type

Full Automatic Multifunction Elector Machine

Hydraulic butt welding machine160/200/250

Piping is a professional manufacturer and exporter of plastic pipes and fittings for more than 10 years,which can provide complete ranges and provide integrated system solutions to all kinds of piping assembly problems for home,industry,agriculture. Piping's main products is HDPE,PPR,PVC,UPVC,CPVC,MPVC pipes&fittings,manifold,valves,pipe tools ect which is over 1000 different types.The products are widely used in water supply,floor heating, and has good feedback in home and abroad.Currently,Our products has been exported to East Europe,middle east,,South America, Southeast Asia etc.

Certifications & compliance

RoHS

RoHS compliant

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 10 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

3 days
Step 3

Packaging and dispatch

Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 24 fields

Welding Material

Polyethylene, PVC, Polycarbonate, Polypropylene

Voltage

220v

Power (kW)

0.8/12

Condition

New

Frequency

50 /60HZ

Welding area

20-32mm/20-63mm

Place of origin

China, Henan

Dimensions

32-63

Usage

ppr pipe plastic pipe welding

Weight (kg)

Ambient temperature

240-280°C

Rated voltage

220V

Working temperature

260 ± 5% °C

Insulation Resistance

≥1MΩ

Leakage current

≤4mA

Material

Aluminum alloy

Function

butt fusion

Weight

differ

Power

800-1200W

Selling Units

Single item

Single package size

45X26X10 cm

Single gross weight

10.0 kg

Model number

800w 20-32mm, 800w 20-110, 800w 20-63mm

Certifications & Compliance

RoHS

Lead time

3 days

Minimum order

10 Units
