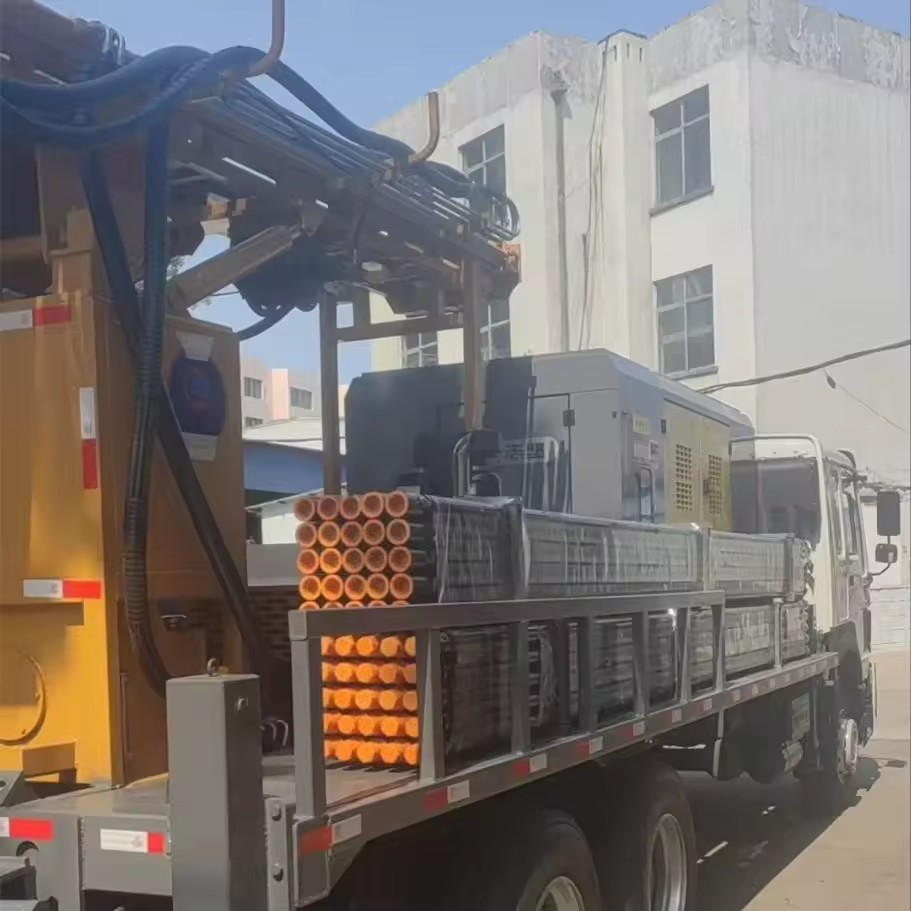

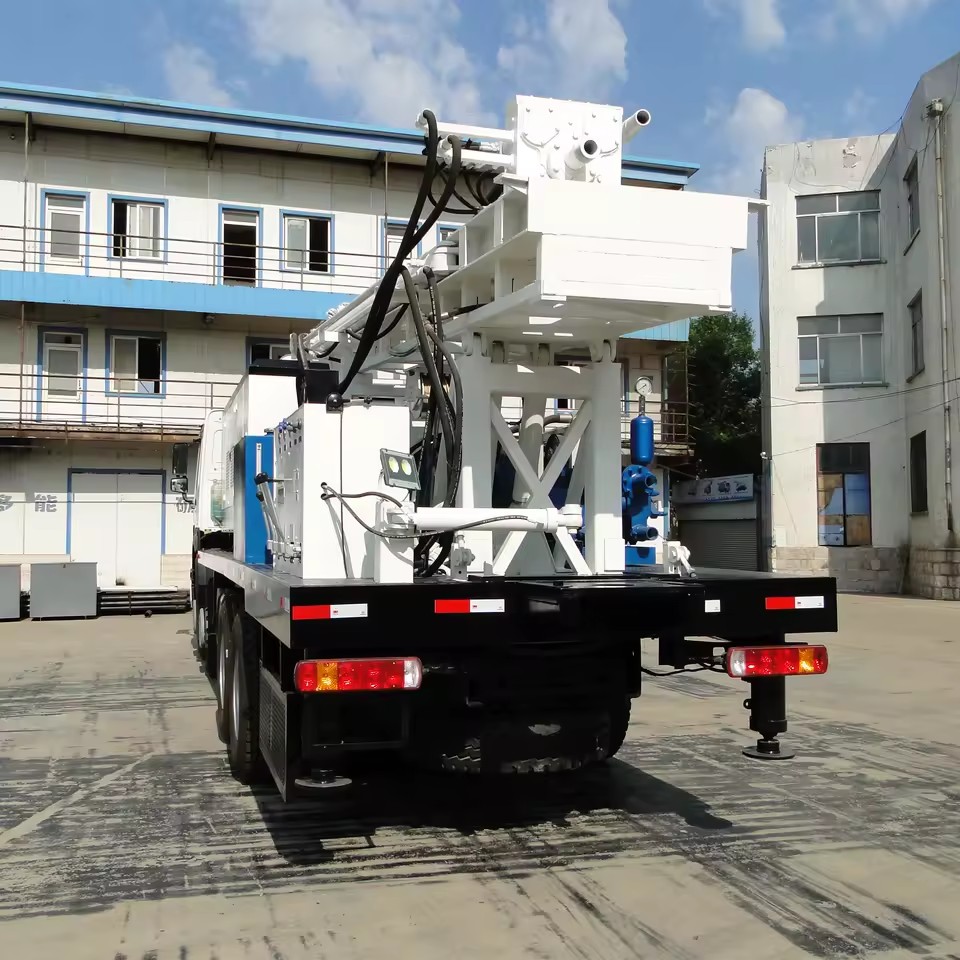

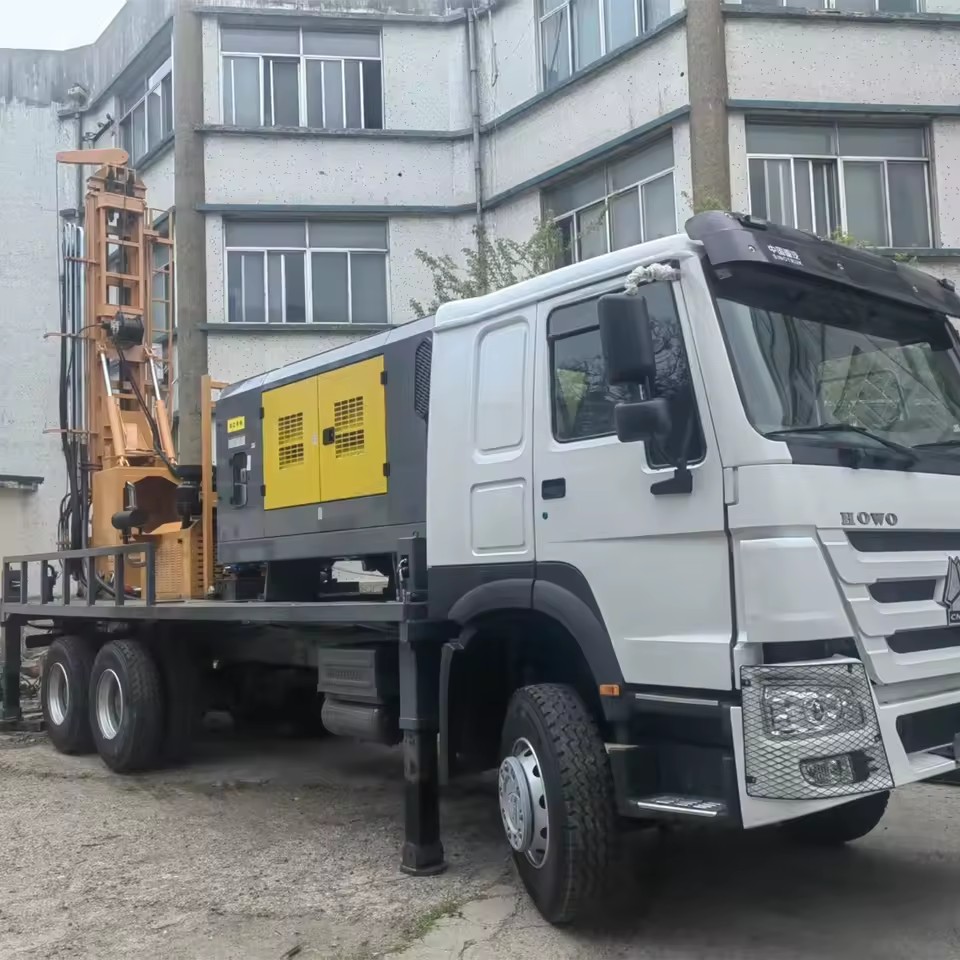

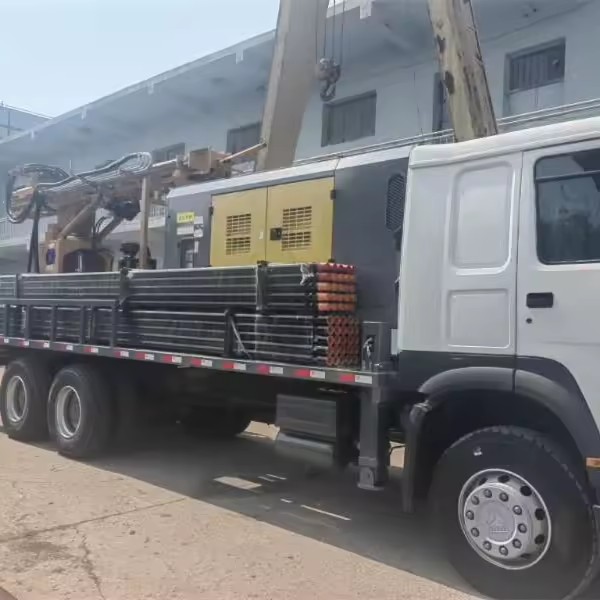

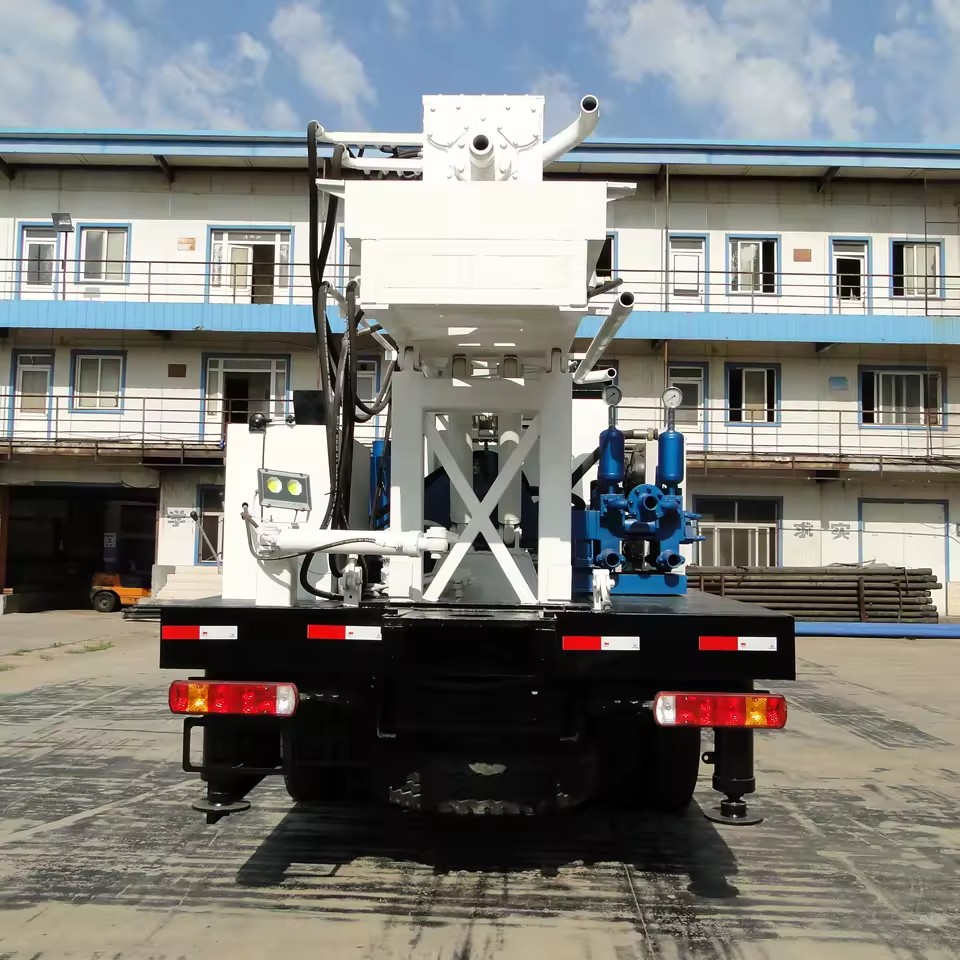

SL330s Crawler Borehole Drill Machine Oil Drilling Equipment Water Well Rotary Blasting Hole Drilling Rig with Air Compressor

Available for enquiry 0.0 · 0 reviews
USD

$ 12,420.00 12420.0 USD $ 12,420.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Type
Rotary Drilling Rig
Power Type
Diesel
Machinery test report
Provided
Warranty
1 Year
Core components
PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Video outgoing-inspection
Provided
Product description
No名称Name规格
Model

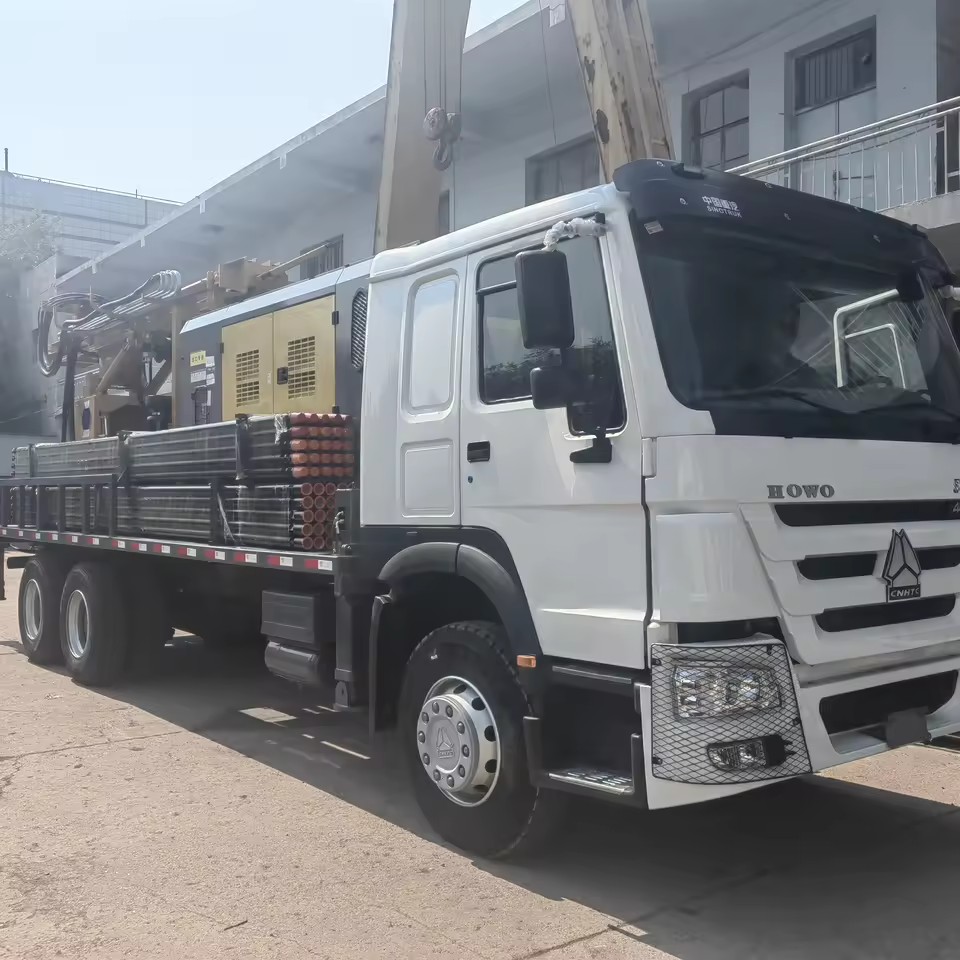

1汽车底盘 Truck chassisSINOTRUK HOWO
6*4
385HP500
190

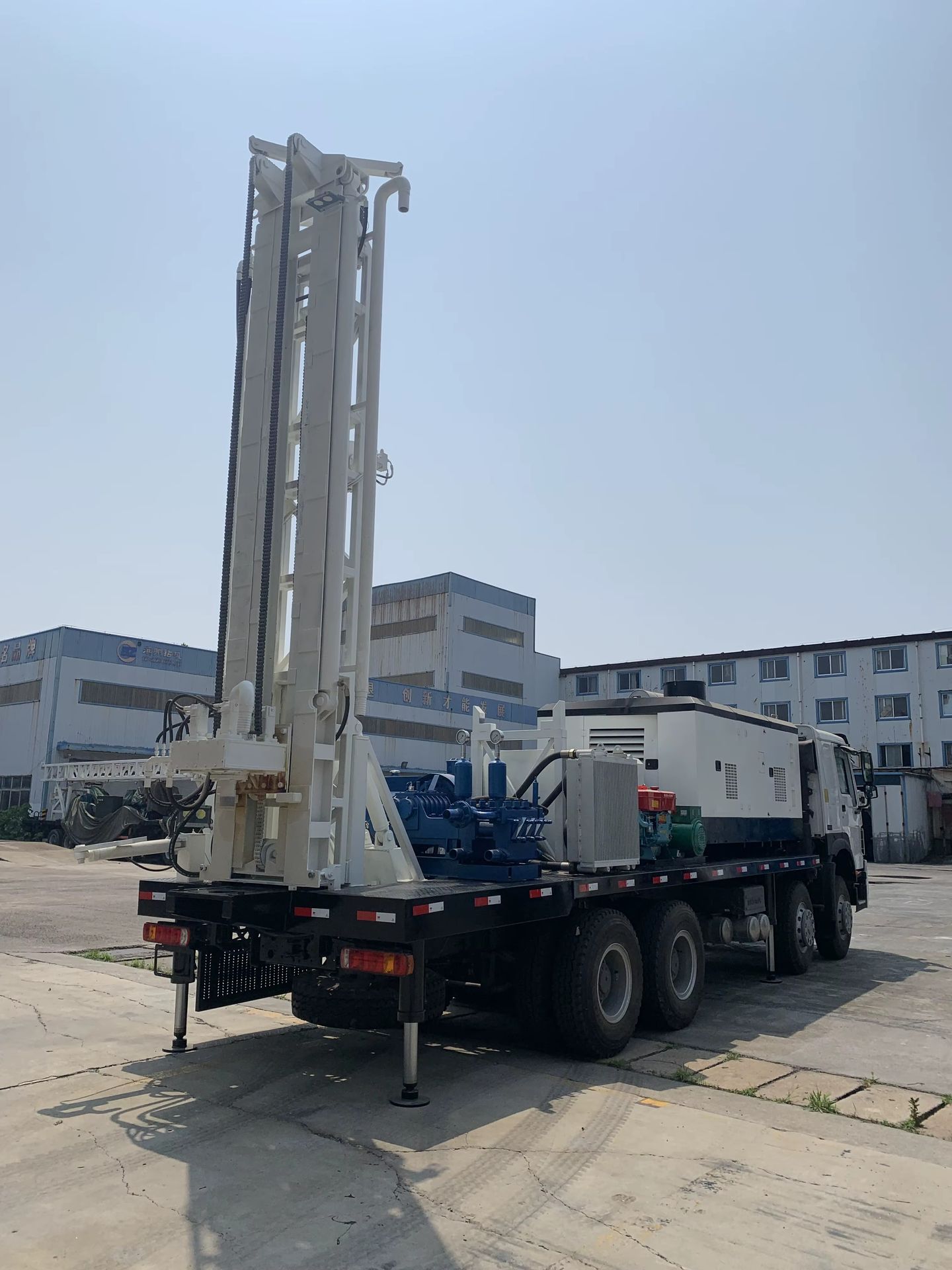

2钻塔 Drilling tower伸缩式
Retractable 钻塔负荷Drill tower load:25T
操作Operation：两根液压起塔油缸Two hydraulic support cylinders
钻塔高度Drill tower height：6.5M
3加减压油缸 Pull up-Pull down cylinder加压力Pull down:12T
提升力Pull up:20T
4支腿油缸Outrigger cylinder支撑Brace：四根液压支腿油缸
Four hydraulic leg cylinders
配备液压锁，防止支腿回缩Equipped with hydraulic lock to prevent leg retraction
5卷扬 Hoist单绳拉力Single rope pull up：1T
6动力头 Power head扭矩Torque：8000NM
转数Revolutions：0-90 RPM
7操纵箱Control box集成操作台Integrated console
起放钻塔、支腿油缸、提升、下降、动力头等Lifting and boring tower, outrigger cylinder, lifting, lowering, power head, etc.
仪表：钻具重量表、系统压力表等
Instrument: drilling tool weight gauge, system pressure gauge, etc.
8泥浆泵Mud pumpBW250Max600L/MIN
2MPA
9空压机 Air compressor型号：S60 流量AIR VOLUME：18m³/M 18bar
10泡沫泵 Foam pump and流量Flow：42L/MIN 压力Pressure：4MPA 转数Revolutions：660R/MIN 提高钻屑上反效率，为冲击器降温、润滑Improving the up-and-down efficiency of drilling cuttings, cooling and lubricating the impactor
Description images

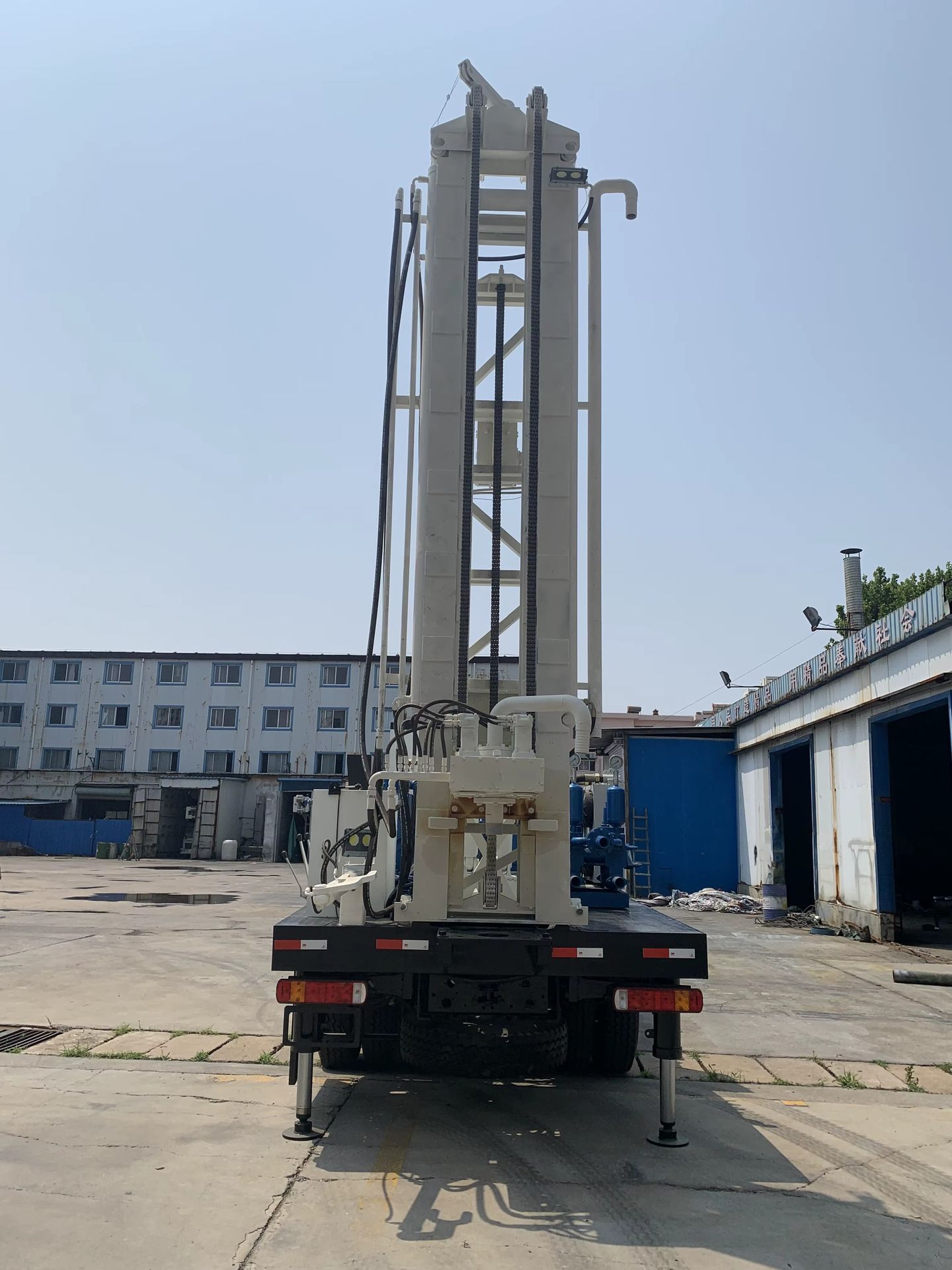

Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    30 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 21 fields
Type
Rotary Drilling Rig
Power Type
Diesel
Machinery test report
Provided
Warranty
1 Year
Core components
PLC, Motor, Pressure Vessel, Gear, Engine, Pump, Gearbox
Video outgoing-inspection
Provided
Place of origin
China, Shandong
Weight
40000 KG
Dimension (L*W*H)
12000mm*2550MM*3500MM
Drive Type
Internal Combustion Drive
Size
Large-Scale
Usage
water well driling, oil field drilling
Certification
CE, ISO9001: 2000
Drilling Diameter
200m 300m 400m 500m
Transport Package
Standard
Engine
Weichai 320kw
Maximum Torque
25000NM
Turntable speed
38,53,97 r/min
Selling Units
Single item
Power (W) (Product option)
385
Model number
BZCD200XKHW
Lead time
30 days
Minimum order
1 Units
