Oilfield F800 Triplex Drilling Mud Pump

Available for enquiry 0.0 · 0 reviews
USD

$ 14,970.00 14970.0 USD $ 14,970.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Machinery test report
Provided
Warranty
1 Year
Core components
Gear, Engine, Pump
Video outgoing-inspection
Provided
Type
Triplex
Place of origin
China
Product description

Oilfield F800 Triplex Drilling Mud Pump

F Series Mud Pump Features

1. F series mud pump are applicable to the requirement of high pump pressure in oilfield and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.

2. F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.

3. The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.

Technical Parameters

ModelF-500F-800F-1000F-1300F-1600
TypeTriplex single acting pistonTriplex single acting pistonTriplex single acting pistonTriplex single acting pistonTriplex single acting piston
Max. Liner size x stroke170 x 191mm (6-3/4" x 7-1/2")170 x 229mm (6-3/4" x 9")170 x 254mm (6-3/4" x 10")180 x 305mm (7" x 12")180 x 305mm (7" x 12")
Strokes Rating165r/min150r/min140r/min120r/min120r/min
Power Rating373kW(500HP)596kW(800HP)746kW(1000HP)969kW(1300HP)1193kW(1600HP)
Gear TypeHerringboneHerringboneHerringboneHerringboneHerringbone
Gear Ratio4.286:14.185:14.207:14.206:14.206:1
LubricationPressure & SplashPressure & SplashPressure & SplashPressure & SplashPressure & Splash
Suction Inlet8" Flange10" Flange12" Flange12" Flange12"Flange
(203mm Approx)(254mm Approx)(305mm Approx)(305mm Approx)(305mm Approx)
Discharge Outlet4" Flange, 5000Psi5" Flange, 5000Psi5" Flange, 5000Psi5" Flange, 5000Psi5" Flange, 5000Psi
Pinion Shaft Dia.139.7mm(5-1/2")177.8mm(7")196.9mm(7-3/4")215.9mm(8 1/2")215.9mm(8 1/2")
Key31.75 x 31.75mm (1-1/4" x 1-1/4")44.45 x 44.45mm (1-3/4" x 1-3/4")50.8 x 50.8mm (2" x 2")50.8 x 50.8mm (2" x 2")50.8 x 50.8mm (2" x 2")
Valve PotsValve-Over-Valve, AP1#5Valve-Over-Valve, AP1#6Valve-Over-Valve, AP1#6Valve-Over-Valve, AP1#7Valve-Over-Valve, AP1#7
Approx. Weight9770kg(21540lb)14500kg(31970lb)1879kg(41420lb)24572kg(54170lb)24791kg(54660lb)

We are the first-class supplier of resources market of SINOPEC and CNPC.

Our products include cement tools, PDC drilling bits, Wellheading tools, Plunger pump, Mud pumps and their acceossries.

They are exported, America, Middle East, South America, Southeast Asia, Central Asia, African,,Europe etc.

Certificates

API-5CT, API-10D, API-7K,ISO9001, ISO14001, ISO18001 etc.

More information and technical support, please click below card

Description images

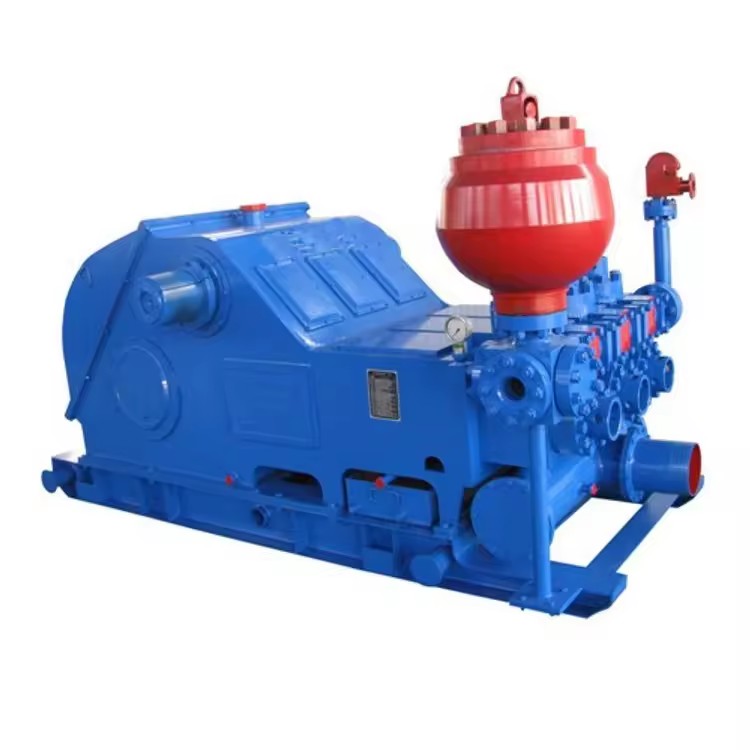

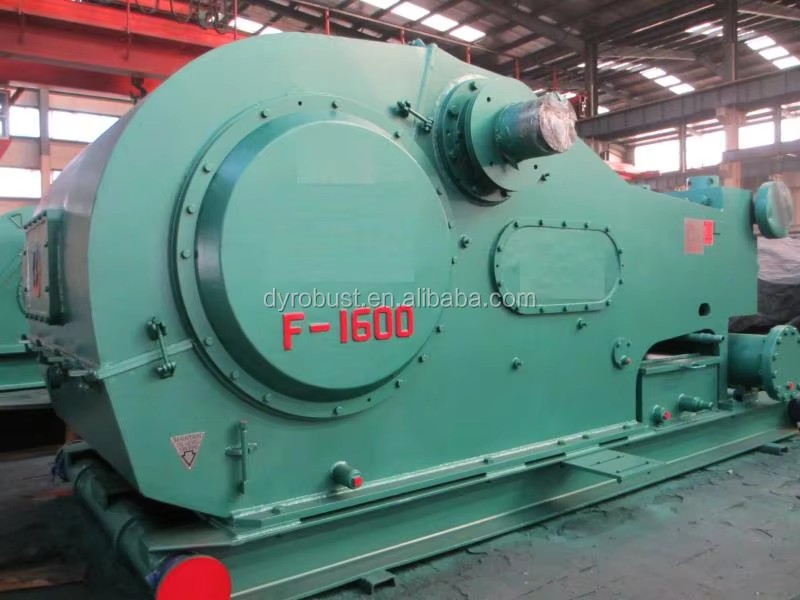

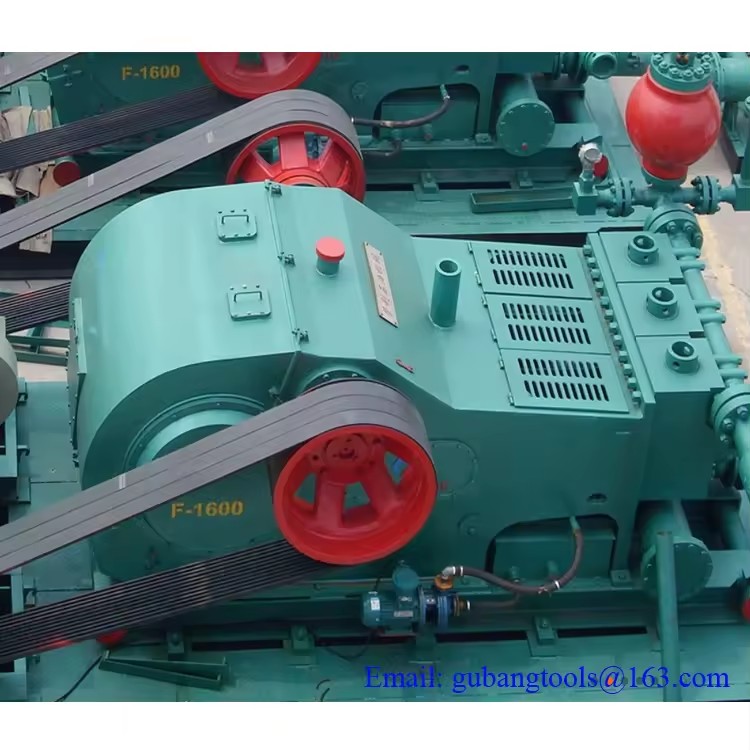

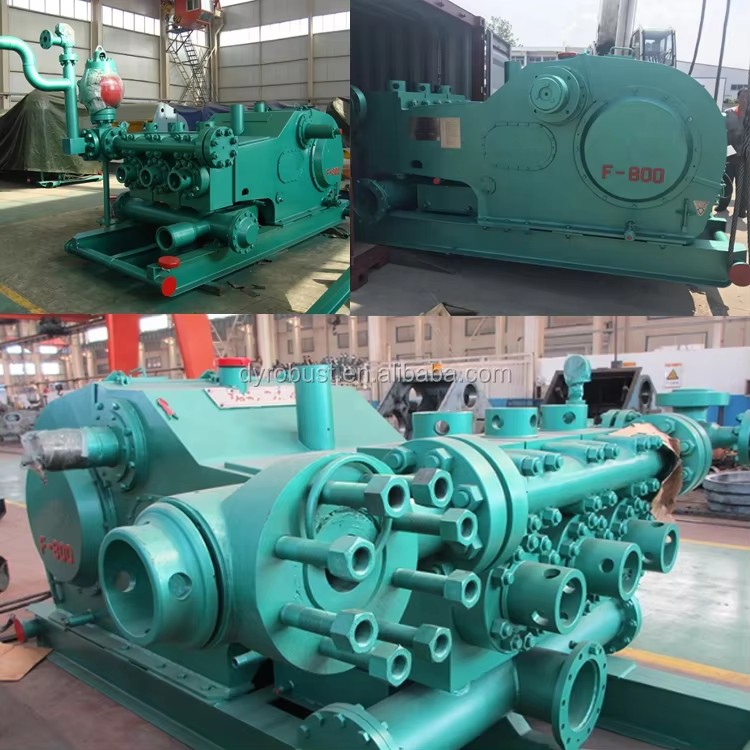

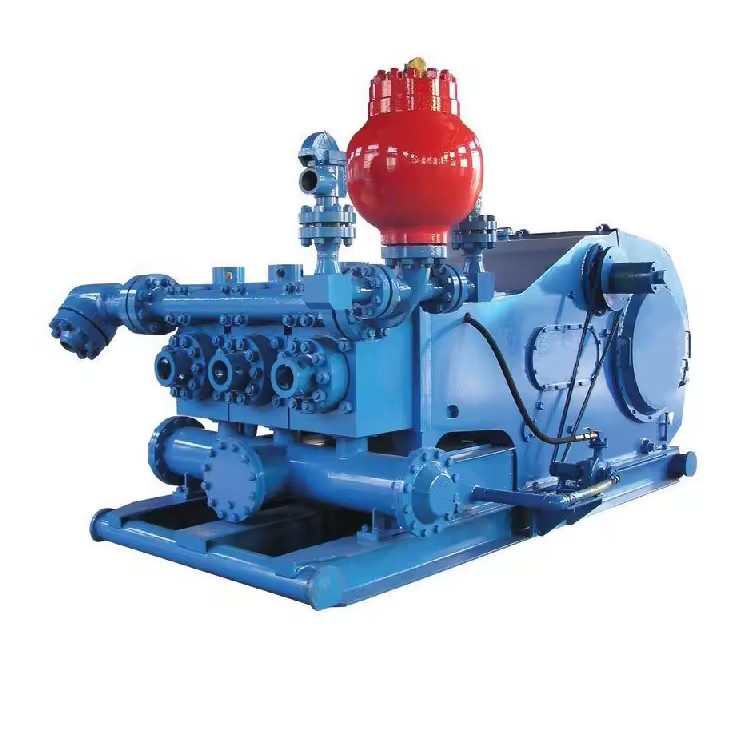

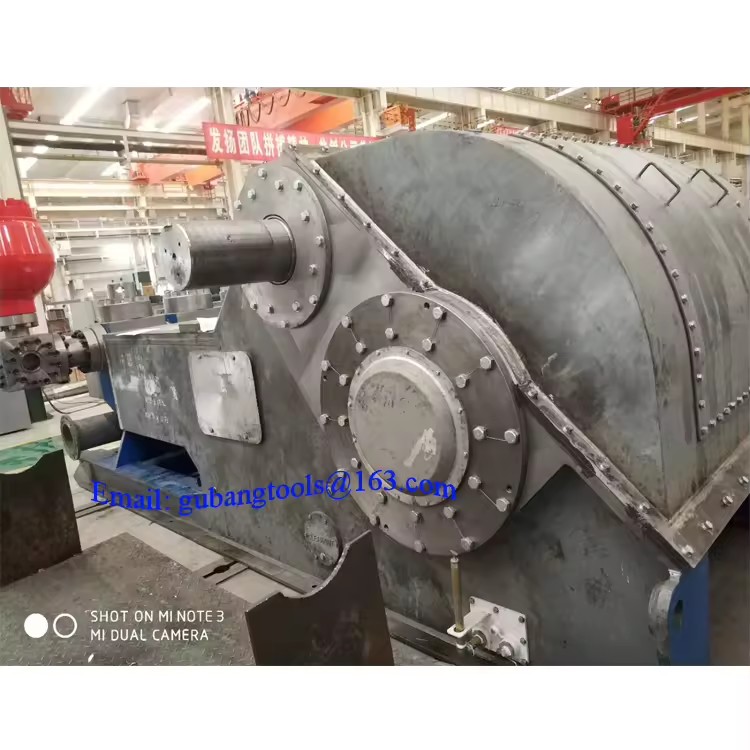

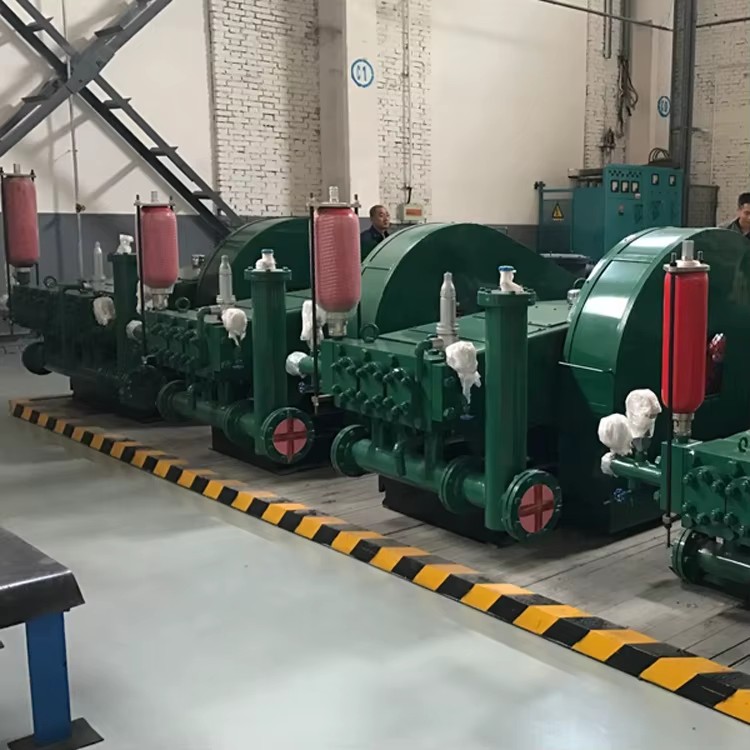

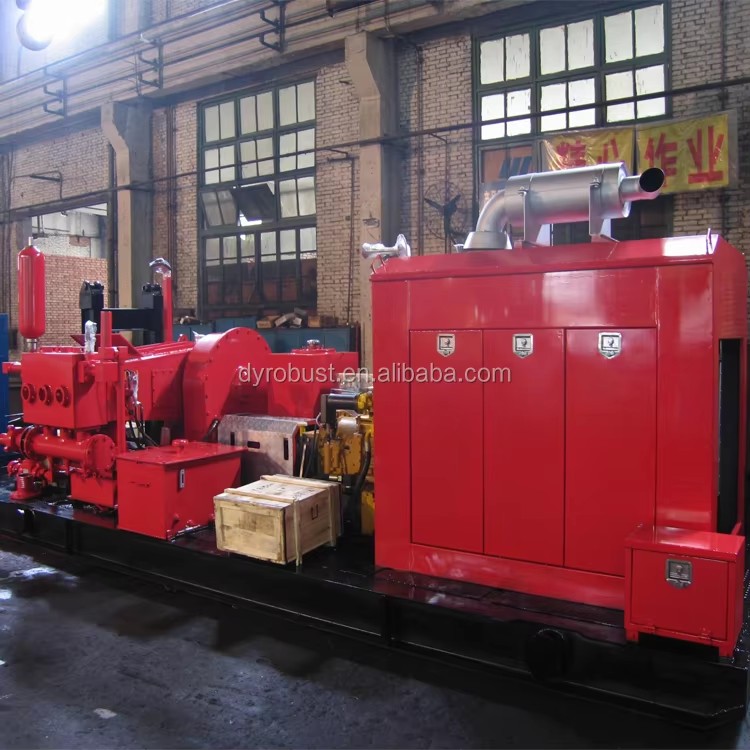

Oilfield F800 Triplex Drilling Mud Pump
Oilfield F800 Triplex Drilling Mud Pump
Oilfield F800 Triplex Drilling Mud Pump
Oilfield F800 Triplex Drilling Mud Pump
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    90 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 19 fields
Machinery test report
Provided
Warranty
1 Year
Core components
Gear, Engine, Pump
Video outgoing-inspection
Provided
Type
Triplex
Place of origin
China
Usage
Oil
Fuel
Diesel
Pressure
High Pressure
Power
800hp
Gear Type
Herringbone
Stroke
180 x 305mm
Application
Oilwell Drilling
MOQ
1 Set
Model
F800
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Model number
F800
Lead time
90 days
Minimum order
1 Units
