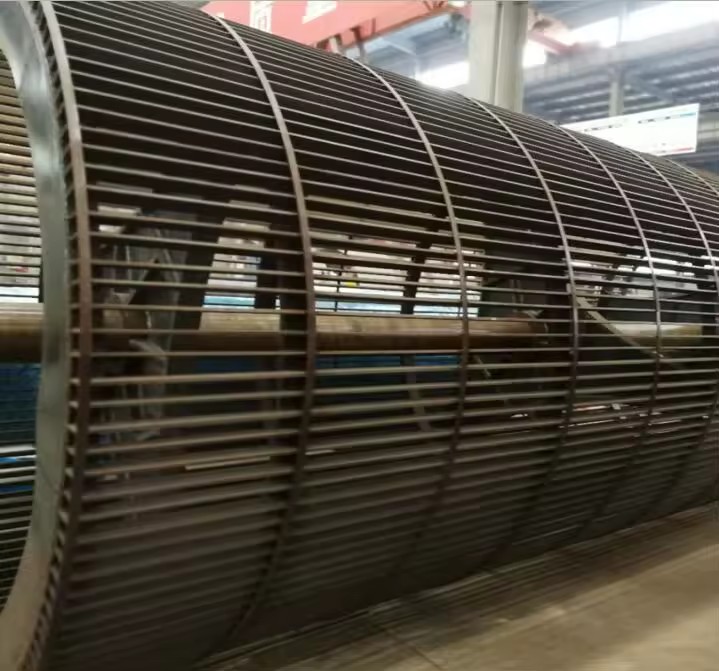

Automatic New 1TPH-30TPH Palm Fruit Thresher & Oil Extraction Equipment with Cold & Hot Pressing Technology

30T/H separate palm fruit from fruit bunch//fresh palm fruit thresher

Technical and Performance Indexes in Palm Oil Pressing Workshop

(1) Crude palm oil standard

(2) Kernel Standard

Palm Fruit Pressing Process Description

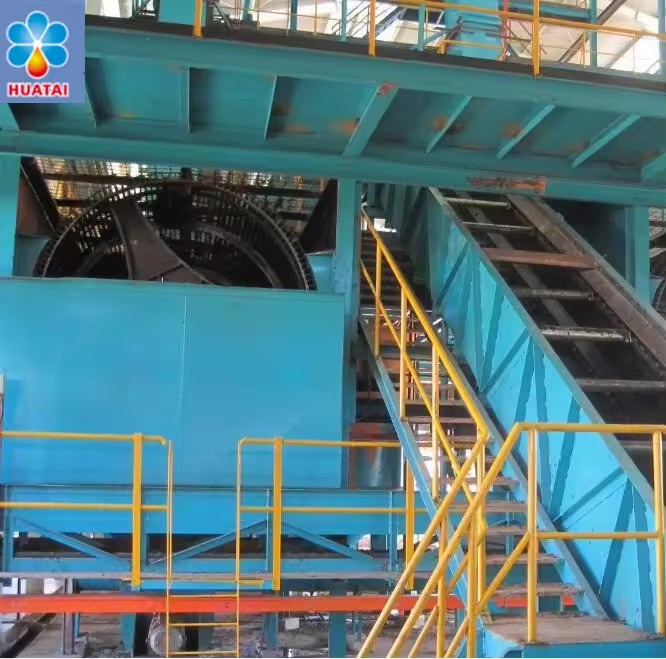

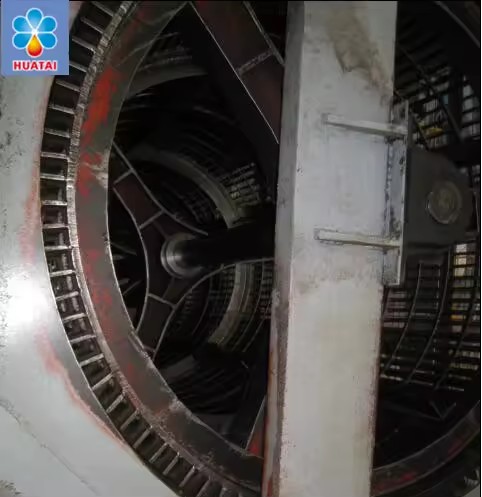

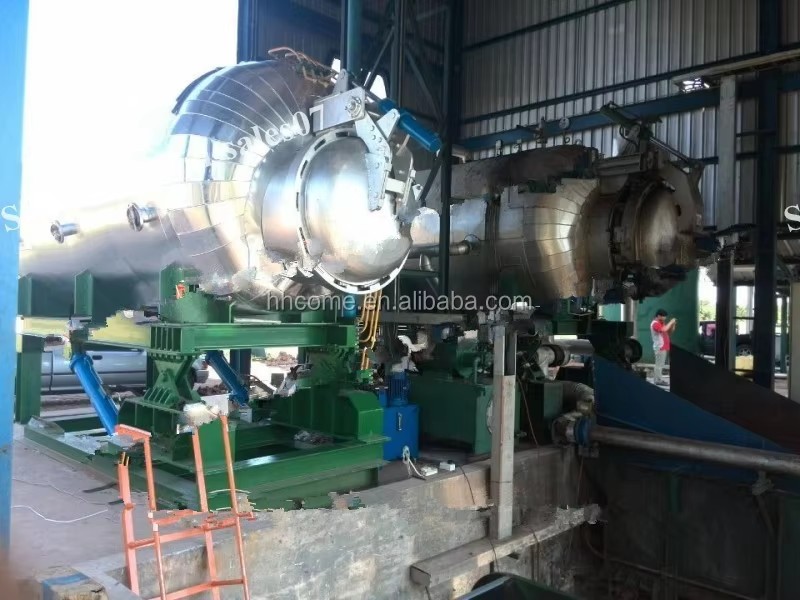

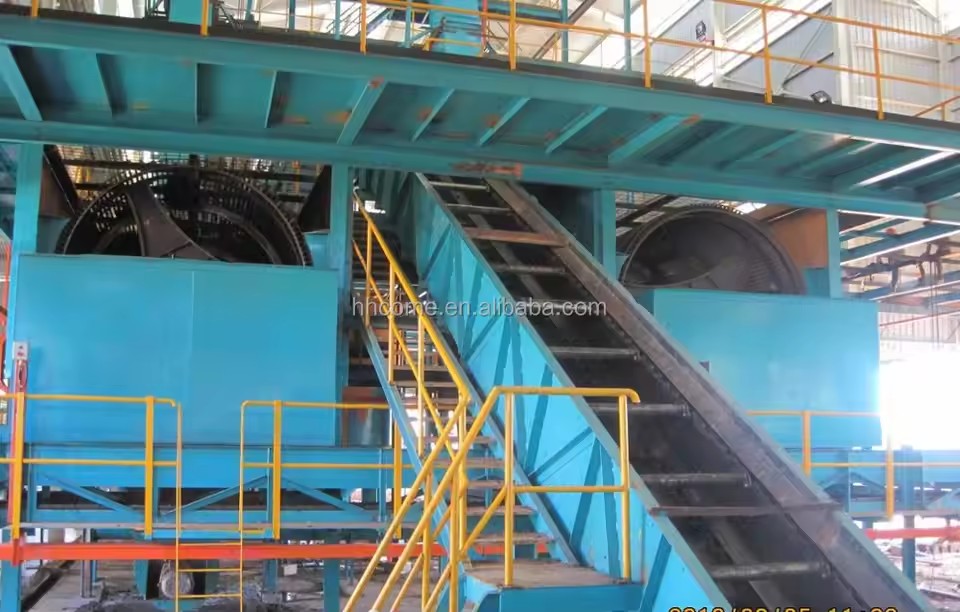

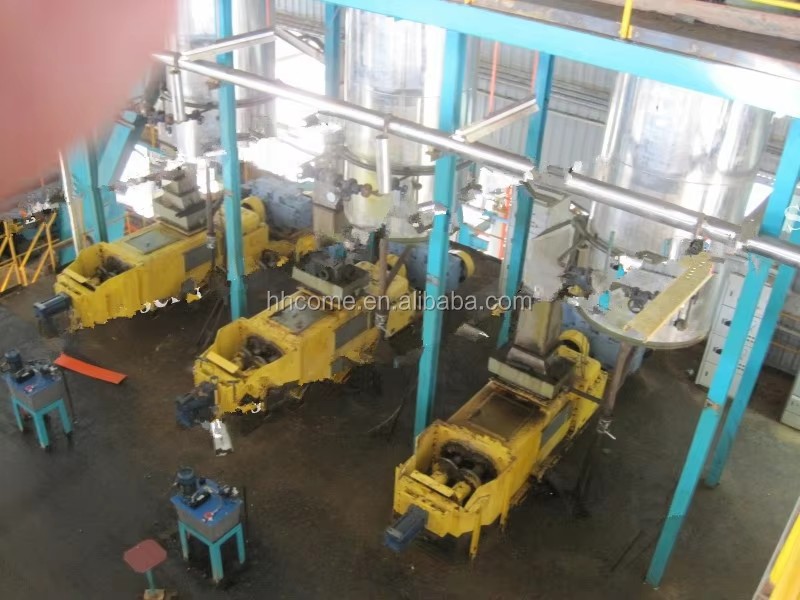

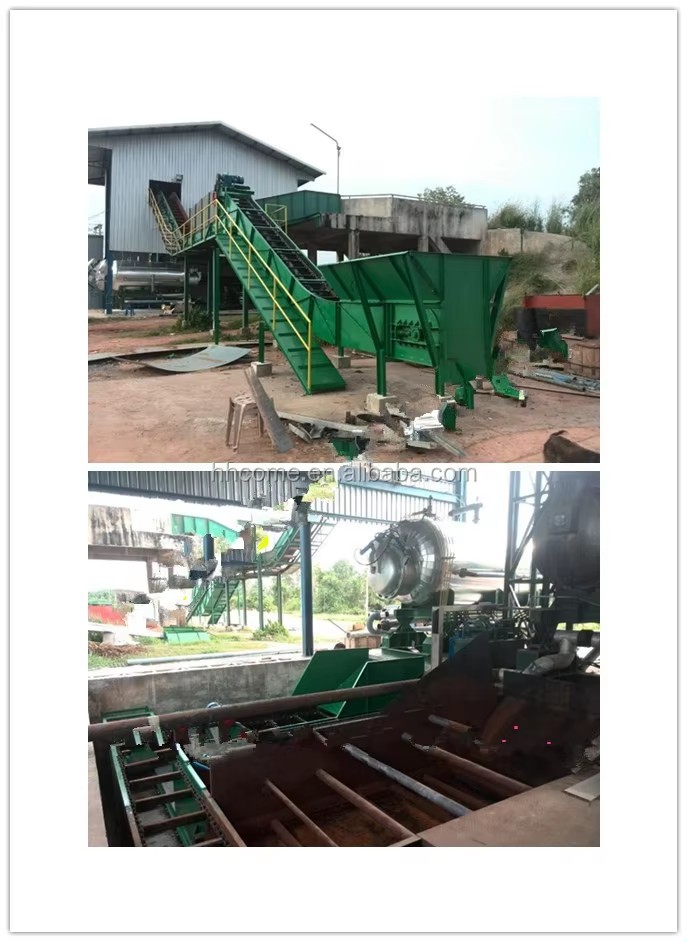

The palm oil is contained in palm pulp, the pulp is high moisture content and rich lipase. Usually we adopt the method of press to produce it, and this technology is very mature. Before press, Fresh fruit bunch will be taken sterilizer and thresher pretreatment: After weighting the FFB, it is loaded the FFB conveyor by loading ramp, then the FFB will convey to the vertical sterilizer. FFB wil l be sterilized treatment in sterilizer, the FFB will be heated and sterilized treatment for several time to avoid the lipase be hydrolyzed, after sterilizer,the FFB is distributed bunch conveyor by the mechanical bunch feeder and enter the thresher machine which separate the palm fruit and bunch, for the empty bunch,it is conveyed empty bunch loading platform and transport it to outside the factory area at fixed period, the empty bunch could be used as fertilizer and repeat use; The palm fruit which has passed sterilizer and thresher processing should be sent to digester and then go to special screw press to get the crude palm oil (CPO) form the pulp. But the pressed palm oil contain a lot of water and impurity which need to be clarified by sand trap tank and treated by the vibrating screen,afterward the CPO will be sent to clarification station treatment section. For the wet fibre cake which be produced by screw press, after separating nut, it will be sent to boiler house to burnt.

The wet fib er cake contain wet fib er and wet nut, the fib er contain about 6-7% oil and fat and a few of water.Before we produce the nut, we should separate the nut and fib er. Firstly, the wet fib er and wet nut enter the cake breaker conveyor to be cracked, and mostly of the fib er should be separated by pneumatic fib er depericarper System. The nut, little fib er and big impurity will be further separated by the polishing drum. The separated nut should be sent to nut hopper through the pneumatic nut transport system, and then adopt the ripple mill to crack the nut, after cracking, most of the shell and kernel will be separated by cracked mixture separating system, and the rest of mixture of kernel & shell enter to the special clay bath separating system to separate them, after this processing, we could get pure kernel(The shell content in kernel <6%),which should be conveyed to the kernel silo to dry. After dried moisture as 7%, the kernel will be conveyed to kernel storage bin for storage; Usually the dry kernel’s capacity ratio is 4%. So it should be collected until enough quantity, and then be sent to the palm kernel oil mill; For the separated shell, it should be conveyed to shell temporary bin as the spare boiler fuel.

After screen and sand trap tank, the palm oil should be sent to crude oil tank and heat, then be pumped continuous clarification tank to separate the purified oil which be sent to pure oil tank and the sludge oil which be sent to sludge tank, whereafter the sludge oil should be pumped to the centrifuge to separate, the separated oil enter the continuous clarification tank again; The pure oil in the pure oil tank should be sent to the oil purifier, and then enter the vacuum dryer, at last the dried oil should be pumped collection tank.

can provide you with 10 to 25 kilograms (test equipment), 2 to 1,000 tons / day of oil refining projects, naturally is your preferred partner for different oil quality. in here are different options, batch chemical refining, semi-continuous physical refining, continuous physical refining program, where provide you with the design (process, civil, electrical), manufacturing, installation, commissioning, training of technical personnel to the sale a full-service; advanced automatic control system to ensure that the entire

The main refining plant processes: degumming, dehydration, bleaching, deacidification, deodorization, dewaxing, degreasing. Crude oil in squeeze, extraction crude oil can be obtained national quality standards of edible oil through refining plant.

Refining workshop process: fully continuous refining equipment, refining equipment, and semi-continuous batch refining equipment.

Oil refining machinery characteristics: 1, continuous alkali refining shorten the contact time of oil and lye, reduce fat saponification, low power consumption and improve efficiency; 2, bleaching and steam stirring decolorization premixed combination of technology, improve the decolorization efficiency, saving the amount of clay, simple operation; a negative pressure and oxygen in the air to avoid contact with hot oil, to ensure the quality of oil, acid value rise suppression, reduce excessive oxidation number. 3, using the new continuous physical refining deacidification deodorization, deacidification deodorizing suitable for high acid value and low gum content of the vegetable oil, the actual production proves that the process has the following salient features: strong acid removal ability, good heat decolorization, refining rate, good quality oil. 4. The process multiple heat exchange systems take advantage of the heat, reduce steam consumption, the production process also has an adjustable, flexible operation, high automatic degree of sanitation.

Applicable oil: soybean oil, sunflower oil, rapeseed oil, cottonseed oil, peanut oil, palm oil, copra oil, rice bran oil, animal oil all need refining oil.

Refining plant capacity: 10-1000T / D

Refining workshop

Small cooking oil refining equipment unit
