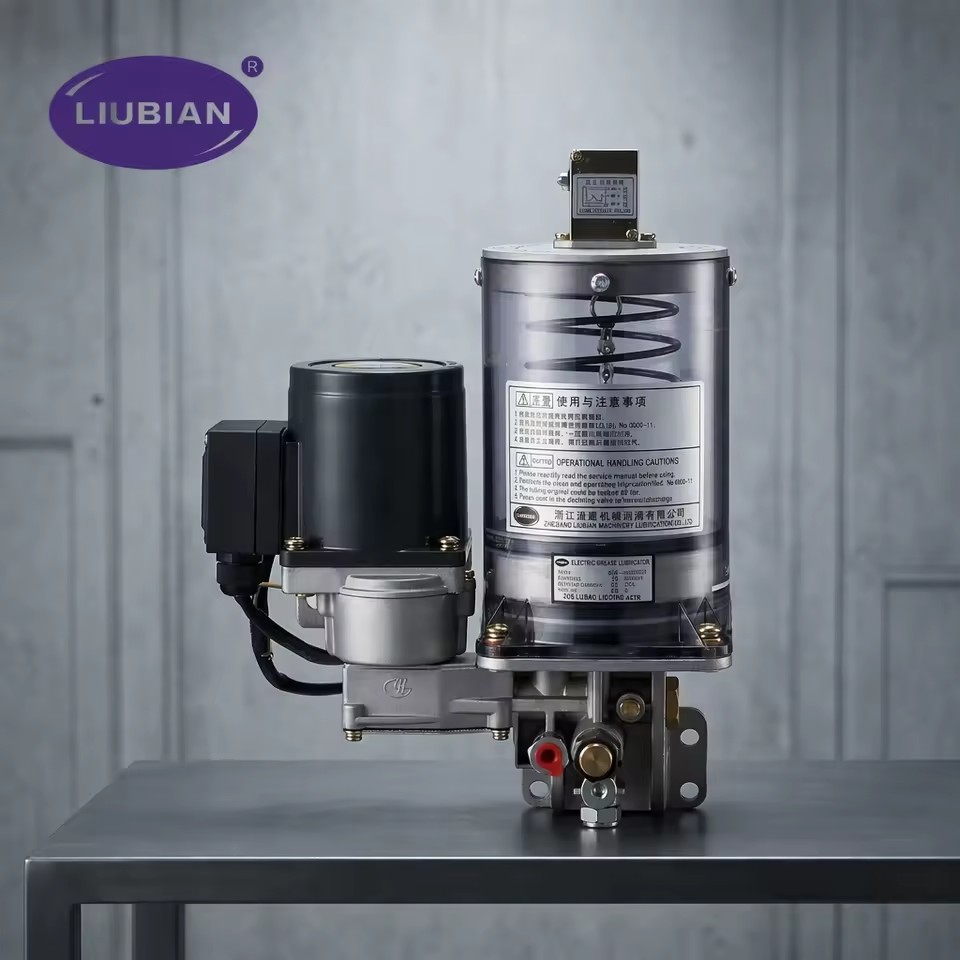

Electric Centralized Lubrication System 25W Automatic High Pressure Grease Pump

• Application
  • Automatic Centralized Lubrication System
• Structure
  • Piston Pump
• Max flow rate
  • 20mL/min
• Max pressure
  • 8.0MPa
• Power source
  • Electric
• Chemical Compatibility
  • Grease
• Sealing Material
  • PTFE
• Impeller Material
  • Stainless Steel
• Applicable temperature
  • 5-80°C
• Outlet size
  • 6 mm
  • Rc1/8
• Import Size
  • Rc1/8
• Connection Type
  • clamping coupling
• Outlet Type
  • Universal Style
• Discharge Pipe Size
  • Rc1/8
• Inlet Height
  • 30mm
• Displacement
  • Electric
• Material
  • Carbon Steel
  • PC
  • Aluminum Alloy Housing
• Control Method
  • PLC
• Motor
  • Three-Phase Motor
  • Single-Phase Motor
  • DC Motor
• Surface Treatment
  • Electroplating
• Membrane material
  • PC
• Warranty
  • 1 years
• Customized support
  • OEM
• Cable length
  • 20cm
• Horsepower
  • 25w
• Pressure
  • 8.0MPa
• Dwell time
  • PLC-controlled
• Hardness
  • 90 Shorea
• Flow Meter Specification
  • MG/MGK
  • SG/SGK
  • MGA
• Filter material
  • Polyester + Non-woven Fabric
• Outlet Water Oil Content
  • Electric grease pump

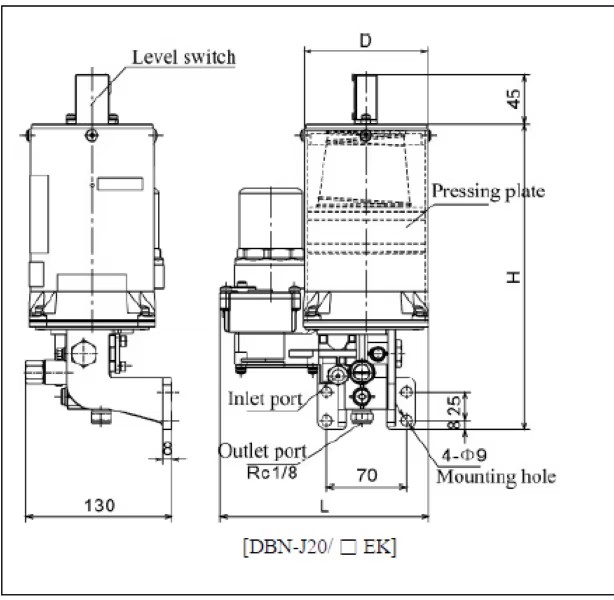

• Model number (Specification)
  • DBN-J20/08DK
• Place of origin
  • Zhejiang
  • China
• Tank volume
  • 0.4L
  • 0.8L
  • 1.5L
• Selling Units
  • Single item
• Single package size
  • 36.0X18.0X37.0 cm
• Single gross weight
  • 2.6 kg
• Type (Product option)
  • 0.4L
  • 0.8L,With low oil level signal switch
  • 0.8L
  • 1.5L,With low oil level signal switch
  • 1.5L
• Voltage (Product option)
  • 220 V
  • 380 V
  • 24 V
• Flow Rate (Product option)
  • 20cc/min
• Maximum head
  • 20 m
