Molino Hgm80 Mill Micronizer Mine Pulverizer Grinding Mill for Sale

molino hgm80 mill micronizer mine pulverizer grinding mill

Ultrafine grinding mill, also named HGM Ultrafine Grinding Mill, which is an efficient and low-cost ultra-fine powder processing equipment for calcium carbonate powder making. Calcite powder grinding mill successfully replaces the traditional jet mill, ball mill classifier of complex procedures, greatly reduce production costs, improve product fineness.

HGM ultrafine grinding mill is designed & manufactured by Company, who has been in mineral grinding mill machine for 15 years.Now 's HGM series mills have been widely used in 192 countries.

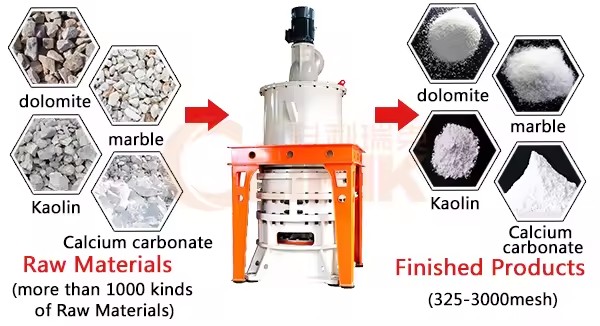

Mineral mill grinder machine has been widely used for grinding materials with hardness less than 9 in Moh's scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble, talcum, barite, gypsum, dolomite, bentonite mud, mica, pyrophyllite, sepiolite, carbon black, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment, up to 200 kinds.

HGM micro powder grinding mill is which is widely applied in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, ceramics, and so on.

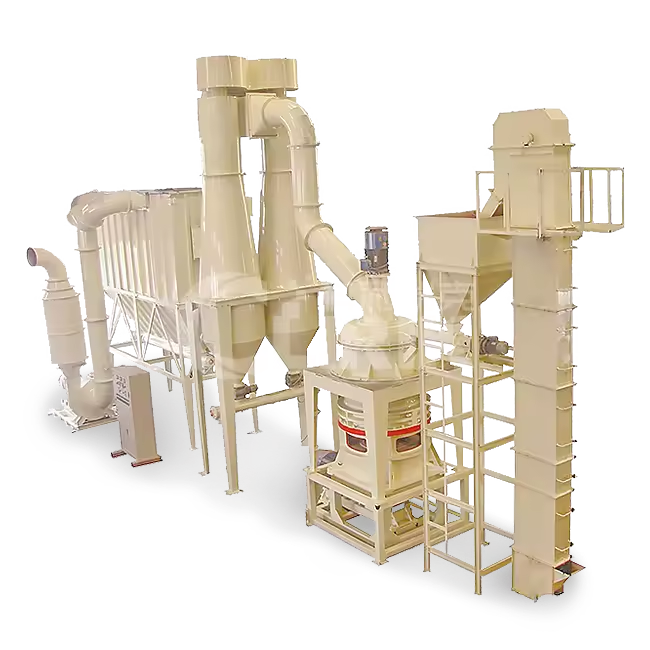

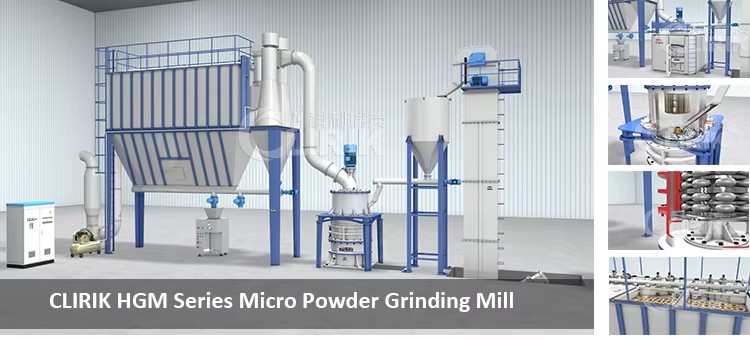

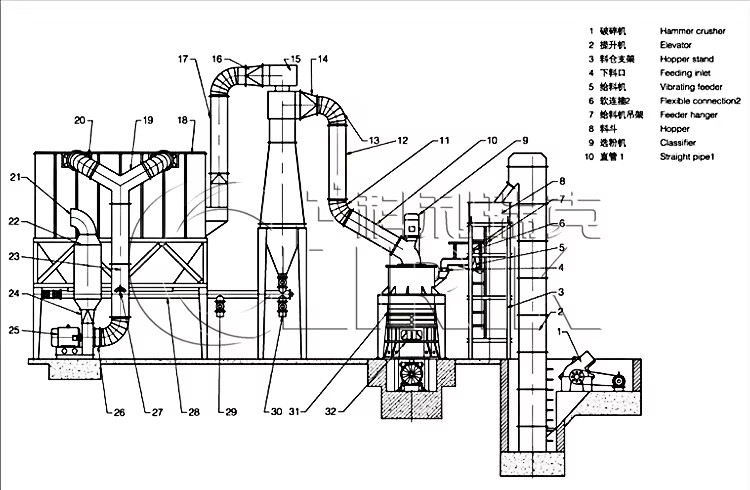

HGM/XZM/SCM ultrafine grinding mill mainly consist of main unit, classifier, powder collector, dust cleaner, blower, muffler, sound-proof room, crusher, bucket elevator, storage hopper, and vibrating feeder.

After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.

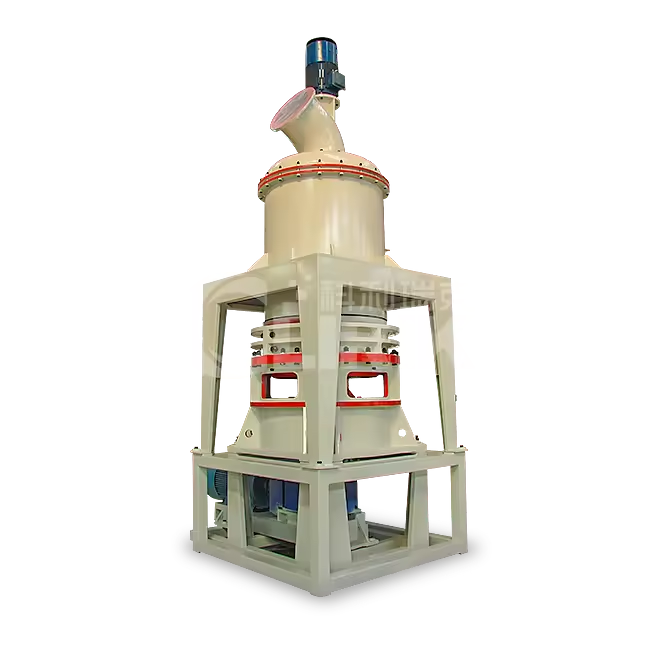

When the ultrafine grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers.

The high-pressure air blower constantly inhales air, the airflow with crushed materials are brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

Main Specification

Note: The capacity is based on the domestic CaCO 3 powder factory's feedback.

Powder Parameter

Note: For the data with prefix such as "2*xx",which means there are two same motors configured for one item

325 mesh-2500 mesh(5-47 micron ).Output size is adjustable by adjusting running speed of classifier (1-70HZ ).

Take model HGM100L as an example:grinding calcium carbonate

Take model HGM100L as an example

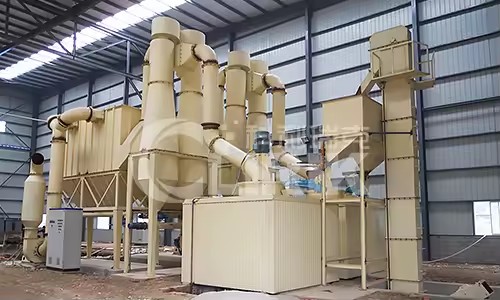

One set HGM100L micro powder mill installation cover 92 square meter space, 9 meter height. Total

Total line machine is closed system,the bag filters has passed CE&ISO certificate, our bag filter is pulse off-line type, which has many boxes working one by one, you can control the working time lag, when next one working, this worked one can have time to clean itself. By the way, we suggest clients install crushing line outside of factory, because crushing part surely have dust out.

Our wearing parts made by wear-resisting alloy steel, which is designed by our technical department with Bao Group together. The normal wearing parts includes ring, roller, turn plate and shaft pin, normally for grinding calcium carbonate, 10 hours /day, 30days/month, they can work 18-24 months.

Total

Also, once the hopper has no material for feeding main unit, then main unit will stop automaticly.

Once installation finished, you can store at least four setting data inside PLC soft, for example, you can set 325 mesh, 800 mesh, 1250 mesh and 2500 mesh, once you changing producing between these size, you can only set one key to transfer the producing size, which has made the operation steps very easy to accept.

Each bearing are using a No. 1 MOS2 grease or ZM - 2 sodium grease lubrication, roller bearing refueling once every two classes, the host bearing refueling once every four classes, blower bearings refueling once every month. Bearing temperature rise to a maximum of 70 degrees Celsius, was found to be breaking the bearing overheated bearings and bearing chamber cleaning accessories such as cleaning once.

If the head of the rivet is worn impeller, the impeller body by pressing and welding with the welding of the hub, so that the wear of the head of the rivet back to the normal state.

The rivet hole prone to fatigue cracks, the entire root available unused new electrode welding repair cracks, but at the center of symmetry axis impeller carried the rest of the crack at the welding electrode to stay in the area, and then a new welding repair cracks symmetrical rivet holes, as long as the rest of the electrodes when welding finished with symmetrical rivet repair the rest of the electrodes, welding up to ensure equal weight.

We supply all kinds of stone crushers and grinding mills(50-3000 mesh). →→ More information

In order to recommend suitable design for you, please kindly tell me

♥ What is your raw material to process? is it soft stone (like limestone, dolomite) or hard stone (like granite, basalt, river stone, etc)?

♥ What is the maximum feed size of your raw material? like 10-20mm

♥ What are output sizes you want? like 325mesh

♥ What is per hour capacity you want? like 1-3t/h

Now, please click the following contact to send us
