Product video
Certifications CE(4) · RoHS(6) · FCC · MSDS(2) · REACH(2)

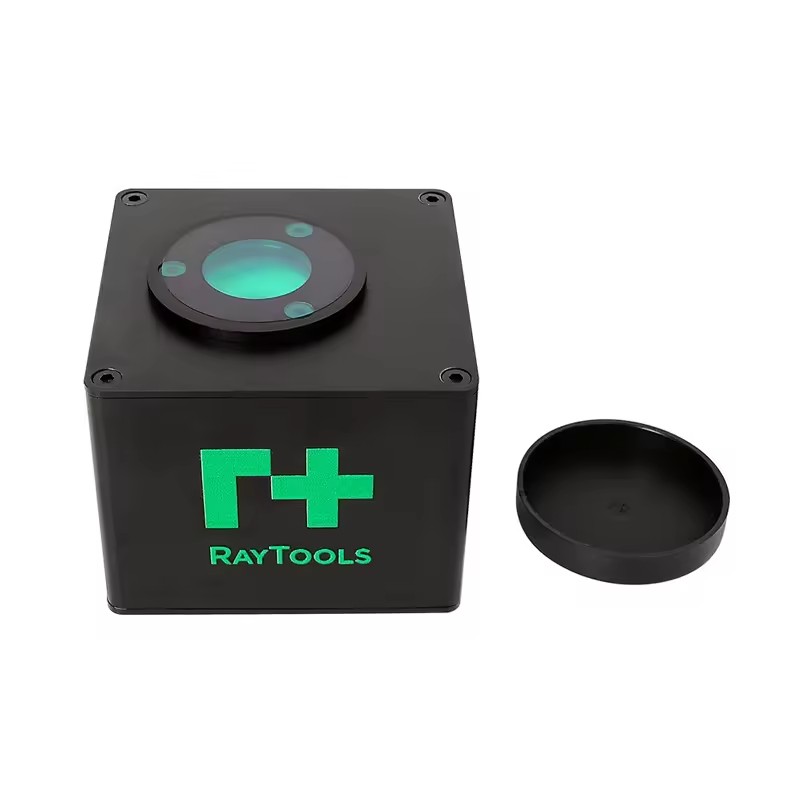

RayTools VBA Laser Nozzle Visual Aligner 1064nm Fiber Laser Cutting Centering Calibration Tool 1000mAh Standalone

Available for enquiry 0.0 · 0 reviews
USD

$ 1,170.00 1170.0 USD $ 1,170.00

Not Available For Sale

Minimum order quantity: 1 Units

Key attributes

View all
Spare parts type
Nozzle Visual Aligner
Wavelength
1064 nm, 940-980 nm, 1030-1080 nm, 1900-2000 nm
Operating voltage
Dc 12V
Laser type
Fiber Laser
Accessory Type
Nozzle Visual Aligner
Key selling points
Long Service Life
Product description

Highlights at a glance

  • AI-Powered High-Precision Calibration:Integrated AI vision technology with high-precision circle-fitting algorithm ensures accurate nozzle centering for fiber laser cutting machines. Say goodbye to traditional tape-burn guesswork - achieve professional-grade alignment in minutes.
  • Universal Compatibility:Works as a standalone module with virtually any fiber laser cutting machine - no dependency on specific laser cutting heads or CNC controllers. Compatible with RayTools, WSX, Precitec, BOCI, Ospri, Durma, and more.
  • High-Tolerance Design:No need to perfectly center the red beam within the module or maintain absolute leveling. The forgiving design makes calibration fast and stress-free for all skill levels.
  • Built-in 1000mAh Battery:Cordless-ready with 1000mAh/12Wh rechargeable lithium battery (12V DC input). Portable and easy to use anywhere on the shop floor without power constraints.
  • Complete Kit Included:Package includes: VBA alignment module, Li-ion battery charger, stainless steel calibration target, adjustment wrench, and full accessories kit - everything ready out of the box.
  • Wavelength: 1064nm - Purpose-Built for Fiber Lasers:Engineered specifically for 1064nm fiber laser systems, ensuring optimal optical compatibility and calibration accuracy.
  • 1-Year Warranty + Lifetime Technical Support:Backed by RayTools official quality with 1-year hardware warranty and ongoing remote technical support via video consultation.
    • Certifications & compliance
    CE(4)
    Complies with EU standards
    FCC
    Electromagnetic Compliance
    RoHS(6)
    RoHS compliant
    MSDS(2)
    Chemical Properties
    REACH(2)
    REACH Certified
    Frequently asked questions

    Yes. This is a genuine RayTools VBA (Visual Beam Aligner) manufactured by RayTools AG, model YM.QTZ05.0021. Certificate of authenticity available upon request.

    The VBA is designed as a universal standalone device. It is compatible with virtually all fiber laser cutting machines, regardless of the cutting head brand (RayTools, WSX, Precitec, BOCI, Ospri, Durma, HSG, etc.) or CNC controller model.

    The standard (cable) version connects via USB to a computer running the provided alignment software. No advanced technical skills are required - most operators master the process within minutes.

    The VBA is optimized for 1064nm fiber laser systems, the standard wavelength for industrial fiber laser cutting applications.

    The built-in 1000mAh (12Wh) lithium battery supports multiple calibration sessions per charge. It charges via the included Li-ion charger (Input: 100-240V AC, Output: 12.6V/2A). Typical charge time is approximately 1-2 hours.

    The complete kit includes: VBA alignment module, Li-ion charger, stainless steel calibration target, adjustment wrench, accessories kit (adapter rings, seals), and user manual.

    We offer 1-year warranty coverage, online video call technical support, step-by-step tutorial guidance, and lifetime remote consultation. Replacement parts are available for non-human-caused defects within the warranty period.

    Yes. The VBA features a high-tolerance design that does not require the module to be absolutely leveled or the red beam to be perfectly centered within the aperture - making it much easier to use than traditional alignment tools.
    Description images
    Product detail
    Product detail
    Product detail
    Product detail
    CE(4)
    FCC
    RoHS(6)
    MSDS(2)
    REACH(2)
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      7 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 15 fields
    Spare parts type
    Nozzle Visual Aligner
    Wavelength
    1064 nm, 940-980 nm, 1030-1080 nm, 1900-2000 nm
    Operating voltage
    Dc 12V
    Laser type
    Fiber Laser
    Accessory Type
    Nozzle Visual Aligner
    Key selling points
    Long Service Life
    Warranty
    Unavailable
    Condition
    New
    Place of origin
    China, Jilin
    Weight (kg)
    0.3
    Selling Units
    Single item
    Single package size
    15X15X15 cm
    Single gross weight
    2.5 kg
    Model number
    VBA(YM.QTZ05.0021)
    Certifications & Compliance
    CE(4), RoHS(6), FCC, MSDS(2), REACH(2)
    Lead time
    7 days
    Minimum order
    1 Units
