Multi-Function CNC Bridge Cutter 4+1 Axis Cutting Machine High-Pressure Water Jet for Slabs and Motor Gear Bearing

4+1 AXIS CNC BRIDGE SAW STONE CUTTING MACHINE PRODUCT PARAMETERS

control system

Self developed bridge cutting customization system (touch, manual input)

Tilt angle of saw blade

0-45°

Main motor power

15KW

Standard RPM

2800r /min

Electric spindle

7.5kw

Sports power (W)

18.5kW

voltage

380V/50Hz

transmission

X/Y gear rack+planetary gearbox+Z ball screw

guide rail

30 straight square guide rails

XYZ motion system

Communication 1.5KW bus servo

Cutting speed of X-axis

1-12000 millimeters per minute

Y-axis cutting speed

1-12000mm/min

Z-axis cutting speed

1-2000 millimeters per minute

place of origin

Shandong

warranty period

1 year

Water consumption

3.5m³\h

Video factory inspection

can provide

cutting object

Natural stone materials such as slate, quartz, marble, granite, and ceramic tiles

Provide after-sales service

Engineers can provide on-site overseas services

Cutting applicable shapes

Horizontal and vertical cutting, 45 degree chamfer, diamond shaped, trapezoidal, circular, fan-shaped, elliptical

Product Description

Multi-Function CNC Bridge Cutter 4+1 Axis Cutting Machine High-Pressure Water Jet for Slabs and Motor Gear Bearing

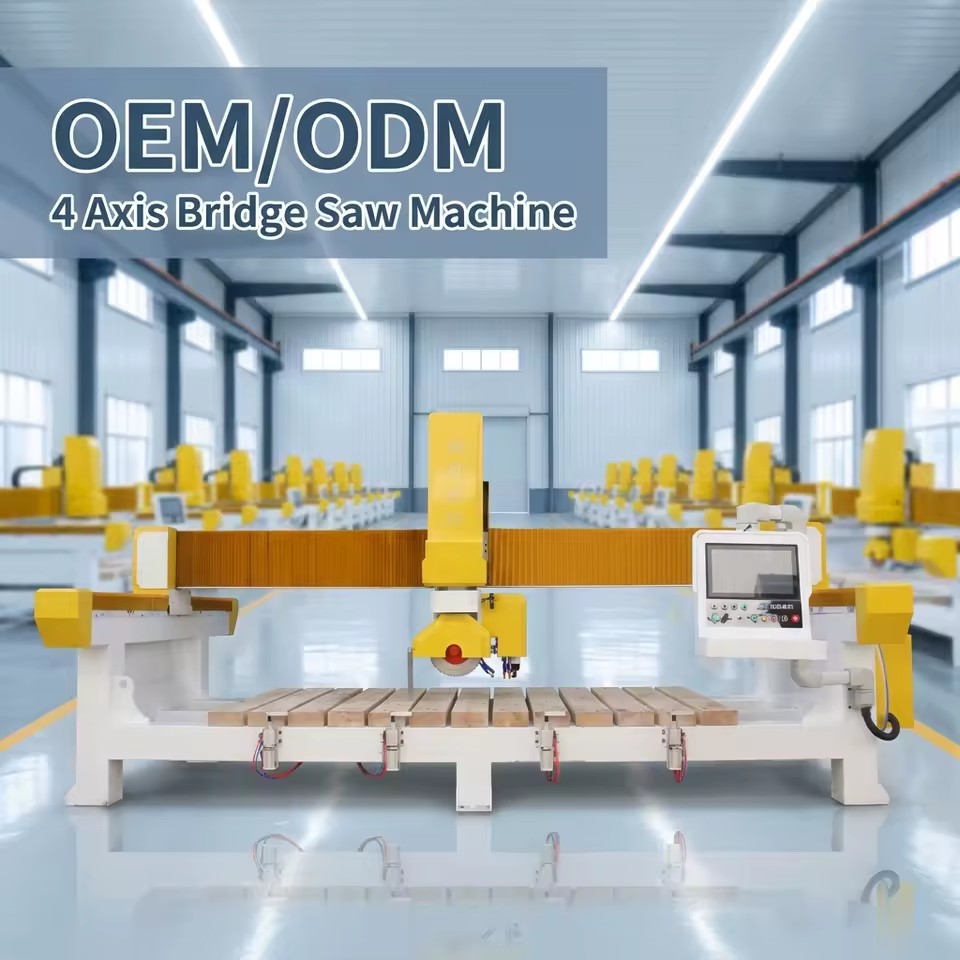

These are real photos of Brand Bridge Saw Cutting Machine.

The products finally purchased by customers can be customized in color, Brand logo,appearance,structure, operating system and other aspects, and there may be slight differences.

Specification

00:00

4+1 AXIS CNC BRIDGE SAW

STONE CUTTING MACHINE

PRODUCT PARAMETERS

The 4-axis CNC bridge cutting machine is equipped with a self-developed control system,a touchscreen operating system, and advanced imported components, offering high precision, stability, and efficiency. This machine is designed for cutting high-value, large-format granite and marble slabs. lts main motor has a power of 15 kW and a speed range of 0-4500 rpm. lts multi-axis travel range includes 3200 mm on the X-axis,2000 mm on the Y-axis, 500 mm on the Z-axis and 0-360° on the C-axis, ensuring versatile cutting capabilities. The machine's worktable has a maximum tilt angle of 0-85°. lts overall dimensions are 5200 x 3300 x 2500 mm and weigh approximately 3000 kg.

MAIN TECHNICAL INDICATORS

ZOOM IN ON PRODUCT

DETAILS,YOU ONLY

NEED THIS ONE

Details contribute to quality

Recommended by seller

$10,600

set

$9,887

$10,888

$24,600

$9,900

piece

$19,980

$2,780

$7,552-7,952

FAQ

1. What machines do you supply?

We manufacture stone engraving machines, granite engraving machines, 3-D carving units, engraving-cutting-copying all-in-one machines, wire-saw cutting machines, large-format stone routers and quartz-stone machining centers.

2. What stone can your equipment process?

Granite, marble, quartz, basalt, sandstone, limestone, artificial stone and glass-stone composites.

3. What is your best-selling model product?

MK-2025S (1.3 × 2.5 m work-area, 5.5 kW water-cooled spindle, steel T-slot & vacuum table). 1200 sets sold in 2024.

4. Do you accept customization?

Yes—work-size, spindle power, ATC magazine, rotary axis, servo brand, color and logo can all be customized. MOQ: 1 set.

5. How fast can you ship?

Standard models: 7-10 days. Custom models: 15-20 days. Peak season (Mar–Jun): add 5 days.

6. What certificates do you provide?

CE, ISO 9001, SGS factory audit, CO, Form A/E, BV inspection on request.

7. What is the warranty?

One-year full machine warranty, lifetime tech support. Spare parts shipped within 48 hours by DHL/FedEx.

8. How do you provide after-sales service?

English-speaking engineers online 24/7; free replacement parts during warranty

We are online 24 hours a day

9. What control system do you use?

Self developed CNC system.

NcStudio, DSP or Syntec—depending on model. All include English interface and USB/Ethernet port.

10. Is training provided?

Yes - detailed English manual+video tutorial+remote training. Provide on-site training

11. What payment terms do you accept?

Trade Insurance, wire transfer (30% deposit, 70% before shipment)

n you arrange the shipping cost?

Yes - Qingdao offshore price, we offer a transportation plan that suits you.

13.What voltage do you provide?

Standard: 380 V/3-phase/50 Hz. Optional: 110V, 220 V/single-phase/60 Hz, 415 V/three-phase/60 Hz

14. How can I place an order?

Click on '

15.May I visit your factory?

Welcome to visit anytime. We are a 1-hour drive from Jinan Yaoqiang Airport and a 20 minute drive from Dezhou East High speed Railway Station. Airport pickup and hotel Serious buyers can book for free.
