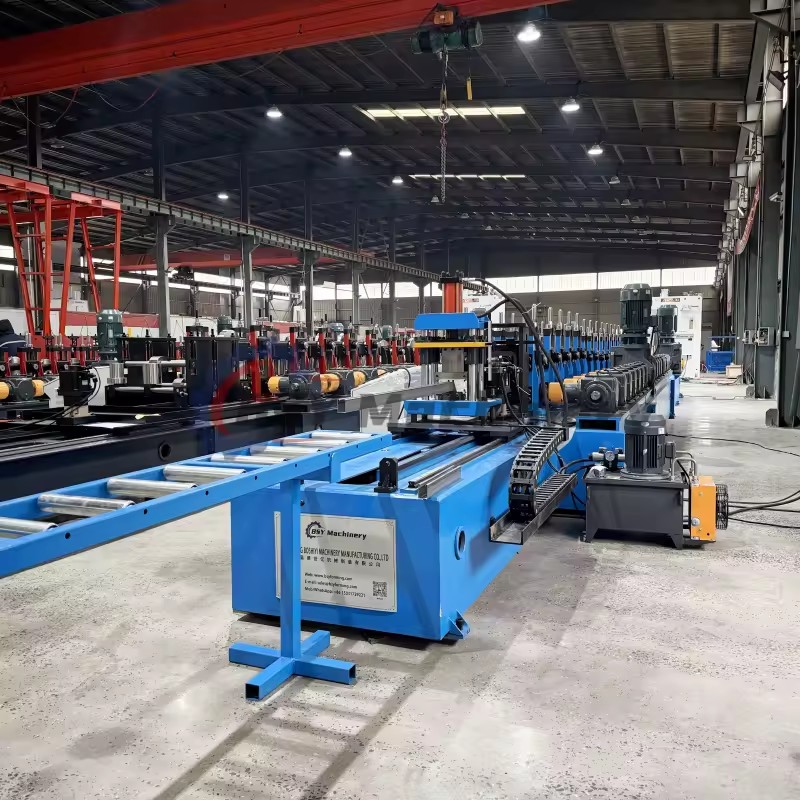

Durable Zinc Aluminum Magnesium ZAM Steel PV Mounting Structure Support Base Solar Panel Roll Forming Machine

Available for enquiry 0.0 · 0 reviews
USD

$ 71,520.00 71520.0 USD $ 71,520.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Type
  • Tile Type
  • Feeding width
  • Rolling thinckness
  • Voltage
  • Core components
  • Use
  • Warranty
  • Video outgoing-inspection
  • Machinery test report
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Roller material
  • Thinckness
  • Control system
  • Cutting type
  • Raw material
  • Length and piece measure
  • Frame Material
  • Roll material
  • Selling Units
  • Model number
  • Power (W) (Product option)
  • Production Capacity (Product option)

This combination is unavailable.

Key attributes

View all
Type
Tile Forming Machine, Solar Panel Bracket Roll Forming Machine
Tile Type
Galvanized Steel
Feeding width
customized
Rolling thinckness
1-3mm
Voltage
380 V
Core components
Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
Product description
  • Industrial Solar PV Mounting Structure Roll Forming Machine - ZAM Optimized
  • Value Proposition: High-speed, precision ZAM bracket production system designed for utility-scale solar projects, delivering a 30% increase in manufacturing efficiency.
  • Core Selling Points
  • Advanced ZAM Material Processing: Specifically engineered to handle high-strength Zinc-Aluminum-Magnesium (ZAM) plates without surface damage, ensuring the 25-year anti-corrosion life cycle required for global solar infrastructures.
  • Full-Servo Flying Punching & Cutting: Equipped with an ultra-precise servo-driven system that achieves ±0.5mm accuracy at 50m/min speeds. The "non-stop" motion eliminates production bottlenecks and ensures flawless hole alignment for mounting brackets.
  • Industry-Leading 50m/min Speed: Optimized mechanical architecture increases total output by over 30% compared to standard machines, significantly lowering your operational cost-per-meter and accelerating project ROI.
  • Extreme Durability Alloy Rollers: Rollers are crafted from Cr12MoV with vacuum heat treatment (HRC58-62), providing exceptional wear resistance and dimensional stability for heavy-duty solar mounting rail production.
  • Smart Integrated PLC Control: Features a centralized Siemens/Delta PLC system with multi-language support and remote diagnostic capabilities, enabling seamless production management for distributed rooftop and ground-mounted projects.
  • Application Scenarios
  • Utility-Scale Ground Power Plants: High-volume production of C/U/Z-type high-strength mounting rails.
  • Distributed Commercial Rooftops: Precision manufacturing of lightweight aluminum or galvanized steel PV structures.
  • Agri-Voltaic Systems: Customized profiles for specialized solar greenhouse and farmland mounting frames.
  • Trust & Service
  • 12-month comprehensive global warranty and life-time technical support.
  • Expert video installation guidance and 24/7 remote technical assistance.
  • Custom profile and tooling design based on your specific regional EPC standards.
  • Durable Zinc Aluminum Magnesium ZAM Steel PV Mounting Structure Support Base Solar Panel Roll Forming Machine

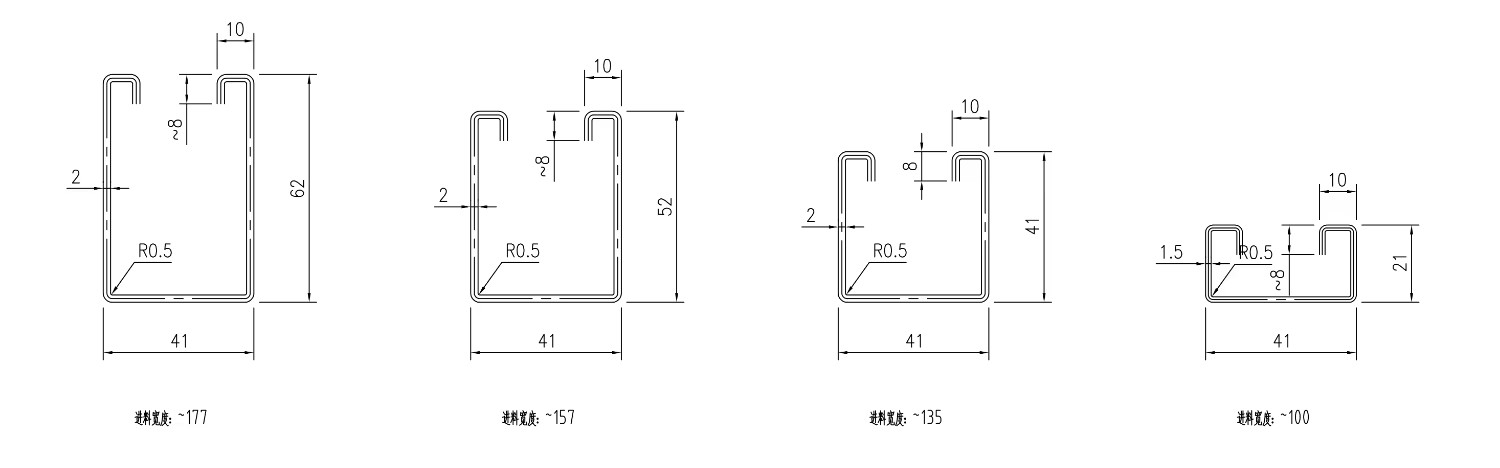

    • Solar Braket
    1Working speed10-15 m/min（Shear time is not included）
    2Pressed plate thickness1.5-3.0mm
    3Control modePLC DELTA
    4Discharging rack10T Hydraulic Decoiler
    5Roll materialGcr15 quenching of steel after finishing HRC58-62℃，surface chrome plating
    6Shaft material and diameter45# Steel finishing，Shaft diameter is￠76mm
    7Main engine power15kw
    8Power of hydraulic station11kw
    9Hydraulic pressure12Mpa
    Description images

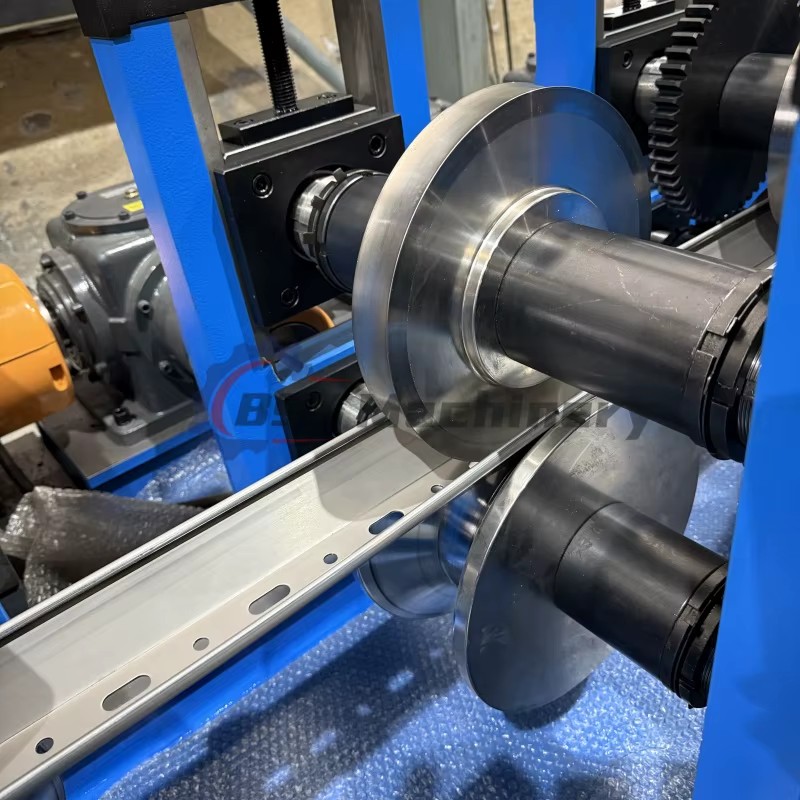

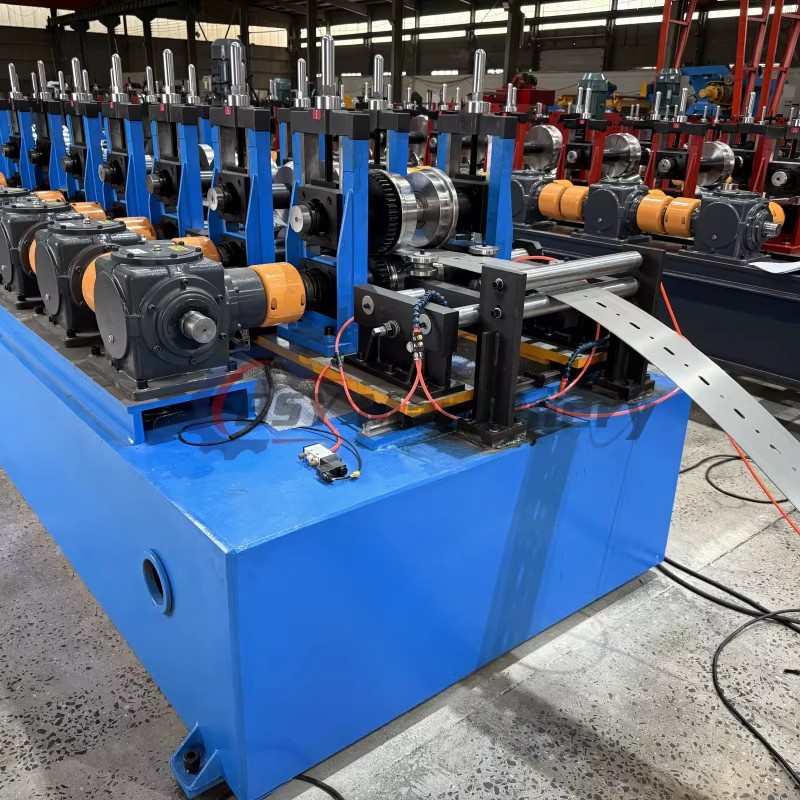

    Product detail

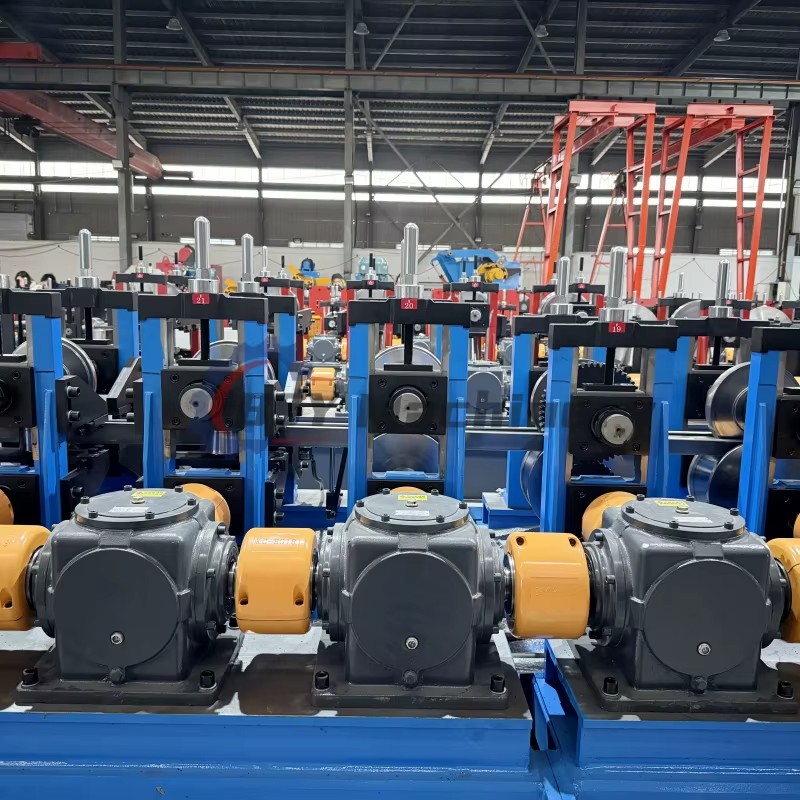

    Product detail
    Product detail
    Durable Zinc Aluminum Magnesium ZAM Steel PV Mounting Structure Support Base Solar Panel Roll Forming Machine
    Packaging and fulfilment
    • Step 1

      Payment and order readiness

      Minimum order: 1 Units

      Payment terms, specifications, and order details are confirmed before preparation begins.

    • Step 2

      Preparation

      35 days

    • Step 3

      Packaging and dispatch

      Packaging details are available on request.

      Final packing, freight, and delivery dates are confirmed before dispatch.

    Technical specifications
    Other details 26 fields
    Type
    Tile Forming Machine, Solar Panel Bracket Roll Forming Machine
    Tile Type
    Galvanized Steel
    Feeding width
    customized
    Rolling thinckness
    1-3mm
    Voltage
    380 V
    Core components
    Bearing, PLC, Motor, Gear, Engine, Pump, Gearbox
    Use
    Solar Bracket
    Warranty
    1 Year
    Video outgoing-inspection
    Provided
    Machinery test report
    Provided
    Key selling points
    Easy To Operate
    Place of origin
    China, Hebei
    Weight
    16500 kg
    Dimension (L*W*H)
    780*140*160
    Roller material
    45#steel
    Thinckness
    1-5mm
    Control system
    PLC(imported Brand)
    Cutting type
    Cr12Mov
    Raw material
    PPGI PPGL GI GL
    Length and piece measure
    Automatic Measuring
    Frame Material
    350 H-high Grade Steel
    Roll material
    45# High Grade Steel Chorme
    Selling Units
    Single item
    Model number
    solar brackets production line
    Power (W) (Product option)
    3000
    Production Capacity (Product option)
    30 m/min, 20 M/Min, 25 M/min
    Lead time
    35 days
    Minimum order
    1 Units
