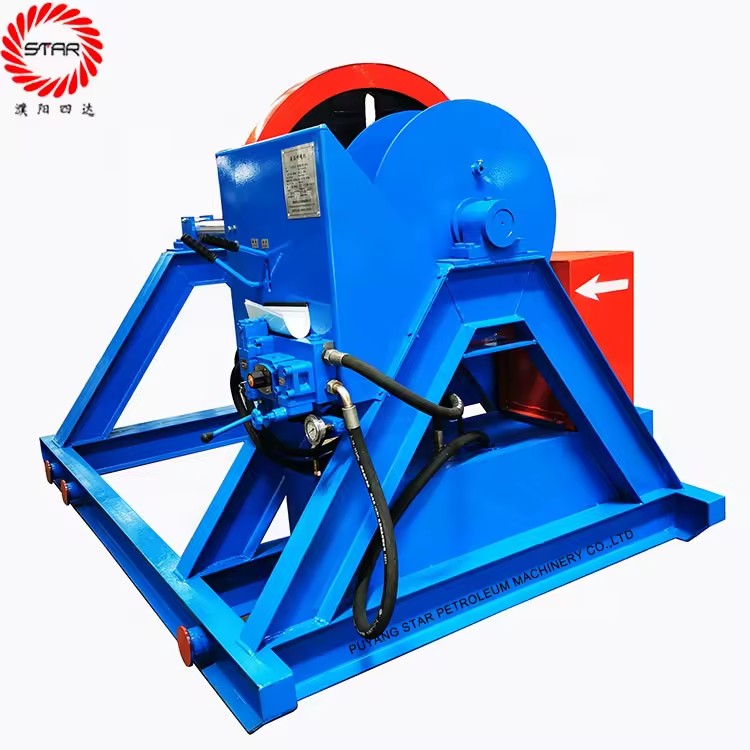

Pneumatic/Electric/Diesel Engine Powered Wire Spooler Drilling Line Spooler

Product Importer Gallery 01 · 228d6c423f

Product Importer Gallery 02 · 5343568969

Product Importer Gallery 03 · a0c1df19fa

Product Importer Gallery 04 · e070771483

Product Importer Gallery 05 · 647f58201d

Product video

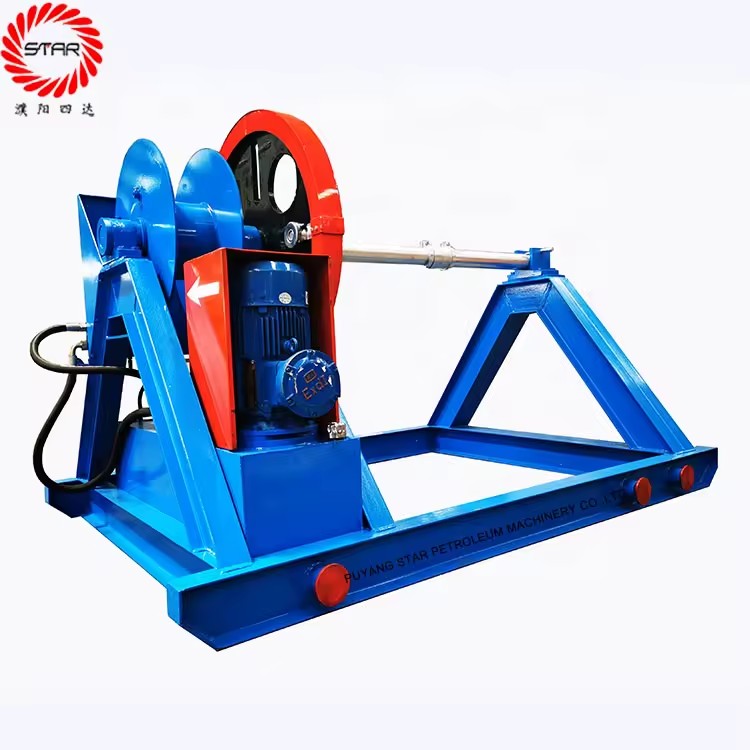

Pneumatic/Electric/Diesel Engine Powered Wire Spooler Drilling Line Spooler

Name: Pneumatic/Electric/Diesel Engine Powered Wire Spooler Drilling Line Spooler
SKU: DNB3-SCS7-WV8M
Price: 10370.0 USD
Availability: PreOrder

Available for enquiry 0.0 · 0 reviews

USD

$ 10,370.00 10370.0 USD $ 10,370.00

Minimum order quantity: 1 Units

Key attributes

View all

Type

Drilling Rig Parts

Power Type

Diesel

Voltage

7.5Kw

Machinery test report

Provided

Warranty

2 Years

Core components

Motor, Gear, ROLLER, Main Body, Shaft, Brake Macha

Order this product

Chat available

Order quantity

Closed-loop order inspection and delivery process

Your order, safely delivered

The same protected process applies to small and large orders.

Step 1

Order and payment

Pay our local business partner by local bank transfer, or use an agreed payment arrangement.
Step 2

Pre-shipment proof

We inspect the actual items and share product photos and video before dispatch.
Step 3

Local-office dispatch

The sealed shipment travels to our local office in your country.
Step 4

Inspect and deliver

Our local representative checks it, shares images and video, then confirms your delivery date.

Shipping

Shipping fees and delivery dates are confirmed with your quotation.

Secure payments

Payments are processed securely by the payment providers enabled on this website.

Buyer protection

Order protection is subject to your published commercial and refund policies.

Share this listing

Product description

Model/Product Name	DSJ15-D drilling line spooler
Drive Type	Electric
Support Spacing (mm)	1320
Height of Center (mm)	1650
Rated Output Torque (kN.m)	10
Rated Speed (RPM)	3.7-18RPM
Motor Power (MPa)	7.5kw 380V 50Hz
Max Workload (Kg)	15000
Weight (Kg)	1800
Dimension (mm)	3045x2050x1845

Product Application

Drill Line Spooler Technical Parameters
SPEC/Model	DSJ8-D	DSJ15-D	DSJ8-Y	DSJ15-Y	DSJ15-Q
Drive Type	Electric	Hydraulic	Pneumatic
Support Spacing (mm)	1260	1320	1260	1320	1320
Height of Center (mm)	1105	1640	1105	1640	1640
Rated Output Torque (kN.m)	10
Rated Speed (RPM)	3.7-18	0.55-17.5	0.5~13rpm
Motor Power (kw)	5.5kw (380V/50Hz 460V/60Hz)	7.5kw (380V/50Hz 460V/60Hz)
Hydraulic Pressure (MPa)	16MPa Flow:100L/min
Gas Consumption	≤15m3/min(≈6 m3/min)
Max Load (Ton)	8	15	8	15	15
Remarks	Customized production on request, such as load, canopy, with wire rope drum, single drum，etc.

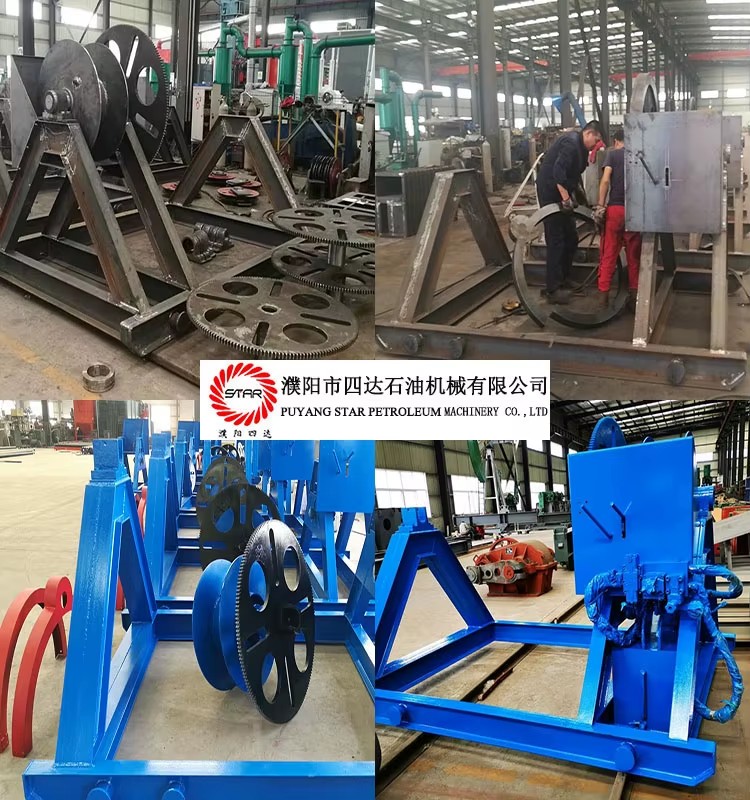

Drill Line Storage Reel Production

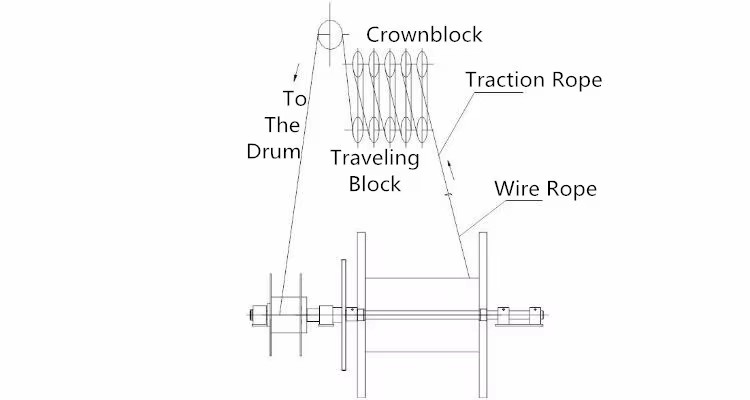

Drill Line Storage Reel Line Threading Method

Description images

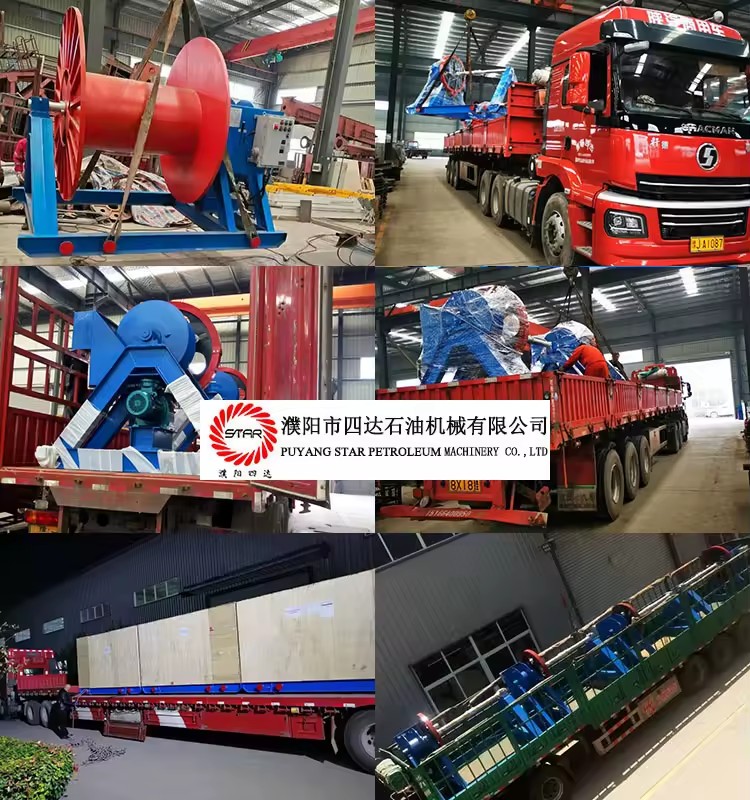

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

45 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 22 fields

Type

Drilling Rig Parts

Power Type

Diesel

Voltage

7.5Kw

Machinery test report

Provided

Warranty

2 Years

Core components

Motor, Gear, ROLLER, Main Body, Shaft, Brake Macha

Video outgoing-inspection

Provided

Place of origin

China, Henan

Weight

1800 KG(3968.32lb)

Dimension (L*W*H)

3045x2050x1845mm(119.88x80.71x72.64in)

Model

DSJ15-D

Drive Type

Electric

HS CODE

8431100000

Advantage

Factory Direct Sale

Color

red, gree or customized as requirement

Product Category

Drilling Rig Auxiliary Equipment

OEM

Support

Custom service

Support

Remarks

Not only for oilfield, port and other operation can use it too.

Selling Units

Single item

Power (W) (Product option)

7.5kw 380V 50Hz

Model number

DSJ15-D

Lead time

45 days
