Oil Well Drilling Standpipe Pressure Sensor

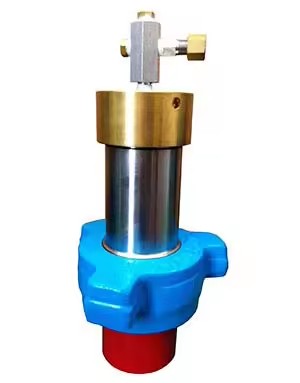

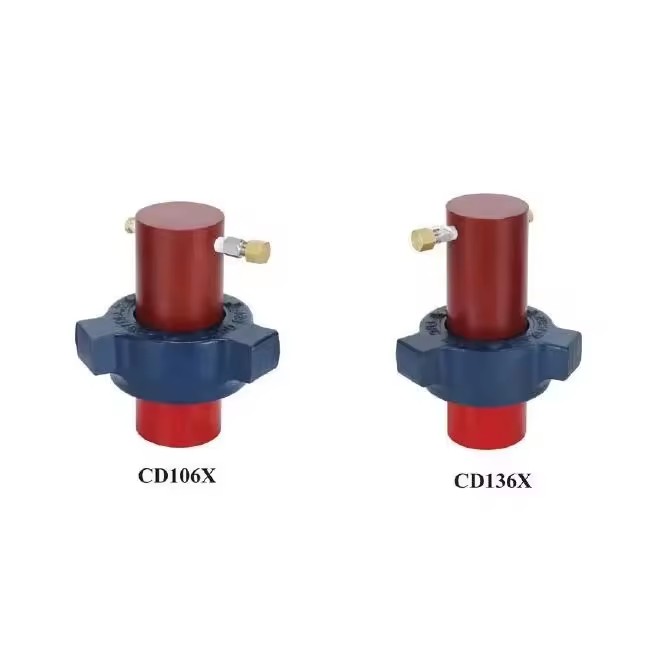

DIAPHRAGM PROTECTOR 1:1 Piston Protects measuring or recording device from working fluid while transmitting no-lag, linear pressure gged workhorse sensor found in every corner of the world doing every conceivable pressure sensing job. Robust, time proven design allows easy field repair and maintenance.Available in flanged, threaded, and weld on female sub configurations.

4:1 PRESSURE DEBOOSTER The Debooster is a stepped piston device which reduces the line pressure by a ratio of 4:1. System Pressure Gauges and Recorders are therefore calibrated at ¼ the line pressure. The Debooster external configurations are based on 2" Buttweld Sub and Wing Nut Unions.The Debooster Cylinder replaces the Union Male Sub. The Union Wing Nut is used; the buttweld Female Sub is optionally available.A fluid Separator replaces the Union Seal Ring.

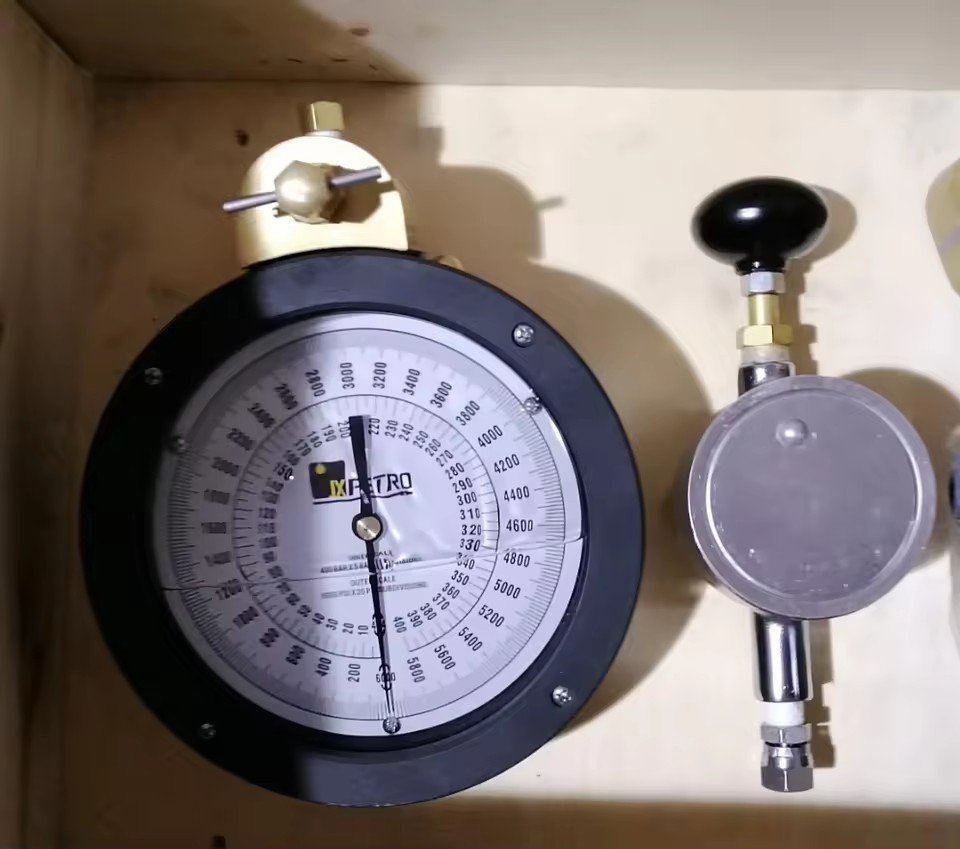

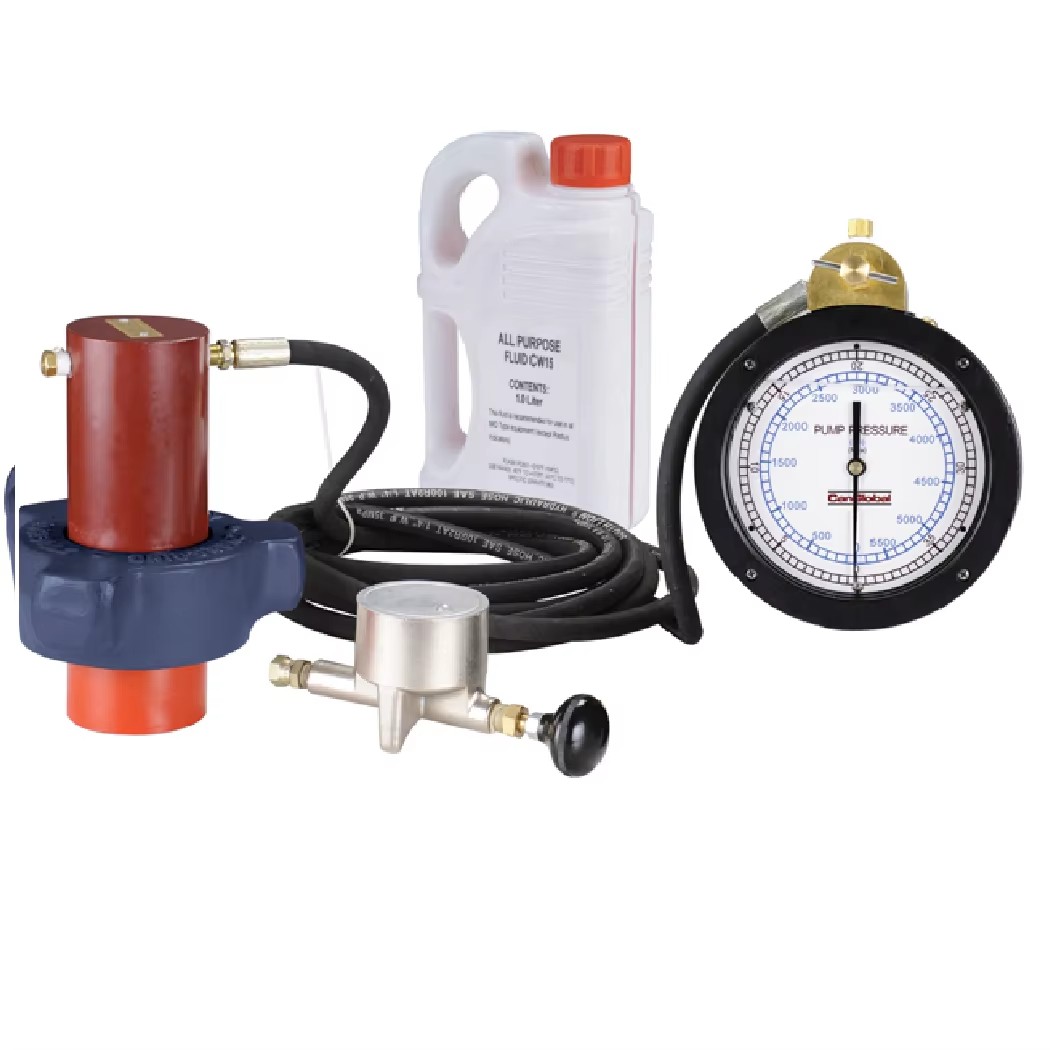

1. 6" dial face on gauge allows clear viewing firom long distance. 2. Rugged design over years of service has proven this gauge to be accurate and dependable in extreme conditions. 3. Flexibility of mounting design allows gauge to be mounted in a drillers console, bracket or panel mounted in a pumping truck 4. 360 degree calibration allows operator to viewthe smallest pressure changes 5. Damper allows operator to adjust gauge sensitivity to ensure accurate readings in all kindof pumping conditions 6. Fluid filled to protect the gauge from rig vibrations and frosting in winter

DIAPHRAGM PROTECTOR 1:1 Piston Standard Capacities include: 3,000, 5,000, 6,000, 10,000, and 15,000 psi, (210, 350, 420, 700, and 1,000 kg/cm 2), 10K, 21K, 42K, 70K, 80K, (21, 35, 42, 70, 100 MPa). 4:1 PRESSURE DEBOOSTER

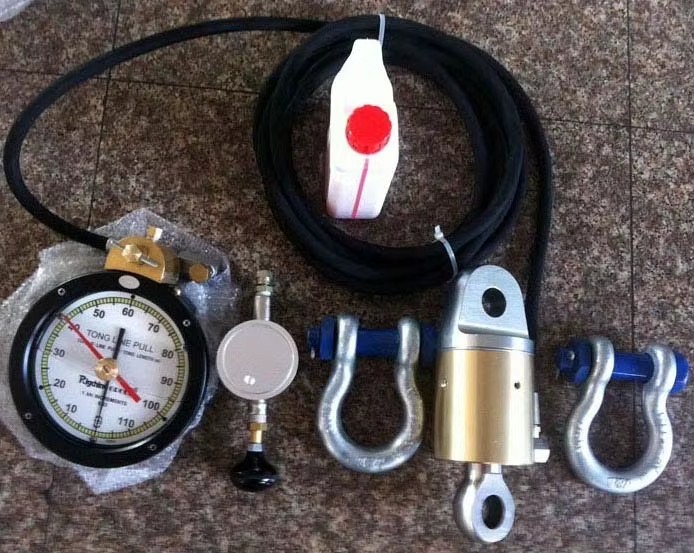

TONG TORQUE AND TONG LINE PULL INDICATION SYSTEMS

PUMP STROKE COUNTER/RATE METER

WEIGHT INDICATOR AND DEADLINE ANCHOR
