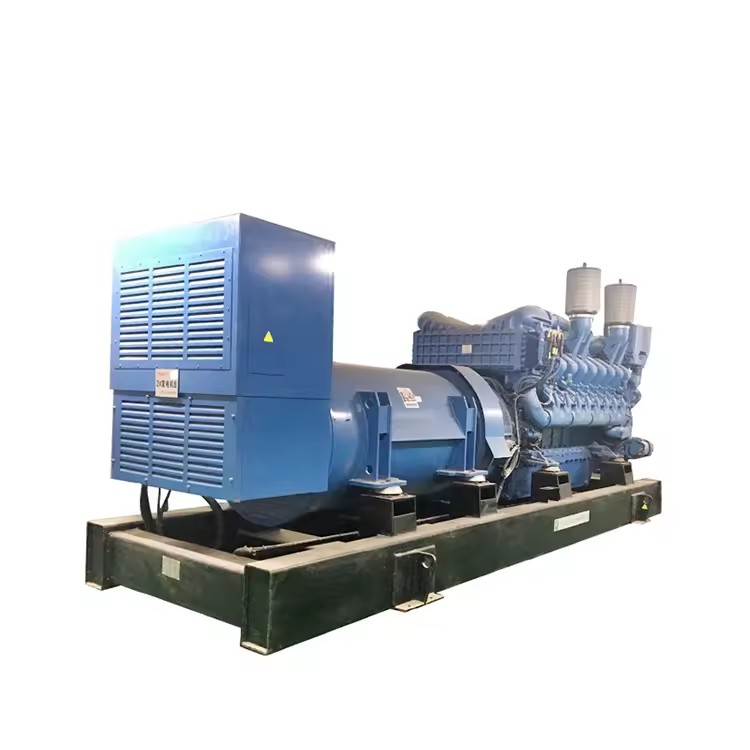

Diesel Generator 6.6kv 2mva Genset Engine AVR Regulator 50/60Hz Synchronization for Power Plant Silent Container ATS

Available for enquiry 0.0 · 0 reviews
USD

$ 300,320.00 300320.0 USD $ 300,320.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Frequency
  • Rated voltage
  • Type
  • Cooling System Type
  • Rated current
  • Protection
  • Speed
  • Starting System
  • Options
  • Efficiency
  • Place of origin
  • Model number (Specification)
  • Weight
  • Controller
  • Cooling Method
  • Protection Class
  • Regulator
  • Power factor
  • Governor
  • Starting Method
  • Keyword
  • Fuel tank
  • Selling Units
  • Single volume
  • Single gross weight
  • Rated Power (Product option)
  • Output Type

This combination is unavailable.

Key attributes

View all
Frequency
50/60HZ
Rated voltage
6600V
Type
Open Frame, Super Silent Type, Silent Type, Container Type, Canopy Type
Cooling System Type
Water Cooling System, Cooling Fins
Rated current
Depend
Protection
Overload Protection, Automatic Voltage Regulation, Low Oil Shutdown, Under-Voltage Protection
Product description
Main Technical Parameters
Genset ModelBCX82
Prime Power75KW / 94KVA
Standby Power82KW / 103KVA
Frequency/Speed50Hz/1500rpm
Rated Voltage400V
Power Factor0.8
Fuel consumption (100% load)：21.7L/h
Oil tank200 L
Phasethree-phases, four-wires
EngineCummins
AlternatorEngga/Stamford/Marathon/Leroy Somer/Shenzhou/Faraday
ControllerDeepSea/DEIF/SmartGen
Dimensions (LxWxH)2120×860×1430mm
Net Weight1200kgs
Main Technical Parameters
Engine Model6BT5.9-G1
Prime/standby power86KW/92KW
Rated Voltage400V
Frequency/Speed50Hz/1500rpm
Cylinders no. & Type6 cylinders in line, 4 cycle
AspirationTurbocharging
Bore × Stroke102×120mm
Displacement5.9L
Compression ratio17.3：1
Main Technical Parameters(Faraday Parameter for reference)
Alternator ModelFD3A-4
Prime power80KW
Rated Voltage400V
Frequency/Speed50Hz/1500rpm
Power Factor0.8
Efficiency90.3%
DesignSelf-excitation brushless excitation
RegulatorAVR self-regulation
Stator2/3 winding pitch
Exciter TypeBrushless excitation
Windings100% copper
Voltage regulation≤±1%
Short circuit current capability＞300%(3 times)：10s
Indication of protectionIP23
Insulation classH
Total Harmonic DistortionNo load <1.5%, non-distorting balance linear load <5.0%
<50
<2%
Dimensions (LxWxH)1050x670x1030mm
Weight380 kg
Description images
Product detail
Product detail
Product detail
Product detail
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    60 days

  • Step 3

    Packaging and dispatch

    Ocean freight via Maersk · Approx. shipping fee: $ 0.84 for 1 unit · Transit time: Est. 17-24 days

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 27 fields
Frequency
50/60HZ
Rated voltage
6600V
Type
Open Frame, Super Silent Type, Silent Type, Container Type, Canopy Type
Cooling System Type
Water Cooling System, Cooling Fins
Rated current
Depend
Protection
Overload Protection, Automatic Voltage Regulation, Low Oil Shutdown, Under-Voltage Protection
Speed
1500/1800RPM
Starting System
Auto Start, 24V DC Electric Start, Remote Start
Options
Remote Control, ATS, Rainproof Canopy, Battery Charger, Digital Module, Current Meter
Efficiency
0.85
Place of origin
China, Guangdong
Model number (Specification)
BMM2500
Weight
12000kg
Controller
DSE8610
Cooling Method
Watercooled, intercooled
Protection Class
IP23
Regulator
AVR
Power factor
0.8 (lag)
Governor
Mechanical /Electronic/ Electronic fuel injection system
Starting Method
24V DC Start Battery
Keyword
Diesel Generator 20kw-2000kw
Fuel tank
8-10hours
Selling Units
Single item
Single volume
0 cm3
Single gross weight
0.0 kg
Rated Power (Product option)
1600KW
Output Type
AC Single Phase, AC Three Phase
Lead time
60 days
Minimum order
1 Units
