Product video
Certifications CE

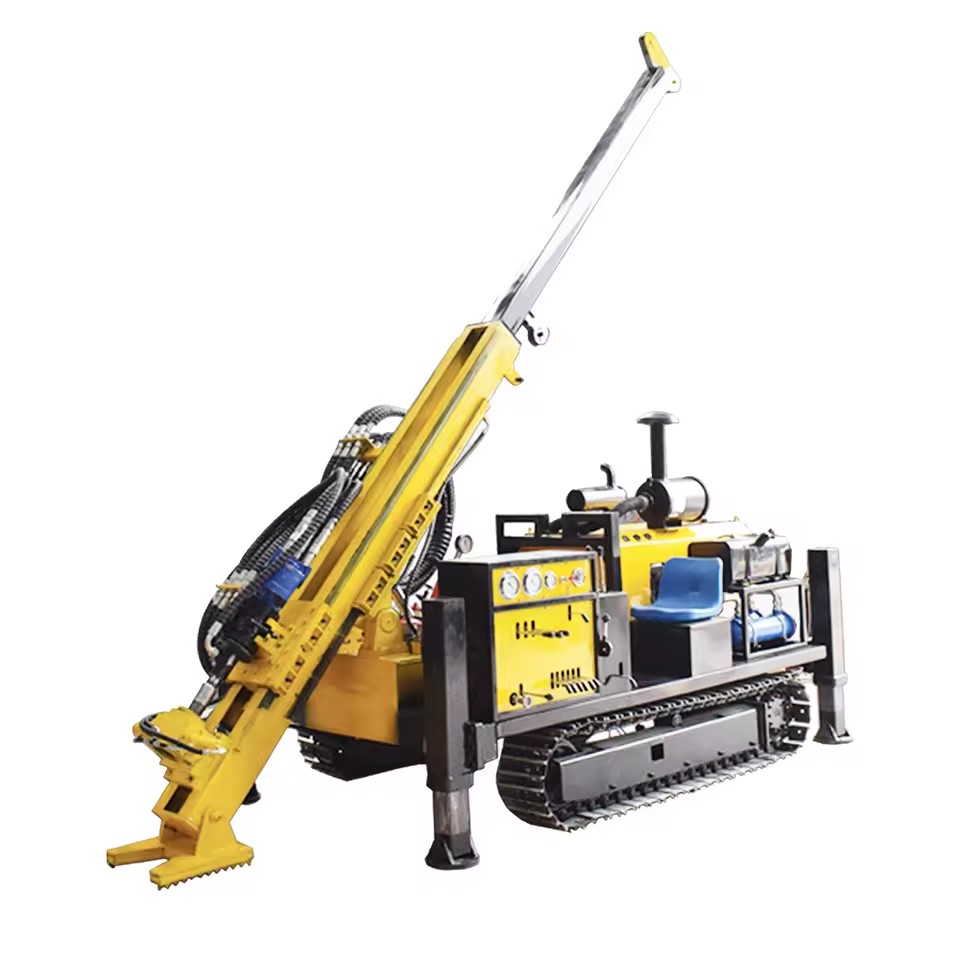

Depth 600 Meters Core Drilling Rig Water Well Drilling Rig with air Compressor Mud Pump Geological Exploration

Available for enquiry 0.0 · 0 reviews
USD

$ 11,720.00 11720.0 USD $ 11,720.00

Not Available For Sale

Minimum order quantity: 1 Units
  • Usage
  • Type
  • Drilling Depth
  • Drilling Diameter
  • Power Type
  • Voltage
  • Core components
  • Warranty
  • Machinery test report
  • Video outgoing-inspection
  • Key selling points
  • Place of origin
  • Weight
  • Dimension (L*W*H)
  • Diameter
  • Depth
  • Rated pressure
  • Rated flow
  • Cooling type
  • Engine type
  • Rated power
  • Traveling speed
  • Power head Maximum torque
  • Power head Feeding stroke
  • Selling Units
  • Single package size
  • Single gross weight
  • Model number
  • Power (W) (Product option)
  • Certifications & Compliance

This combination is unavailable.

Key attributes

View all
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.600m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in)
Power Type
Diesel
Voltage
220V/380V
Product description
ModelHW-YDX-400XLHW-YDX-600XLHW-YDX-600GLHW-YDX-800XLHW-YDX-800GLHW-YDX-1000GL
Drilling capacity
DiameterHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTWHTW-NTW-BTW
Depth(m)180-400-500(M)200-600-650(M)200-600-650(M)400-800-1000(M)400-800-1000(M)500-1000-1100(M)
Hydraulic system
Rated pressure(Mpa)21(MPA)21(MPA)21(MPA)25(MPA)25(MPA)28(MPA)
Rated flow(L/min)168(L/min)192(L/min)192(L/min)260(1./min)260(1./min)300(L/min)
Cooling typeAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water coolingAir cooling + Water cooling
Engine
Engine BrandYuchaiYuchaiYuchaiYuchaiYuchaiCummins
TypeTurbochargeTurbochargeTurbochargeTurbochargeTurbochargeTurbocharge
Rated rotary speed(rpm)2400(RPM)2400(RPM)2400(RPM)2400(RPM)2400(RPM)2400(RPM)
Rated power(KW)78/70929292 (6 cylinders)92 (6 cylinders)154
Power head
Maximum torque(Nm)300-500(N.M)450-1000(N.M)450-1000(N.M)950-1300(N.M)950-1300(N.M)1000-3500(N.M)
Maximum rotary speed(rpm)1300(RPM)1300(RPM)1300(RPM)1300(RPM)1300(RPM)1300(RPM)
Feeding stroke(mm)1900(MM)1900 (MM)1900 (MM)2400 (MM)2400 (MM)3500(MM)
Drilling tower
TypeGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling towerGround contact integrated drilling tower
Drilling angle(°)45-90(°)45-90(°)45-90(°)45-90(°)45-90(°)45-90(°)
Lifting force(T)12(T)16(T)16(T)24(T)24(T)30(T)
Feeding force(T)6(T)8(T)8(T)12(T)12(T)15(T)
Winch
Lifting force(KG)500(KG)600(KG)600(KG)600(KG)600(KG)1000(KG)
Rotary speed(rpm)100-240(RPM)100-300(RPM)100-300(RPM)100-300(RPM)100-300(RPM)100-300(RPM)
Wire rope diameter(mm)6(MM)6(MM)6(MM)6(MM)6(MM)6(MM)
Rope capacity(m)500(M)600(M600(M800(M)800(M)1000(M)
Traveling system
TypeManual + remote controlManual + remote controlManual + remote controlManual + remote controlManual + remote controlManual + remote control
Traveling speed(km/h)2.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)3.5(KM/H)
Climbing angle(°)45(°)45(°)45(°)45(°)45(°)45(°)
Hydraulic mud pump
Mud PumpBW-90BW-90BW-90BW-90BW-90BW-160
Flow(L/min)30-90(L/min)30-90(L/min)30-90(L/min)90-180(L/min)90-180(L/min)90-180(L/min)
Pressure(Mpa)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)4-7(MPA)
Transport dimension(mm)4000*1900*1800(MM)4000*2000*1800(MM)4000*2000*1800(MM)5500*2100*2000(MM)5500*2100*2000(MM)6000*2200*2400(MM)
Weight(T)4.3(T)4.5/5.5(T)4.5/5.5(T)6.5(T)6.5(T)7.5(T)
Certifications & compliance
CE
Complies with EU standards
Description images
Product detail
Product detail

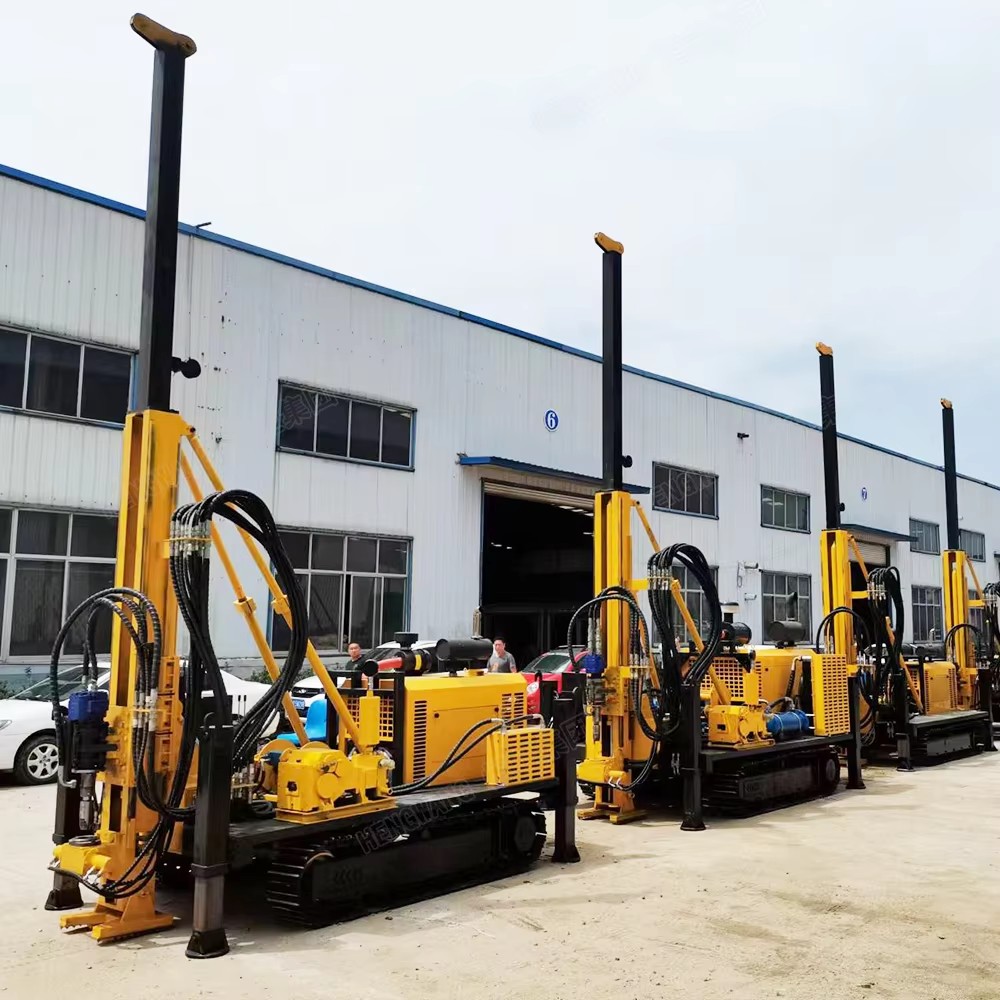

Product detail

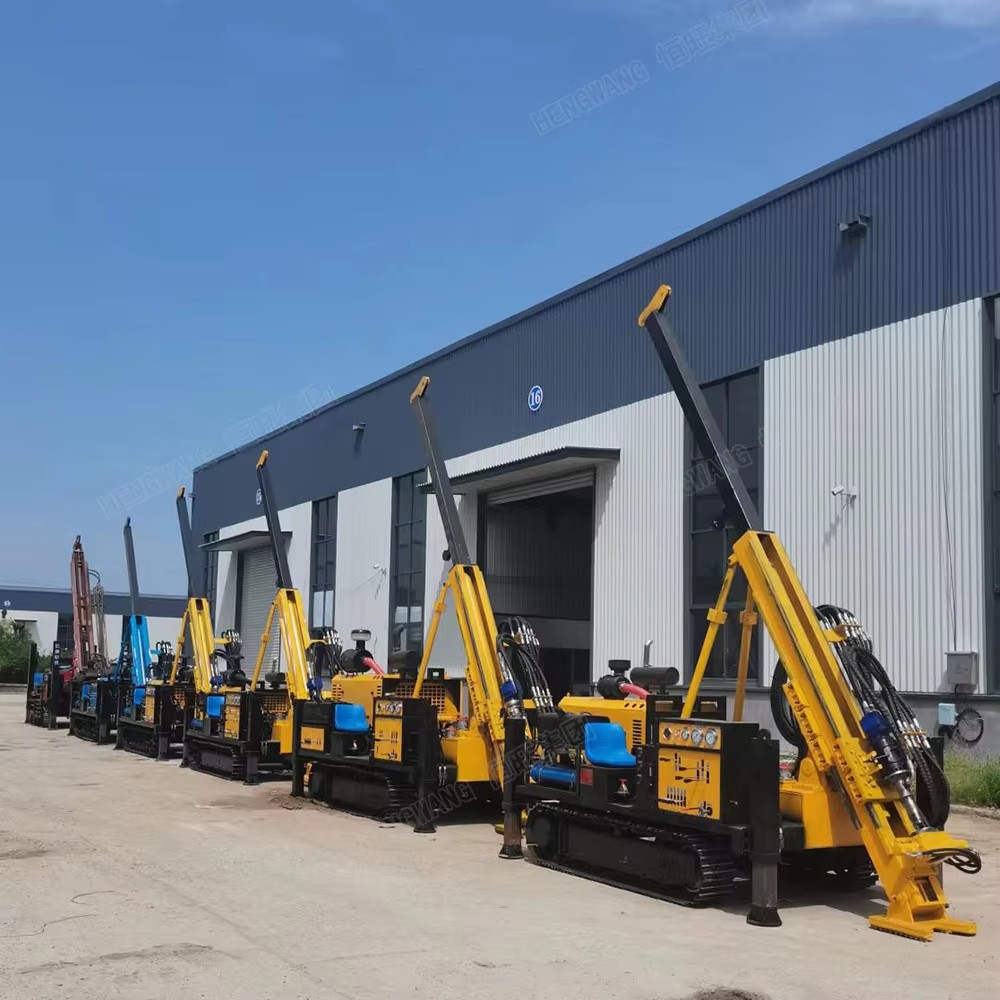

Product detail
CE
Packaging and fulfilment
  • Step 1

    Payment and order readiness

    Minimum order: 1 Units

    Payment terms, specifications, and order details are confirmed before preparation begins.

  • Step 2

    Preparation

    10 days

  • Step 3

    Packaging and dispatch

    Packaging details are available on request.

    Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications
Other details 30 fields
Usage
Ore
Type
Core Drilling Rig
Drilling Depth
Max.600m
Drilling Diameter
60 mm(2.36in), 300 mm(11.81in), 50 mm(1.97in), 75mm(2.95in), 100 mm(3.94in), 200 mm(7.87in)
Power Type
Diesel
Voltage
220V/380V
Core components
Motor, Engine, Pump
Warranty
1 Year
Machinery test report
Provided
Video outgoing-inspection
Provided
Key selling points
High Safety Level
Place of origin
China, Shandong
Weight
7500 KG(16534.67lb)
Dimension (L*W*H)
6000*2200*2400mm(236.22*86.61*94.49in)
Diameter
HTW-NTW-BTW
Depth
500m-1000m-1100m
Rated pressure
28Mpa
Rated flow
300L/min
Cooling type
Air cooling + Water cooling
Engine type
Turbocharge
Rated power
154KW
Traveling speed
3.5km/h
Power head Maximum torque
1000-3500Nm
Power head Feeding stroke
3500mm
Selling Units
Single item
Single package size
600X220X240 cm
Single gross weight
7500.000 kg
Model number
HW-YDX-400XL, HW-YDX-600XL, HW-YDX-600GL, HW-YDX-800XL, HW-YDX-800GL, HW-YDX-1000GL
Power (W) (Product option)
92KW(123.37hp), 78KW(104.60hp), 154KW(206.52hp)
Certifications & Compliance
CE
Lead time
10 days
Minimum order
1 Units
