Name: Darda C10 Stone Splitting Wedges Hydraulic Stone and Rock Splitter Gun
SKU: B2B-69384
Price: 890.0 USD
Availability: PreOrder

Product description

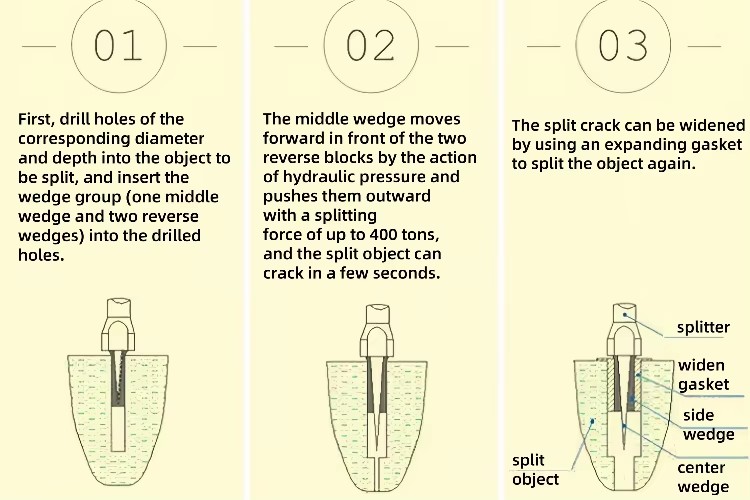

A splitting gun is a kind of powerful and efficient tool used for splitting rocks, concrete and other hard materials. It mainly consists of a cylinder, a piston, a wedge block and other components. The working principle of the splitting gun is that when high - pressure oil enters the cylinder, it drives the piston to move forward at a high speed, and then the piston impacts the wedge block. The wedge block generates a huge splitting force, which makes the rock or concrete crack and split along the predetermined direction. This tool has many advantages. For example, it has high splitting efficiency, can complete the splitting work in a short time, and can save a lot of time and labor costs. It also has high safety performance. Compared with traditional blasting methods, it does not produce flying stones, noise and other harmful effects, which can effectively protect the surrounding environment and personnel safety. In addition, the splitting gun is easy to operate and maintain, and has a wide range of applications in the fields of mining, construction, road construction and so on.

Model	V-250	V-350	V-450
Wedge Length	250mm	350mm	450mm
Piston Stoke	90/220mm	90/220mm	90/220mm
Drill Hole Diameter	40mm	42mm	45mm
Drill Hole Depth	500mm	600mm	700mm
Splitting Time	6-20s	6-20s	6-20s
Splitting Force	500Ton	500Ton	500Ton
Weight	30Kg	32Kg	35Kg

Engine Type	Power	Fuel Tank Capacity	Working Medium	Working Pressure Mpa	Work Flow(L/Min.)	Compatiable Splitter Numbers	Specifications(mm)	Weight (kg)
Elecric Type	4KW	30L	46/68 Wear-resistant hydraulic oil	63	2-13	1-6	384x280x260	75
7.5KW	100L	63	4-16	1-6	1150x1050x980	135
Diesel Type	8HP	40L	63	2-13	1-6	1200x1170x800	120
18HP	100L	63	4-16	1-6	980x830x1250	345

Q: Is this splitting gun easy to operate?

A: Yes, it is designed to be user friendly with simple controls for quick mastery.

Q: How to drill the suitable hole for inserting the splitting guns and start to splitting process?

A: According to the model of the splitting wedge, customer shall drill hole diameter 40mm, 42mm,50mm on the objects by a pneumatic drilling rig.

Q: What types splitting guns can you produce?

A: We can produce steel splitting guns, aviation aluminum alloy splitting guns, electric rock splitters, diesel engine powered rock splitters, gasoline-engine powered splitter guns. Customization is also available according to customer requirements.

Q: How to choose between the Diesel, Gasoline,and Electric Hydraulic Power Pack, which one is more powerful?

A: Due to the lack of electricity access, some customers will choose diesel or petrol one for the site works. They are having the same power, normally we suggest to adopt 63Mpa pressure to work with the splitting wedge guns.

Q: How long is your product warranty period?

A: We offer a one-year comprehensive warranty on the entire machine excluding the wearable parts. Additionally, we offer lifetime technical support to ensure the smooth operation.

Description images

Packaging and fulfilment

Step 1

Payment and order readiness

Minimum order: 1 Units

Payment terms, specifications, and order details are confirmed before preparation begins.
Step 2

Preparation

7 days
Step 3

Packaging and dispatch

Packaging details are available on request.

Final packing, freight, and delivery dates are confirmed before dispatch.

Technical specifications

Other details 21 fields

Type

Rock Splitter

Motor Type

Electric or Diesel Engine

Core components

Motor, Pump

Machinery test report

Provided

Video outgoing-inspection

Provided

Warranty

1 Year

Weight (kg)

200

Place of origin

China, Henan

Application

concrete demolition, Boulders Breaking

Key word

Hydraulic Rock Splitter

Piston stroke

90/220mm

Splitting force effective

500Ton

Supporting hydraulic power

Diesel/Electric

Working medium

46# 48# Hydraulic Oil

Work pressure

63Mpa or upwards

Required Drill hole Dia.

40mm,42mm,46mm

Drill hole depth

500mm-700mm

Splitting Cycle

6-40s

Selling Units

Single item

Power (W) (Product option)

4kw or 7.5kw for electric, 8 or 18hp for diesel engine

Model number

VA-350, VA-250, VA-450

Lead time

7 days

Minimum order

1 Units
